Vickers PVH Series High-Performance Variable Piston Pumps & Control Valves

Product Overview:

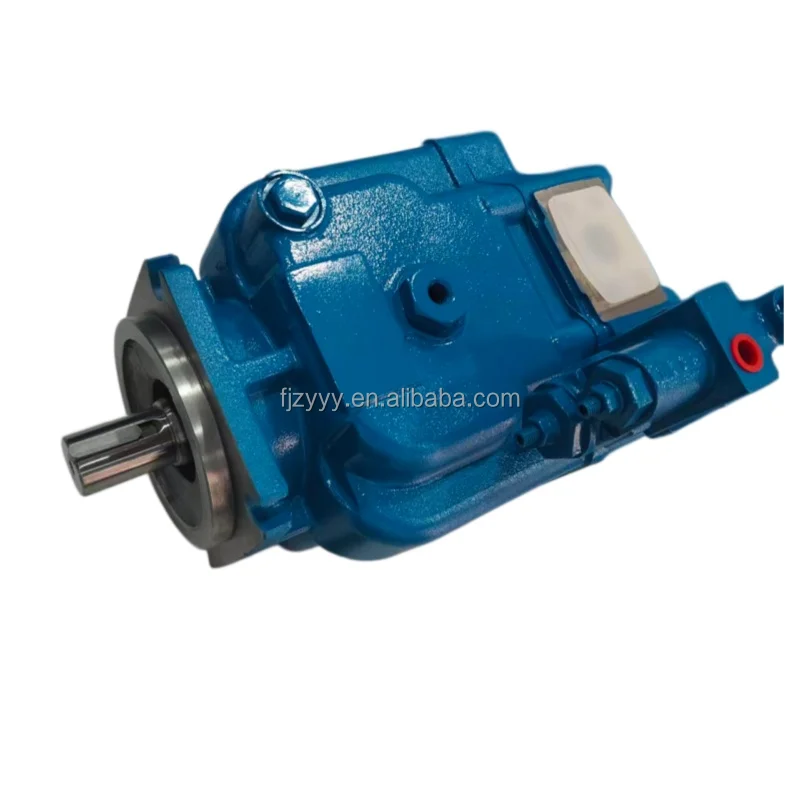

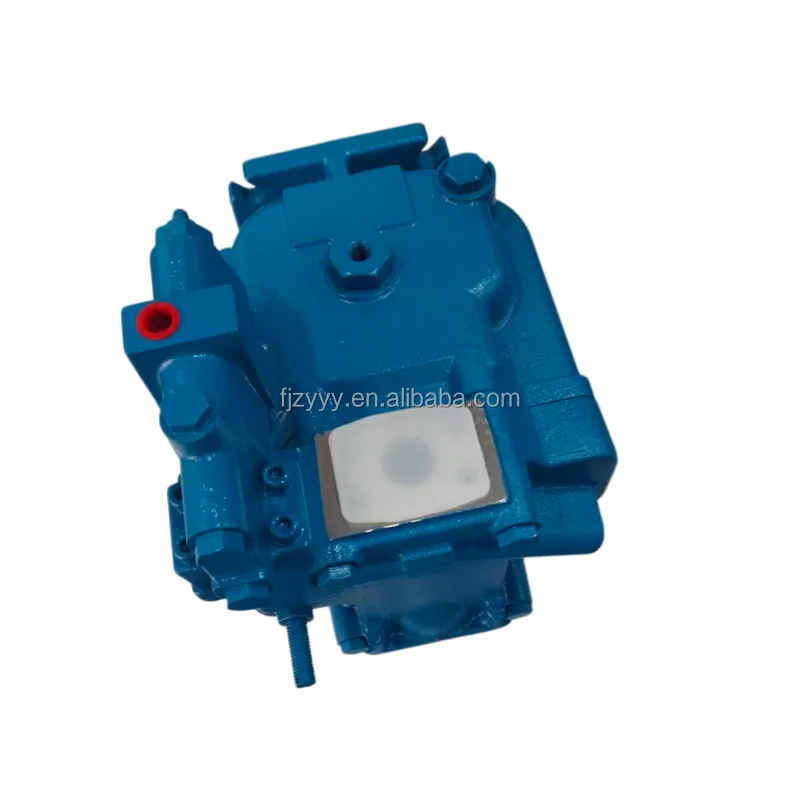

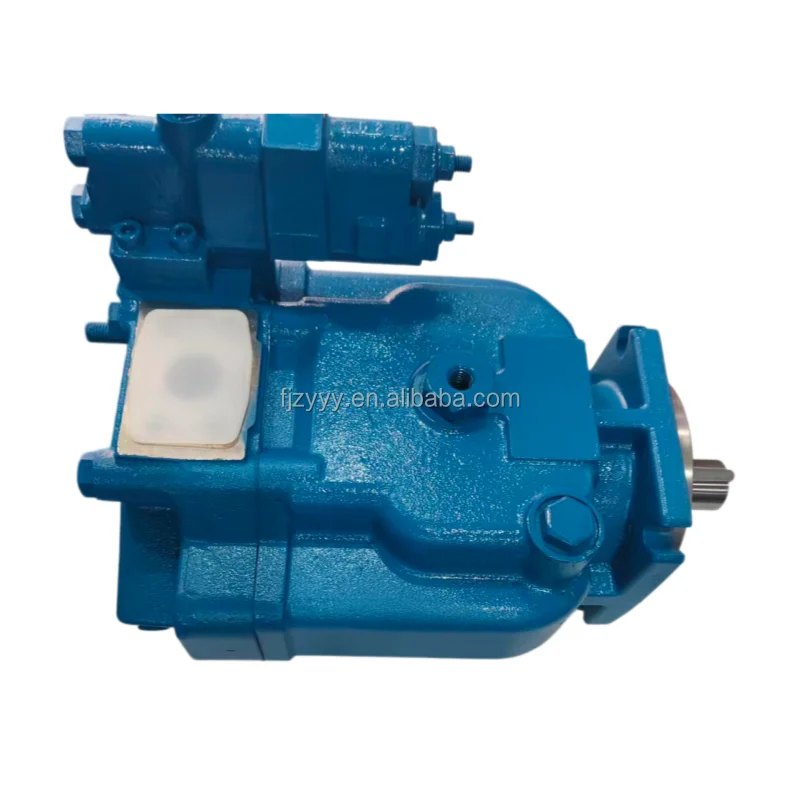

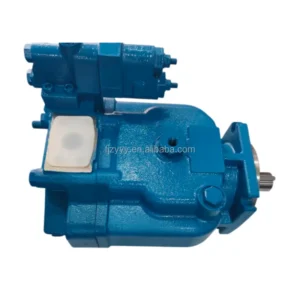

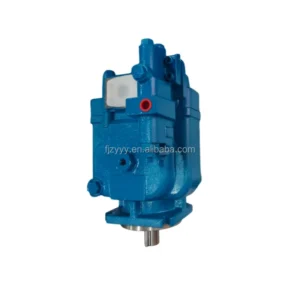

The Vickers PVH series (including PVH057, PVH074, PVH098, PVH131, PVH141) is the powerhouse behind global industrial and mobile hydraulic systems. These axial piston variable pumps are engineered to provide high continuous operating pressures and an extended service life. With advanced control options like pressure compensation and load sensing, the PVH series adjusts flow in real-time based on system demand, significantly reducing energy consumption and heat generation. Whether used in construction machinery, injection molding, or metal forming, the PVH series delivers superior power performance.

Featured models: PVH057, PVH074, PVH098, PVH131, PVH141, Part Number 02-143363, and configuration PVH098R01AJ30B211700001001AB010A.

Key Technical Advantages:

• High-Efficiency Performance: Optimized cylinder block and piston design yield volumetric efficiencies over 95%, enhancing overall system response.

• Low Noise Operation: Features unique swashplate damping technology to maintain operational noise levels well below industry standards, even at full displacement and high pressure.

• Responsive Control Valves: The integrated control modules (such as pressure compensators) react instantly, ensuring smooth transitions during pressure shifts and protecting the hydraulic circuit.

• Rugged Construction: High-strength ductile iron housings and reinforced bearing arrangements are built to withstand heavy-duty impacts in harsh environments.

• Precision Long-Code Matching: Supports complex configurations like the PVH098R series, encompassing specific rotation, shaft ends, and specialized compensator settings.

Detailed Specifications & Parameters:

• Displacement Matrix:

  • PVH057: Max displacement $57\text{ cm}^3/\text{r}$

  • PVH074: Max displacement $74\text{ cm}^3/\text{r}$

  • PVH098: Max displacement $98\text{ cm}^3/\text{r}$

  • PVH131/141: Max displacement up to $131/141\text{ cm}^3/\text{r}$

• Core Technical Specs:

  • Rated Pressure: Up to 250 bar (3625 psi) continuous duty.

  • Peak Pressure: Up to 280 bar (4060 psi).

  • Control Types: Pressure Compensator (C), Load Sensing (CV), Remote Control, and Electronic Proportional Control.

  • Rotation: R (Right-hand/Clockwise) or L (Left-hand/Counter-clockwise).
