Vickers Modular Valve | DGMPC-3-ABK | DGMPC-5 | DGMFN-3-X

Vickers DGMPC & DGMFN Series Modular Stack Control Valves

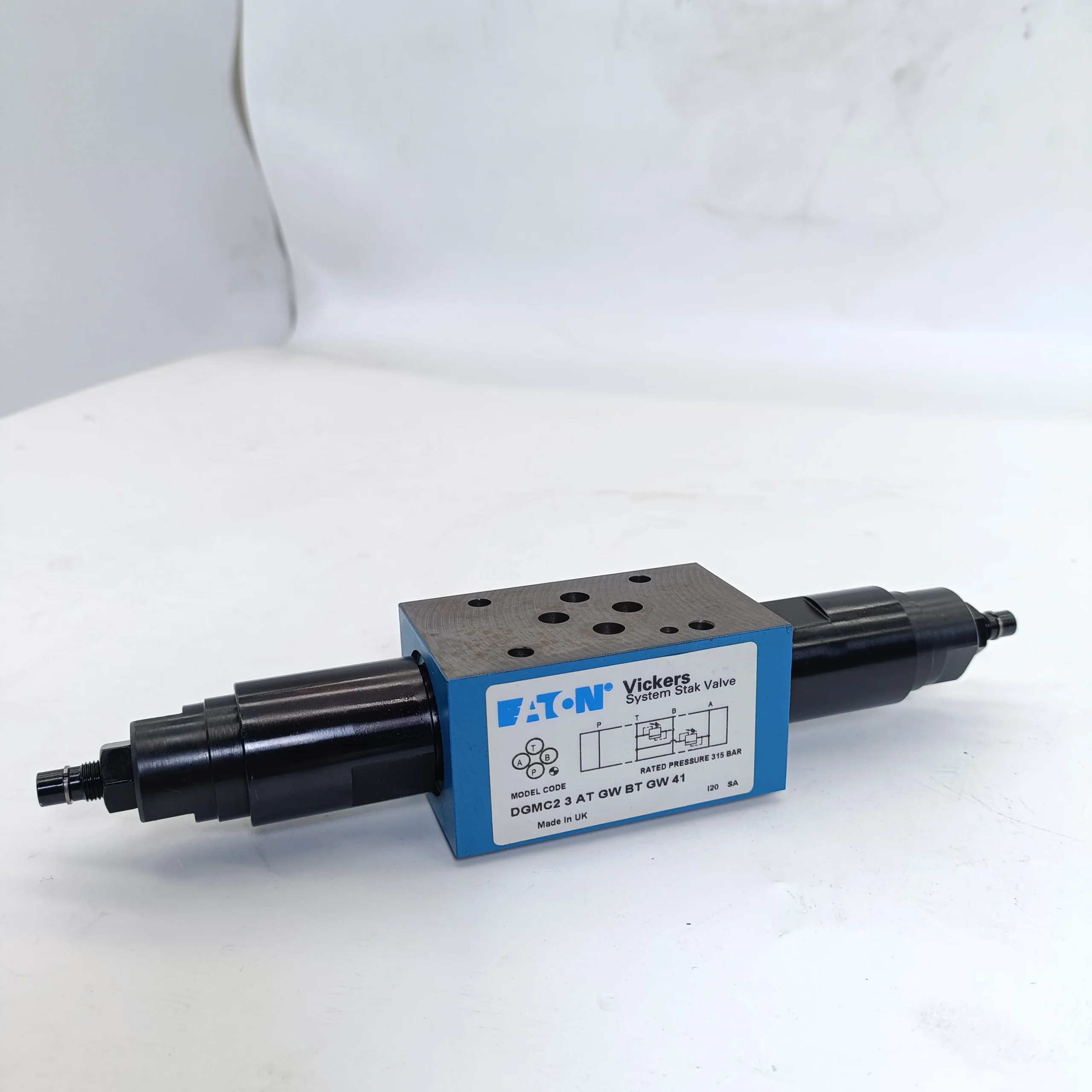

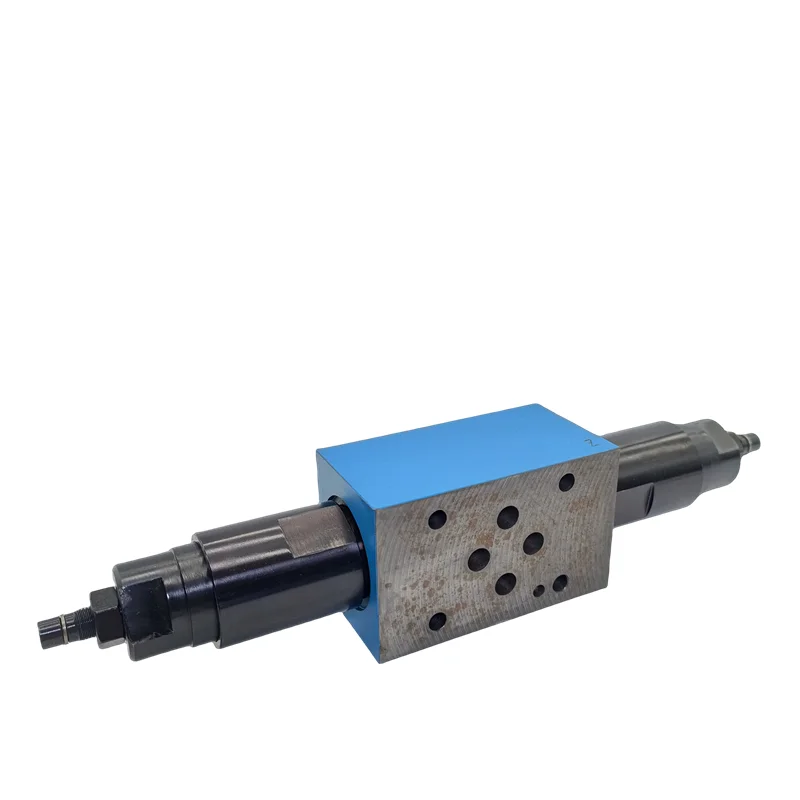

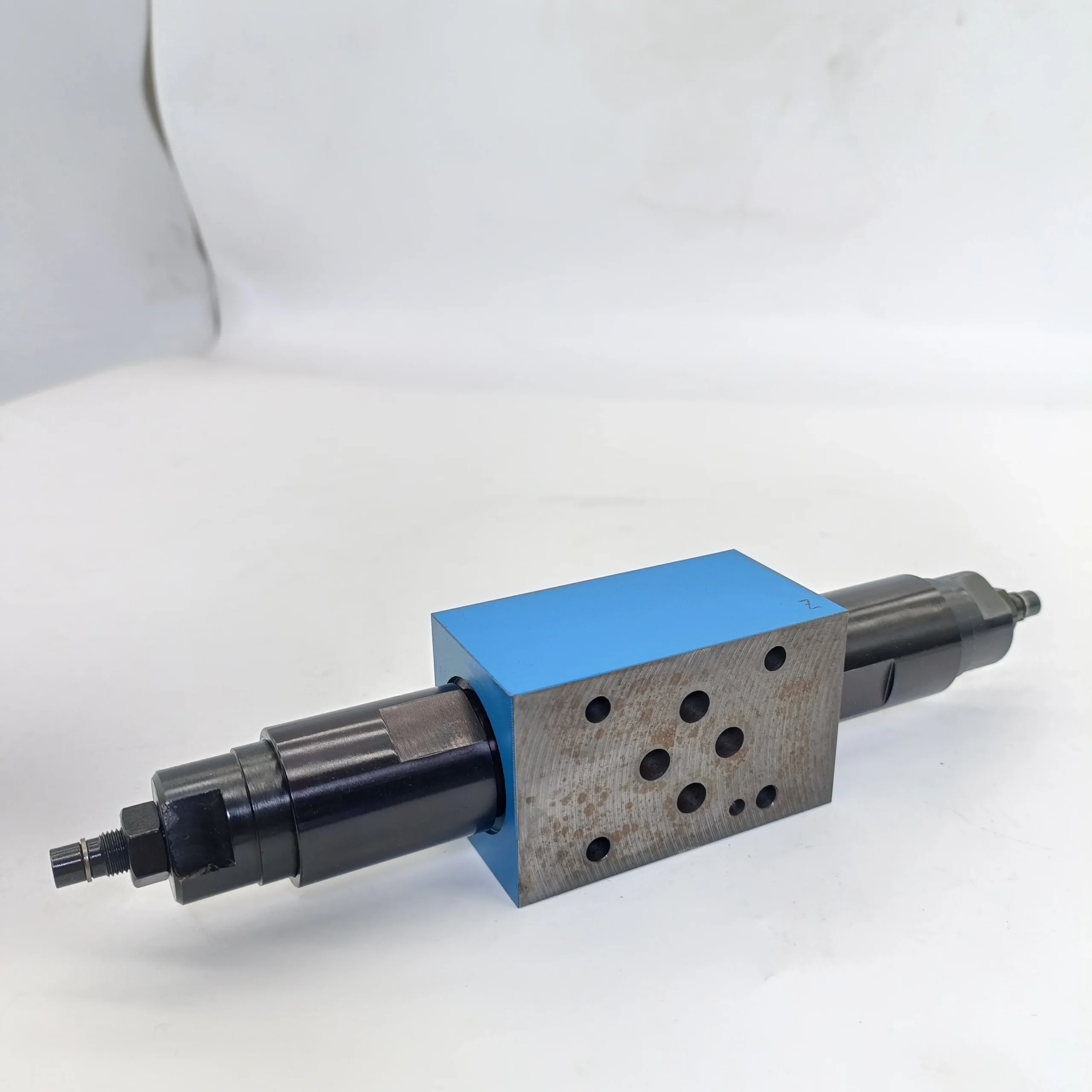

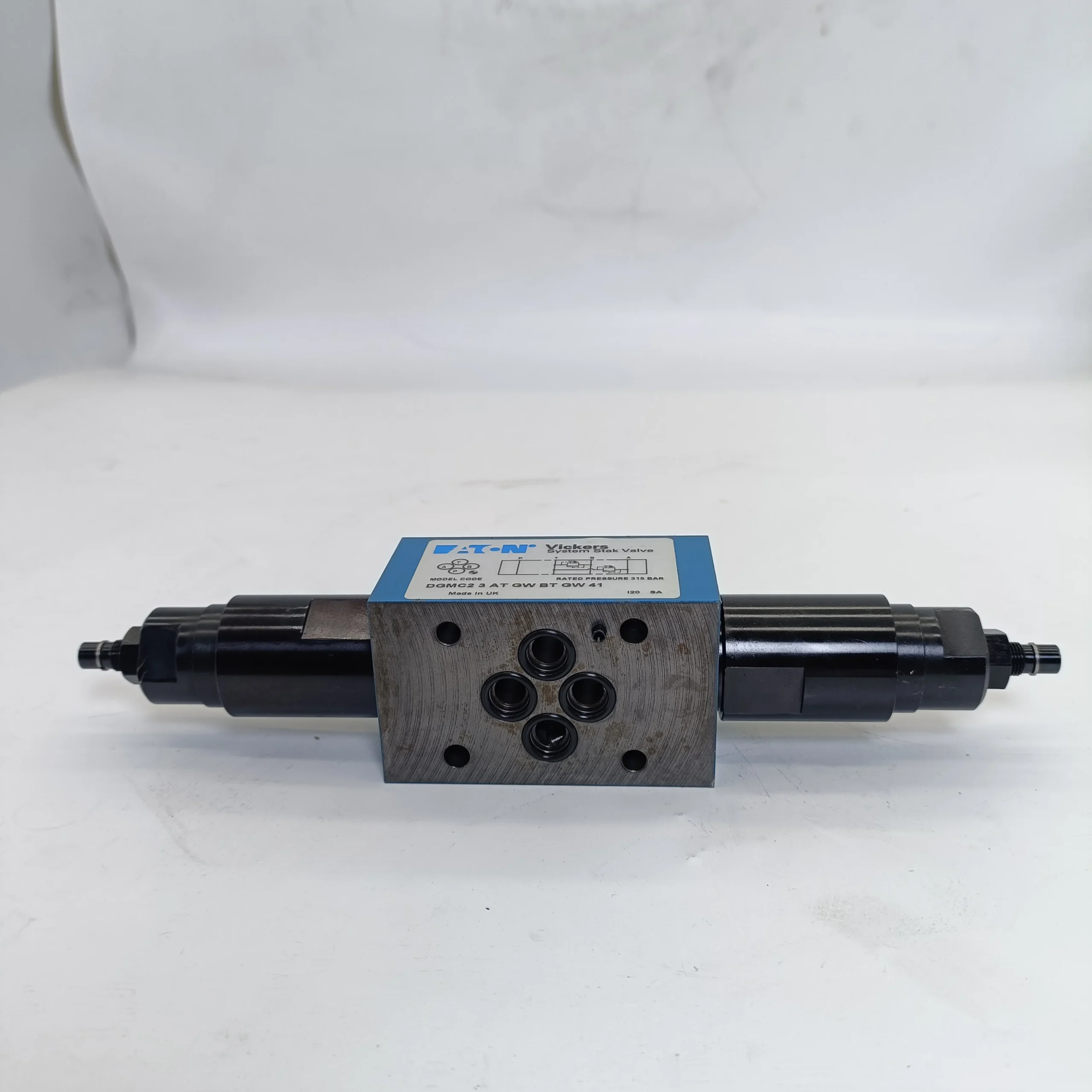

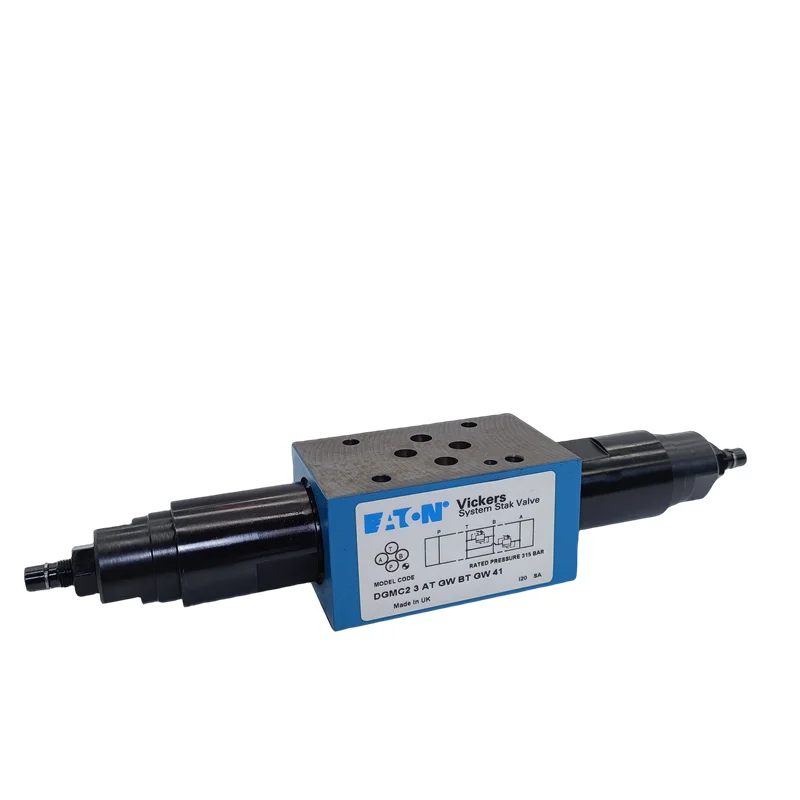

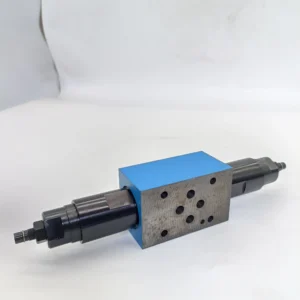

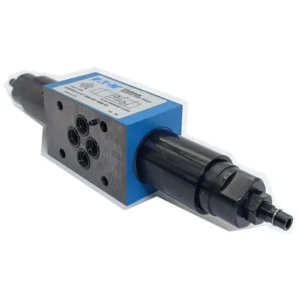

Product Overview: The Vickers Modular Stack Valve Series is the foundation for constructing efficient, compact hydraulic circuits. Designed to stack directly beneath directional control valves (such as the DG4V series), these modules provide pressure locking or flow regulation for actuators, eliminating the need for external piping and significantly reducing the overall system footprint. The DGMPC is a Pilot Operated Check Valve used to prevent cylinder drift under load, while the DGMFN is a precision Flow Control Valve for fine-tuning actuator speed. Both series comply with ISO 4401 standards for NG6 (Size 3) and NG10 (Size 5).

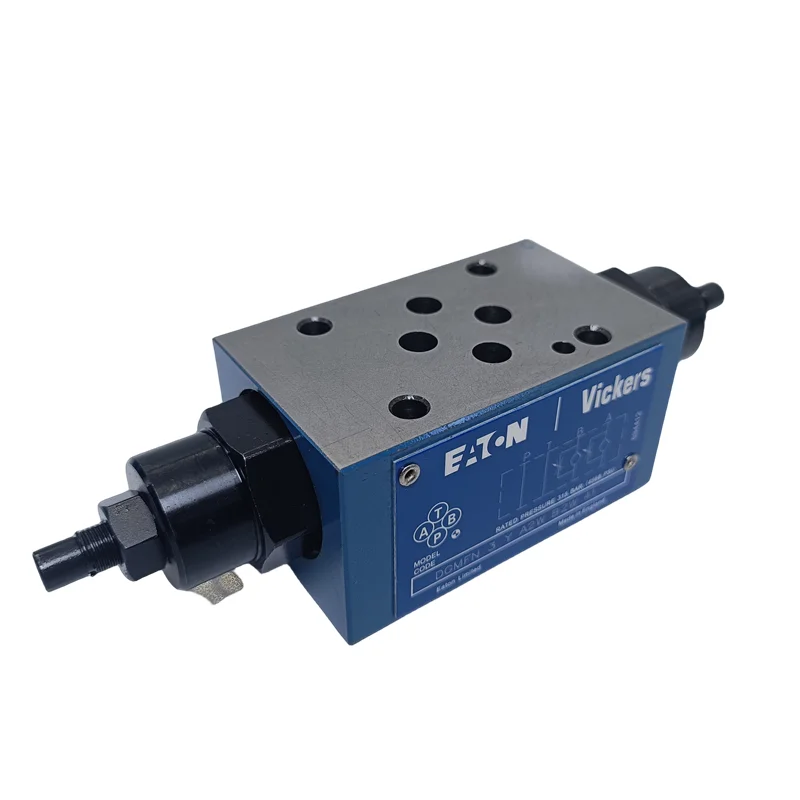

Featured models include the dual-port Pilot Check Valve DGMPC-3-ABK-BAK-41 and the dual-port Flow Control Valve DGMFN-3-X-A2W-B2W-41Q.

Key Technical Advantages:

• Leakage Reduction: The modular stacking design minimizes external fittings and piping, reducing potential leak points and simplifying maintenance.

• Reliable Load Locking: The DGMPC series offers robust pilot-operated locking, ensuring actuators maintain position during center-null or pressure loss conditions.

• Fine-Tuned Flow Control: The DGMFN features high-resolution adjustment knobs for independent metering of flow in both A and B ports (meter-in or meter-out).

• Industrial-Grade Durability: Built with high-strength castings and precision-ground internal components to ensure longevity during high-cycle industrial operations.

Detailed Specifications & Parameters:

• Core Series: Vickers Modular Stack Valves (Size 3 & 5).

• Featured Model Matrix:

  • DGMPC-3-ABK-BAK-41 (NG6, Dual-port A&B Pilot Operated Check, Series 41)

  • DGMFN-3-X-A2W-B2W-41Q (NG6, Dual-port A&B Flow Control with knobs)

  • DGMPC-3 / DGMPC-5 (Standard NG6 and NG10 Pilot Check Valve sequences)

• Core Performance Specs:

  • Nominal Sizes: NG6 (CETOP 03) and NG10 (CETOP 05).

  • Max Operating Pressure: Rated up to 315 Bar (4,500 PSI).

  • Max Flow Rates: Approx. 60 L/min for DGMPC-3 and 120 L/min for DGMPC-5.

  • Cracking Pressure: Various options available (e.g., 1 Bar, 2 Bar, 5 Bar).
