Vickers DGMX2 & DGMFN Series Modular Valve | DGMX2-5-PP DGMFN-5-Y | NG10 CETOP 5
| Model Number | DGMX25PAFWB30 |
|---|
Product Description

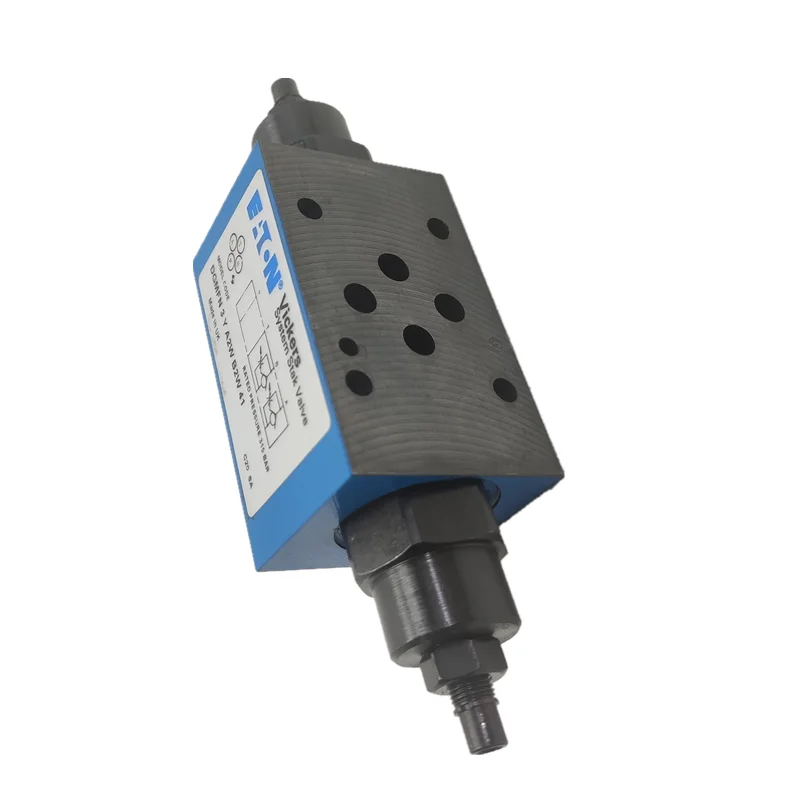

Vickers DGMX2 & DGMFN Series NG10 Modular Control Valves
Product Overview: The Vickers DGMX2 and DGMFN Series are industry-standard modular solutions for precise pressure management and flow regulation in heavy-duty hydraulic systems. Designed to ISO 4401-05 (NG10) standards, these sandwich-style valves stack directly beneath directional control valves to eliminate extra plumbing. This category highlights premier high-flow models: DGMX2-5-PP-FW-B-30 (Reducing valve), DGMX2-5-PA-FW-B-30, and DGMFN-5-Y-A2W-B2W-30 (Flow control valve).
While the DGMX2 series maintains a stable, reduced pressure for branch circuits, the DGMFN series provides fine-tuned speed control for actuators via meter-in or meter-out regulation. They are the top choice for large-scale machine tools, plastic processing machinery, hydraulic presses, and industrial Power Units (HPU).
Key Technical Advantages:
NG10 Standardized Architecture: Fully compliant with ISO 4401-05 interfaces, capable of handling flow rates up to 120 L/min while maintaining a compact footprint.
Precise Secondary Regulation: DGMX2 ensures consistent branch pressure even amidst primary system fluctuations, safeguarding sensitive actuators.
Dual-Channel Flow Flexibility: The DGMFN features independent A2W and B2W adjustment mechanisms, allowing simultaneous meter-out control for both cylinder chambers.
Industrial Durability: Constructed with high-tensile castings and precision-ground spools, rated for long-term sealing and accuracy at 315 Bar operating pressures.
Detailed Specifications & Parameters:
Core Series: Vickers Modular Pressure & Flow Controls.
Featured Model Matrix: DGMX2-5-PP-FW-B-30, DGMX25PAFWB30, DGMFN-5-Y-A2W-B2W-30, DGMFN5Y.
Core Performance Specs:
Nominal Size: Size 05 (NG10 / CETOP 5).
Max Operating Pressure: Rated for operations up to 315 Bar (4,500 PSI).
Max Rated Flow: Up to 120 L/min (32 USgpm).
Adjustment Codes: F (Reducing range 7–210 Bar), B (Design sequence).
Adjustment Type: Type W screw adjustment with locking nut to prevent vibration-induced drift.
