Vickers DGMPC-7-ABK-BAK-10 | Modular Pilot Operated Check Valve | NG16 CETOP 7

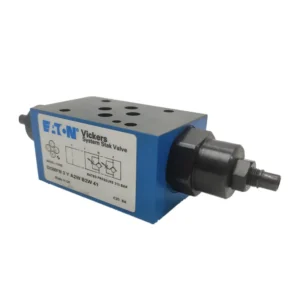

Vickers DGMPC-7 Series Modular Pilot Operated Check Valves

Product Overview: The Vickers DGMPC-7 Series is a heavy-duty, modular pilot-operated check valve featuring a sandwich-plate design that fully complies with ISO 4401-07 (NG16) international mounting standards. Engineered for high-flow capacity and absolute load-holding reliability, this series highlights the core model: DGMPC-7-ABK-BAK-10.

Typically installed between a directional control valve and a sub-plate, this valve acts as a high-performance hydraulic lock. By utilizing pilot pressure to release the internal check poppets, it allows for controlled reverse flow, ensuring zero cylinder drift for large-scale actuators. It is the premier choice for large metal presses, heavy-duty construction machinery, injection molding systems, and complex industrial HPUs.

Key Technical Advantages:

• NG16 High-Flow Design: Manages substantial system flow rates while maintaining minimal pressure drop, enhancing overall system efficiency.

• Dual Port Locking (ABK-BAK): Provides independent check protection for both A and B ports, ensuring total safety for double-acting actuators.

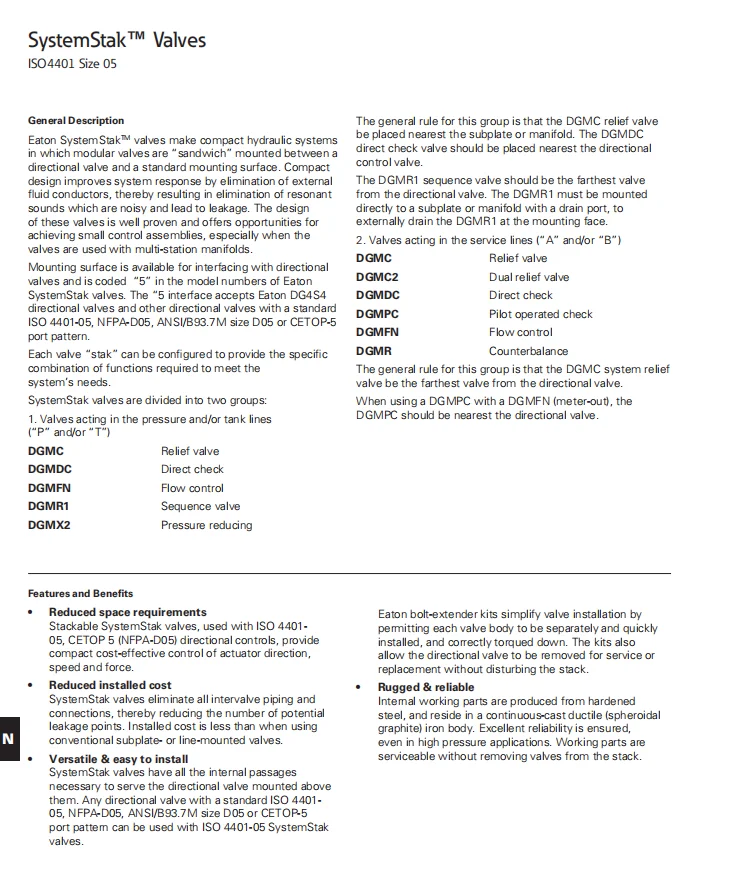

• Standardized Modular Stack: Integrates seamlessly into valve stacks without extra plumbing, significantly reducing potential leak points and installation costs.

• Extreme Durability: Constructed with high-tensile iron castings and hardened, ground spools, rated for continuous operations up to 315 Bar.

Detailed Specifications & Parameters:

• Core Series: Vickers DGMPC Modular Pilot Check Valves.

• Featured Model Matrix: DGMPC-7-ABK-BAK-10, DGMPC7ABK, DGMPC7, NG16 Valve.

• Core Performance Specs:

  • Nominal Size: Size 07 (NG16 / CETOP 7).

  • Max Operating Pressure: Rated for heavy-duty operations up to 315 Bar (4,500 PSI).

  • Max Rated Flow: Up to 300 L/min (79 USgpm).

  • Cracking Pressure Code: K (Specifies spring tension for smooth pilot-assisted opening).

  • Design Sequence: 10 series design.
