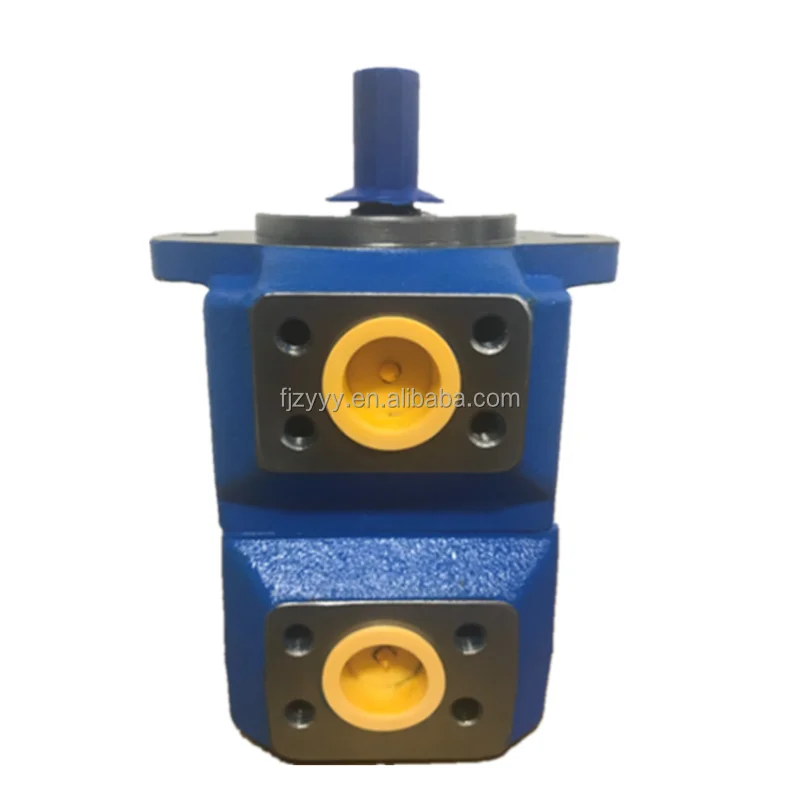

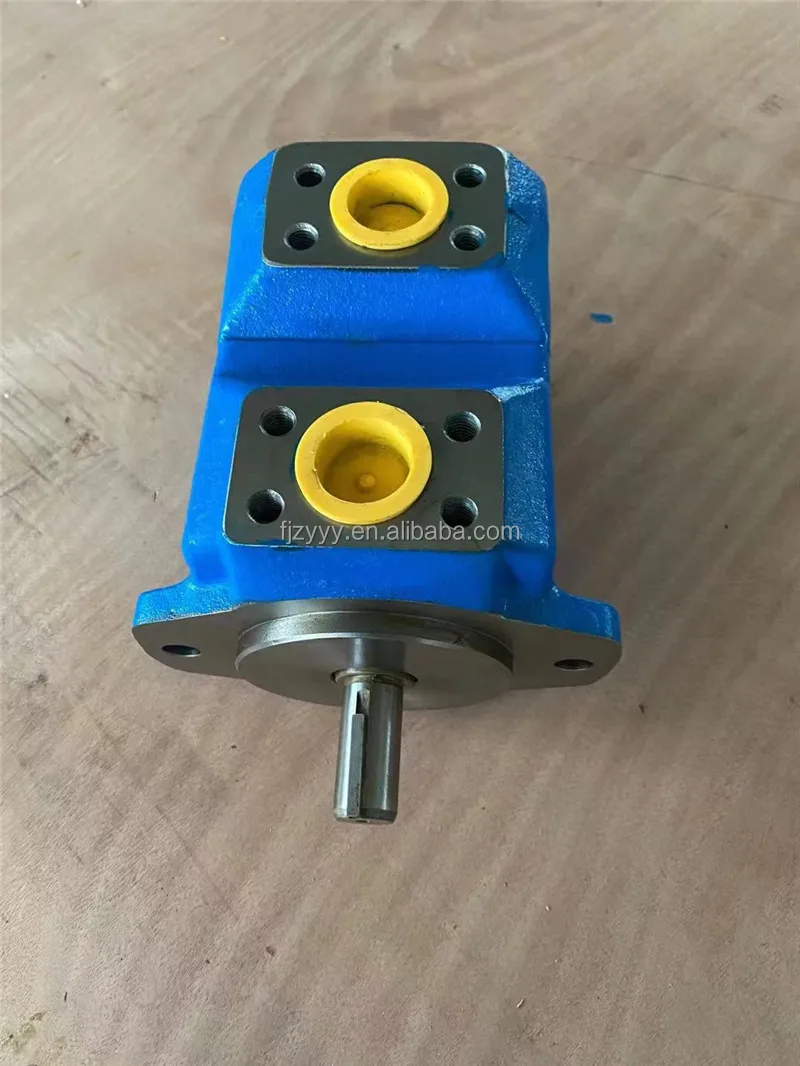

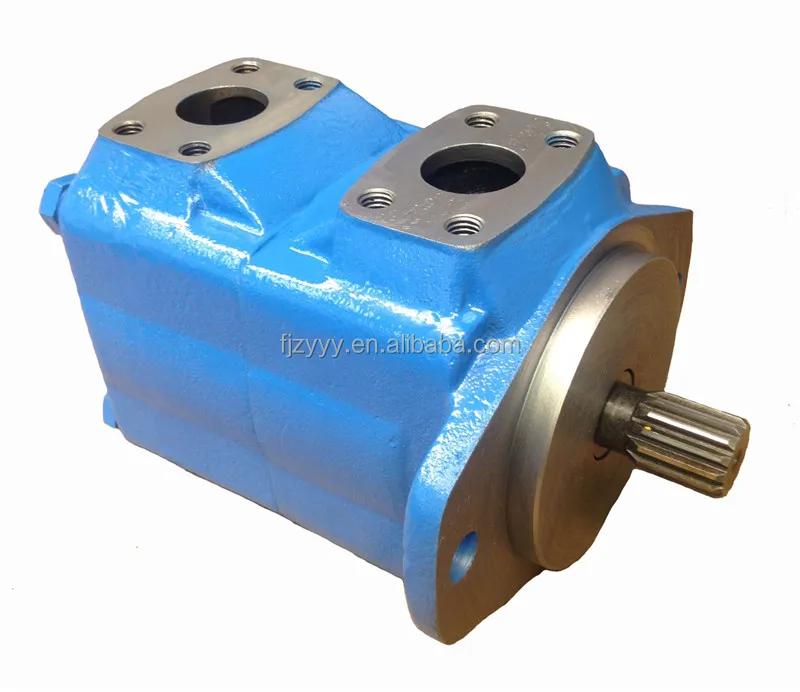

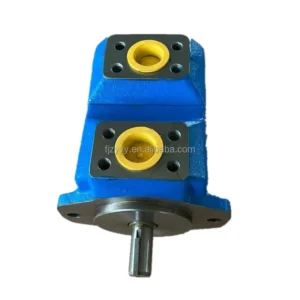

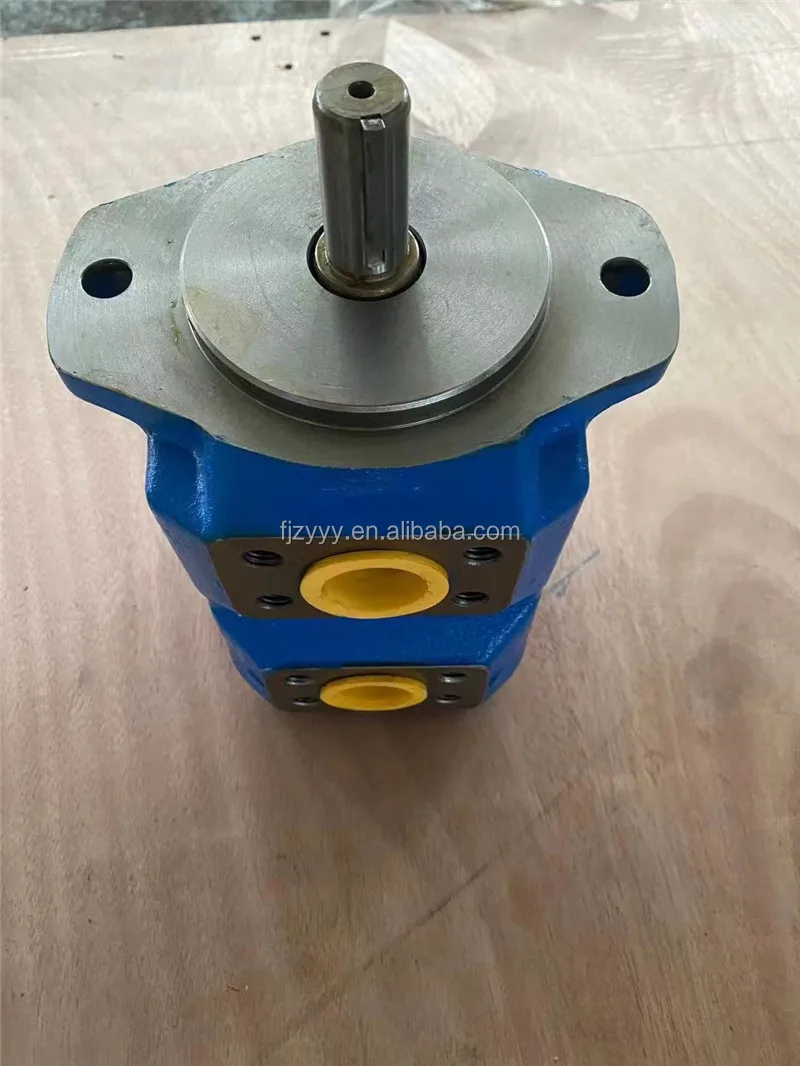

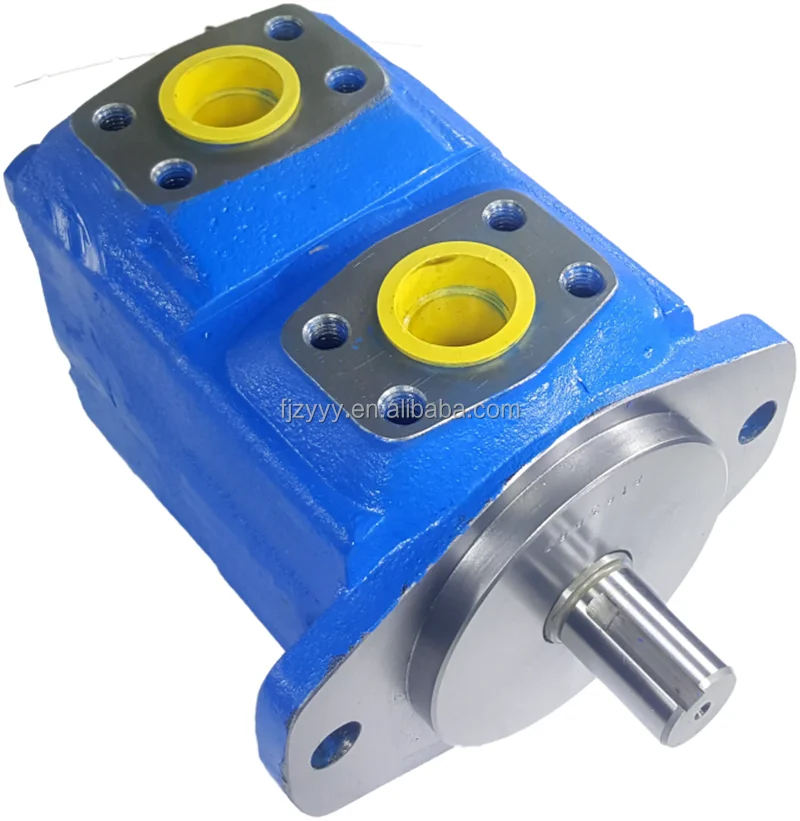

Vickers M Series High-Performance Balanced Vane Hydraulic Motors

Product Overview: The Vickers M Series is a masterpiece of hydraulic drive technology, widely utilized in industrial and mobile applications demanding high speed, frequent reversals, and long-term durability. This series offers a full matrix from compact 25M/26M to heavy-duty 45M/46M and ultra-high-power 50M/51M frames. This category highlights the precision models: 26M42A1A20, 36M115A11C20, 46M155A1A20, and the heavy-duty 51M300A1A20114. Its unique hydraulically balanced design minimizes bearing loads, making it the premier choice for injection molding, winch drives, material handling, and forming machinery.

Key Technical Advantages:

• Hydraulically Balanced Architecture: The internal rotor is balanced to eliminate radial loads, ensuring smooth operation and dramatically extended bearing life under high pressure.

• Modular Cartridge Kit Design: Rotating elements are contained within a self-contained cartridge, allowing for rapid on-site replacement without removing the motor body from the machine.

• Superior Speed & Pressure Capability: Capable of handling speeds up to 4000 RPM while maintaining consistent power output through frequent duty cycles and startup pulses.

• Bi-rotational & High Response: Engineered for rapid acceleration and deceleration with perfectly symmetric performance in both clockwise and counter-clockwise directions.

• Technical Spec Decoding:

  • 25M/26M/35M/36M…: Denotes frame sizes and housing configurations.

  • 42A / 115A / 155A / 300A: Torque displacement codes (lb-in/100 psi), defining the output torque rating.

  • 1A / 11C: Relates to mounting flange standards (e.g., SAE) and shaft ends (Keyed or Splined).

Detailed Models & Parameters:

• Core Series: Vickers Balanced Vane Motor (M Series).

• Featured Model Matrix:

  • 26M42A1A20: Displacement 42lb-in/100psi, compact high-efficiency drive.

  • 36M115A11C20: Displacement 115lb-in/100psi, mid-range balanced power.

  • 46M155A1A20: Displacement 155lb-in/100psi, the industrial workhorse for heavy loads.

  • 6M95A1A20: Optimized specifications for targeted high-speed requirements.

  • 51M300A1A20114: Displacement 300lb-in/100psi, engineered for maximum torque delivery.

• Core Performance Specs:

  • Max Pressure: Continuous operation up to 155 Bar (2250 PSI); intermittent peaks at 172 Bar.

  • Speed Range: Precise control from 400 RPM to 4000 RPM.

  • Displacement Range: Covers from small precision drives to large heavy-duty transmissions.
