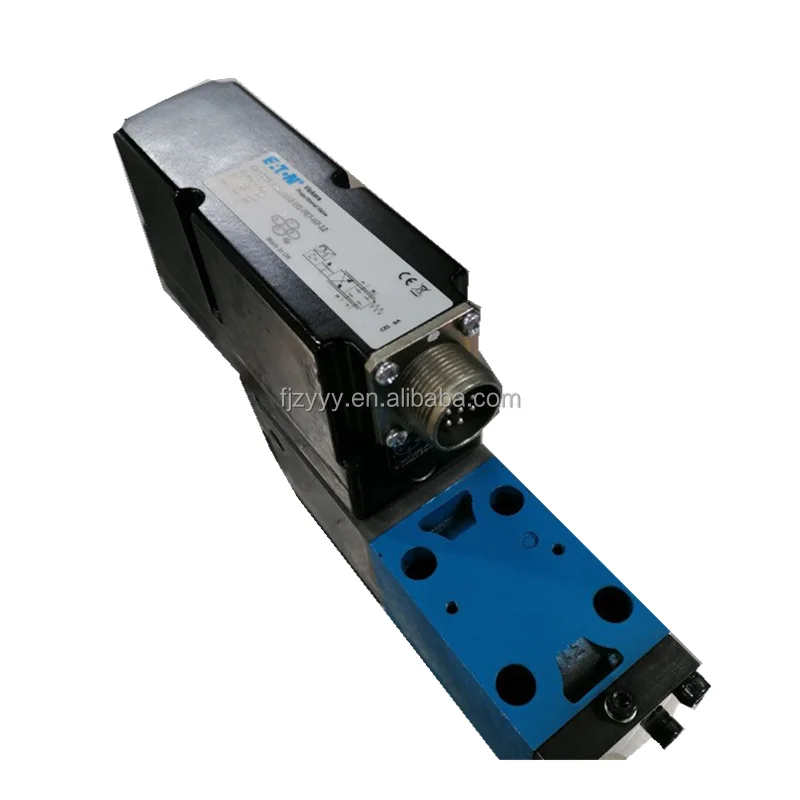

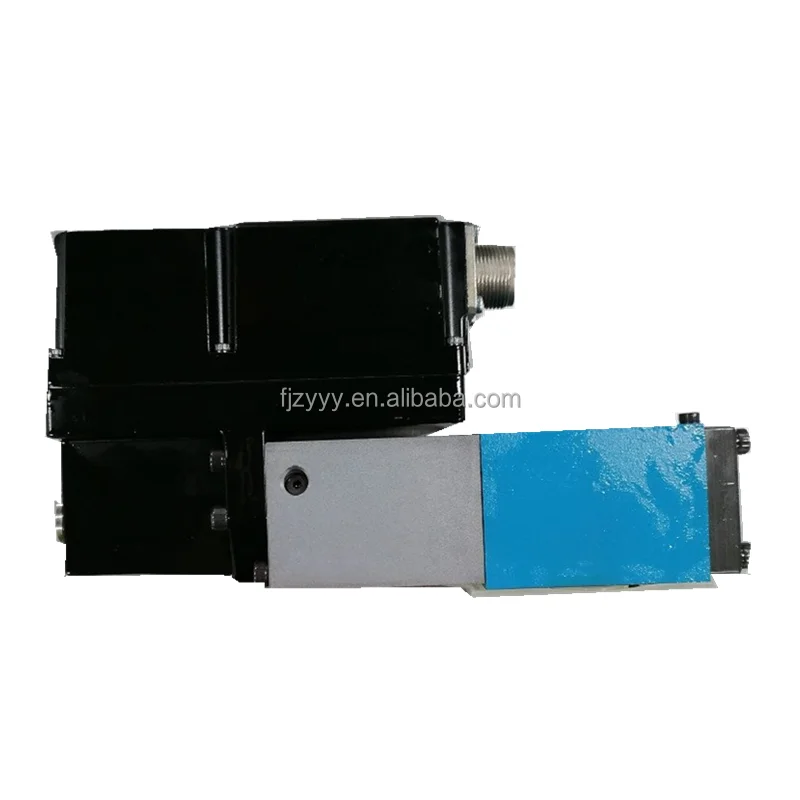

Vickers KBSDG4V Proportional Valve | KBSDG4V-3-92L-40-M1-PE7-H7-10 | Integrated OBE | High Response
| Model Number | KBSDG4V -3-92L-40-M1-PE7-H7-10 |
|---|
Product Description
Vickers KBSDG4V Series High-Response Proportional Valves with OBE
Product Overview:
The Vickers KBSDG4V series represents the gold standard in hydraulic precision, specifically engineered for demanding applications requiring ultra-high dynamic response and closed-loop position control. Featuring Integrated On-Board Electronics (OBE) and an LVDT displacement sensor, this valve ensures high-precision control by monitoring spool position in real-time. As a direct-operated proportional valve, the KBSDG4V requires no pilot pressure, making it the premier choice for industrial presses, injection molding units, and advanced metallurgical control systems.
Featured models: KBSDG4V-3-92L-40-M1-PE7-H7-10 and KBSDG4V-3-92L-40-M1-PC7-H7-11.
Key Technical Advantages:
Integrated OBE Digital Drive: The amplifier is mounted directly on the valve, eliminating the need for external control cards, minimizing signal noise, and simplifying electrical installation.
Servo-Class Dynamics: Delivers exceptional frequency response and ultra-low hysteresis ($\le 0.5\%$), rivaling servo-valve performance for precise tracking of complex motion profiles.
High-Precision LVDT Feedback: The internal sensor provides real-time spool position monitoring, guaranteeing high linearity and flow stability even under fluctuating system pressures.
Enhanced Environmental Resilience (PE7/PC7): Specialized seals and electrical enclosures offer superior ingress protection and excellent electromagnetic compatibility (EMC).
Standard Industrial Interface: Fully compliant with ISO 4401-03 (NG6) mounting standards, facilitating easy drop-in replacements and performance upgrades.
Detailed Specifications & Parameters:
Core Model Matrix:
KBSDG4V-3-92L: Size 3 (NG6), specialized with the 92L flow rating for refined proportional metering.
M1 / PE7 / PC7: Indicates specific electrical connector configurations, seal ratings, and engineering design sequences.
Core Technical Specs:
Max Operating Pressure: Rated up to 315 bar (4500 psi) at P, A, and B ports.
Flow Capacity: Provides smooth proportional flow output across the entire command range.
Supply Voltage: 24V DC (H7).
Command Signal: Standard analog input (e.g., $\pm 10\text{V}$).
Protection Rating: IP65/IP67 (depending on model suffix configuration).
