Vickers KBFDG5V & KBDG5V | KBFDG5V-7-2C200N | KBDG5V-5-2C90N | Proportional Directional Valve
| Model Number | KBFDG5V-7-2C200N-X-M1-PE7-H1-10 |
|---|
Product Description

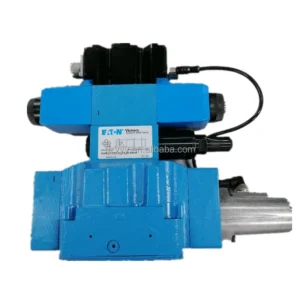

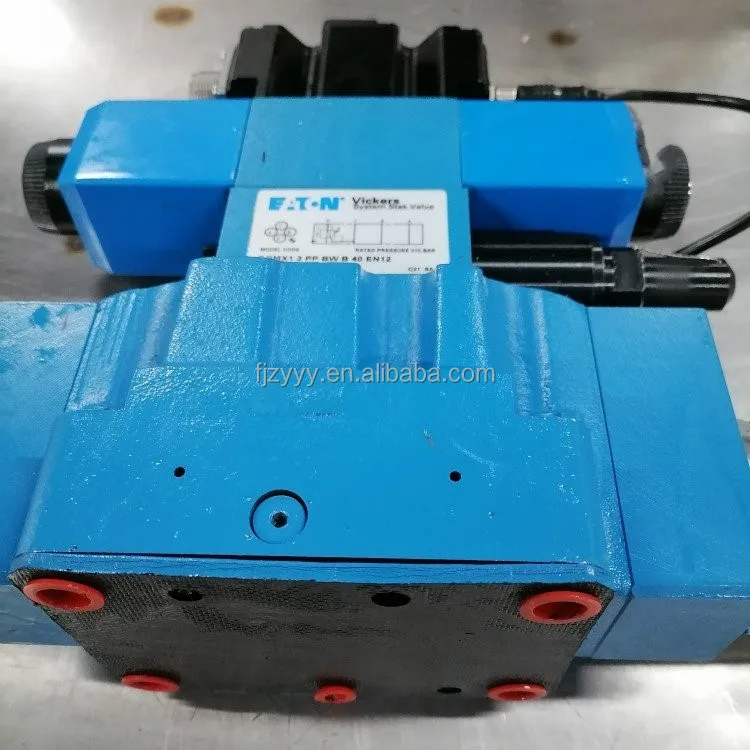

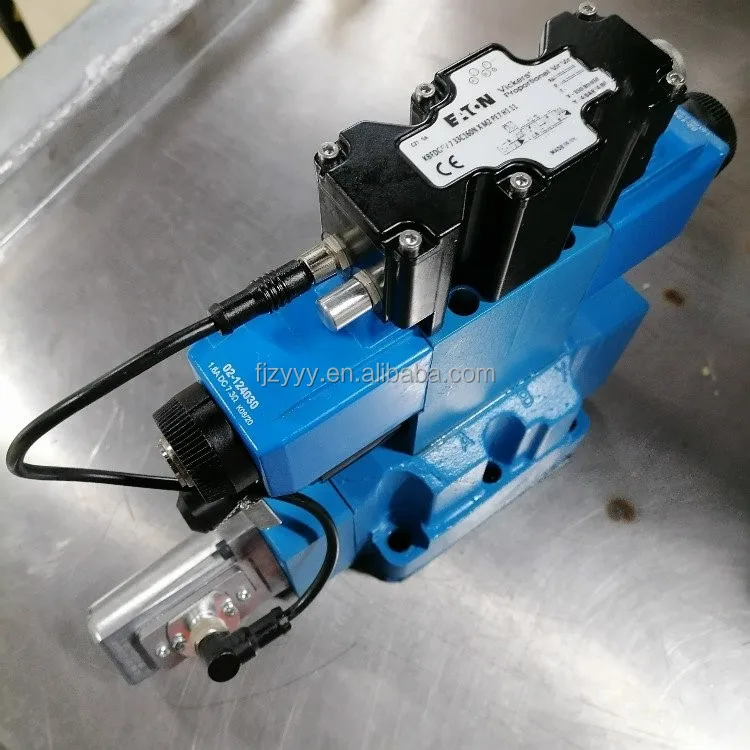

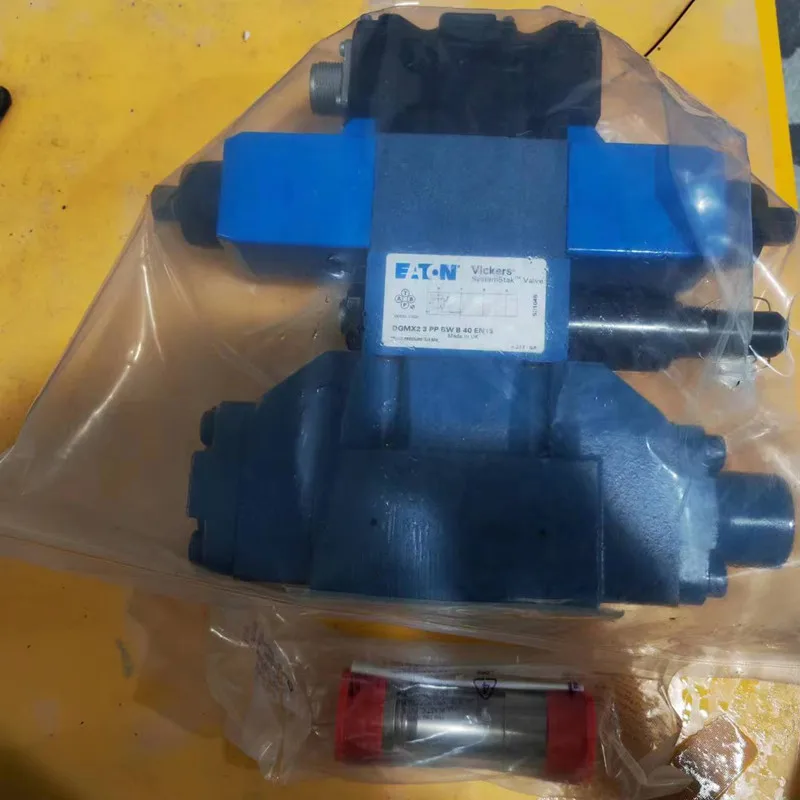

Vickers KBFDG5V & KBDG5V Pilot-Operated Proportional Directional Valves
Product Overview: The Vickers KBFDG5V and KBDG5V series are high-performance, two-stage pilot-operated proportional directional valves engineered for precise position and velocity control of hydraulic actuators. These valves feature Integrated On-Board Electronics (OBE) and utilize closed-loop spool position feedback for exceptional linearity. Whether in the Size 5 (NG10) KBDG5V-5 or the high-flow Size 7 (NG16) KBFDG5V-7, these valves remain the industry standard in 2026 for high-speed presses, large injection molding machines, and heavy-duty industrial equipment, delivering industry-leading dynamic response.
Featured models: KBFDG5V-7-2C200N-X-M1-PE7-H1-10 and KBDG5V-5-2C90N-X-T-M1-PE7-H1-10.
Key Technical Advantages:
Integrated OBE Digital Electronics: The factory-mounted proportional amplifier supports standard command signals, simplifying system wiring while significantly enhancing EMI resistance.
Two-Stage High Dynamics: The pilot-operated architecture ensures rapid switching response and minimal hysteresis, even under conditions of high pressure drop and large flow volumes.
Closed-Loop Spool Feedback: Internal LVDT sensors monitor the main spool position in real-time, ensuring flow output is independent of load pressure fluctuations.
Versatile Spool Functions (2C): The specific 2C center-position logic is ideal for double-acting cylinders, providing smooth starting, braking, and reversal.
H1 Enhanced Configuration: Ruggedized for harsh industrial environments, featuring superior vibration resistance and high ingress protection for long-term reliability.
Detailed Specifications & Parameters:

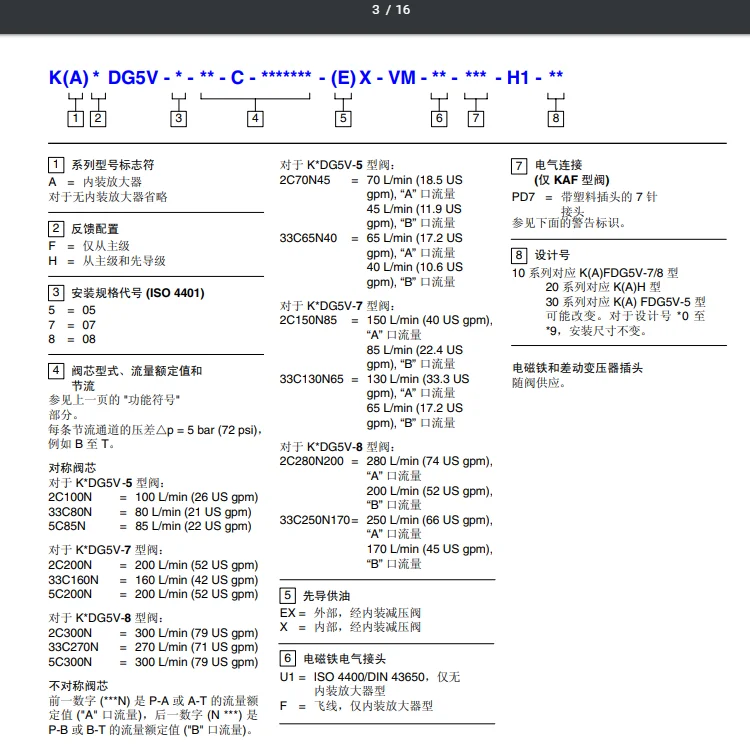

Featured Model Matrix:
KBFDG5V-7-2C200N: Size 7 (NG16), 200 L/min rated flow, pilot-operated proportional control.

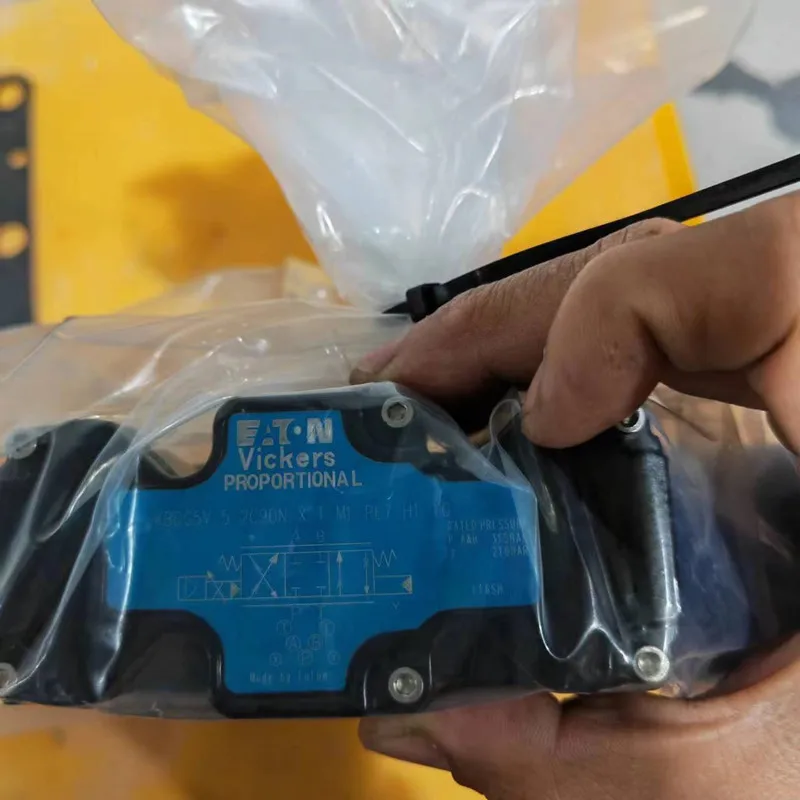

KBDG5V-5-2C90N: Size 5 (NG10), 90 L/min rated flow, with integrated OBE.
Technical Specifications:
Max Operating Pressure: 315 bar (Ports P, A, B).
Rated Flow: 90 L/min (Size 5) / 200 L/min (Size 7).
Supply Voltage: 24V DC.
Protection Class: IP67 rated.
Electrical Interface: 7-pin standard industrial connector.
KBFDG5V-7-2C200N-X-M1-PE7-H1-10KBFDG5V-7-2C20ON-X-M1-PE7-H1-10KBFDG5V-5-2C95N-X-M1-PE7-H1-10KBFDG5V-5-2C95N-X-M1-PE7-H1-10
KBFDG5V-7-2C200N-X-M1-PE7-H1-10KBFDG5V-5-2C95N-XM1-PE7-H1-10KBFDG5V-5-2C95N-X-M1-PE7-H4-10KBFDG5V-7-33C160N-XM2-PE7-H1-10
KBFDG5V-7-33C160N-X-M2-PE7-H1-10KBFDG5V-8-2C375N-X-M1-PE7-H1-10KBFDG5V-5-2C95N-X-M1-PE7KBFDG5V-5-2C95N-X-M1-PE7-H1-10
KBFDG5V-8-2C375N-EX-M1-PE7-H1-10KBFDG5V-5-2C95N-X-M1-PE7-H4-10KBFDG5V-7-2C20ON-X-M1-PE7-H1-10KBFDG5V-7-2C20ON-X-M1-PE7-H1-10
KBFDG5V7-33C160N-X-M1-PH7-H1-10
