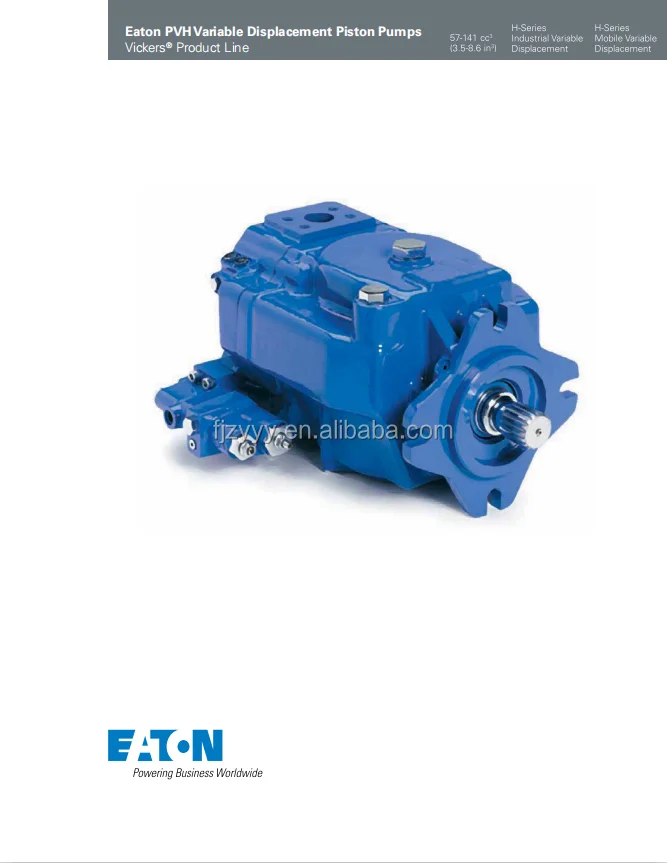

Vickers PVH Series High-Pressure Variable Displacement Piston Pumps

Product Overview: The Vickers PVH series stands as a high-performance benchmark under Eaton’s hydraulic portfolio, widely utilized in both industrial power units and mobile machinery. This selection features core displacements including 57cc (PVH057), 74cc (PVH074), and 98cc (PVH098). Featured models like the PVH074R01AB10… lead the market in reliability. The PVH series is renowned for its superior power-to-weight ratio, high continuous pressure capability, and exceptional adaptability to harsh environments, making it the premier choice for injection molding, earthmoving equipment, cranes, and material handling systems.

Key Technical Advantages:

• Superior Power Density: The compact housing integrates large-volume rotating groups, delivering immense power output while minimizing the physical installation footprint.

• High-Pressure Performance: Rated for continuous operation at 250 Bar (3625 PSI) with peak capabilities up to 280 Bar, ensuring stability under heavy duty cycles.

• Exceptional Contamination Resistance: Specialized bearing and friction pair designs enable the pump to handle hydraulic media with fine particulates, reducing reliance on filtration and extending service life.

• Responsive Control Options: Equipped with Pressure Compensator (C) and Load Sensing (DF) controls, the pump reacts instantly to load changes, drastically reducing energy waste and system heat.

• Low-Noise Technology: The optimized 9-piston architecture effectively dampens pressure ripples, significantly lowering decibel levels during high-pressure cycles for a better work environment.

Detailed Models & Parameters:

• Core Series: Vickers PVH Series (Eaton).

• Model Keywords: PVH057, PVH074, PVH098, PVH131, PVH141.

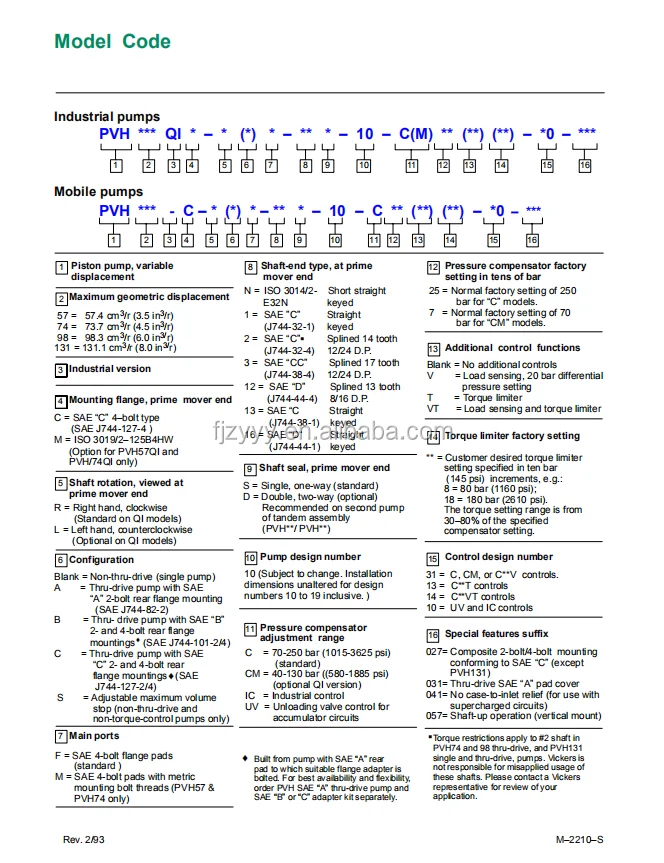

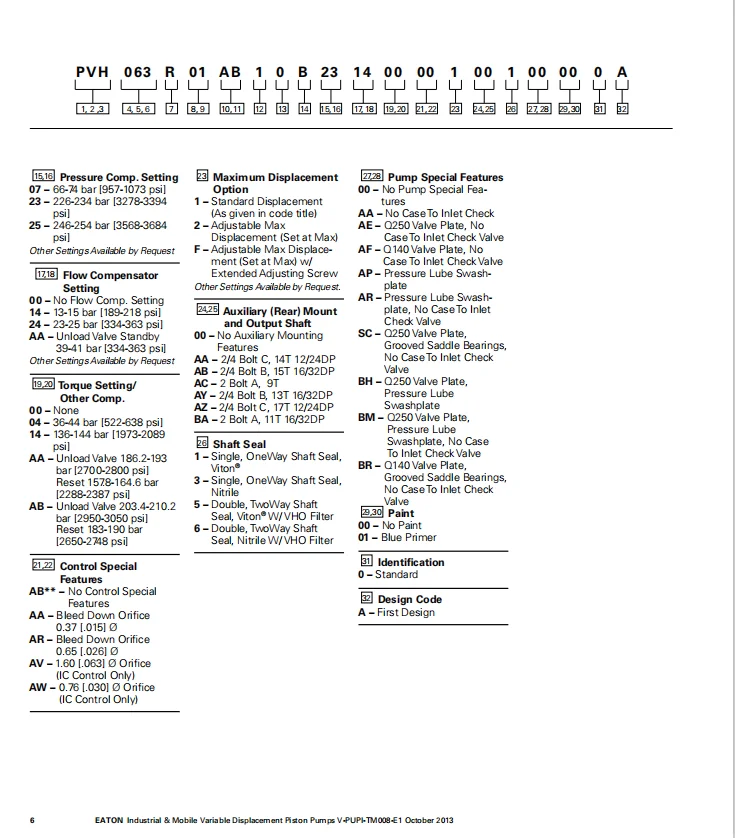

• Full Config Codes: PVH074R01AB10A250000001001AB010A, PVH057R01A10….

• Displacements: 57 cm³/rev, 74 cm³/rev, 98 cm³/rev.

• Pressure Ratings: Rated at 250 Bar (3625 PSI); Peak capability up to 280 Bar (4060 PSI).

• Rotation: R (Clockwise/CW); L (Counter-clockwise/CCW).

• Target Applications: Mobile equipment drives, industrial HPUs, injection molding drives, material handling machinery, and port equipment.
