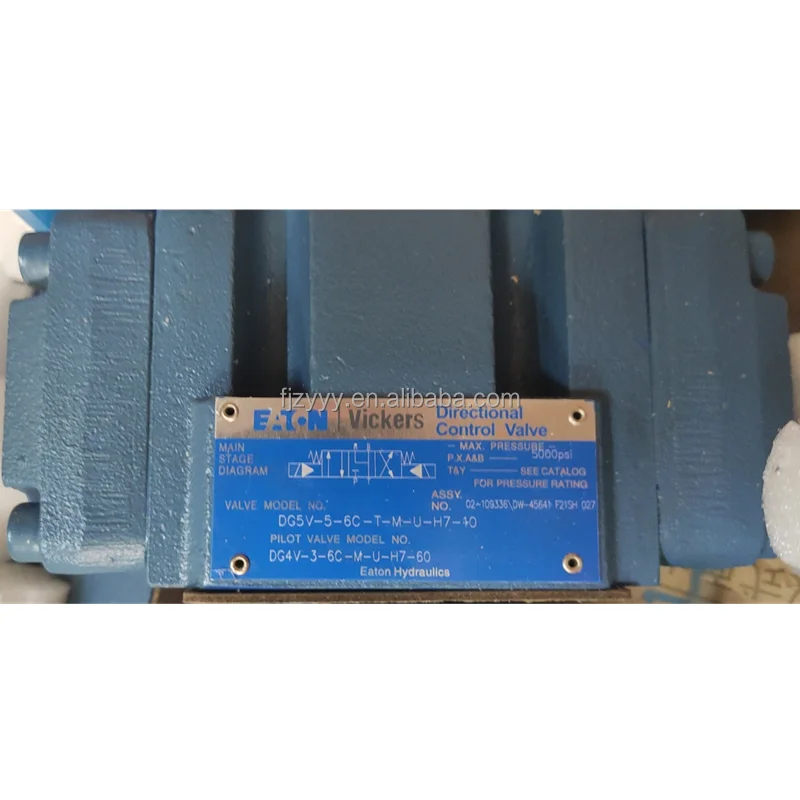

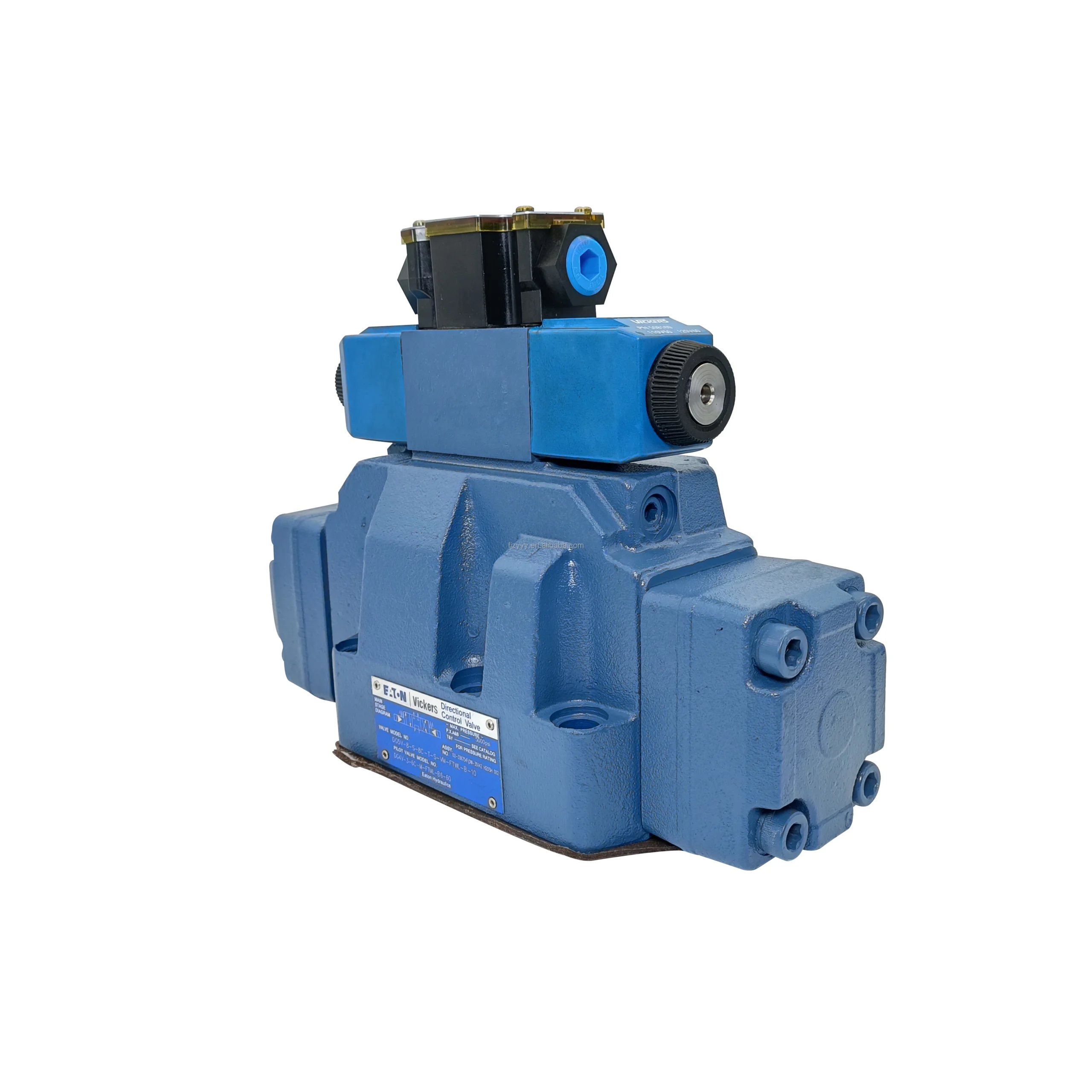

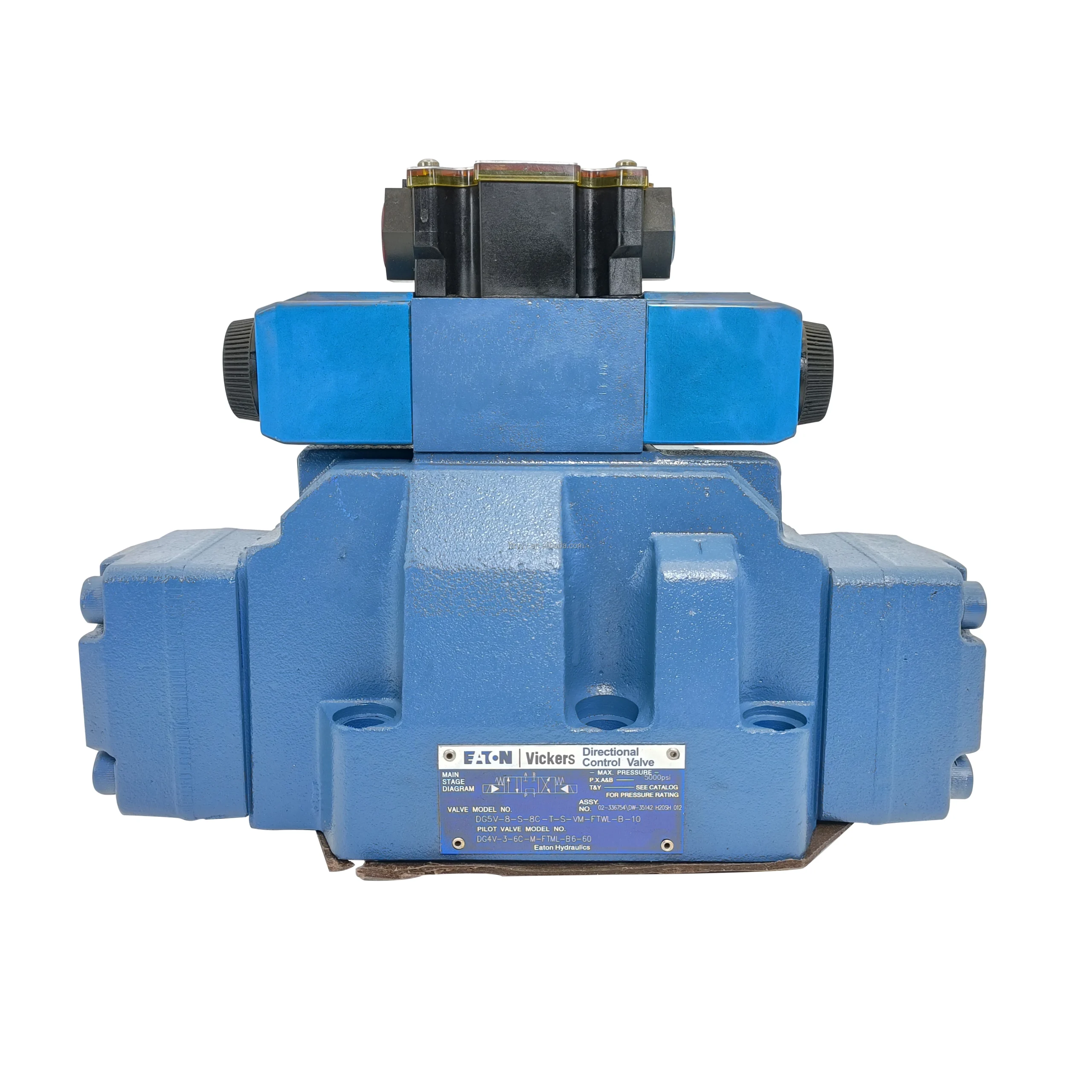

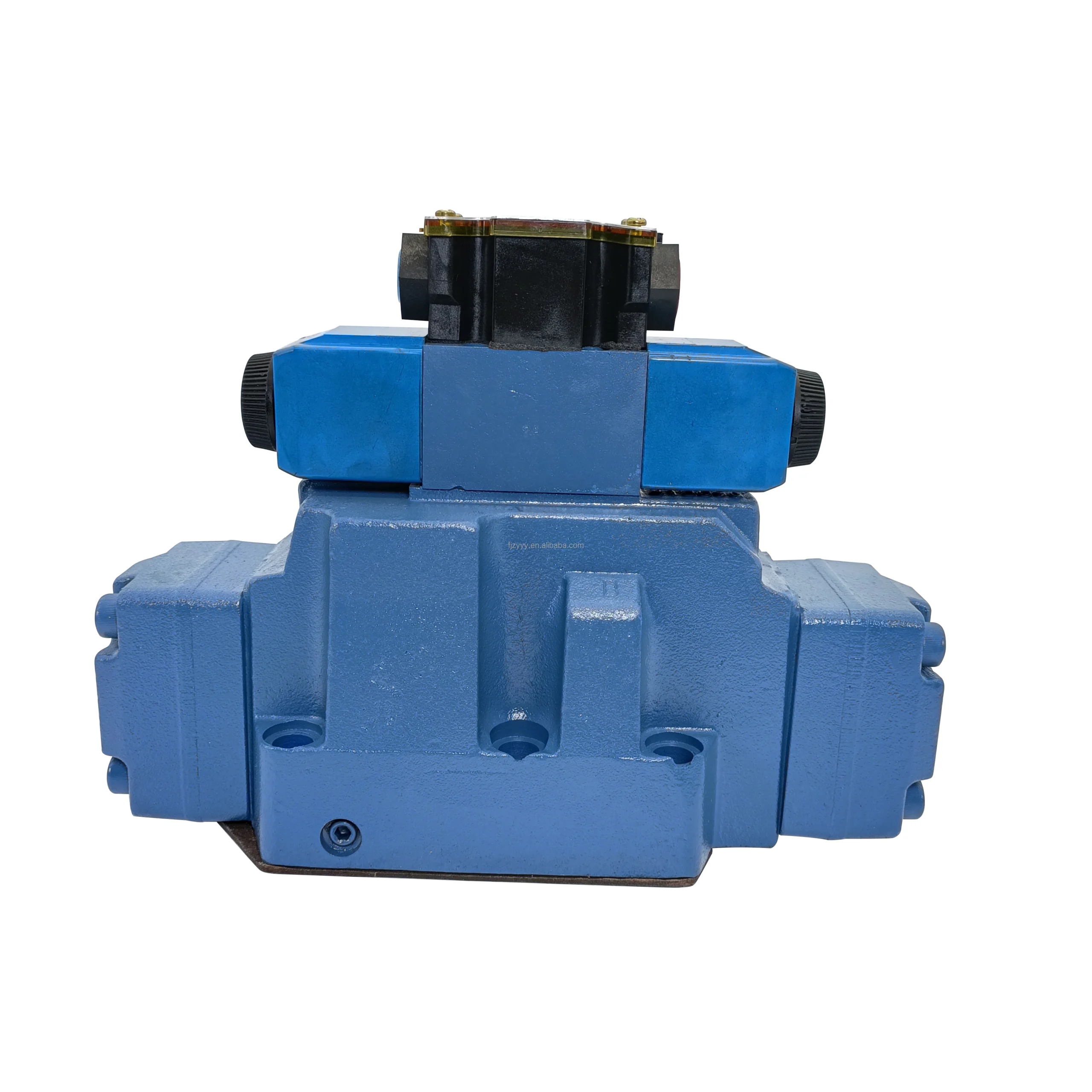

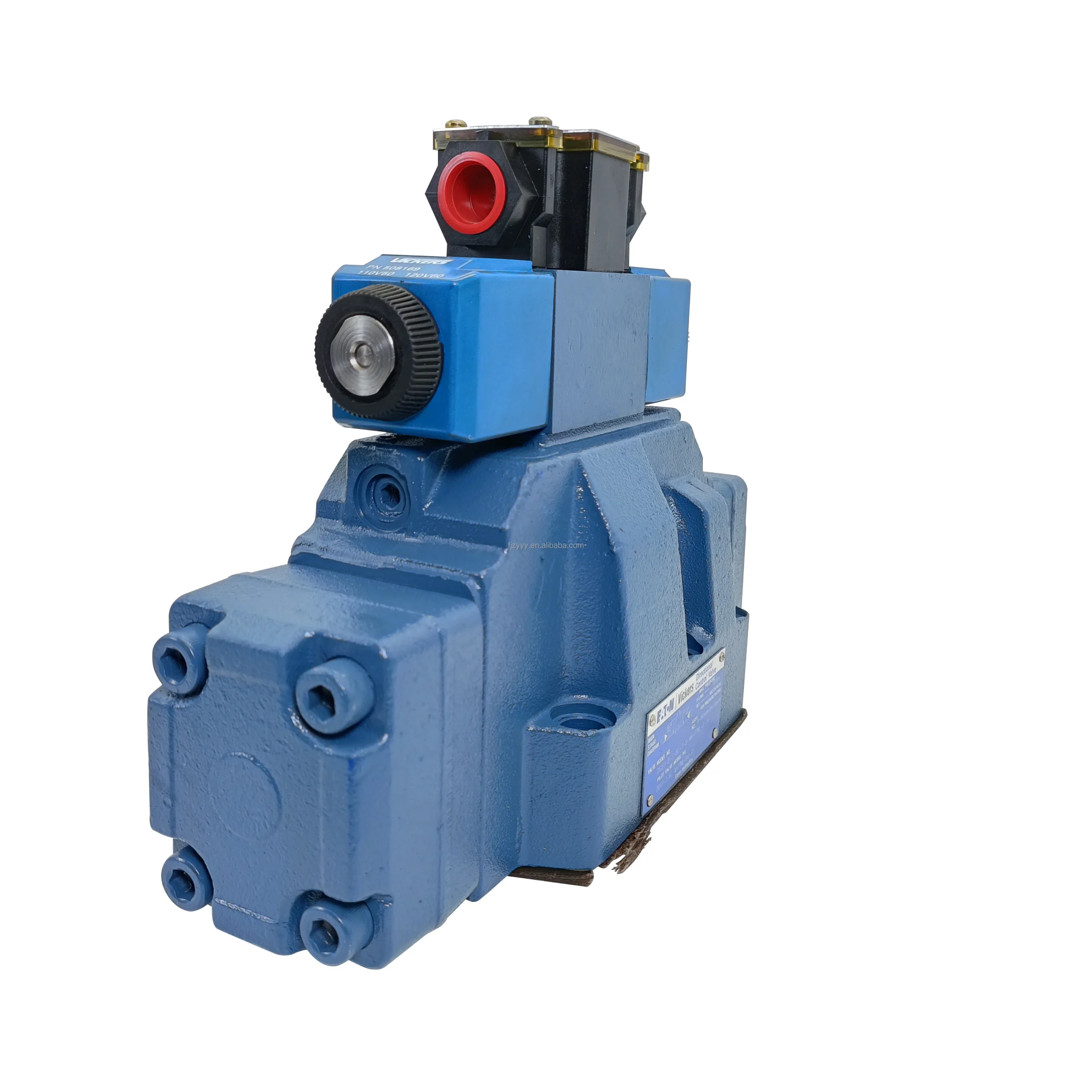

Vickers DG5V-7 Series Valve | DG5V-7-3C | NG20 Pilot Operated Directional Valve | DG5V73C2TMUH730
| Model Number | DG5V73C2TMUH730 |
|---|
Product Description
DG5V-7 Series Pilot-Operated Solenoid Directional Valves
Product Overview: The DG5V-7 Series is a two-stage, pilot-operated solenoid valve engineered for demanding industrial environments requiring high-pressure and high-flow control. Featuring a Size 07 (NG20) bore, the valve uses a top-mounted solenoid pilot to precisely actuate the main spool, ensuring smooth and powerful directional switching. Its rugged casting and advanced flow-path design make it a top performer in injection molding machines, die-casting equipment, and large-scale automated production lines.
Featured model: DG5V-7-3C-2-T-M-U-H7-30 (also indexed as DG5V73C2TMUH730).
Key Technical Advantages:
High Flow Capacity: Optimized for the NG20 size, it handles massive flow rates under high pressure, significantly reducing system energy loss.
Smooth Shifting Control: The pilot-operated mechanism buffers main spool movement, minimizing hydraulic shock and extending the lifespan of downstream components.
Flexible Pilot Configuration: The “T” (Internal Pilot) designation indicates internal pilot pressure supply, simplifying manifold design and piping requirements.
High-Performance H7 Coil: Equipped with premium coils supporting continuous duty cycles, offering excellent vibration resistance and heat dissipation.
Manual Override (M): Includes a manual operation button for testing and commissioning during power-off conditions.
Detailed Specifications & Parameters:
Featured Model Matrix:
DG5V-7-3C: Size 07 (NG20), 3C spool function (3-position centering type).
Series 30 Design: Represents the latest technical revision with enhanced fluid dynamics.
Core Technical Specs:
Mounting Standard: Complies with ISO 4401-07 (Size 07/NG20).
Max Operating Pressure: Up to 31.5 MPa (315 bar) on P, A, and B ports.
Max Flow Capacity: Up to 300 L/min (depending on spool type and pressure drop).
Control Voltage: Standard 24V DC (H7 configuration).
Protection Rating: IP65.
