Vickers DG4V Solenoid Valves | DG4V-3S-0A | DG4V-5-0CJ | NG6 NG10 Hydraulic Directional Control Valves
| Model Number | DG4V, DG4V-3, DG4V-5, DG4V-5S, DG4V3S-0A-MUH-60, DG4V-5-0CJ-M-U-H6-20, DG4V-5-0CJ-M-U-H7 |
|---|
Product Description

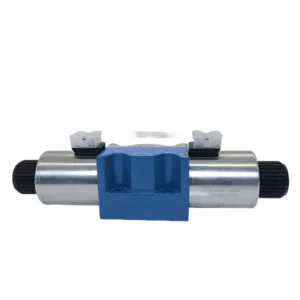

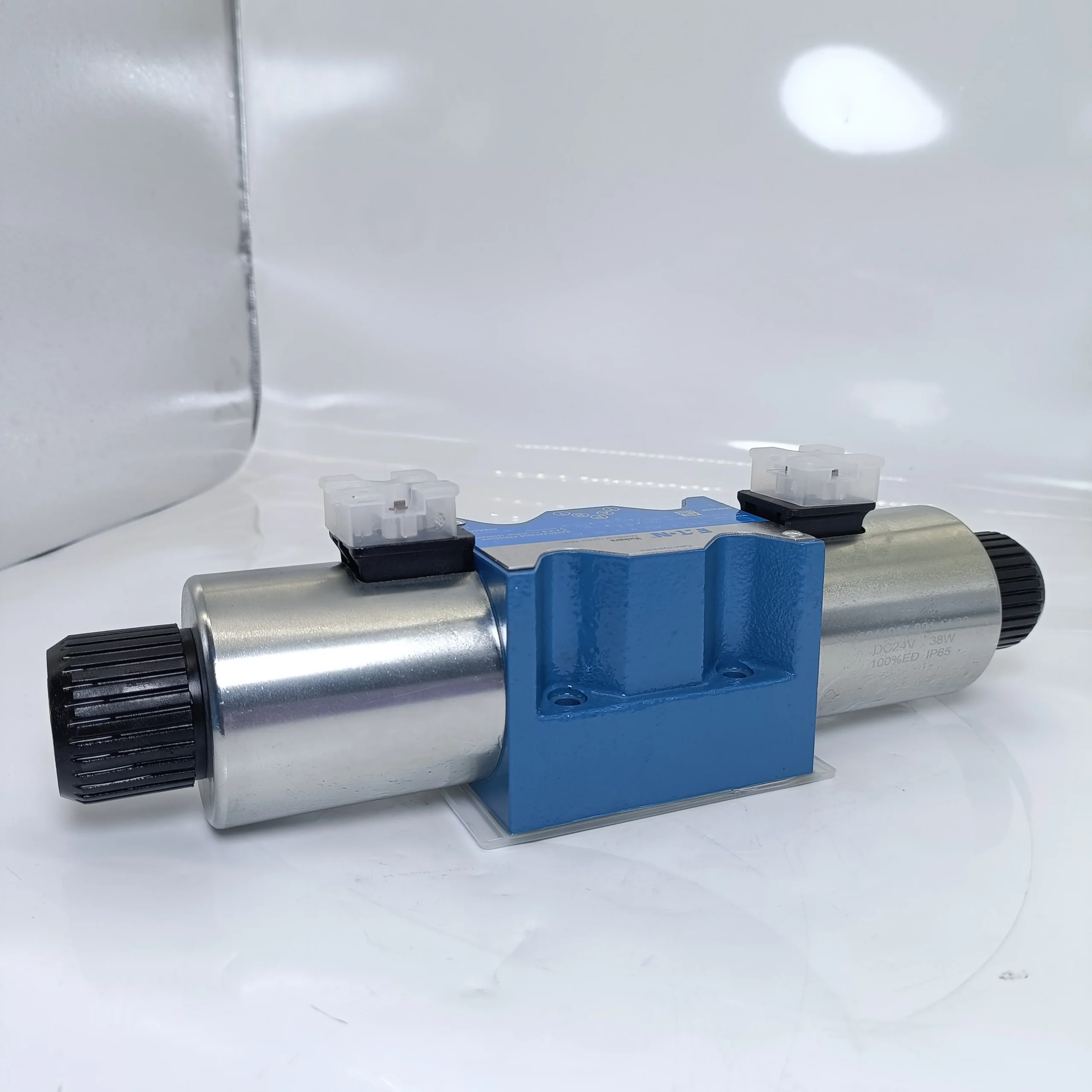

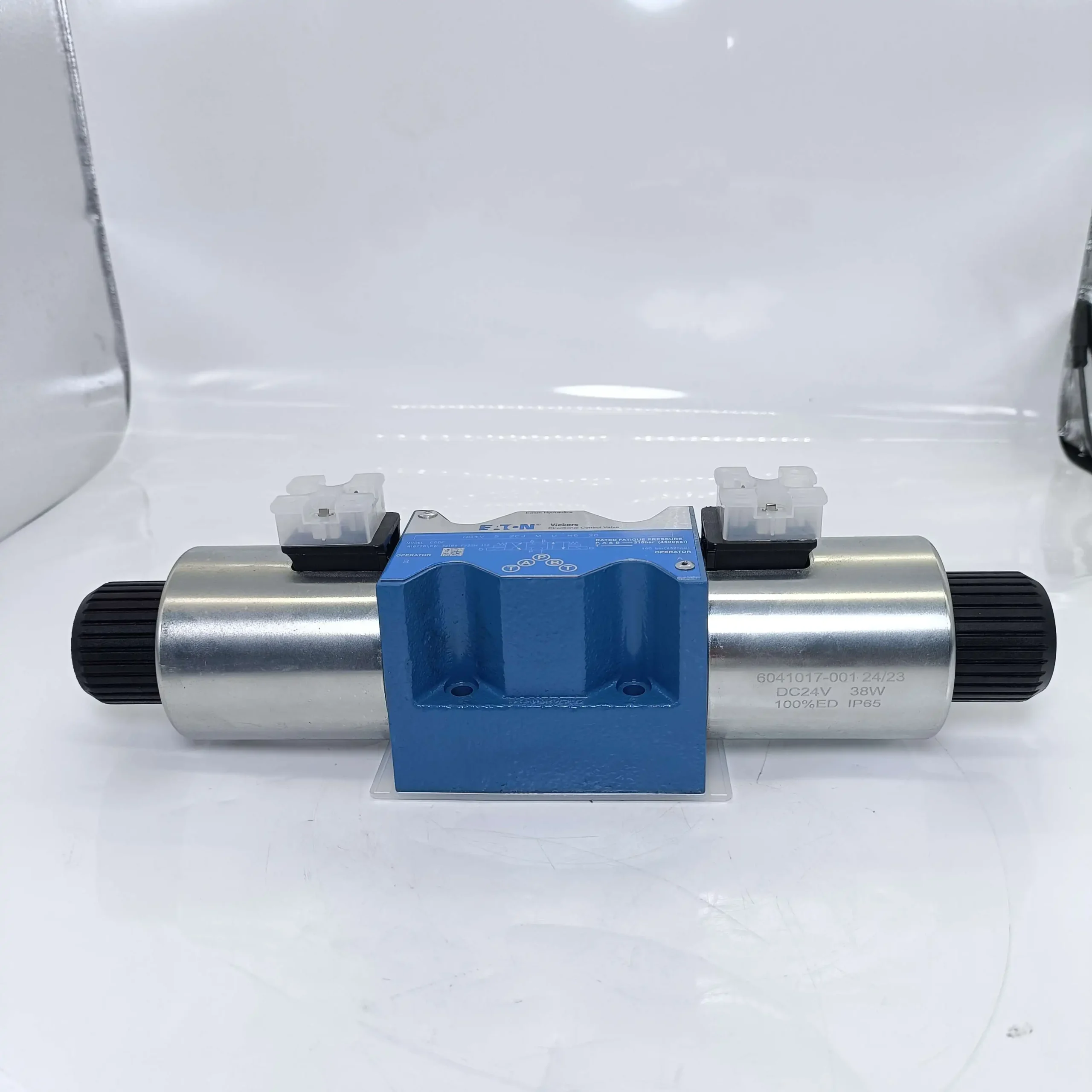

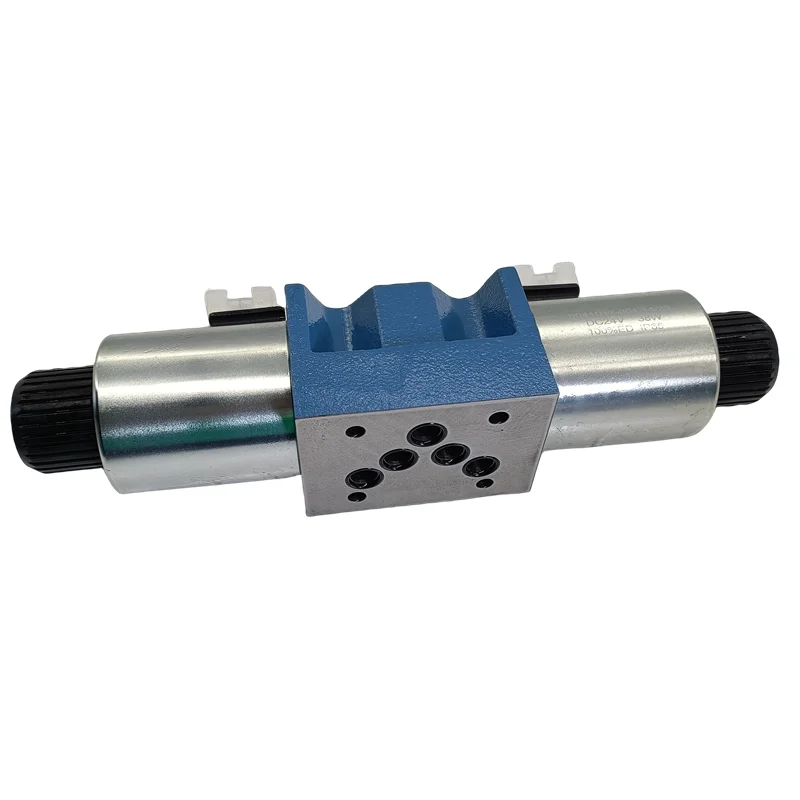

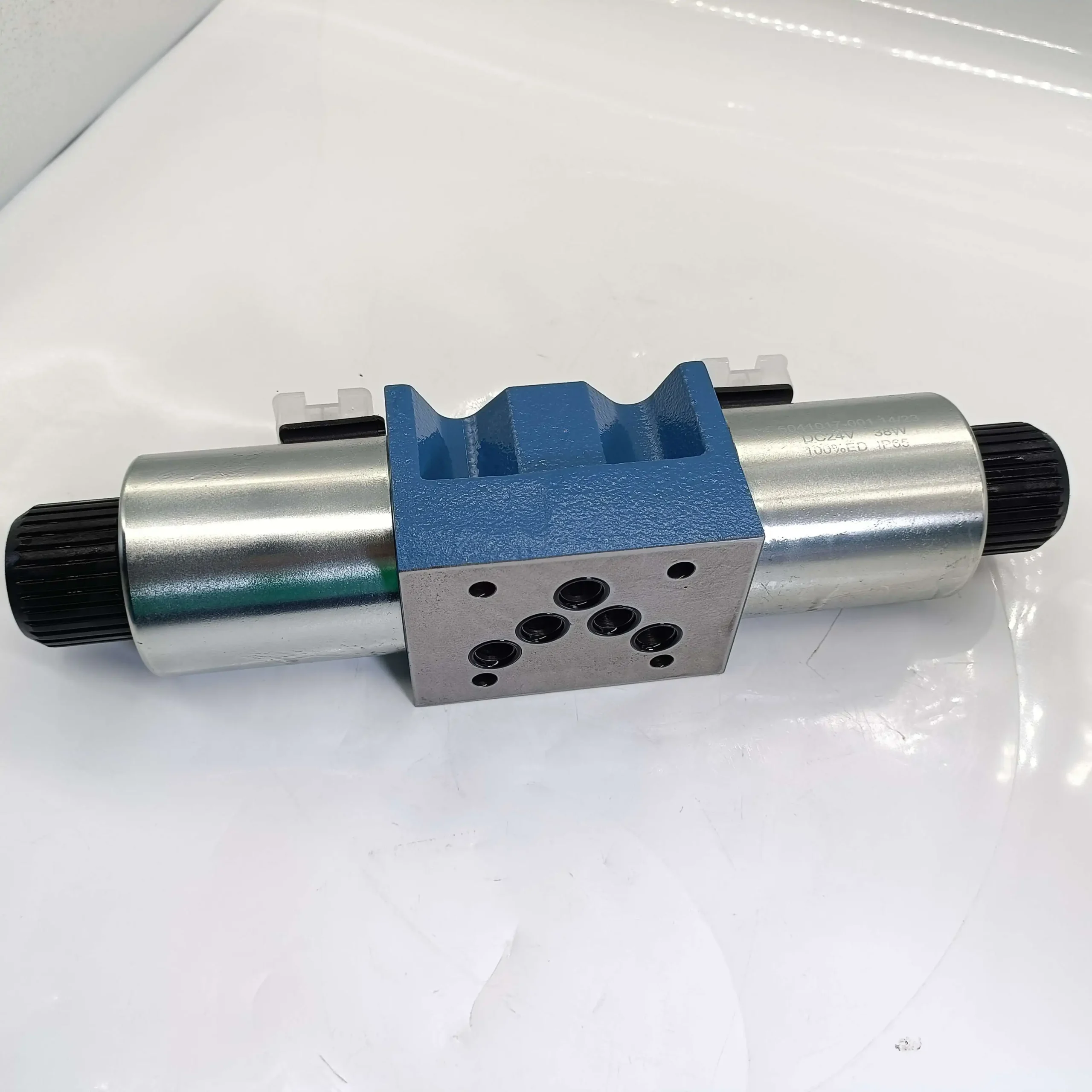

Vickers DG4V Series Solenoid Directional Control Valves
Product Overview: The Vickers DG4V series by Eaton is a globally recognized industrial benchmark, engineered for precise starting, stopping, and direction control of hydraulic actuators. This collection includes both Standard (DG4V-3S) and High-Performance (DG4V-5) versions. The series features hydrodynamically optimized flow paths that minimize pressure drop even under high-flow conditions. Utilizing wet-pin solenoid technology, these valves ensure quiet and smooth switching, making them ideal for injection molding, metal cutting machinery, and hydraulic power units (HPUs).
Featured models: DG4V3S-0A-MUH-60, DG4V-5-0CJ-M-U-H6-20, and DG4V-5-0CJ-M-U-H7-22.
Key Technical Advantages:
Superior Power Limits: The DG4V-3 (NG6) handles up to 80 L/min, while the DG4V-5 (NG10) supports up to 120 L/min, catering to demanding heavy-duty applications.
Wet-Armature Solenoids: The armature operates within the hydraulic fluid, providing excellent cooling and dampening switching shocks for extended component life.
Integrated Versatility: Features multiple electrical connection options (e.g., U / DIN 43650) and manual overrides (M) for easy commissioning or emergency operation during power outages.
Global Interchangeability: Fully compliant with ISO 4401 mounting standards, allowing direct replacement for major international hydraulic brands.
Detailed Specifications & Parameters:
Featured Model Matrix:
DG4V3S-0A-MUH-60: Size 3 (NG6), Standard Type, 0A spool (2-pos, 4-way, spring offset), Manual Override (M), 60 design series.
DG4V-5-0CJ-M-U-H6-20: Size 5 (NG10), High-Performance, 0CJ spool (3-pos, 4-way, closed center), 20 design series, H6 connector spec.
DG4V-5-0CJ-M-U-H7-22: Size 5 (NG10), High-Performance, 0CJ spool, 22 design series (optimized flow curve), H7 connector spec.
Core Technical Specs:
Mounting Standard: ISO 4401-03 (Size 3) / ISO 4401-05 (Size 5).
Max Operating Pressure: Up to 350 bar (P, A, B ports); up to 210 bar (T port back pressure).
Protection Rating: IP65/IP67 with standardized electrical connectors.
