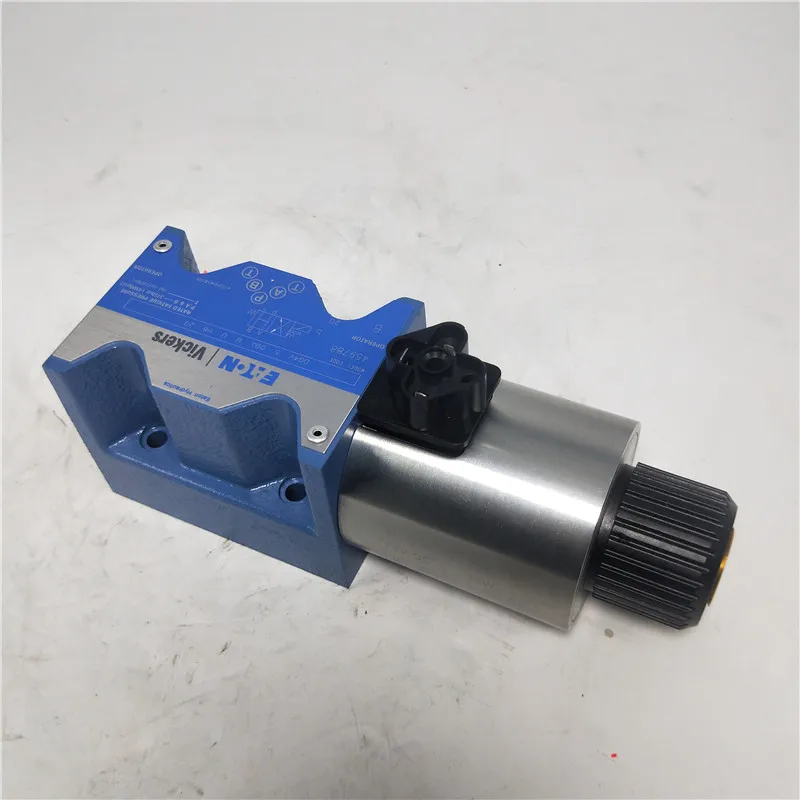

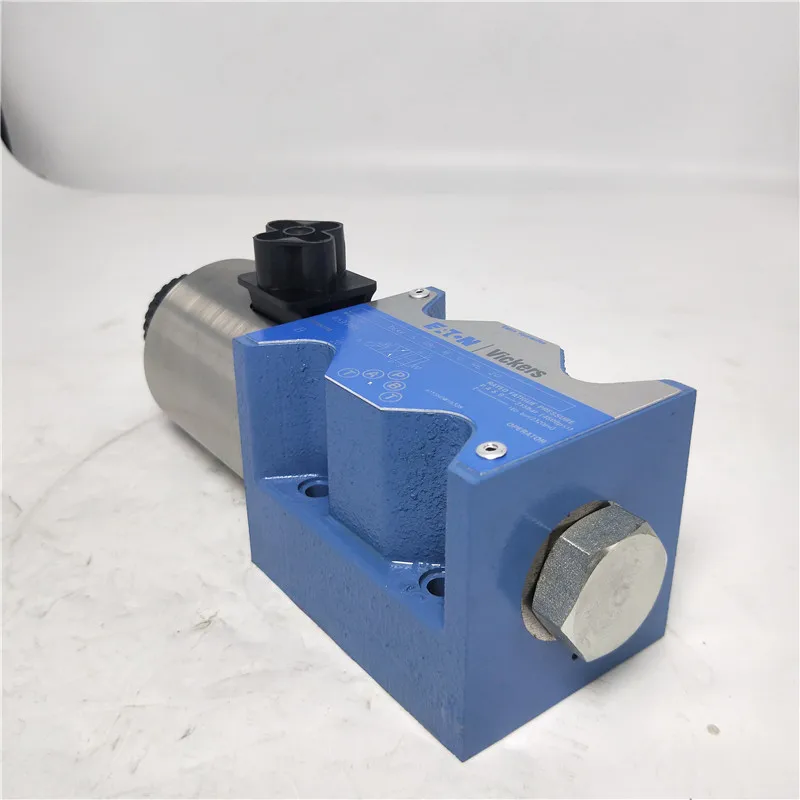

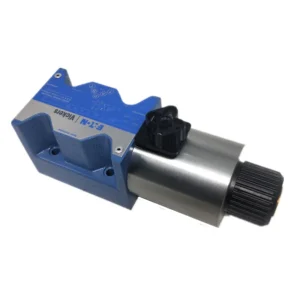

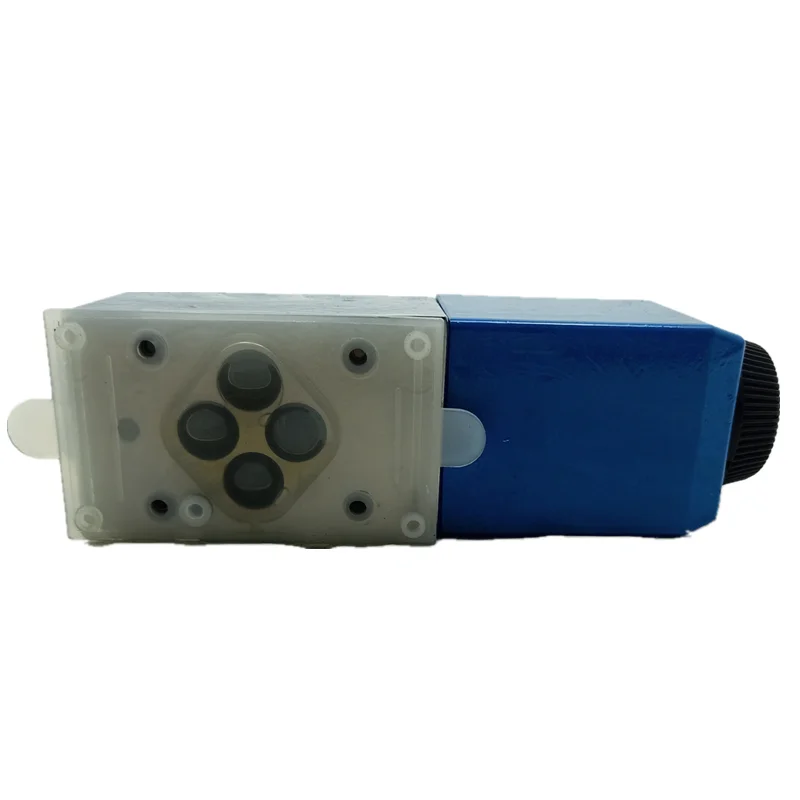

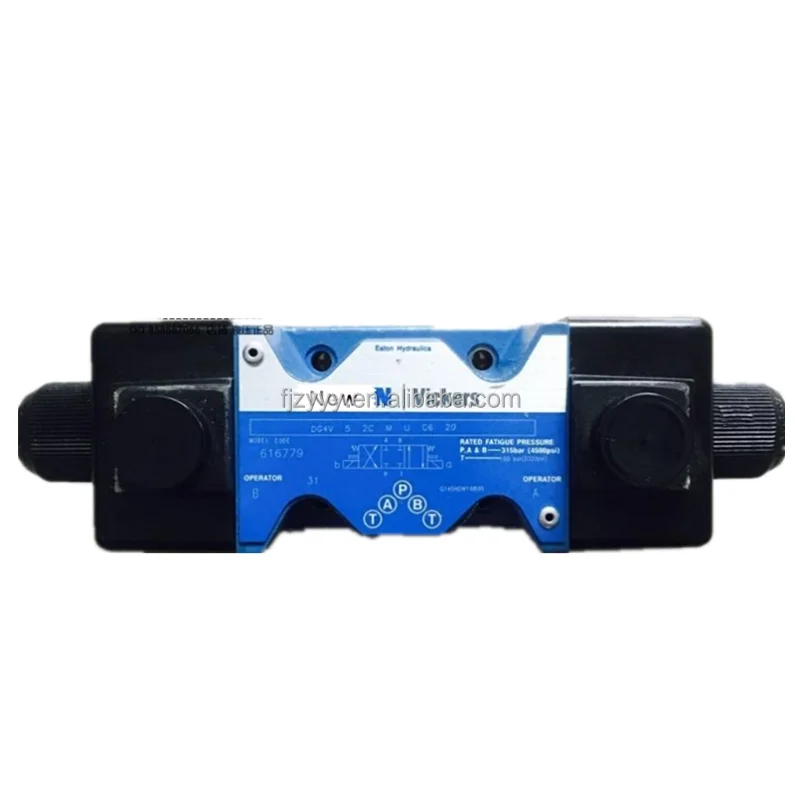

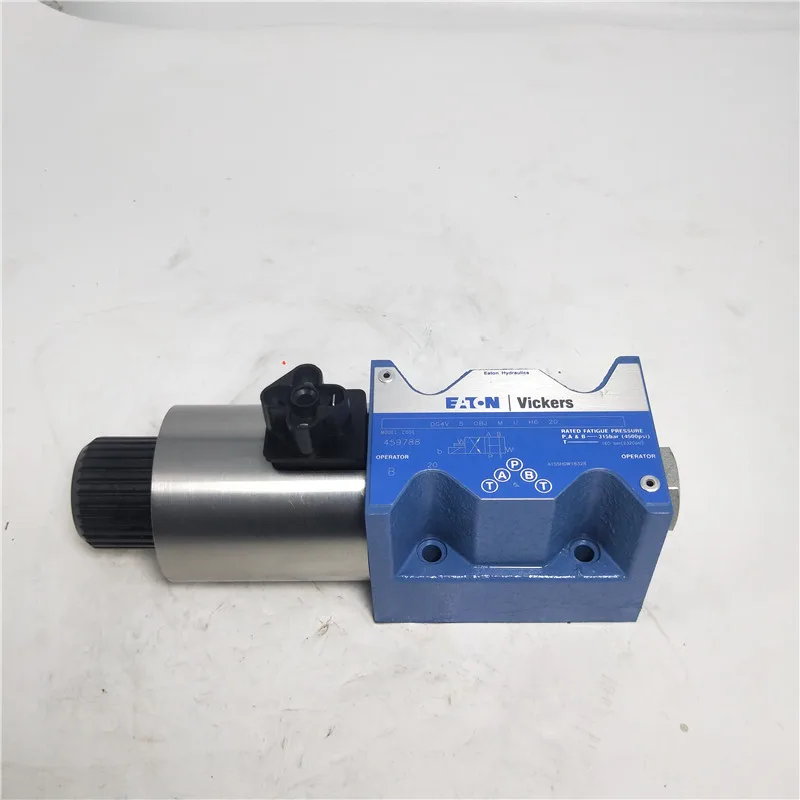

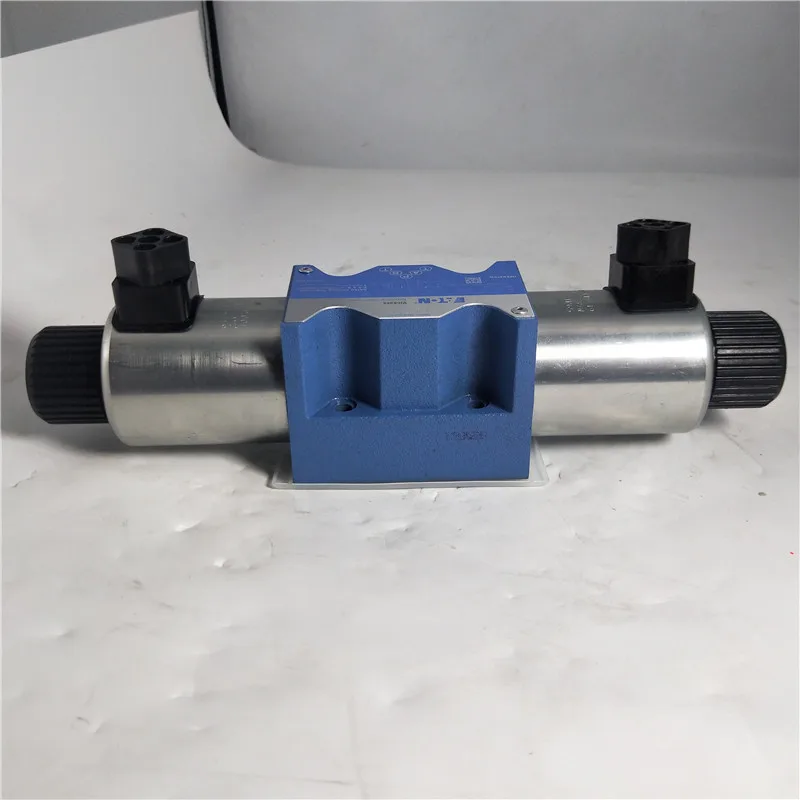

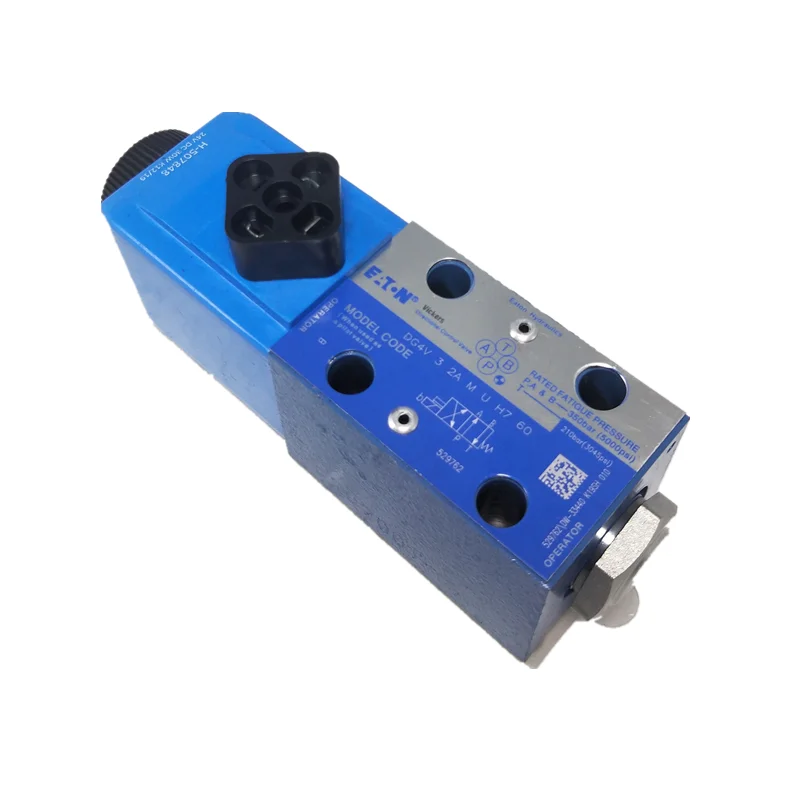

Vickers DG4V Series Direct-Operated Solenoid Valves

Product Overview: The Vickers DG4V series by Eaton is a premier directional control solution for high-performance industrial hydraulic systems. This range includes the standard Size 03 (NG6), the high-performance 3S version, and the high-flow Size 05 (NG10) specification. Featuring an optimized spool design and high-efficiency solenoids, the DG4V series provides smooth and reliable directional shifting even under extreme operating pressures. Whether in precision machine tools, plastics machinery, or general industrial power units, the DG4V series ensures stable system operation through low pressure drops and high-frequency switching capabilities.

Featured models: DG4V-5-2CJ-M-U-H6-20, DG4V-3-2C-M-U-H7-60, DG4V-3-6C-M-U-H7, and DG4V-3S-8C-VM-U-B6-61.

Key Technical Advantages:

• Full Flow Coverage: Available in NG6 (Size 03) and NG10 (Size 05) sizes, handling flow rates suitable for various system energy levels.

• Wet-Armature Construction: Solenoid armatures operate in hydraulic fluid for superior heat dissipation, quieter shifting, and extended mechanical life.

• Versatile Spool Functions: * 2C/2CJ: 3-position 4-way, closed-center or specialized metering functions.

  • 6C: Provides specific P-to-T unloading logic.

  • 8C: Complex switching logic for precision hydraulic circuits.

• Global Voltage Compatibility: Supports H7 (24V DC), H6 (115V AC), and B6 (115V AC 60Hz) industrial power standards.

• Superior Protection: Rated IP65 for dust and water resistance, ensuring high electrical reliability in harsh factory environments.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • DG4V-5-2CJ: Size 10 (NG10), 2CJ spool, Series 20 design.

  • DG4V-3-2C / 6C: Size 03 (NG6), standard Series 3, Series 60 design.

  • DG4V-3S-8C: Size 03 (NG6) High-Performance (S) series, 8C spool, Series 61 design.

• Core Technical Specs:

  • Max Operating Pressure: Up to 35 MPa (350 bar) on ports P, A, and B.

  • Max Flow Capacity: Up to 80 L/min for NG6 and 160 L/min for NG10.

  • Mounting Standard: Complies with ISO 4401-03 (Size 3) and ISO 4401-05 (Size 5).

  • Manual Override: Standard manual push-button (M) included for emergency operation.

DG4V-3-2A-M-U-H7-60 DG4V-3-2AL-M-U-H7-60 DG4V-3-OA-M-U-H7-60
DG4V-3-2B-M-U-H7-60 DG4V-3-OB-M-U-H7-60 DG4V-3-2BL-M-U-H7-60
DG4V-3-22A-M-U-H7-60 DG4V-3-6B-M-U-H7-60 DG4V-3-22AL-M-U-H7-60
DG4V-3-2C-M-U-H7-60 DG4V-3-0C-M-U-H7-60 DG4V-3-6C-M-U-H7-60
DG4V-3-2N-M-U-H7-60 DG4V-3-0F-M-U-H7-60 DG4V-3-7C-M-U-H7-60
DG4V-3-31C-M-U-H7-60 DG4V-3-33C-M-U-H7-60 DG4V-3S-2C-M-U-H5-60
DG4V-3S-6C-M-U-H5-60 DG4V-3S-2A-M-U-H5-60 DG4V-3S-0A-M-U-H5-60
