VA1, VB1, VC1 Series Low Pressure Variable Vane Pump | VA1-15F-A3, A2, A1 | Pressure Compensated
| Model Number | VA1, VB1, VC1, VD1, VE1, VA1-15F-A3, VA1-15F-A2, VA1-15F-A1 |
|---|
Product Description

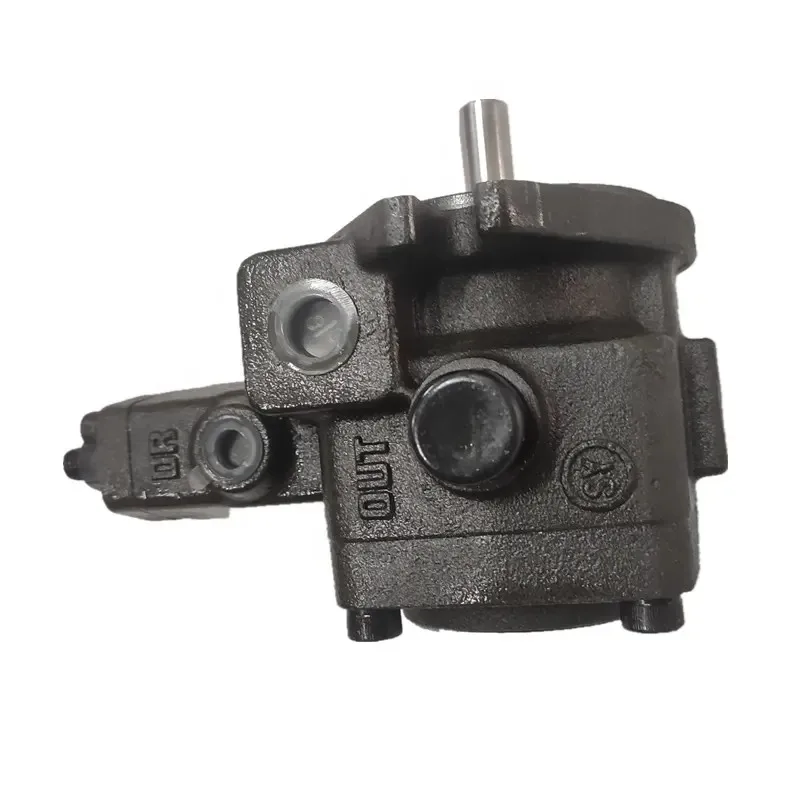

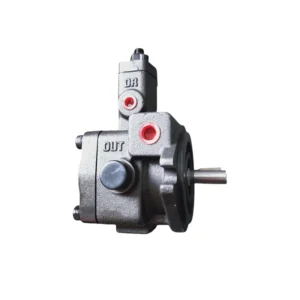

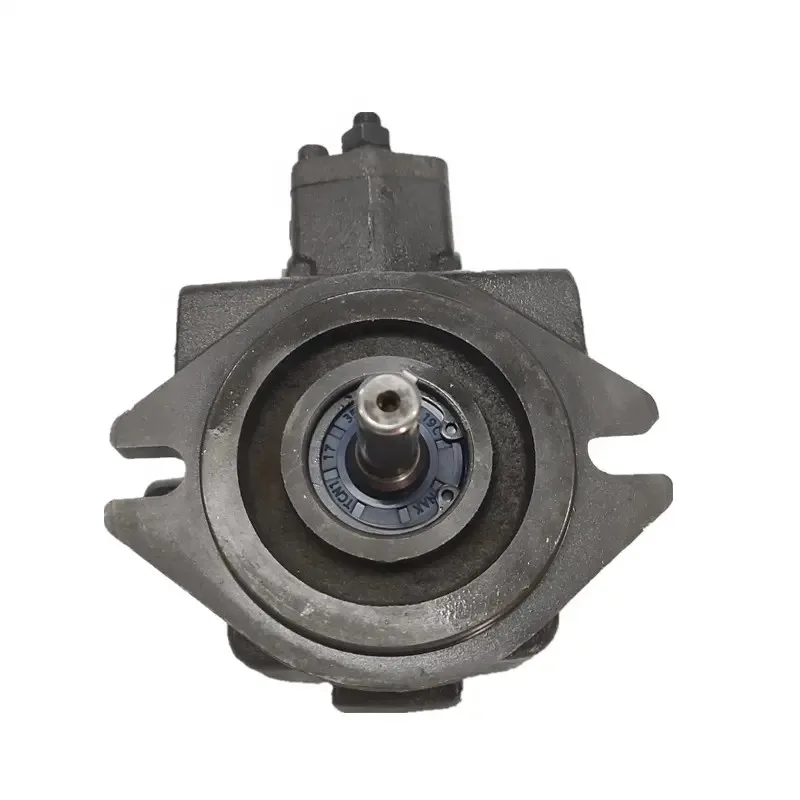

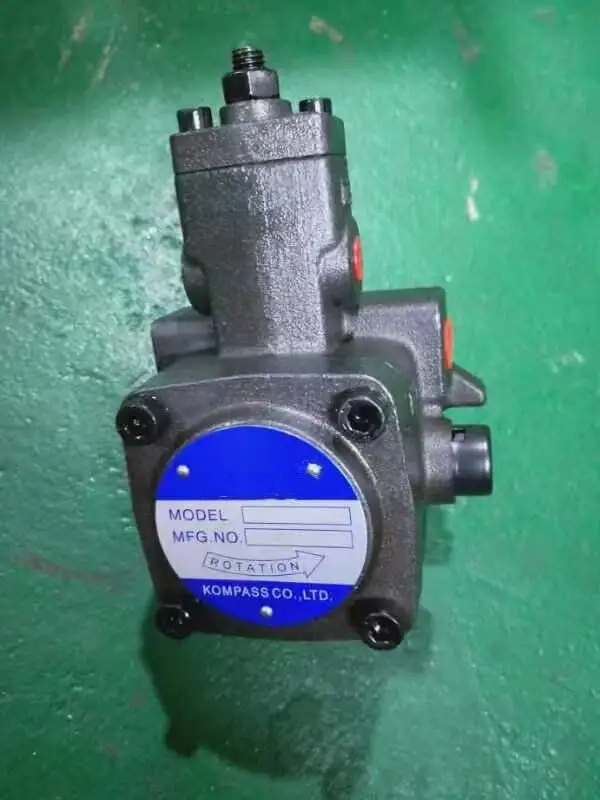

VA1-VE1 Series Low Pressure Variable Displacement Vane Pumps
Product Overview: The VA1, VB1, VC1, VD1, and VE1 Series variable displacement vane pumps are the definitive power solutions for hydraulic systems prioritizing energy efficiency and precision control. Featuring a built-in Pressure Compensated mechanism, these pumps instantaneously adjust flow output to match real-time load requirements. This range highlights core models such as VA1-15F-A3, VA1-15F-A2, and VA1-15F-A1. Utilizing a precision regulation design, the series automatically reduces flow once the preset pressure is reached, significantly lowering energy consumption and controlling oil temperature—making it the premier choice for machine tools and light industrial automation.
Key Technical Advantages:
Automatic Pressure Compensation: Equipped with a built-in regulation mechanism. When system pressure reaches the preset value, flow automatically drops to a minimum, eliminating overflow losses and lowering operating costs.
Minimal Oil Temperature Rise: By avoiding unnecessary fluid circulation at high pressure, these pumps effectively inhibit oil heat generation, extending seal life and reducing the cooling requirements of the system.
Rapid Response & Silent Operation: Provides millisecond-level flow switching response. Precision-ground rotor and vane components ensure exceptionally low decibel levels even at high speeds, improving the factory environment.
Compact Flange Mounting: Features a standard F (Flange) mounting design with a space-saving architecture, allowing for easy integration into compact hydraulic power units (HPU) or machine tool bases.
Target Applications: CNC machine tools, woodworking machinery, small presses, spindle lubrication systems, and light industrial automated lines.
Detailed Models & Parameters:
Core Series: VA1, VB1, VC1, VD1, VE1 Series (Variable Displacement).

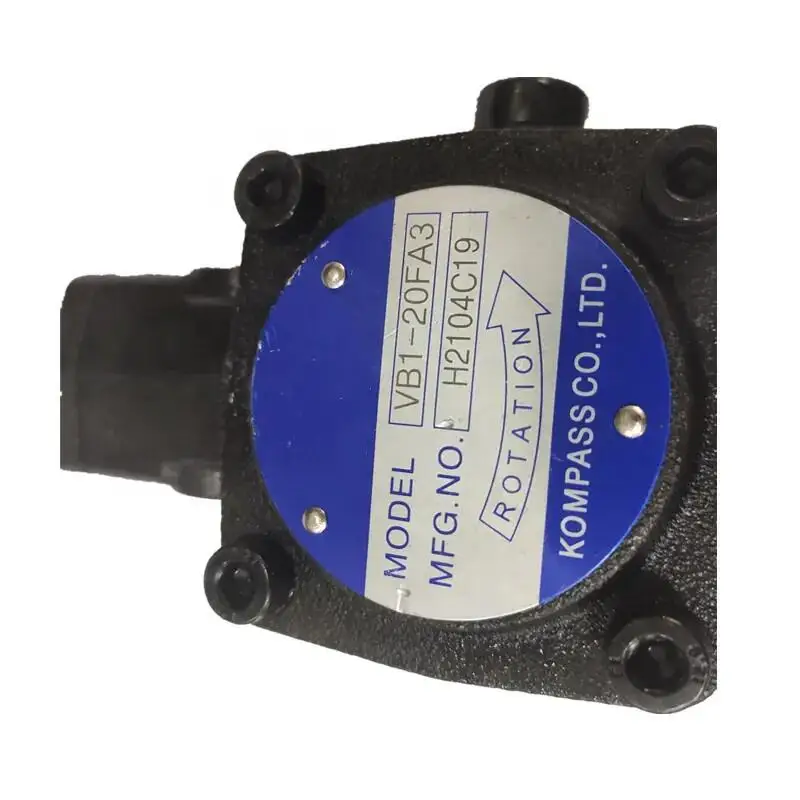

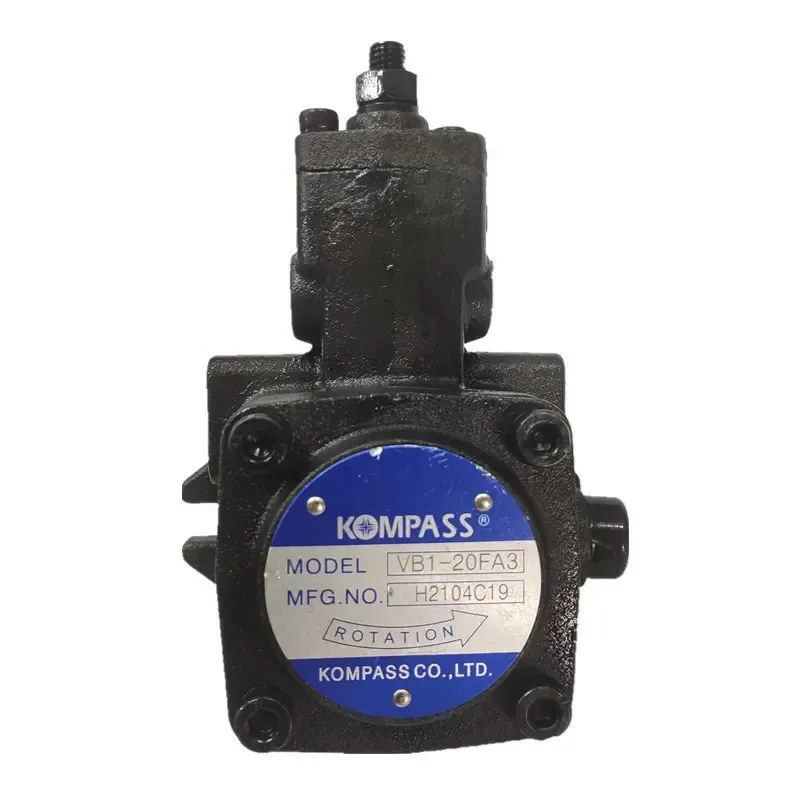

Model Keywords: VA1-15F-A3, VA1-15F-A2, VA1-15F-A1, VB1-20F, VC1-26F.
Pressure Regulation Range: A1 (0.8-2.5 MPa), A2 (1.5-5.0 MPa), A3 (3.0-7.0 MPa).
Flow Ratings: Includes core specifications 08, 12, 15, 20, and 26 (L/min @ 1800rpm).
Technical Specs: F (Flange Mounting); available in multiple shaft protocols.
Max Operating Pressure: Rated continuous working pressure up to 7.0 MPa (70 Bar).
