UVD / USV / UVC / UPV / UPN High-Performance Low-Noise Vane Pumps

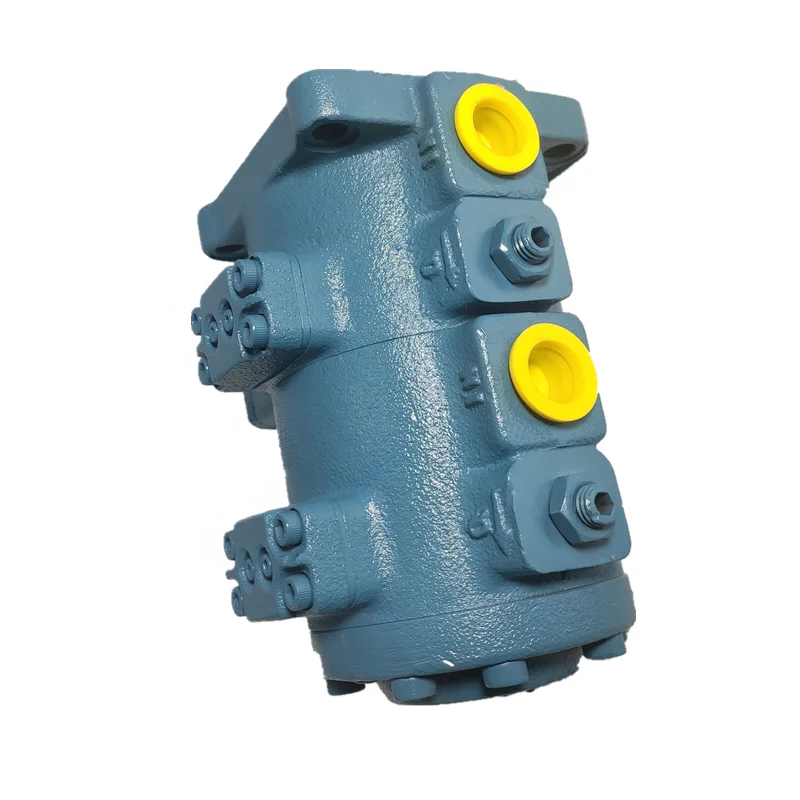

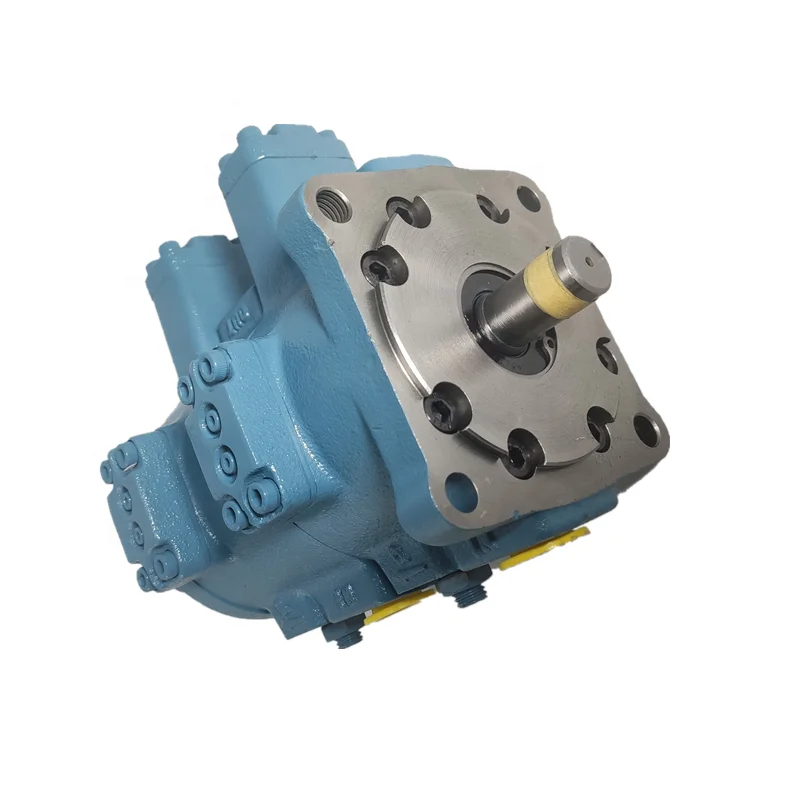

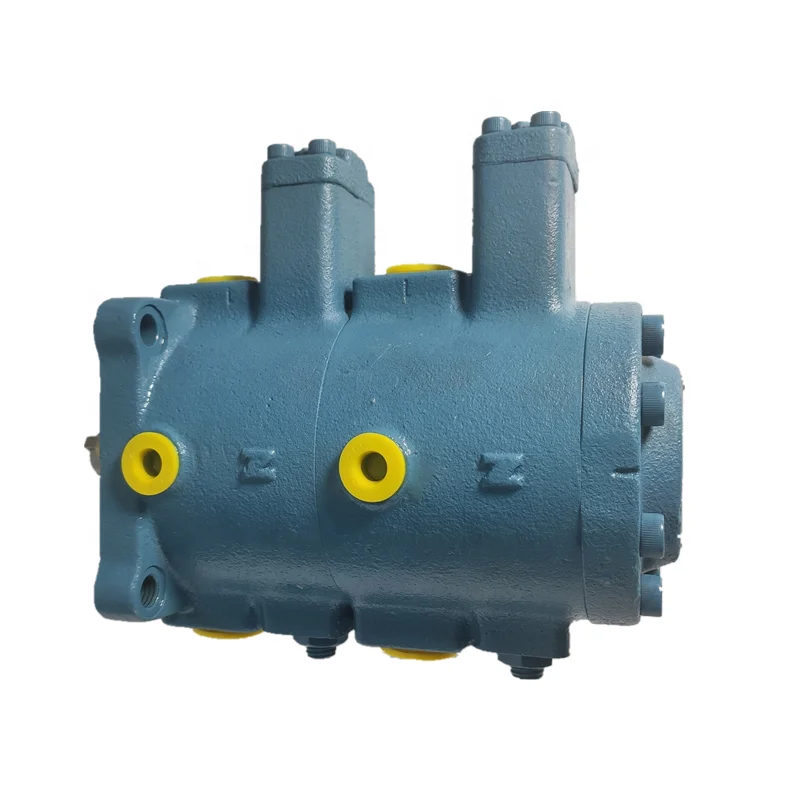

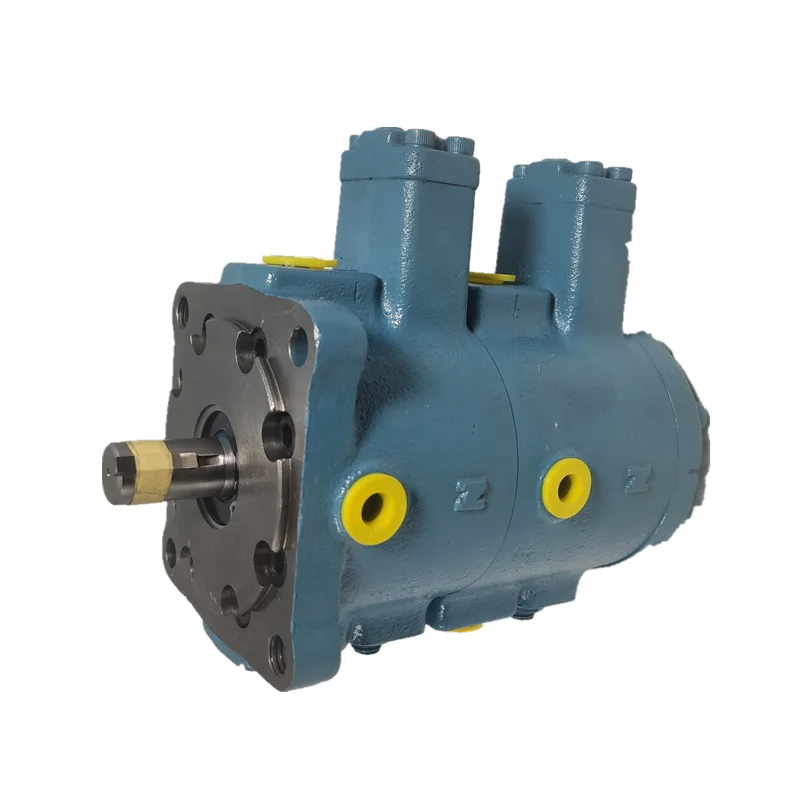

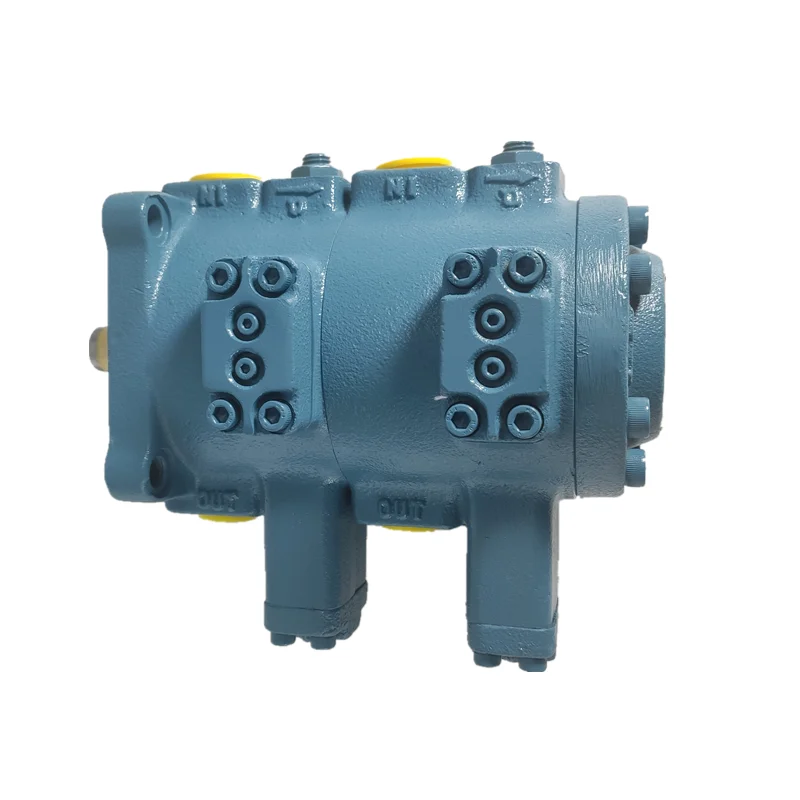

Product Overview: This series encompasses the most versatile range of fixed and variable displacement vane pumps in the industrial hydraulic sector, including the UVD, USV, and UVC single pump lines and the UPV and UPN integrated motor-pump assemblies. Renowned for low-noise operation, rapid response, and exceptional pressure stability, this range features the precision-engineered model: UVD-11A-A2A2-22-4-Y-6081F. These pumps are the industry choice for CNC machine tools, plastic injection molding machines, hydraulic presses, and compact Industrial Hydraulic Power Units (HPUs).

Key Technical Advantages:

• Ultra-Quiet Operation: Optimized vane geometry and internal distribution plate designs significantly reduce fluid-borne noise during high-pressure operation, enhancing the workshop environment.

• Energy-Efficient Control: The UPV and UPN series integrate high-efficiency motors with precision variable compensation, minimizing overflow loss and drastically reducing system power consumption.

• High Response & Durability: Featuring specially surface-treated vanes and rotors, these units maintain excellent wear resistance and sensitivity even under frequent pressure-cycling conditions.

• Technical Spec Decoding (UVD-11A-A2A2-22-4-Y-6081F):

  • UVD: Denotes the high-performance variable displacement vane pump series.

  • 11A-A2A2: Correlates to displacement stages and specific pressure control phases.

  • 22: Design number or specific pressure adjustment range.

  • 4: Typically correlates to motor power specs or mounting configurations.

  • -Y-6081F: Specialized order suffix for port orientation, seal materials, or custom mounting parameters.

Detailed Models & Parameters:

• Core Series: Industrial Vane Pump & Motor Pump Group.

• Sub-Series Matrix:

  • Variable Pumps: UVD-1A / 2A / 11A, USV-0A, UVC-1A / 11A.

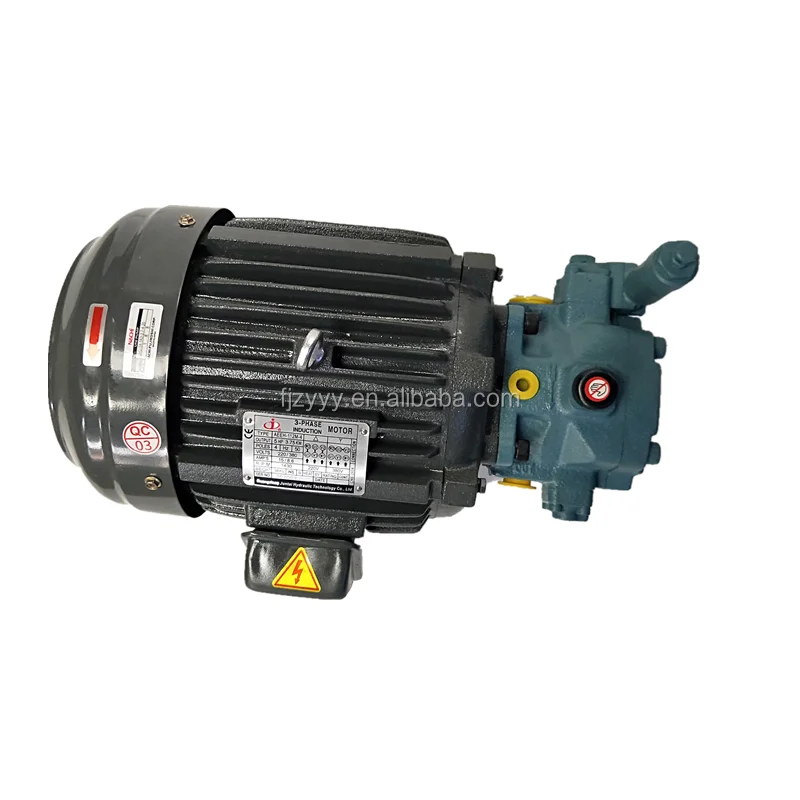

  • Motor-Pump Sets: UPV-0A / 1A / 2A, UPN-0A / 1A / 2A.

• Core Performance Specs:

  • Displacement Range: Covers micro-precision flows to heavy-duty industrial volumes.

  • Max Pressure: Rated continuous pressure up to 70-140 Bar (model dependent).

  • Compatible Media: Anti-wear hydraulic oils, water-glycol, and phosphate esters.
