SVPDF & SVPF Series High-Performance Variable Displacement Vane Pumps

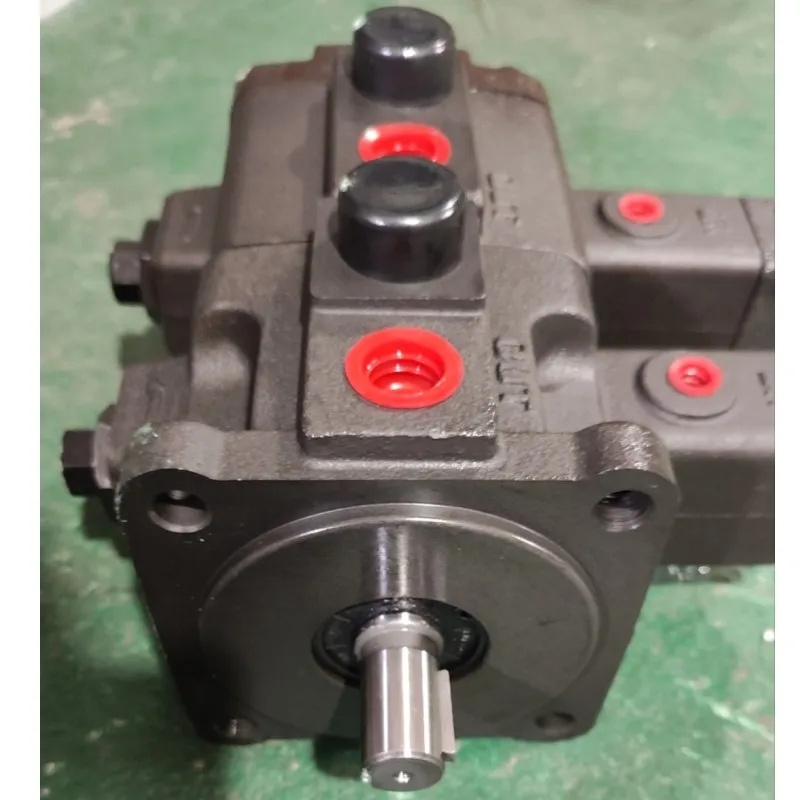

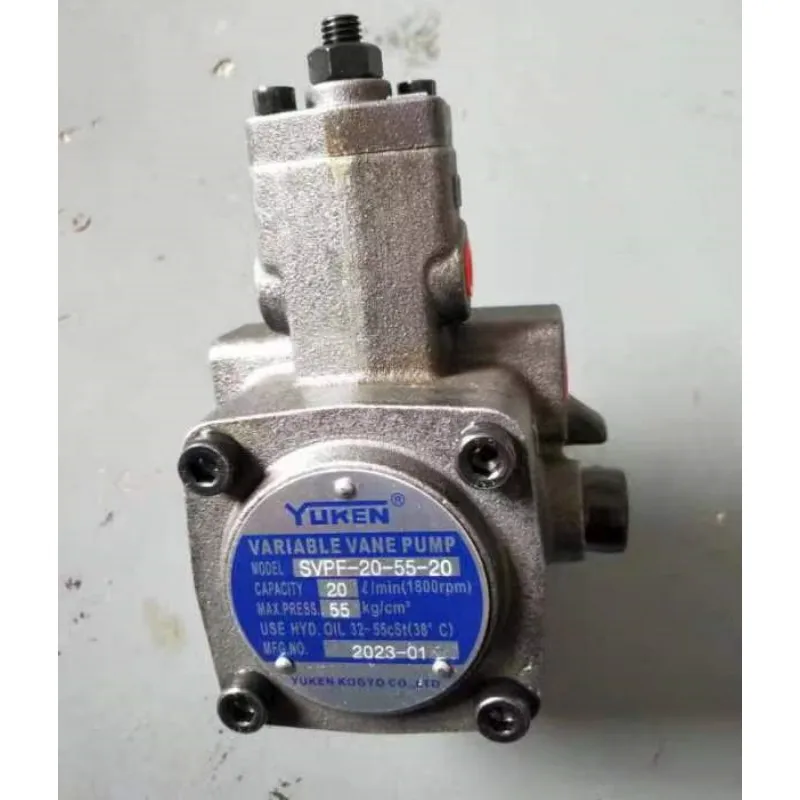

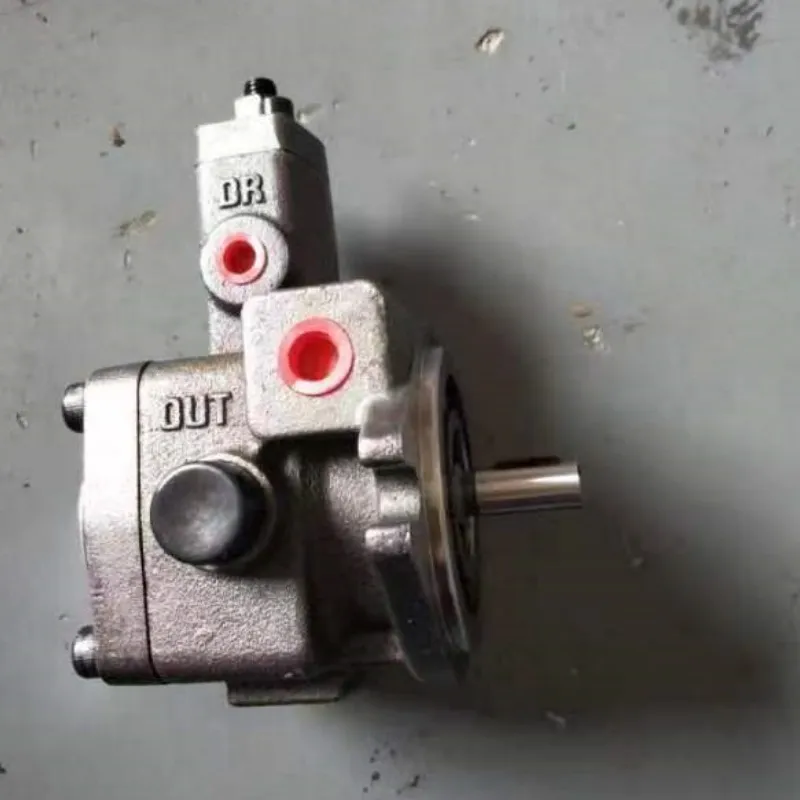

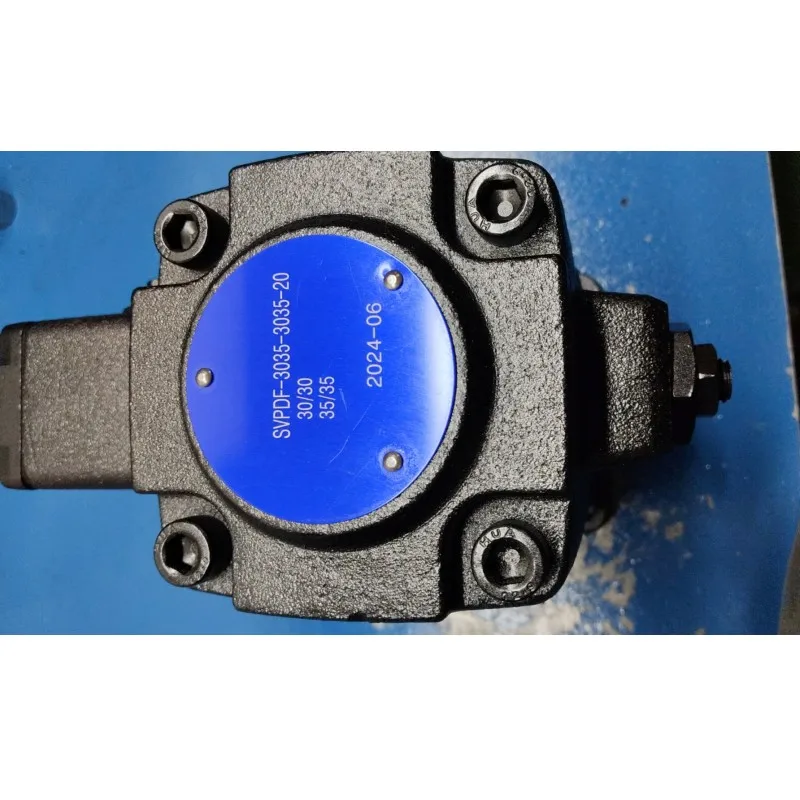

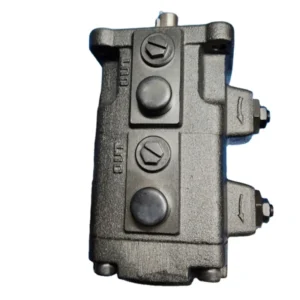

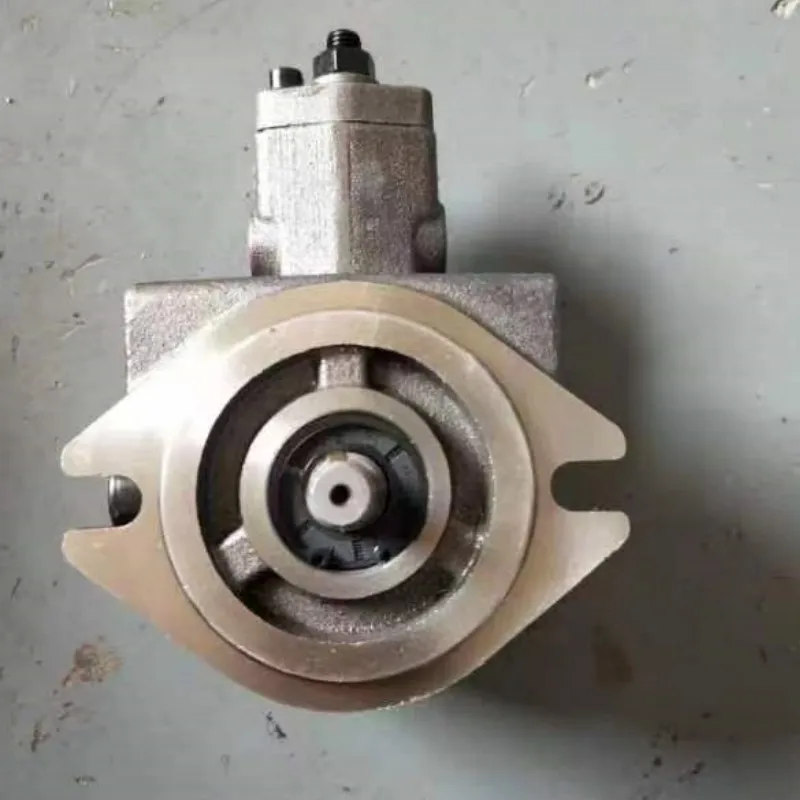

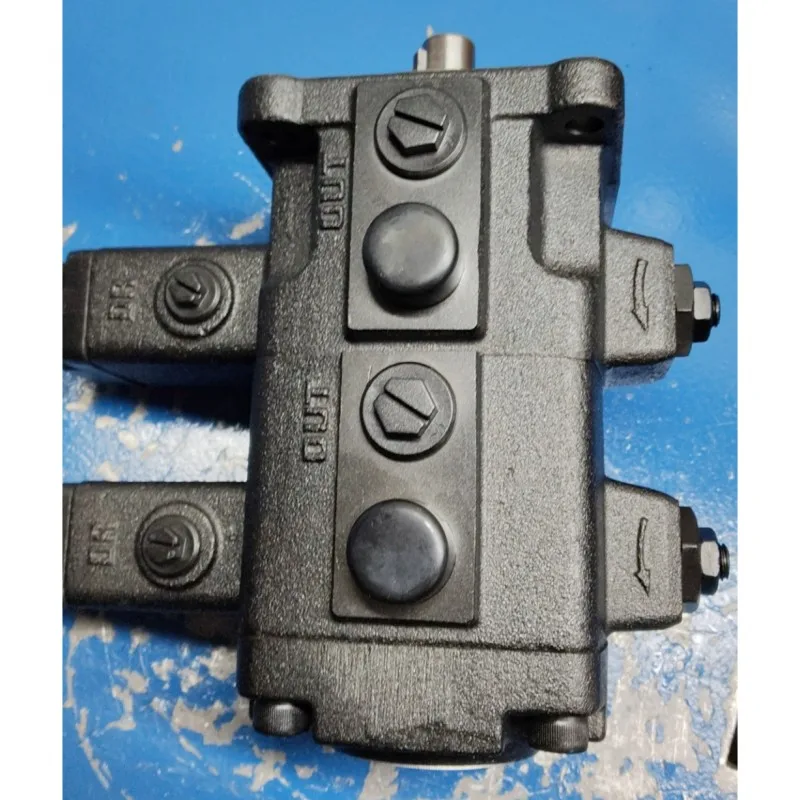

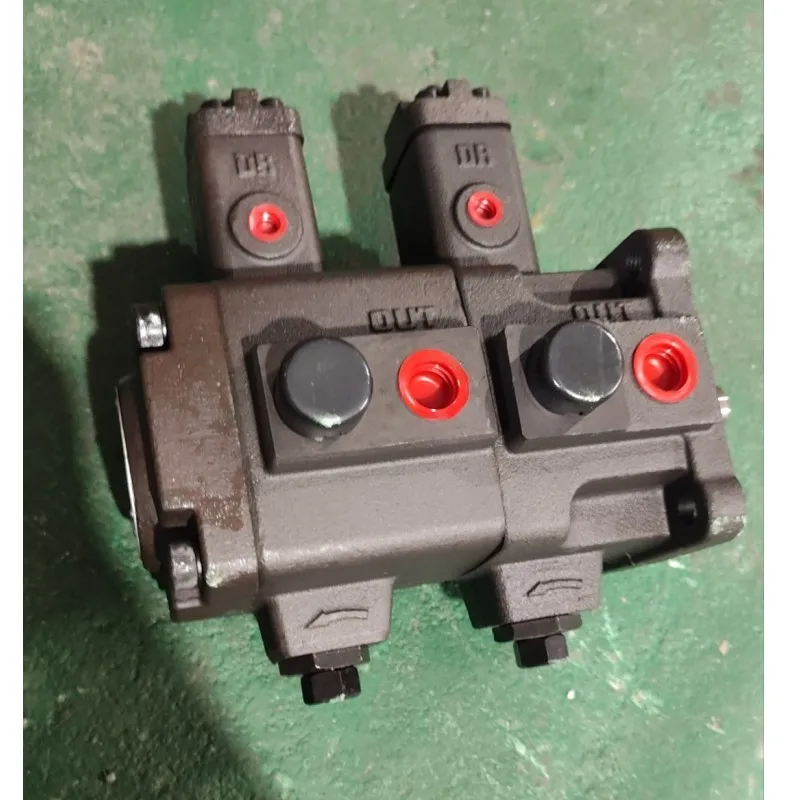

Product Overview: The SVPDF and SVPF Series represent the core power solutions for intelligent energy-saving and multi-circuit control in hydraulic systems. While SVPF is a classic single variable pump renowned for its high response speed, SVPDF is a Double Variable Pump integrating two independent cartridges within a single housing. This page highlights premium models: the double pump SVPDF-3035-3035-20 and the single pump SVPF-20-55-20. Featuring precise Pressure Compensation, these pumps automatically transition to a low-flow standby state upon reaching preset pressure, drastically minimizing overflow losses and system heat.

Key Technical Advantages:

• Independent Dual-Circuit Regulation (SVPDF): The SVPDF series allows independent pressure and flow settings for both cartridges, enabling a “one pump, two circuits” configuration. One circuit can handle high-pressure clamping while the other powers auxiliary motions independently.

• Ultra-Fast Compensation Response: The highly sensitive regulation mechanism provides millisecond-level displacement adjustments based on load demand, ensuring stable system pressure and precise execution.

• Ultimate Silent Operation: Utilizing optimized vane geometry and precision-ground rotors, the pumps maintain exceptionally low decibel levels even in pressure-holding states.

• Superior Energy Efficiency: Eliminates heat losses found in fixed-displacement systems using relief valves, resulting in minimal oil temperature rise and extended service life for seals and hydraulic fluids.

• Target Applications: CNC machine clamping, automated footwear machinery, woodworking equipment, multi-station modular machines, and energy-saving hydraulic power units (HPU).

Detailed Models & Parameters:

• Core Series: SVPDF Series (Double Pump) & SVPF Series (Single Pump).

• Model Keywords: SVPDF-3035-3035-20, SVPF-20-55-20, SVPF-20-70-20.

• Pressure Regulation Range: Includes core ratings 35 (3.5MPa), 55 (5.5MPa), and 70 (7.0MPa).

• Flow Designators: Featuring specifications such as 20 (approx. 20 L/min) and 30 (approx. 30 L/min).

• Design Sequence: 20 Series.

• Max Operating Pressure: Rated continuous working pressure up to 7.0 MPa (70 Bar).
