Sunfab SCM Series Motor | SCM-064W, SCM-034W | SCM-064W-P-143 | Bent Axis Hydraulic Motor

Model Number

SCM-034W-P-SB4-B25-S3G-100, SCM-064W-P-143-W35-S2M-100, SCM-084W-P-SC4-C14-R1M-100, SCM -108W-P-SC4-C14-R1M-100

Inquiry

Product Description

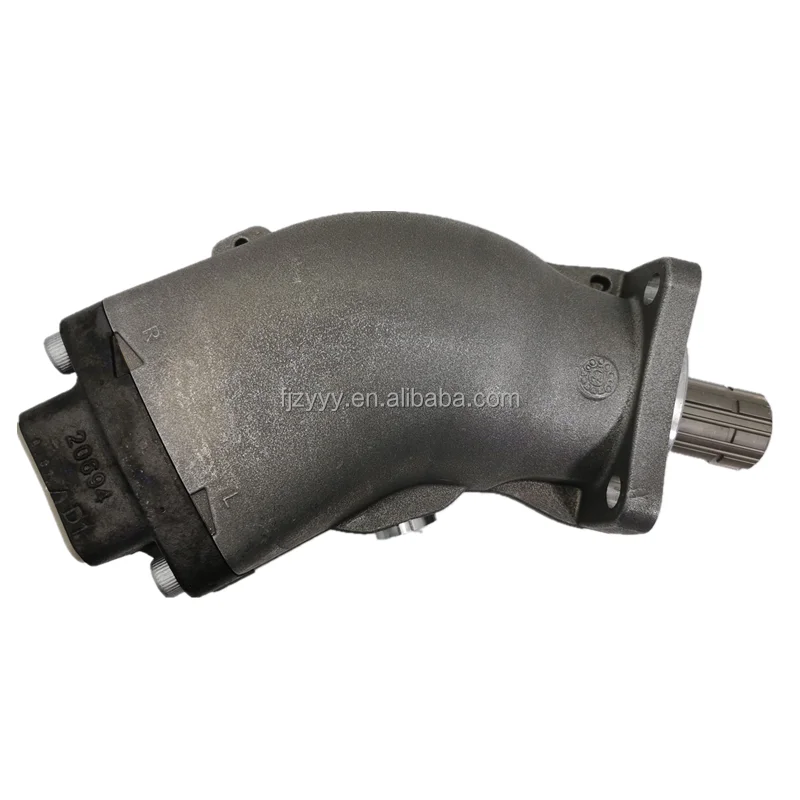

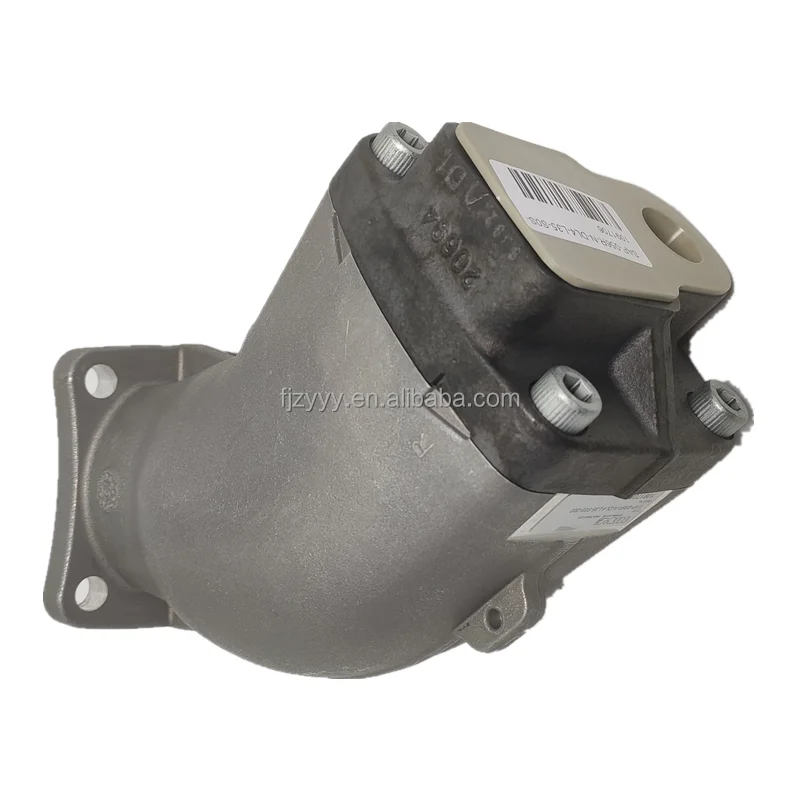

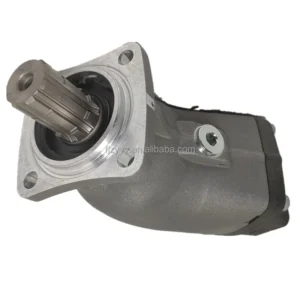

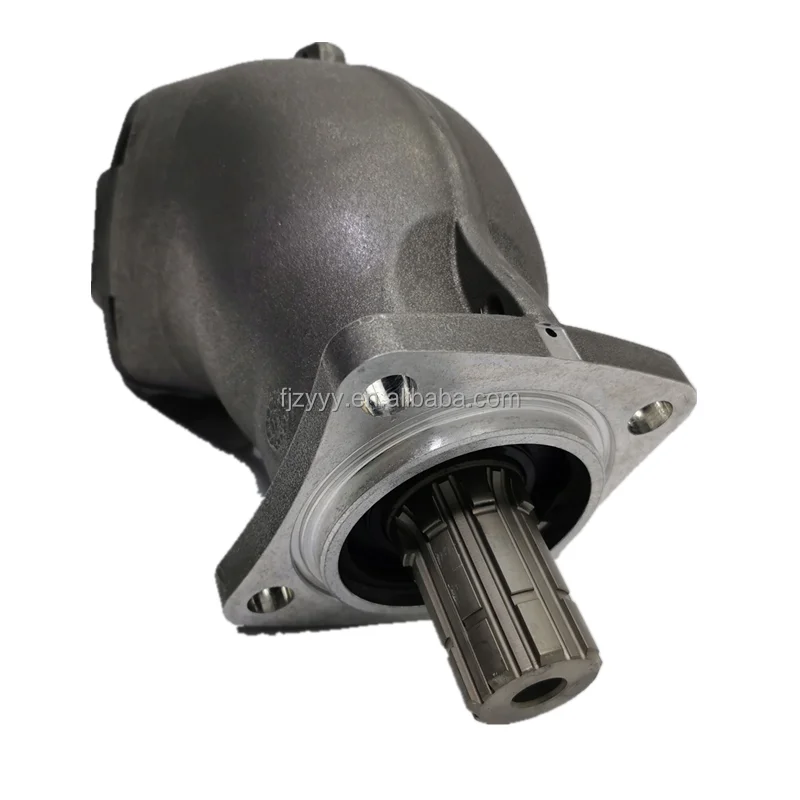

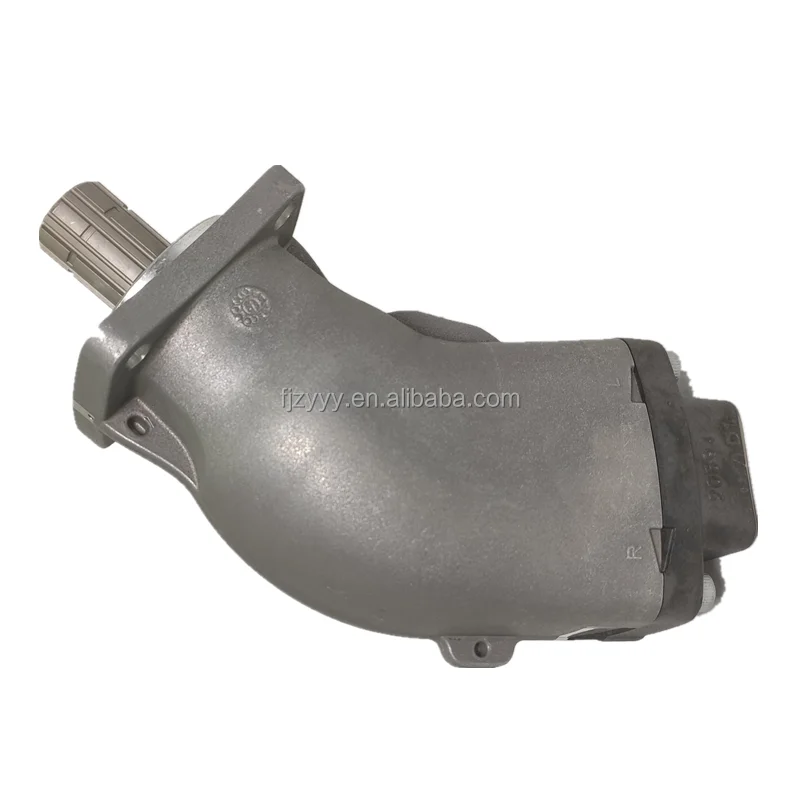

Sunfab SCM Series Bent Axis High-Performance Hydraulic Motors

Product Overview: The Sunfab SCM series is a range of bent-axis axial piston motors specifically engineered for the most demanding mobile and industrial applications. Renowned for its compact envelope and exceptional high-speed capabilities, the SCM series is the premier choice for truck-mounted cranes, forestry harvesters, concrete mixers, and truck PTO (Power Take-Off) drives. Featured models include the SCM-064W-P-143-W35-S2M-100 (64cc) and SCM-034W-P-SB4-B25-S3G-100 (34cc). Its robust bearing configuration and 400 Bar pressure tolerance ensure stable, high-torque output in the harshest operational environments.

Key Technical Advantages:

  • Superior High-Speed Performance: The bent-axis geometry minimizes friction losses compared to standard inline motors, supporting elevated RPM limits for responsive hydraulic drives.

  • Compact & High-Pressure Rated: Rated for continuous operation at 400 Bar (5800 PSI). The streamlined housing design allows for flexible installation in the constrained spaces of truck chassis.

  • High Efficiency Across Speed Range: Maintains exceptional volumetric and mechanical efficiency from heavy-load low-speed startups to high-speed cruising.

  • Excellent Shock Resistance: Optimized for mobile hydraulic systems to withstand frequent directional changes and system pressure spikes.

  • 100% Swedish Quality Standards: Manufactured to strict ISO mounting specifications, ensuring splined shafts (e.g., W35, B25) align perfectly with global reducers and PTO interfaces.

Detailed Models & Parameters:

  • Core Series: Sunfab SCM Series.

  • Model Keywords: SCM-064W, SCM-034W, SCM-064, SCM-034.

  • Full Part Numbers: SCM-064W-P-143-W35-S2M-100, SCM-034W-P-SB4-B25-S3G-100.

  • Displacements: 34.2 cm³/rev (SCM-034) / 63.5 cm³/rev (SCM-064).

  • Pressure Ratings: Rated at 400 Bar (5800 PSI) continuous; Peak capability up to 450 Bar.

  • Rotation: Bi-directional (Dual rotation).

  • Target Applications: Truck-mounted cranes, timber loaders, mulchers, winch drives, and heavy-duty hoists.
