Sun Hydraulics CBDG, CBEA, NFDD & NFCC Series Cartridge Valves

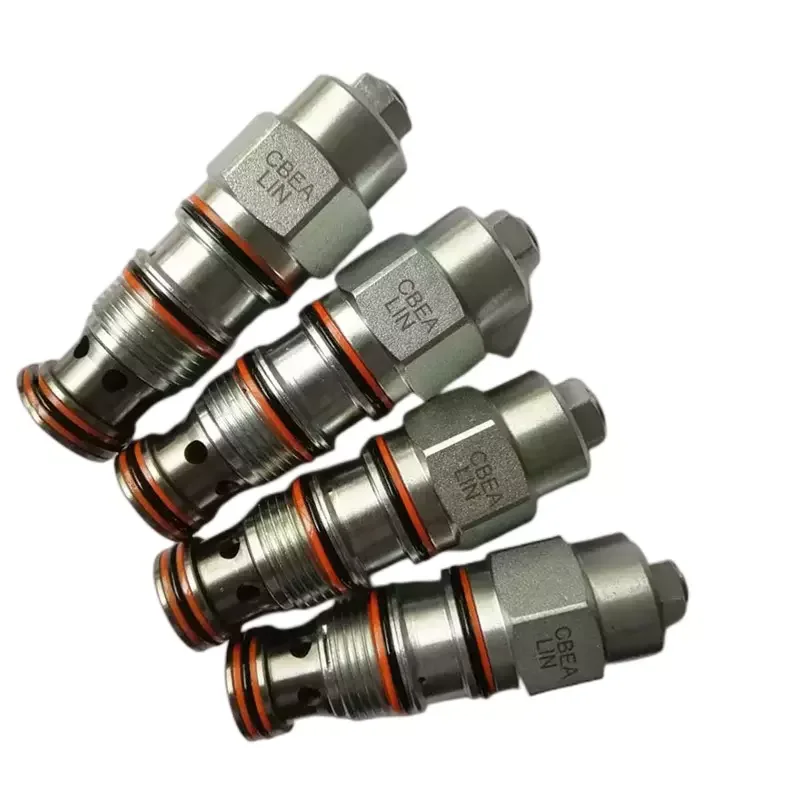

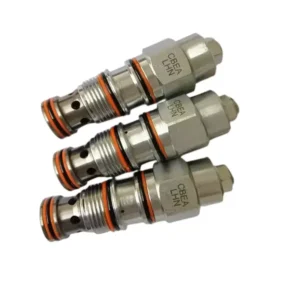

Product Overview: Sun Hydraulics Cartridge Valves are globally recognized for their patented “Floating Style” design. This unique construction allows internal components to self-center during installation, neutralizing stresses caused by manifold machining tolerances or excessive torque. This ensures the spool remains sensitive and responsive even under high-pressure conditions up to 350 Bar. This category features premier models for load control and flow management: CBDG-CJN / CBEA-LHN (Counterbalance), NFDD-LGN / NFCC-LCN (Pressure Compensated Throttle), RPCC-LCN / NCCC-LCN (Pilot-operated Control), and FCCB-LAN (Flow Control).

Engineered for high-pressure, long-life, and severe-duty hydraulic integrated circuits, these screw-in cartridges are the premier choice for construction machinery, mobile cranes, aerial work platforms, injection molding machinery, and industrial Hydraulic Power Units (HPU).

Key Technical Advantages:

• Superior Load Management (CB Series): The CBDG and CBEA counterbalance valves provide precise overload protection and safety locking, effectively eliminating actuator drift under heavy loads.

• Patented Floating Technology: The unique two-piece floating construction significantly reduces the risk of spool binding caused by mechanical stress, enhancing operational sensitivity.

• Precision Flow Compensation (NF Series): NFDD and NFCC series feature superior pressure compensation to maintain constant actuator speeds despite varying load pressures.

• High-Response Flow Control: The FCCB and RPCC series utilize pilot-operated logic for rapid response and precise flow regulation in complex hydraulic circuits.

Detailed Specifications & Parameters:

• Core Series: Sun Hydraulics Load Control & Flow Logic Cartridges.

• Featured Model Matrix: FCCB-LAN, NCCC-LCN, CBDG-CJN, CBEA-LHN, RPCC-LCN, NFDD-LGN, NFCC-LCN.

• Core Performance Specs:

  • Max Operating Pressure: Rated for heavy-duty operations up to 350 Bar (5,000 PSI).

  • Functional Logic: Counterbalance (CBDG/CBEA), Pressure Compensated Flow Control (NFDD/NFCC), Pilot Relief/Control (RPCC/NCCC).

  • Adjustment Options: L (Leak-proof screw), C (Special setting), J (Tamper-resistant cap).

  • Sealing Materials: N (Buna-N Standard) or V (Viton options).

  • Cavity Standards: Industry-standard cavities such as T-11A, T-13A, T-2A, T-5A, and T-10A.
