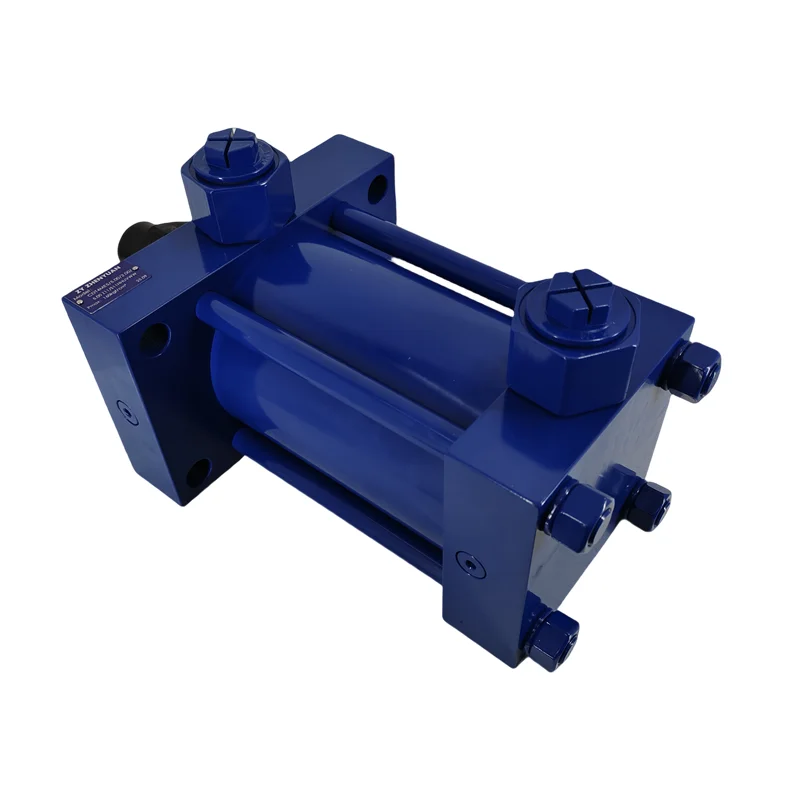

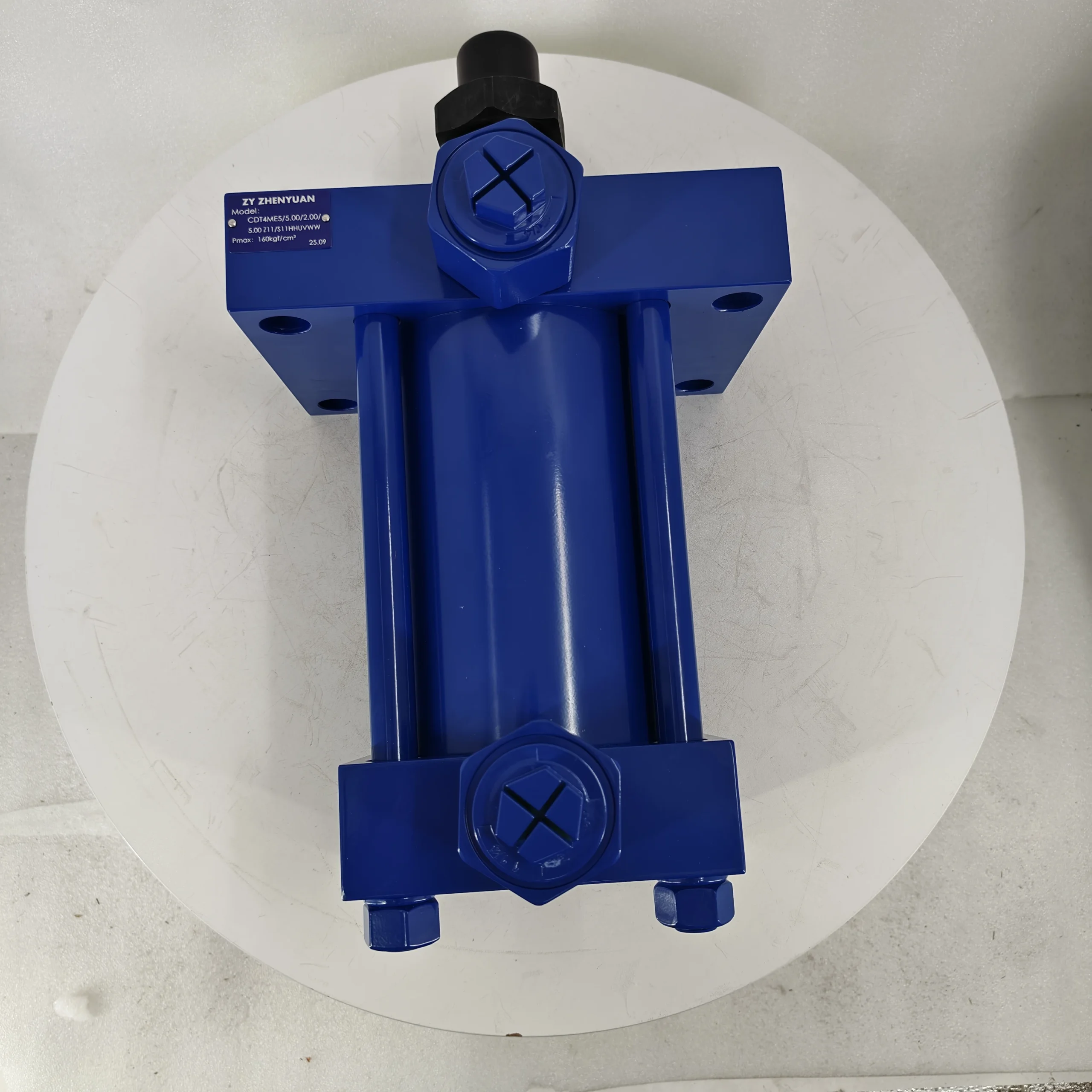

Industrial Standard Pull Rod Hydraulic Cylinders (160H-1 / CHM / CJB)

Product Overview:

The pull-rod hydraulic cylinder series serves as the backbone of modern industrial drive systems in 2026. This collection features top-tier specifications tailored for diverse pressure and space requirements, including the $16 \text{ MPa}$ Heavy-Duty (160H-1), Medium-Pressure Compact (CHM), and Precision Control (CJB) series. With standardized tie-rod construction, these cylinders deliver exceptional durability and serviceability for mold-making, presses, and automated production lines.

Core Model Specifications:

• 160H-1R1CA80AB1250-AB-X: $80\text{mm}$ Bore, $1250\text{mm}$ Stroke. Features CA (Rear Clevis) mounting. The -X suffix denotes specialized sealing or thermal customization for long-stroke, heavy-load cycles.

• CHM/100/70/130/FA/00AIKPN2: $100\text{mm}$ Bore, $70\text{mm}$ Rod, $130\text{mm}$ Stroke. Features FA (Front Flange) mounting with a compact footprint, rated at $10 \text{ MPa}$.

• CJB2HLU14AC (Ref 13.00): A precision pull-rod series optimized for low-friction performance, ideal for actuators requiring extreme positioning accuracy.

Key Technical Advantages:

• Standardized Tie-Rod Integrity: Secured by high-strength pull rods, ensuring symmetrical structure and stable mechanical performance. It effectively disperses axial stress during high-frequency 2026 industrial operations.

• Multi-Pressure Tier Coverage: Spans industrial standard pressures from $10 \text{ MPa}$ to $16 \text{ MPa}$, meeting needs from lightweight clamping to heavy-duty pressing.

• AIK/AB Advanced Sealing: Equipped with the latest low-friction composite seals for superior self-lubrication. This prevents internal bypass leakage, eliminates “stick-slip” motion, and significantly extends maintenance intervals.

• Precision Cushioning Technology: Both 160H and CHM series offer adjustable end-cushioning to absorb massive kinetic energy at the end of long strokes (e.g., $1250\text{mm}$), protecting molds and machinery from impact damage.

• Precision Chromed Rods: Induction-hardened and hard-chrome plated with a mirror-finish surface, providing extreme hardness and superior protection against corrosion and mechanical scratches.

Detailed Technical Specifications:

• Nominal Pressure: $10 \text{ MPa} / 16 \text{ MPa}$.

• Bore Sizes: $80 \text{ mm}, 100 \text{ mm}$.

• Stroke Range: From $130 \text{ mm}$ to $1250 \text{ mm}$.

• Mounting Styles: CA (Rear Clevis) / FA (Front Flange) / L (Foot Mount).

• Compatible Mediums: Mineral oils, anti-wear hydraulic fluids, and synthetic lubricants.
