Shimadzu SGP1 Gear Pump | SGP1-27L387, SGP127L387 | SGP1-16 to SGP1-36 | Forklift Pump
| Model Number | SGP1-27L387 |
|---|
Product Description

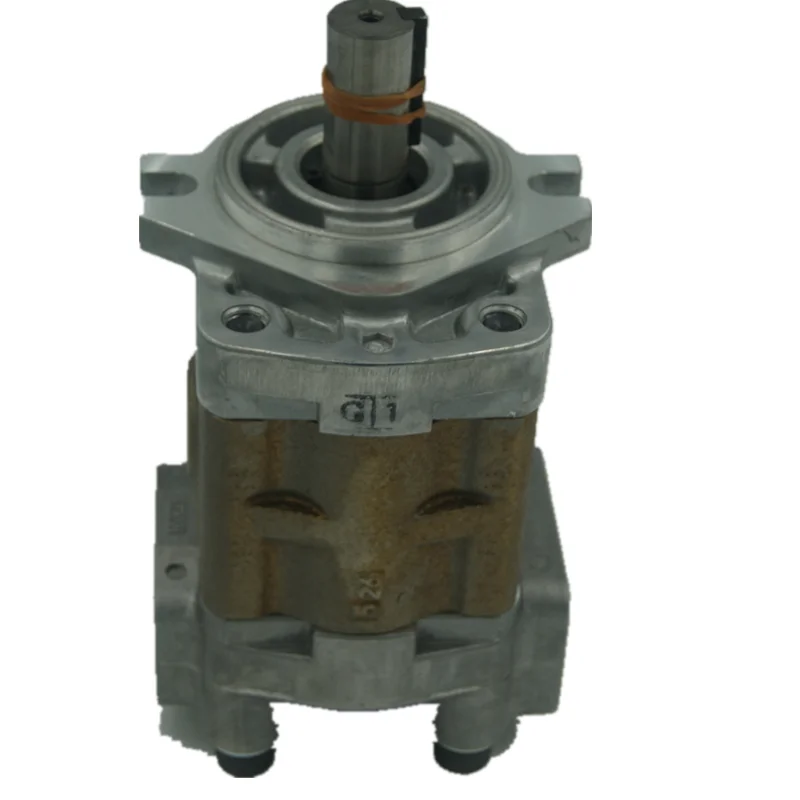

Shimadzu SGP1 Series High-Performance Hydraulic Gear Pumps for Forklifts
Product Overview: The Shimadzu SGP1 Series serves as the ultimate power core for global material handling equipment hydraulic systems. This featured selection covers the full range of displacement specifications, highlighting the core model SGP1-27L387 (SGP127L387), with complete support for models from SGP1-16 to SGP1-36. Engineered with high-strength extruded aluminum bodies and a reinforced three-piece construction, these pumps are specifically designed for the rigorous demands of forklifts during frequent lifting, tilting, and high-frequency shock loading. Its superior axial gap compensation ensures stable flow delivery at peak pressures up to 25 MPa.
Key Technical Advantages:
100% Plug-and-Play Replacement: Strictly adheres to original Shimadzu OEM specifications, ensuring identical flange patterns (e.g., specific diamond flanges), shaft ends, and port positions for guaranteed seamless installation.
Superior Volumetric Efficiency: Features automatic axial pressure-compensated side plates to minimize internal leakage, maintaining efficiencies over 93% throughout the pump’s service life and reducing overall system heat.
Exceptional Pressure Resilience: Rated for a continuous operating pressure of 21 MPa with peaks reaching 25 MPa (3625 PSI), ensuring reliability under heavy-duty forklift operations.
Smooth & Low-Noise Operation: Precision-ground gear profiles drastically reduce operational noise and pressure ripples, protecting downstream control valves and cylinders.
Strong Contamination Resistance: Equipped with reinforced sliding bearing construction, providing extended service life even in hydraulic environments with minor impurities.
Detailed Models & Parameters:
Core Series: Shimadzu SGP1 Performance Series.
Core Model Keywords: SGP1-27L387, SGP127L387.
Full Range Support: SGP1-16, SGP1-18, SGP1-20, SGP1-23, SGP1-25, SGP1-27, SGP1-30, SGP1-32, SGP1-34, SGP1-36.
Pressure Ratings: Rated at 21 MPa (210 Bar) continuous; Peak up to 25 MPa (250 Bar).
Displacement Range: Ranging from 16cc/rev up to 36cc/rev.
Target Applications: Main lift pumps for 1.5-3.5 ton forklifts, material handling equipment, municipal sweepers, and compact loaders.
