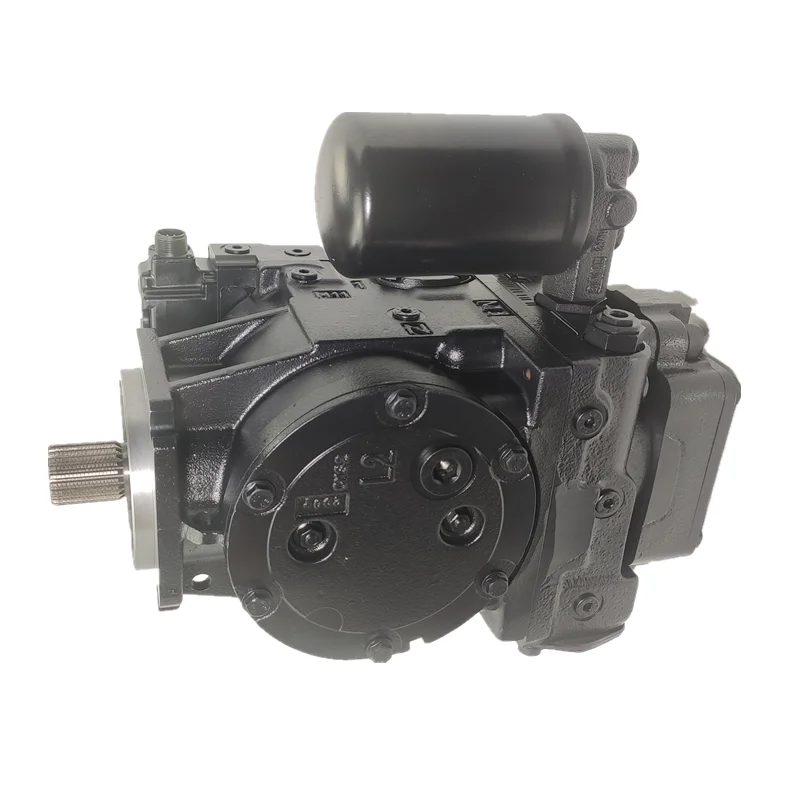

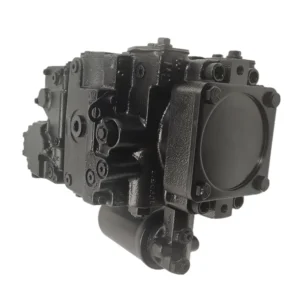

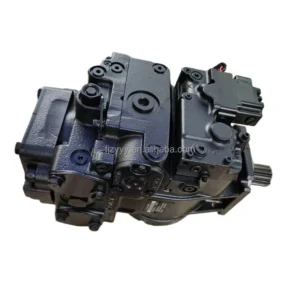

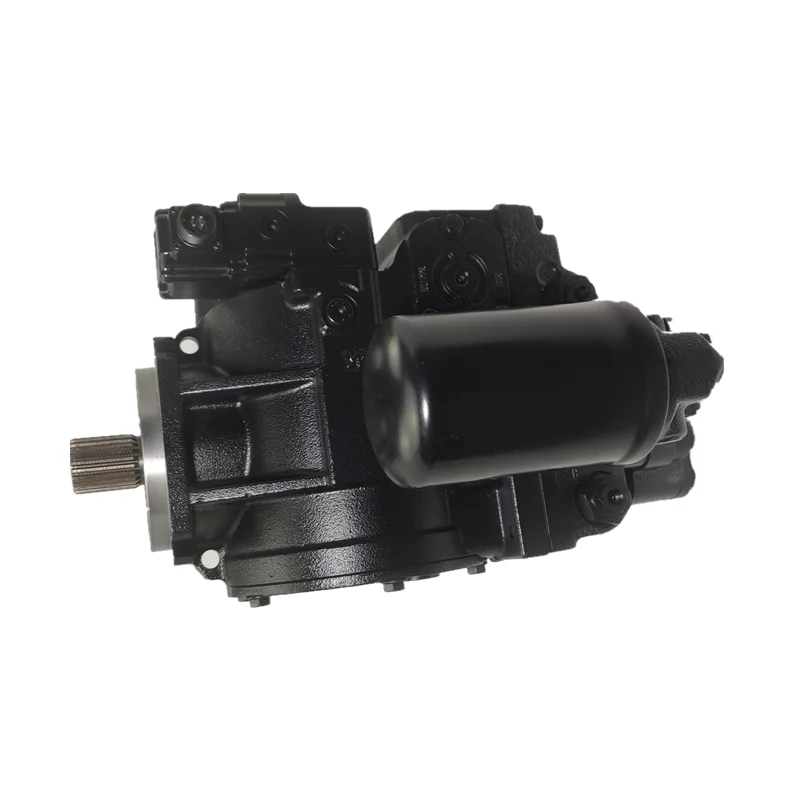

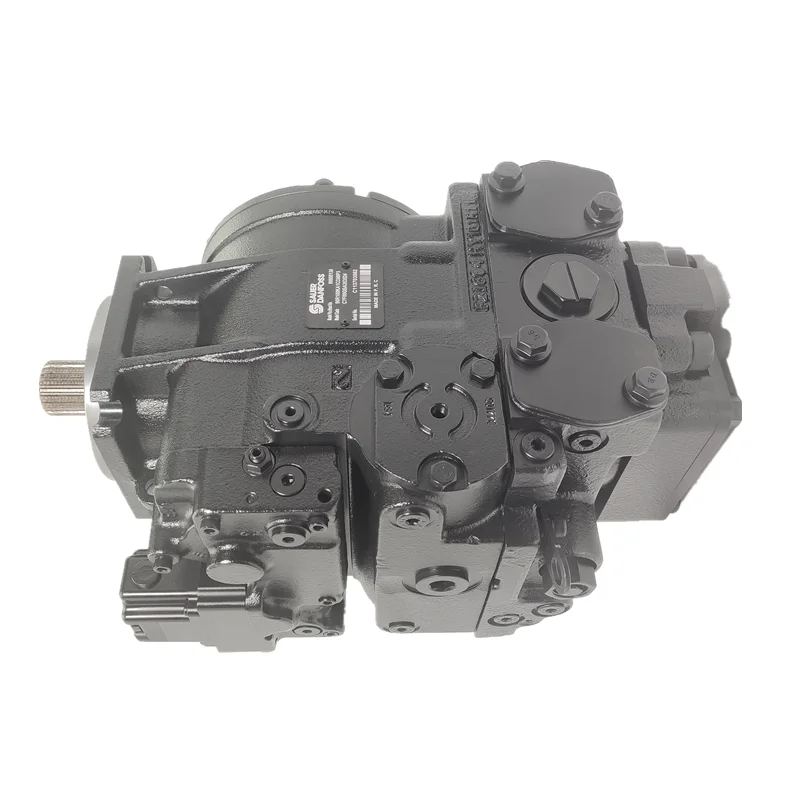

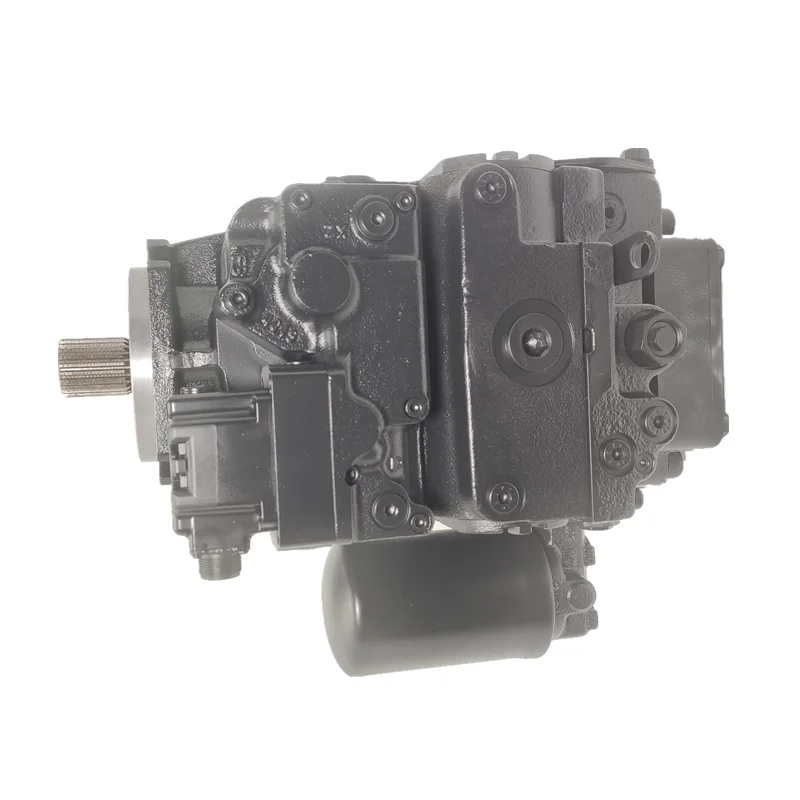

Sauer-Danfoss 90L075 Series Hydraulic Pump | 90L075MB1NN60S3 | Mixer Truck Main Pump

90L075 Series High-Performance Variable Displacement Pumps for Mixer Trucks

Product Overview: The 90 Series represents the industry standard for heavy-duty closed-loop hydrostatic transmissions, specifically engineered for high-intensity applications like concrete mixer trucks. This featured range highlights the core model 90L075MB1NN60S3S1D03GBA383824. As a 75cc high-pressure variable axial piston pump, it provides precise stepless speed control, ensuring the mixing drum maintains a stable rotation speed under various driving conditions. Its compact design integrates the charge pump and control valve manifolds, making it the preferred power core for leading global mixer brands (e.g., Sany, Zoomlion, Liebherr).

Key Technical Advantages:

• Heavy-Duty Hydrostatic Transmission (HST): Designed for closed-loop circuits, allowing smooth directional changes and stepless speed variation via swashplate adjustment, perfectly matching mixer drum requirements.

• Exceptional Power Density: Features a large 75 cm³/rev displacement within a compact housing, with a rated pressure of 42 MPa and peak capabilities up to 48 MPa.

• Highly Integrated System: Built-in high-efficiency charge pump and high-pressure relief valves simplify external plumbing and significantly reduce potential leak points in the hydraulic system.

• Superior Durability: Utilizing hardened piston sets and reinforced valve plates, these pumps are built to withstand harsh construction site dust and continuous high-pressure operation, extending overhaul intervals.

• Precision Control: Equipped with advanced control logic (corresponding to specific model codes) to ensure powerful torque output even at low engine RPMs.

Detailed Models & Parameters:

• Core Series: Sauer-Danfoss (Danfoss) 90 Series.

• Full Part Number: 90L075MB1NN60S3S1D03GBA383824.

• Displacement Spec: 75 cm³/rev (75cc).

• Pressure Ratings: Rated at 42 MPa (420 Bar / 6000 PSI); Peak pressure capability up to 48 MPa (7000 PSI).

• Mounting Features: Standard SAE interfaces with versatile shaft and flange configurations.
