Sauer Danfoss 51V060 Motor | 51V060RS1CHSA2BHE1 | 480 Bar Bent Axis Variable Piston Motor

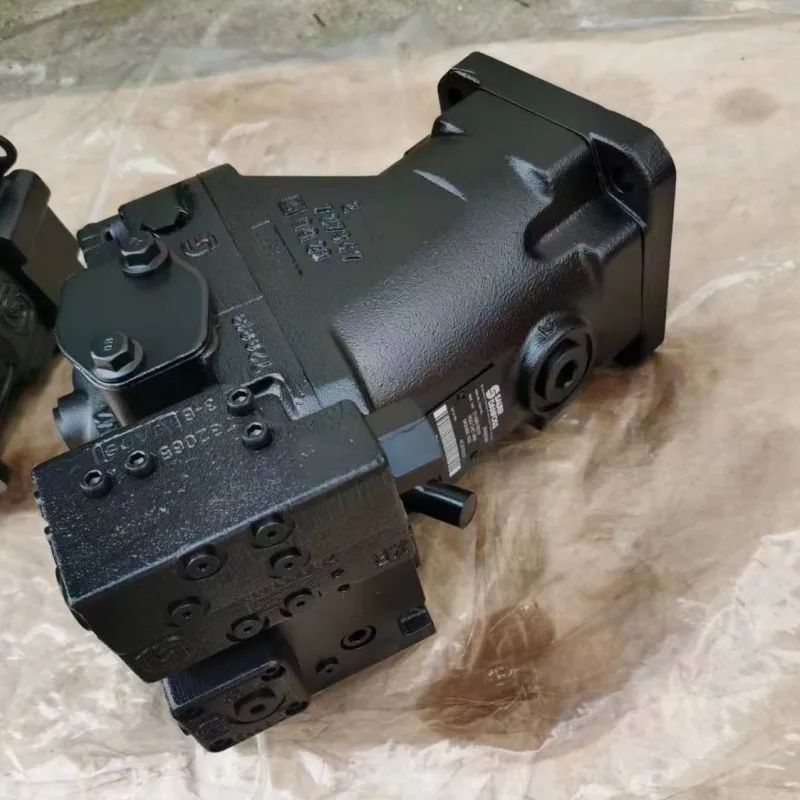

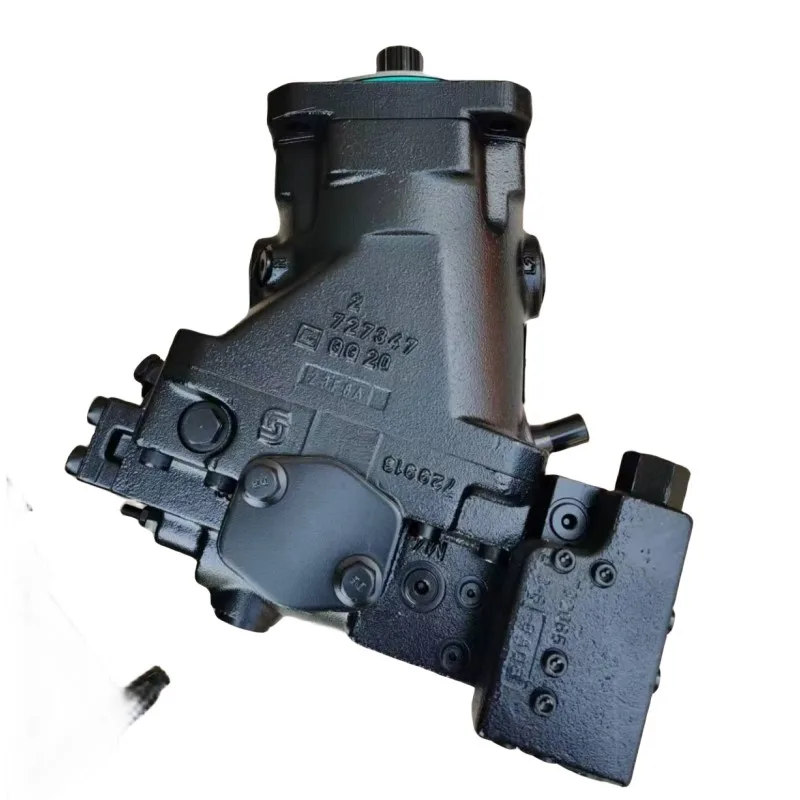

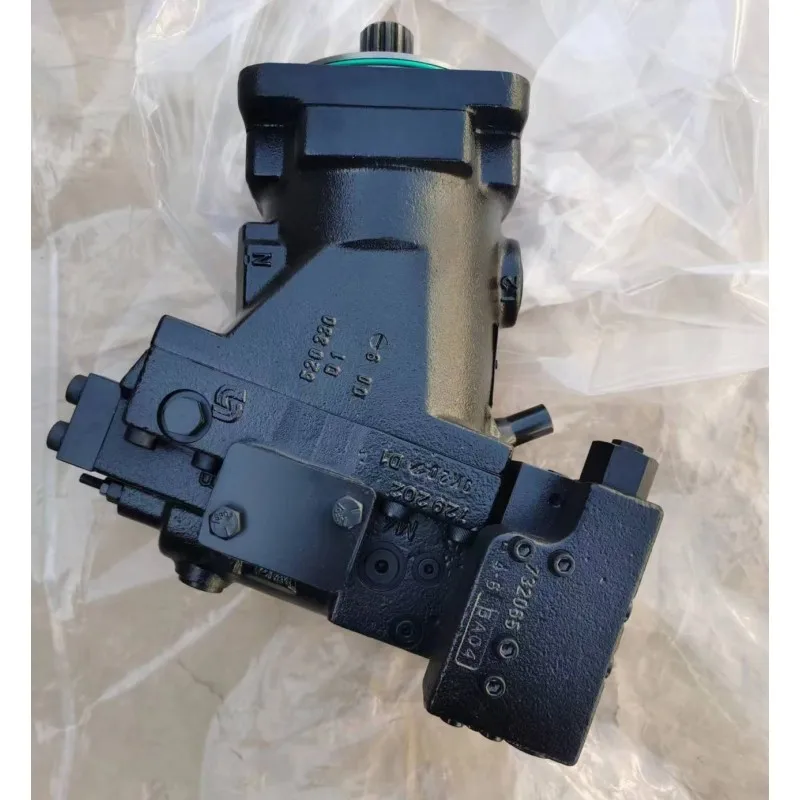

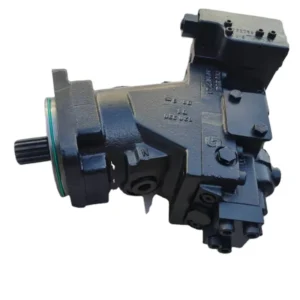

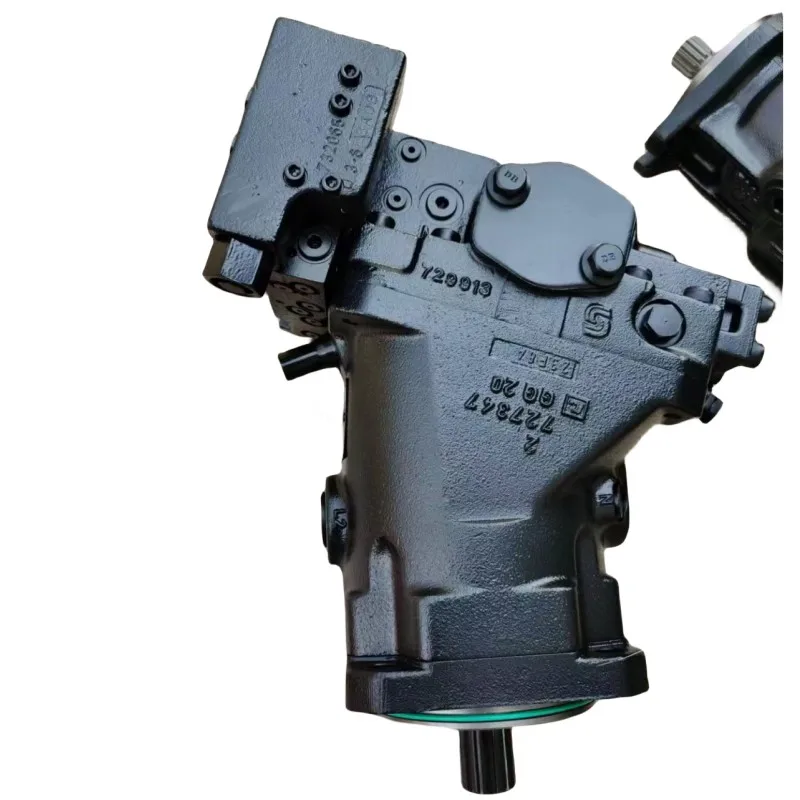

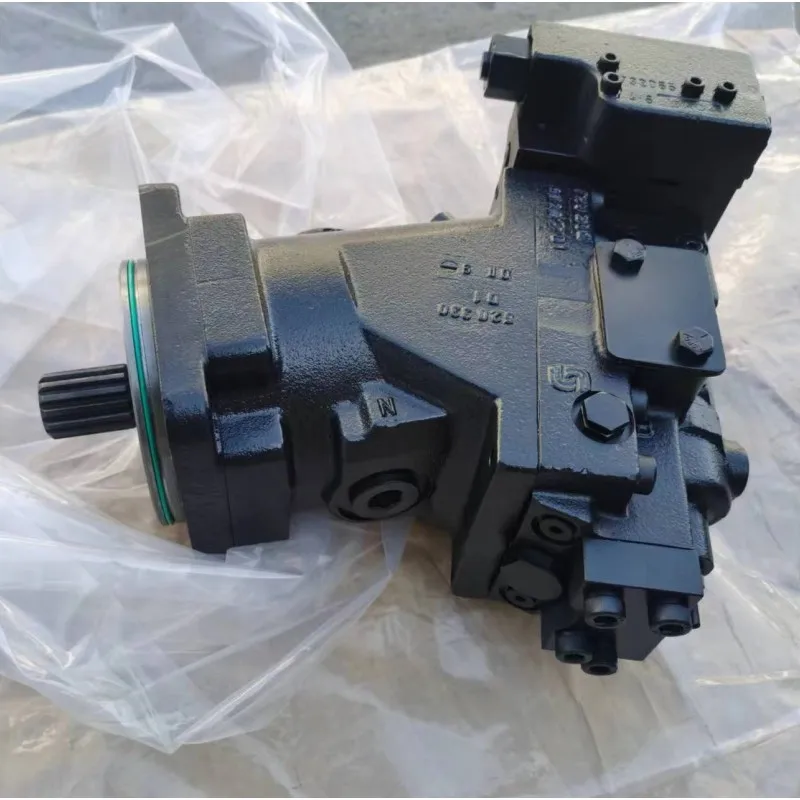

Sauer-Danfoss 51V060 Series Bent Axis Variable Displacement Motor

Product Overview: The Sauer-Danfoss 51V060 is a hallmark of high performance and reliability in the field of hydrostatic drives. Featuring an advanced Bent Axis design, this motor offers a displacement of 60 cm³/rev and is engineered for both open and closed hydraulic circuits. Its primary advantage lies in its extensive displacement ratio (up to 5:1), allowing machinery to transition smoothly from high-torque climbing to high-speed travel without the need for mechanical gear changes. The featured model 51V060RS1CHSA2BHE1…1013 delivers an exceptional power-to-weight ratio, making it the preferred drive component for road rollers, pavers, and heavy-duty mobile equipment.

Key Technical Advantages:

• High-Efficiency Bent Axis Architecture: Compared to traditional swashplate designs, the bent axis structure offers lower mechanical friction and superior starting torque, maintaining peak volumetric efficiency across the entire speed range.

• Ultra-High Pressure Capability: Rated for continuous operation at 450 Bar (45 MPa) with peak cycles reaching 480 Bar, ensuring structural integrity under extreme load spikes.

• Precision Control Integration (HSA2/BHE1):

  • Incorporates sophisticated control logic supporting various pressure-related and electro-hydraulic adjustments for rapid response.

  • The HSA2/BHE1 configuration ensures seamless integration with the vehicle’s Electronic Control Unit (ECU), optimizing power distribution.

• Extensive Speed Range: Optimized rotating groups support high maximum speed limits while maintaining smooth torque output at ultra-low speeds without “stick-slip” effects.

• Rugged Industrial Design: The compact housing offers excellent thermal management and durability, capable of continuous operation in harsh construction environments characterized by high dust and vibration.

Detailed Models & Parameters:

• Core Series: Sauer Danfoss 51V Series.

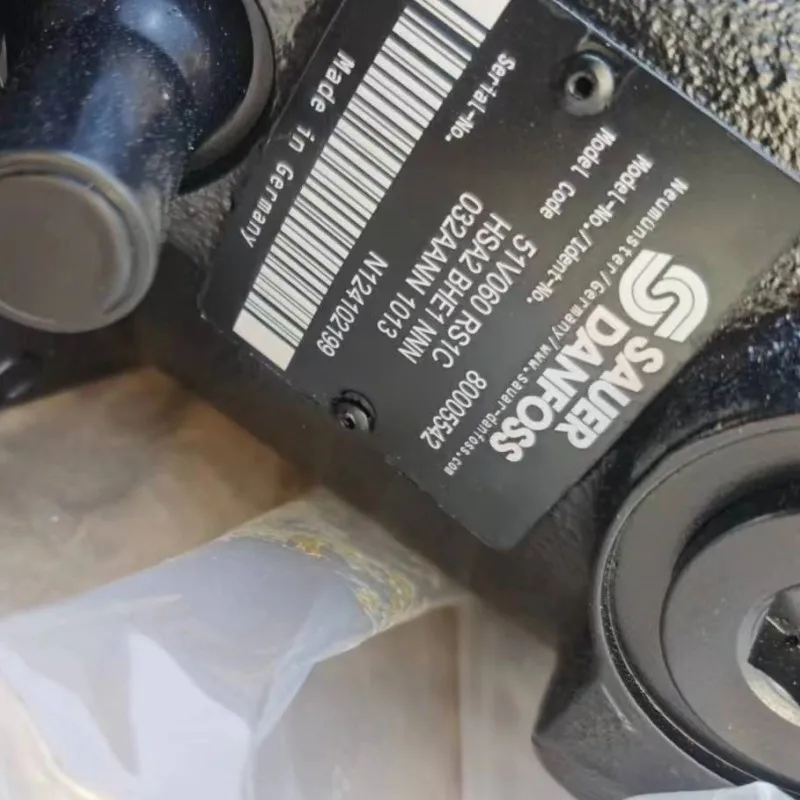

• Full Model: 51V060RS1CHSA2BHE1NNN072AANN1013.

• Displacement: 60 cm³/rev.

• Pressure Ratings: Rated at 450 Bar (6525 PSI); Peak cycles up to 480 Bar (6960 PSI).

• Max Speed: Continuous speeds up to 4000+ RPM.

• Rotation: R (Clockwise).
