Rexroth Z2FS Series Throttle Check Valve | Z2FS10 Z2FS6 Z2FS16 | Double Throttle Check Sandwich Valve
| Model Number | Z2FS-10-5-3X/V, Z2FS16-8-3X/S, Z2FS10-5-33, Z2FS6-32, Z2FS16-30B/S S2 |
|---|
Product Description

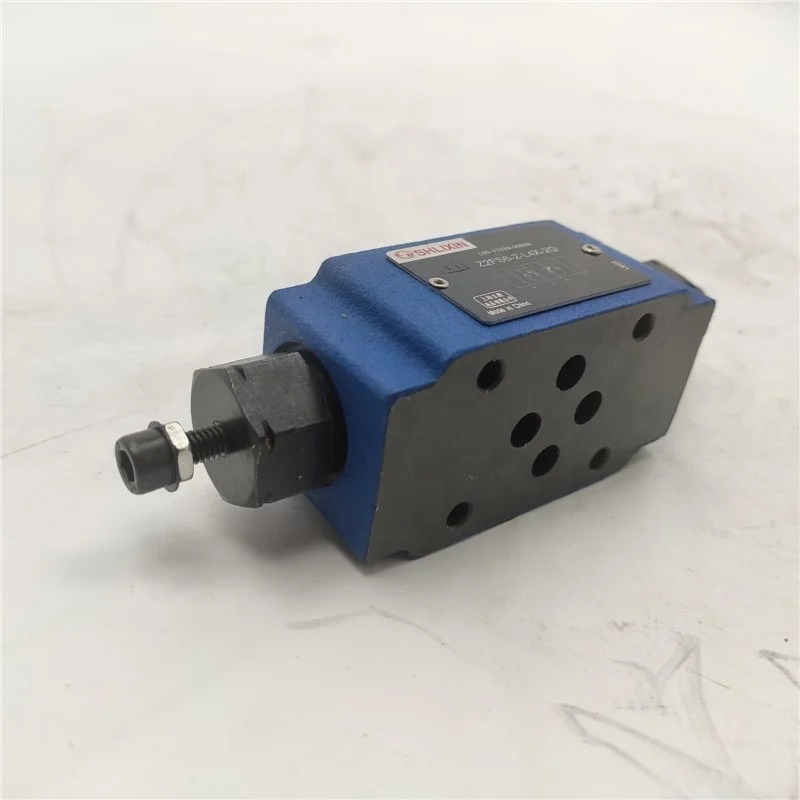

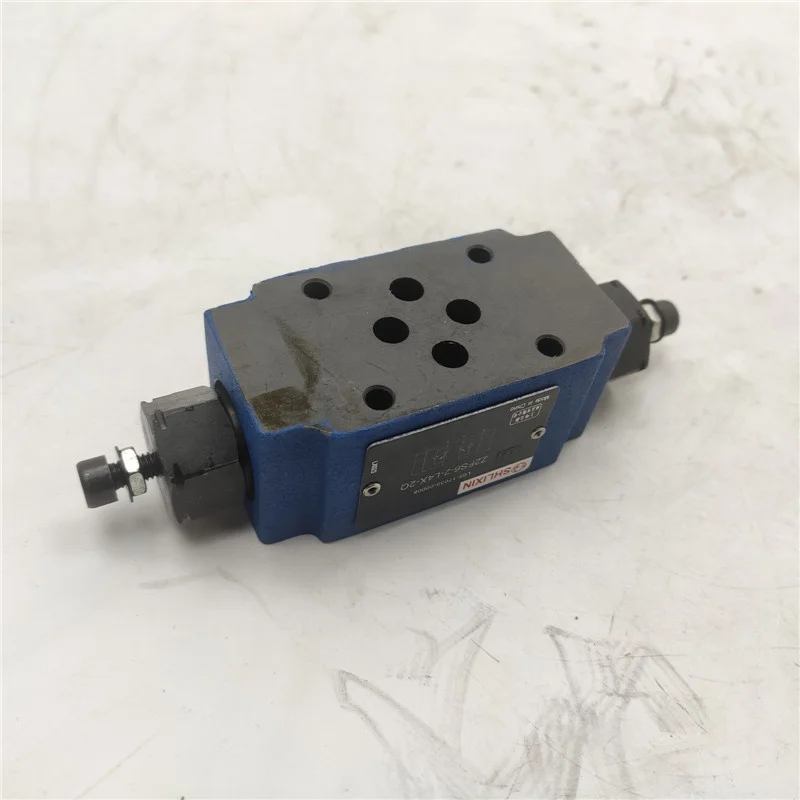

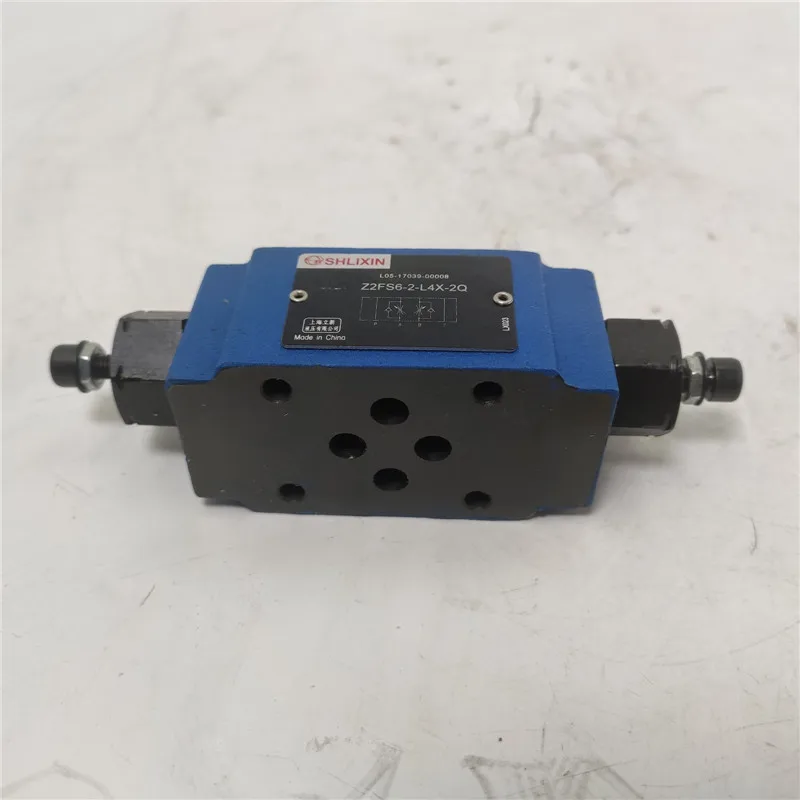

Z2FS Series Double Throttle Check Sandwich Valves
Product Overview: The Z2FS series is a classic sandwich plate double throttle check valve designed for the flow regulation of actuators (cylinders or motors). Its modular sandwich design allows it to be mounted directly between the directional valve and the subplate, eliminating additional piping and significantly streamlining hydraulic system integration. Featuring two independent adjustment screws, users can precisely fine-tune the flow in both ports A and B, ensuring smooth and synchronized actuator movements.
Featured models: Z2FS10-5-3X/V, Z2FS6-32, Z2FS16-8-3X/S, Z2FS16-30B/S, and the complete Z2FS10-5-33 range.
Key Technical Advantages:
Sandwich Plate Design: Minimizes space requirements and reduces potential leakage points, aligning with modern integrated hydraulic station trends.
Independent Dual Adjustment: The throttle valves for channels A and B are entirely independent, allowing for both meter-in or meter-out control (depending on installation orientation).
Precise Regulation: Utilizes fine-thread adjustment rods to ensure high linearity and resolution across a broad flow spectrum.
Thermal & Chemical Resistance: Models with the /V suffix (e.g., Z2FS10-5-3X/V) are equipped with FKM (Viton) seals, providing superior resistance to chemical corrosion and high temperatures.
Detailed Specifications & Parameters:
Featured Model Matrix:
Z2FS6-32: Size 6 (NG6), Series 32 design, for standard industrial applications.
Z2FS10-5-3X/V: Size 10 (NG10), Series 3X design, equipped with Viton seals.
Z2FS16-8-3X/S: Size 16 (NG16), high-flow specification for heavy-duty industrial environments.
Core Technical Specs:
Mounting Standard: Complies with ISO 4401-03 (Size 6), ISO 4401-05 (Size 10), and ISO 4401-07 (Size 16).
Max Operating Pressure: Up to 31.5 MPa (315 bar) or 35 MPa (350 bar).
Max Flow Capacity: Up to 80 L/min (NG6), 160 L/min (NG10), and 250 L/min (NG16).
Working Medium: Mineral oils, HFD-type fluids (depending on seal selection).
