Rexroth Type PVV Vane Pump | PVV1, PVV2, PVV4, PVV5 | PVV4-1X/098, PVV4-1X/082

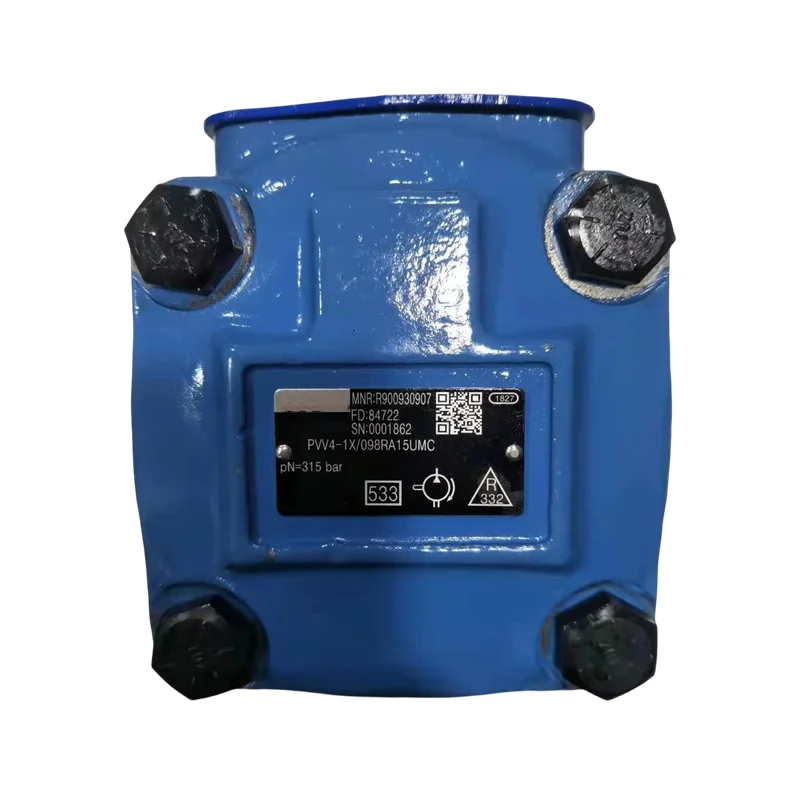

| Model Number | PVV4-1X/098RA15UMC |
|---|
Product Description

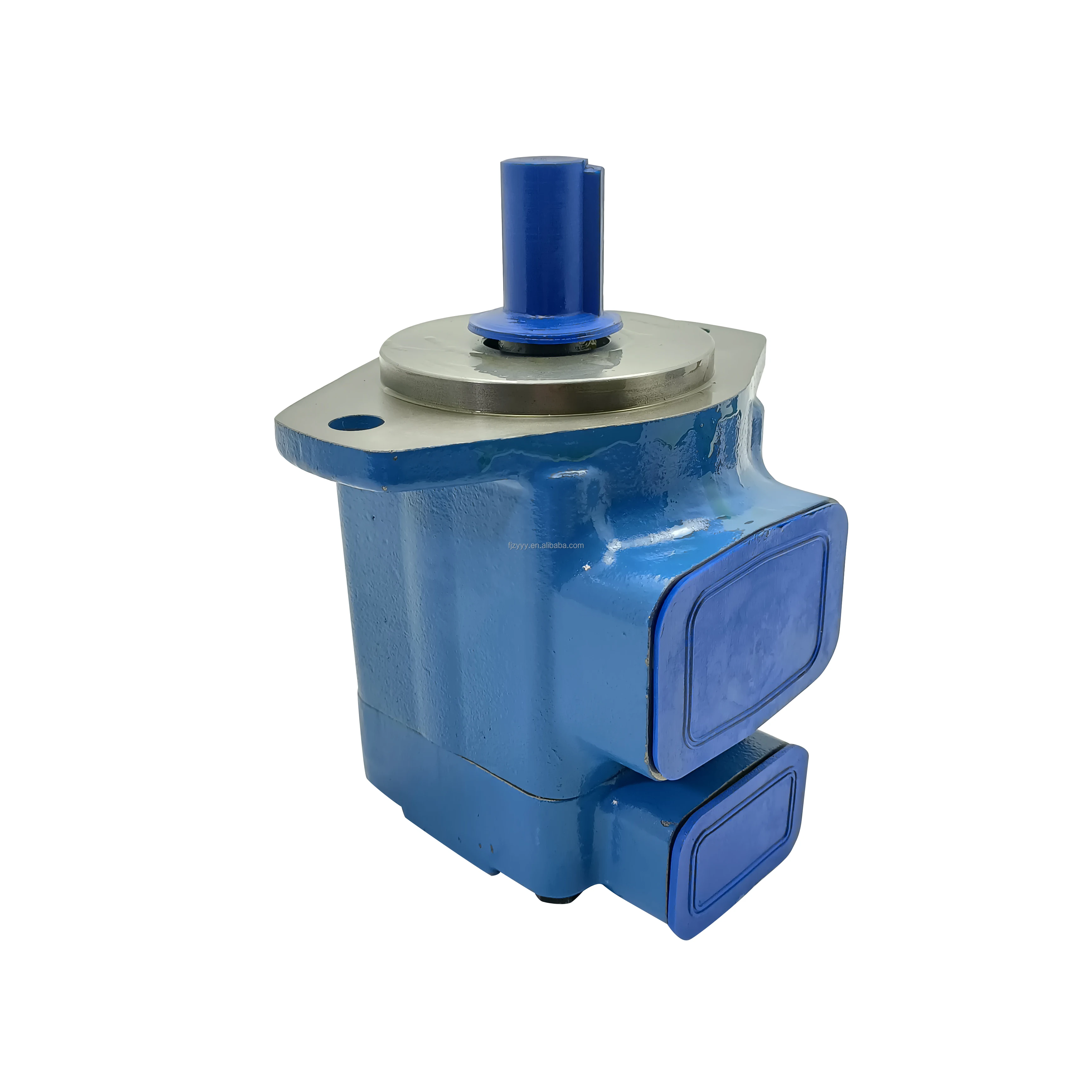

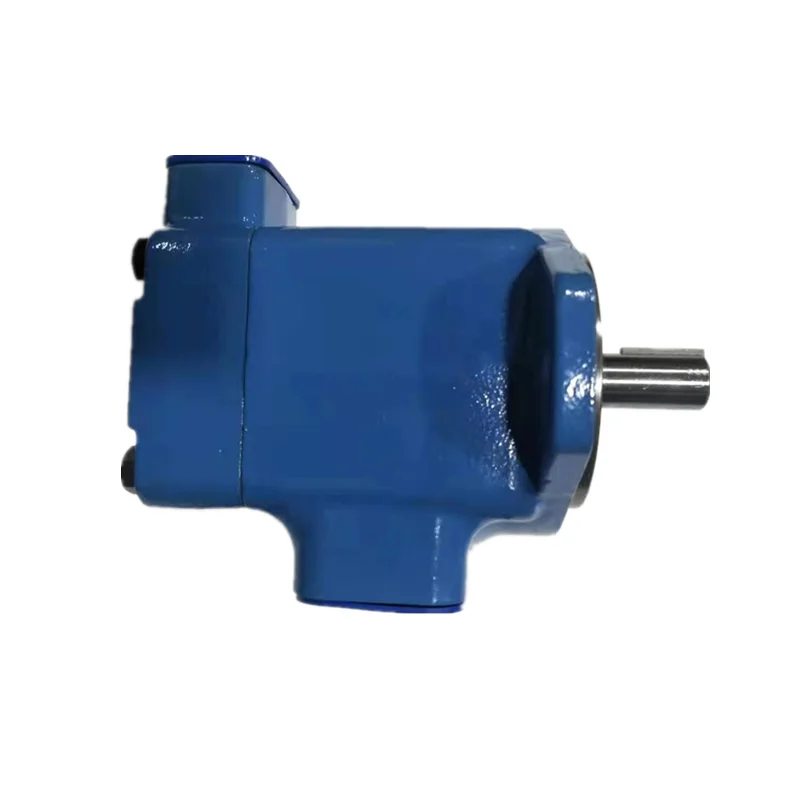

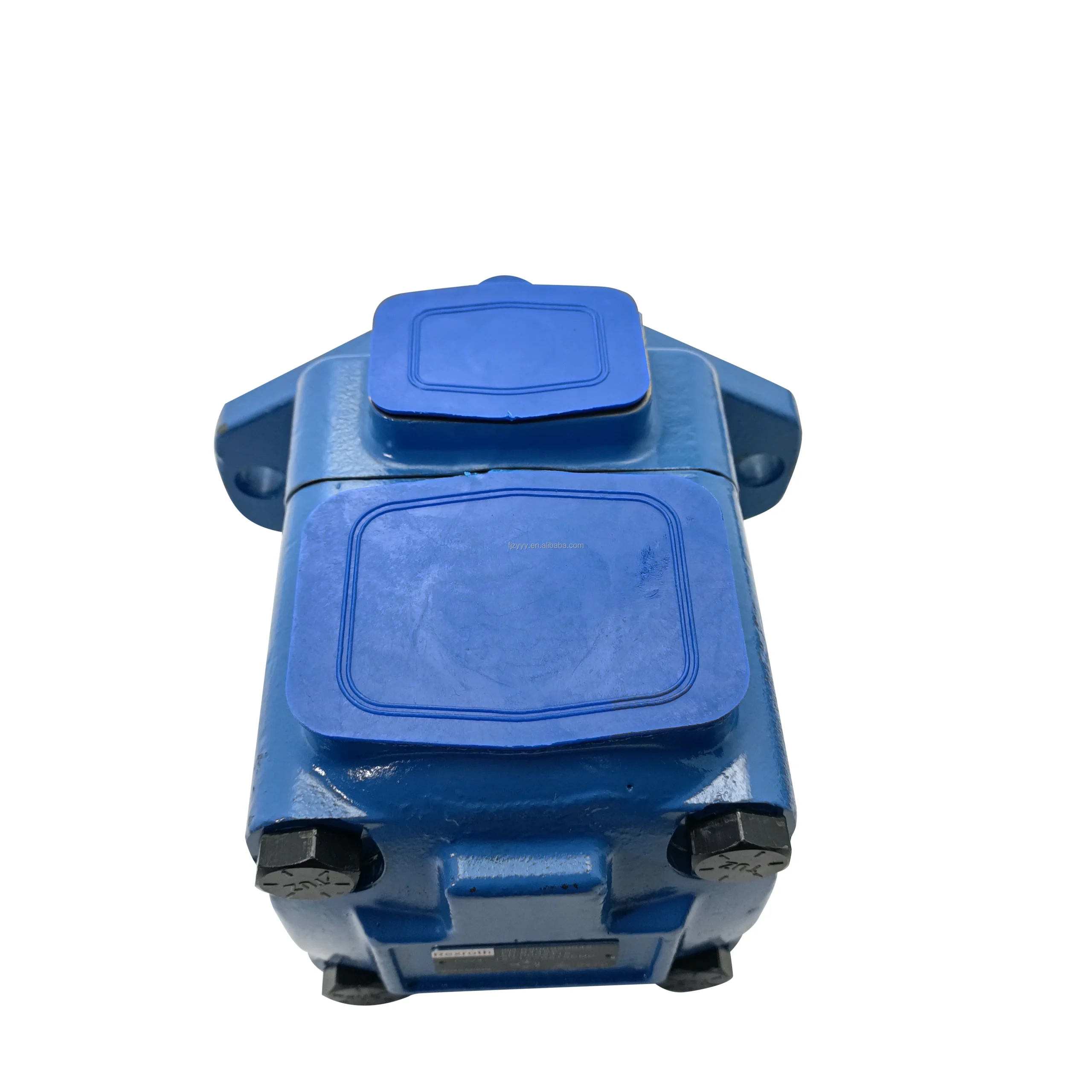

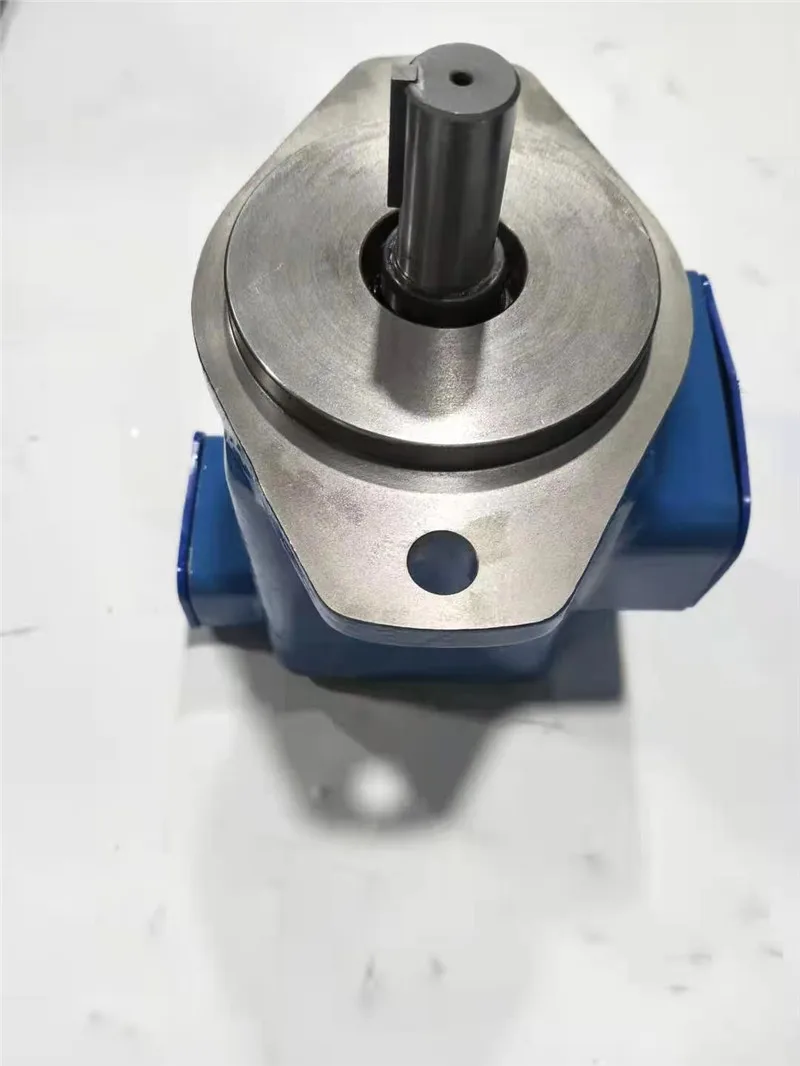

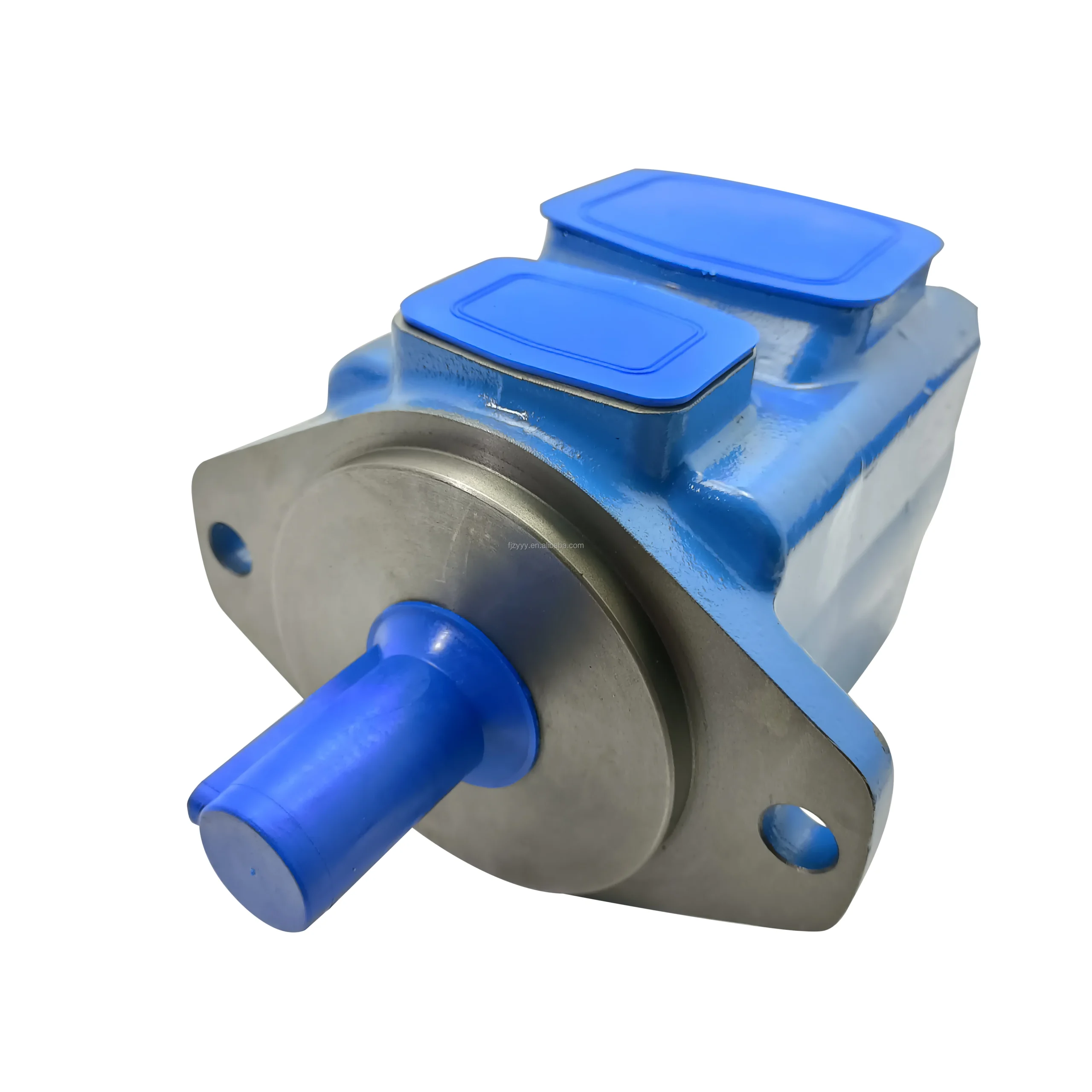

Rexroth Type PVV Series (PVV1-PVV5) High-Performance Vane Pumps
Product Overview: The PVV Series fixed displacement vane pump is a globally recognized power source for hydraulic engineering, extensively utilized in plastics processing, presses, foundry equipment, and mobile machinery. This series spans a comprehensive displacement range from the compact PVV1 to the ultra-high-flow PVV5. This page highlights the heavy-duty models PVV4-1X/098RA15UMC and PVV4-1X/082RA15UMC. Engineered with precision vane geometry and self-compensating side plates, the PVV series delivers stable flow while significantly reducing system noise and extending maintenance intervals—making it the definitive choice for single, double, or even triple pump configurations.
Key Technical Advantages:
Superior Silent Performance: The pressure-balanced internal design drastically reduces fluid pulsation. Even at a full load of 160 Bar, operating noise levels remain far below industry standards.
Excellent Starting Performance: Optimized vane pre-loading mechanisms ensure outstanding self-priming capabilities and rapid pressure build-up even at low RPMs.
Modular Multi-Pump Design: The PVV series supports multi-pump combinations (e.g., PVV4+PVV2) through simple shaft coupling, catering to diverse flow requirements in complex hydraulic circuits.
Extended Life & Contamination Resistance: Featuring a high-strength cast iron housing and hardened working components, the pump offers excellent tolerance to fine particles in hydraulic fluids.
Target Applications: Injection molding machines, rubber presses, scrap metal balers, press brakes, and heavy-duty material handling machinery.
Detailed Models & Parameters:
Core Series: Rexroth Type PVV Series (PVV1, PVV2, PVV3, PVV4, PVV5).
Model Keywords: PVV4-1X/098RA15UMC, PVV4-1X/082RA15UMC.
Displacement Ratings (cm³/rev): Including core frame sizes 82 cm³/rev and 98 cm³/rev (PVV4 frame).
Technical Specs Decoding:
1X: Component series identifier.
R: Right-hand rotation (Clockwise).
A: Parallel shaft with key configuration.
15: Maximum pressure rating indicator (160 Bar).
U / M / C: Indicators for specific porting threads, seal types, and mounting flange codes.
Max Operating Pressure: Rated continuous pressure up to 16.0 MPa (160 Bar).
