Rexroth Type PV7 Series Variable Vane Pump | PV7-1A, PV7-1X | 160 Bar High Response

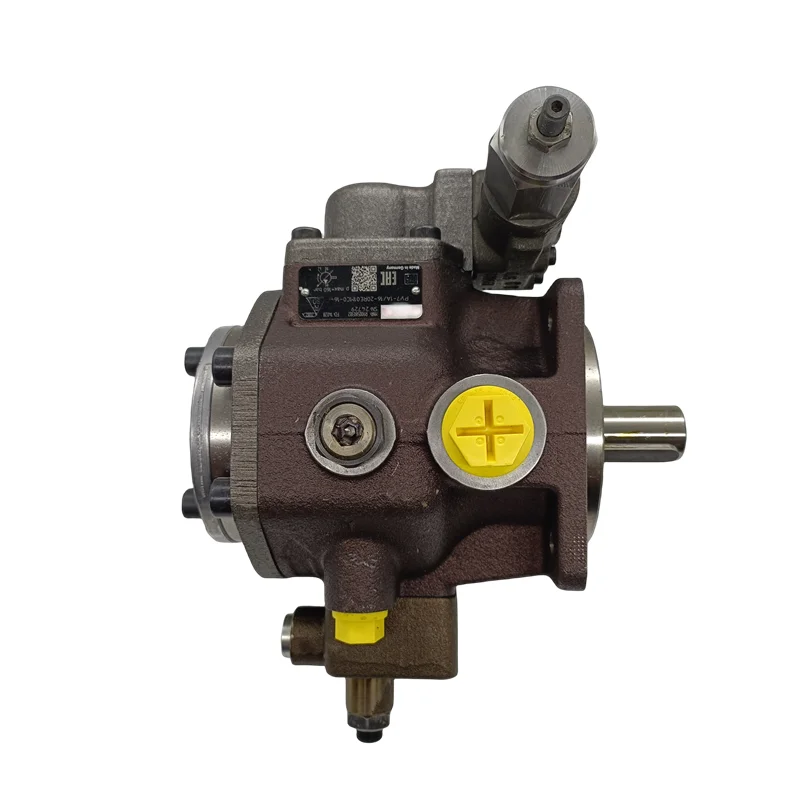

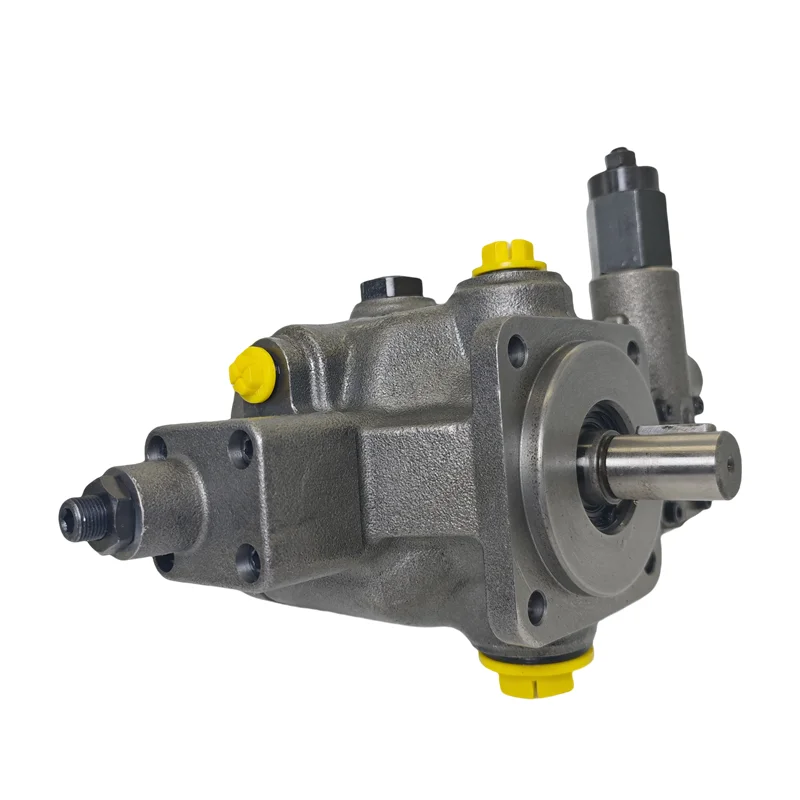

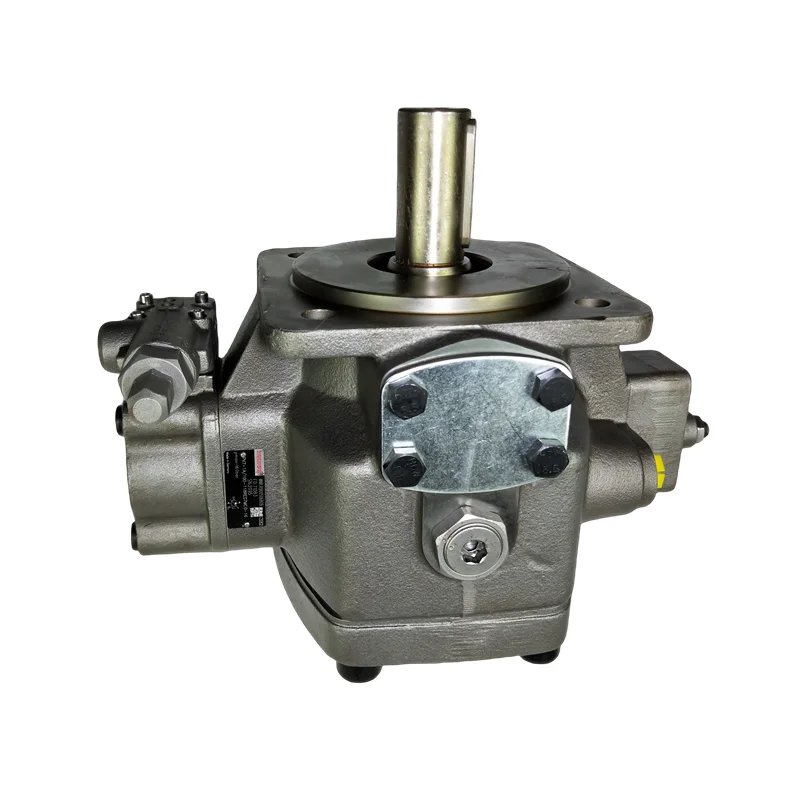

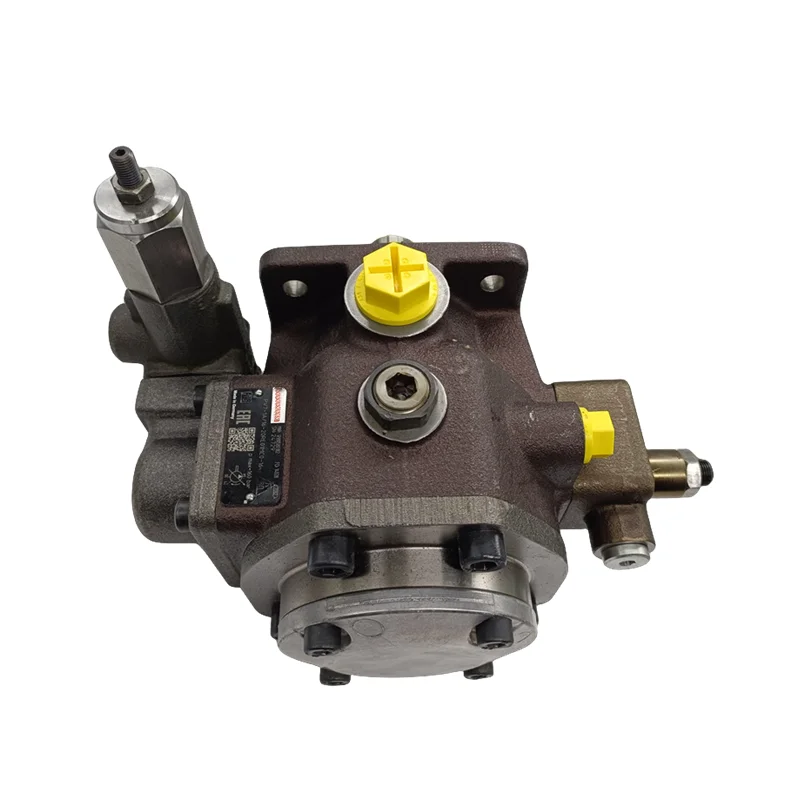

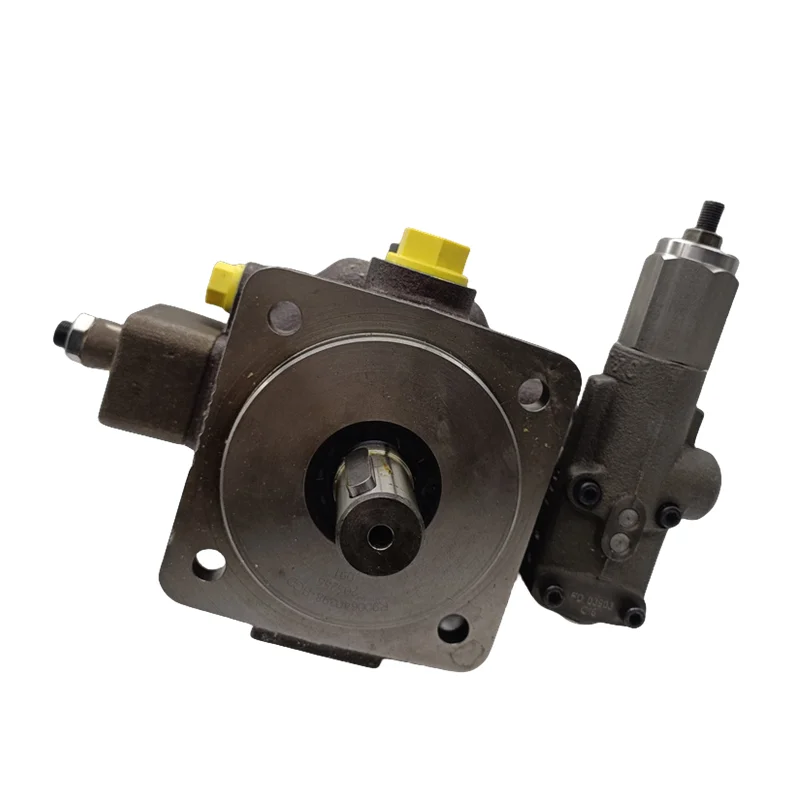

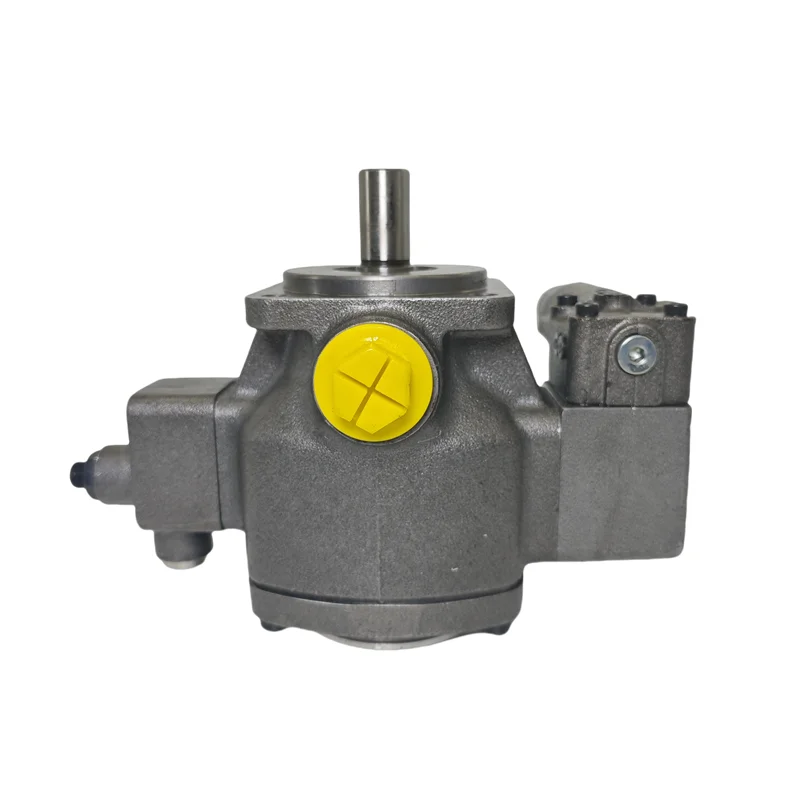

Rexroth Type PV7 Series High-Performance Variable Displacement Vane Pumps

Product Overview: The PV7 Series variable displacement vane pump is the gold standard for achieving dynamic energy-saving and precise flow control in industrial hydraulic systems. Featuring a built-in Direct-Controlled Pressure Compensator, the PV7 instantaneously adjusts its displacement based on load demand. This featured range highlights premium specifications: PV7-1A/10-14RE01MCO-16 (Part No. R900580384), PV7-1A/16-20RE01MC0-16, and the high-flow PV7-1X/40-45RE37MC0-16. Utilizing superior cutoff characteristics, the PV7 series automatically minimizes flow once the preset pressure is reached, drastically lowering energy consumption and inhibiting system heat.

Key Technical Advantages:

• Precise Pressure Compensation: Equipped with a highly sensitive internal regulator. When system pressure reaches the preset limit (e.g., 160 Bar), the pump automatically reduces displacement, eliminating wasted overflow heat.

• Rapid Dynamic Response: Specifically optimized for high-frequency machine tool cycles, providing ultra-short response times to ensure smooth actuator movement and precise positioning.

• Ultimate Silent Operation: Advanced stator geometry and precision-ground port plates ensure exceptionally low decibel levels even when operating near maximum rated pressures.

• High Reliability & Long Service Life: Core components undergo specialized hardening treatments to withstand frequent pressure fluctuations, making it ideal for rigorous 24/7 continuous industrial operation.

• Target Applications: CNC machine tools, plastic molding machinery, automated presses, light industrial production lines, and energy-saving industrial Hydraulic Power Units (HPU).

Detailed Models & Parameters:

• Core Series: Rexroth Type PV7-1A, PV7-1X Series (Variable Displacement).

• Model Keywords: PV7-1A/10-14RE01MCO-16, R900580384, PV7-1X/40-45RE37MC0-16, PV7-1A/16-20RE01MC0-16.

• Frame Sizes: Including core displacement ratings 10, 16, 20, 40, and 45 (cm³/rev).

• Technical Specs: R (Right-hand rotation); E (Porting identifier); 01 / 37 (Flange and shaft identifiers); MC0 (Adjustment controller code).

• Pressure Ratings: Rated continuous working pressure up to 16 MPa (160 Bar).
