Rexroth Type PV7 Series Variable Vane Pump | PV7-1A/10, PV7-2X/20 | R900950953

Model Number

PV7, PV7-1A/10-14RE01, PV7-1A/10-14RE01MC0-16, PV7-2X/20-20RA01MA0-10

Inquiry

Product Description

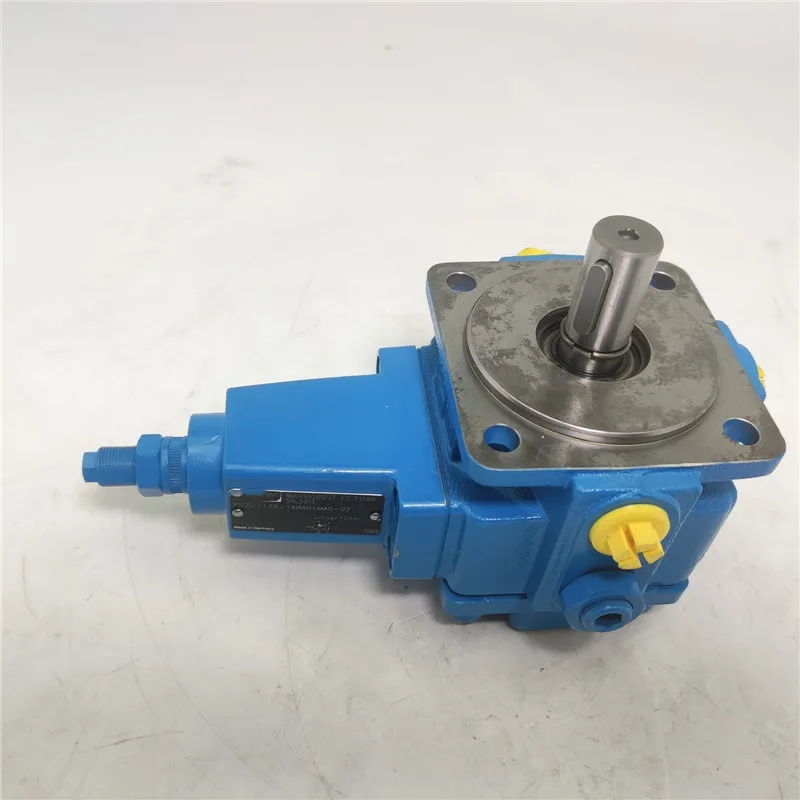

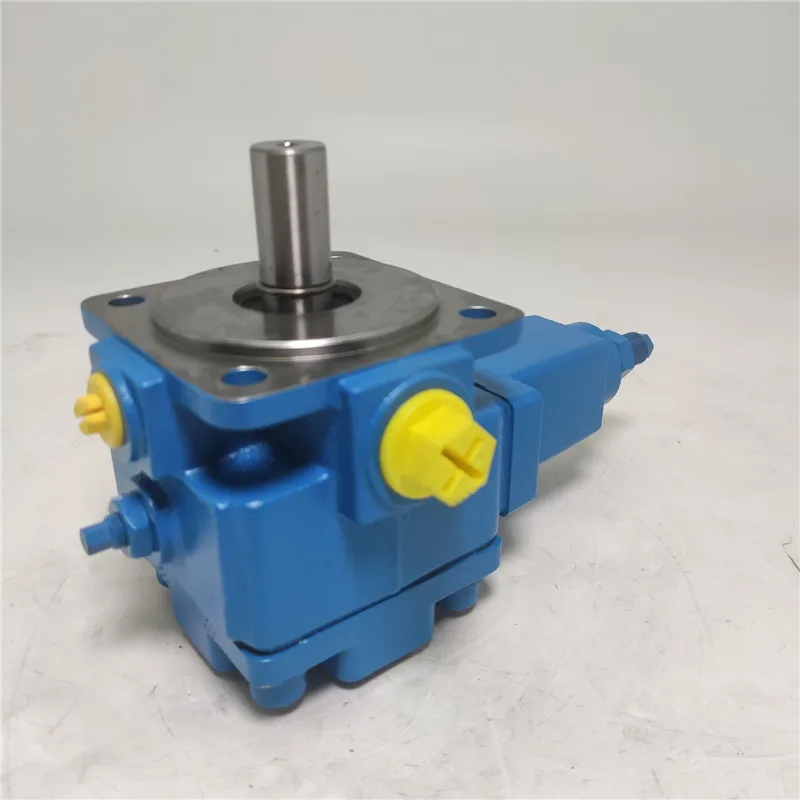

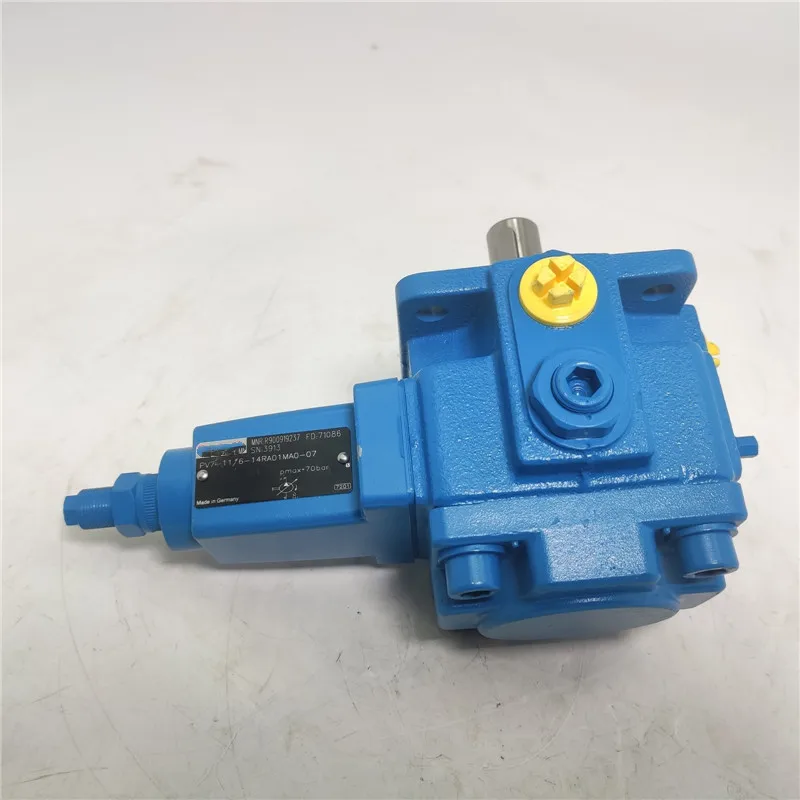

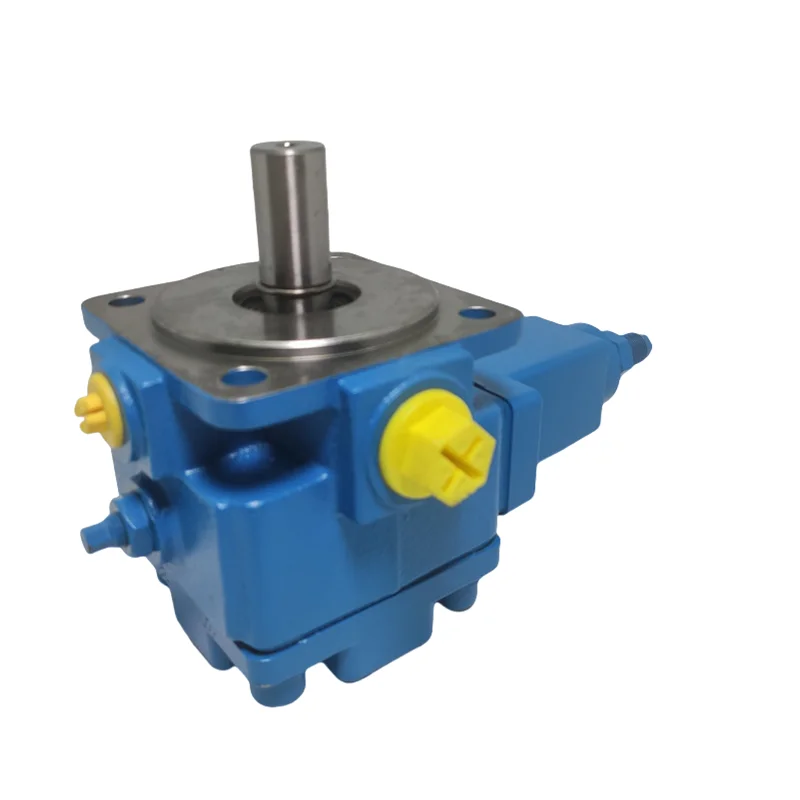

Rexroth Type PV7 Series High-Performance Variable Vane Pumps

Product Overview: The PV7 Series variable displacement vane pump is the definitive benchmark for efficiency and precision in modern industrial hydraulics. As a Pressure Compensated pump, it instantaneously adjusts flow output to match load requirements, drastically minimizing overflow losses. This featured range includes premium specifications such as PV7-1A/10-14RE01, PV7-1A/10-14RE01MC0-16, and the latest design PV7-2X/20-20RA01MA0-10. Utilizing a compact cartridge-based design, the PV7 series delivers stable pressures up to 16 MPa while maintaining exceptional silent operation and extended service life.

Key Technical Advantages:

  • Ultra-Fast Pressure Response: The internal regulation mechanism provides millisecond-level transitions from maximum flow to zero-flow (deadhead) standby, making it ideal for short-cycle, high-precision manufacturing equipment.

  • Significant Energy Savings: By eliminating unnecessary oil circulation and heat generation through automatic compensation, these pumps lower energy costs and reduce the cooling requirements for the entire system.

  • Silent Operation: Featuring an optimized vane-rotor system, the PV7 maintains a very low decibel profile even under heavy pressure fluctuations, meeting strict modern factory standards.

  • Highly Integrated Footprint: The PV7 integrates complex regulating valves within a small housing, saving critical space in hydraulic power units (HPU) and simplifying plumbing.

  • Target Applications: CNC machine clamping systems, plastic molding machinery, light presses, material handling units, and energy-saving hydraulic power stations.

Detailed Models & Parameters:

  • Core Series: Rexroth Type PV7-1A / PV7-2X Series (Variable Displacement).

  • Model Keywords: PV7-1A/10-14RE01, PV7-1A/10-14RE01MC0-16, PV7-2X/20-20RA01MA0-10.

  • Displacement Range (cm³/rev): Including key specifications such as 10, 14, and 20.

  • Technical Specs: 1A / 2X (Design series); RE / RA (Rotation and regulator position identifiers); 01 (Shaft protocol); MC0 / MA0 (Pressure adjustment range codes).

  • Pressure Ratings: Rated continuous working pressures up to 16 MPa (160 Bar).
