Rexroth Type PV7 Series Variable Vane Pump | PV7-20, PV7-100 | R900950953

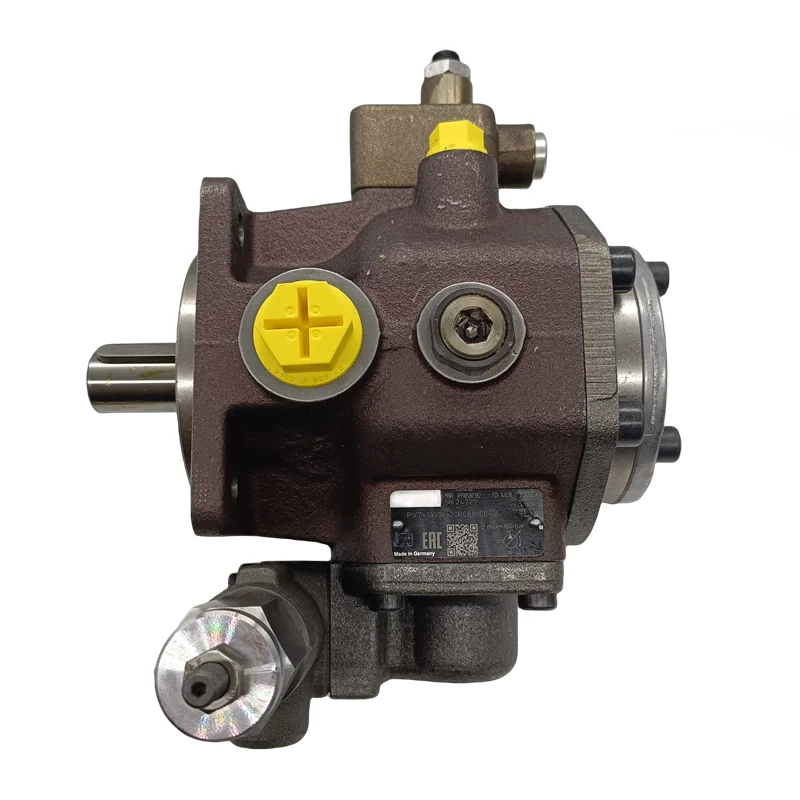

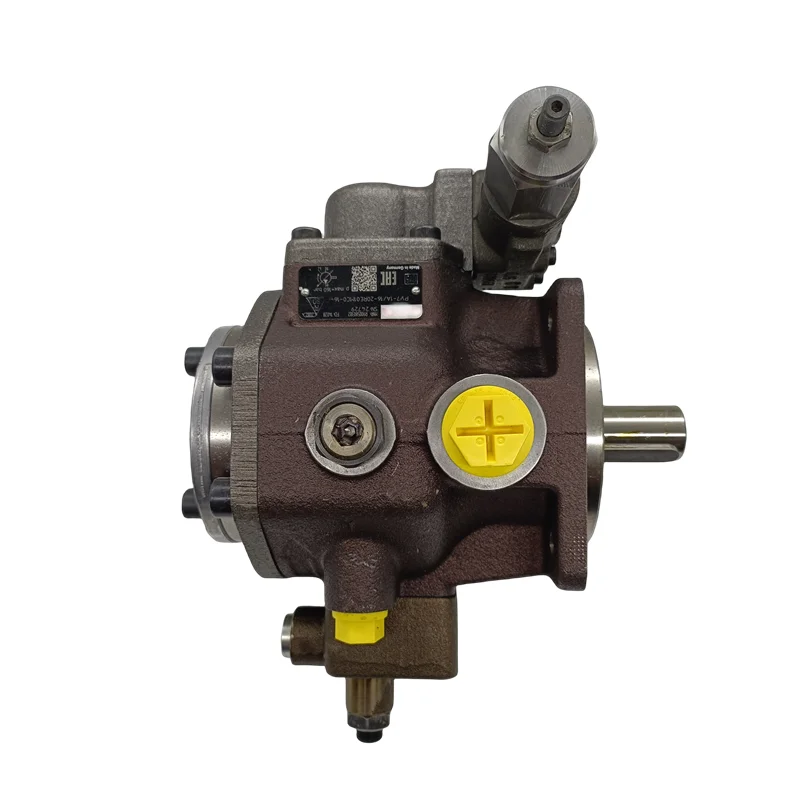

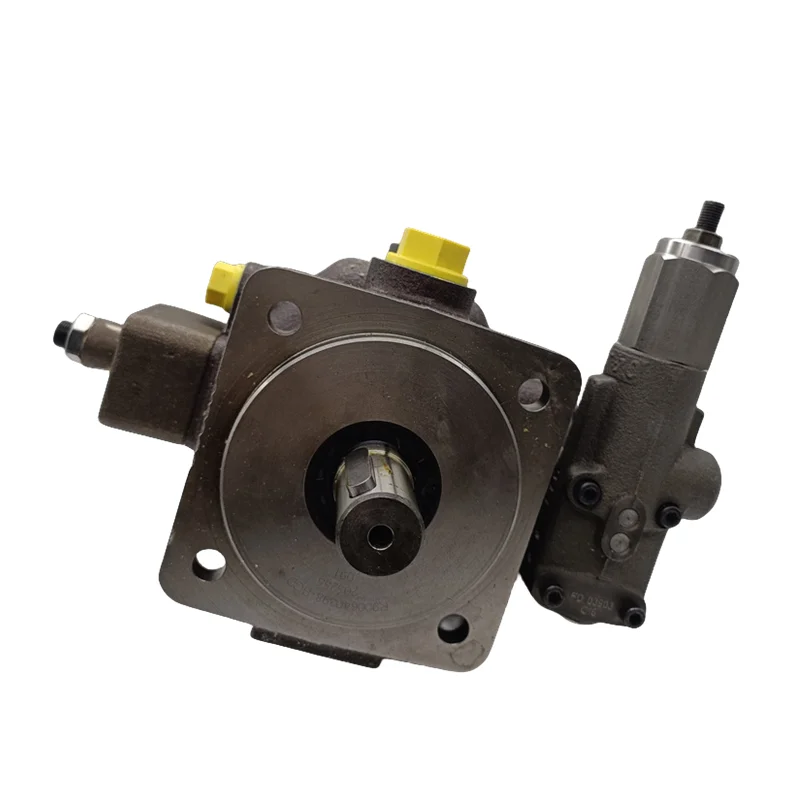

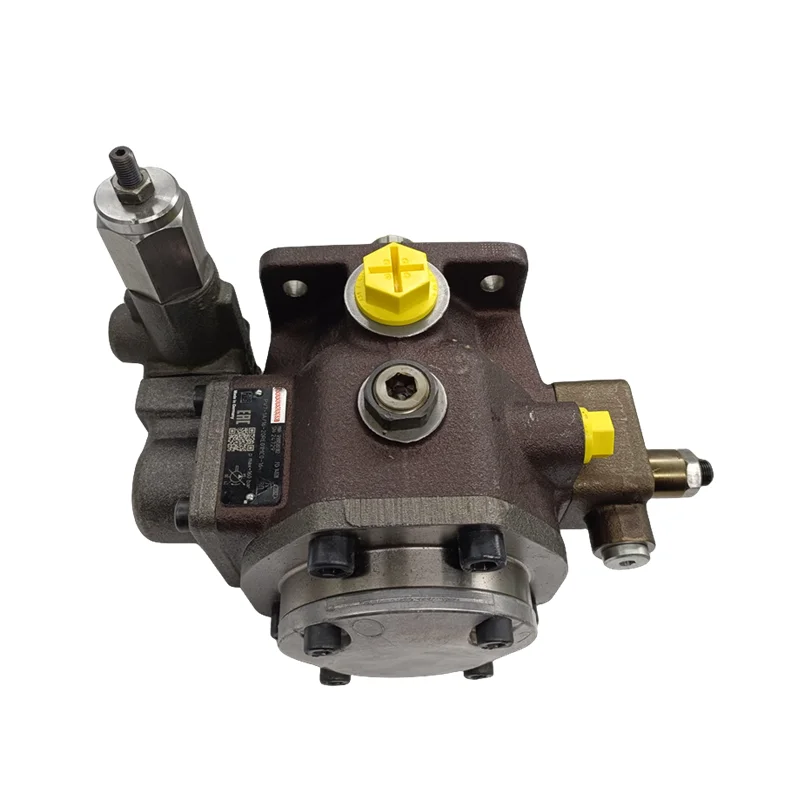

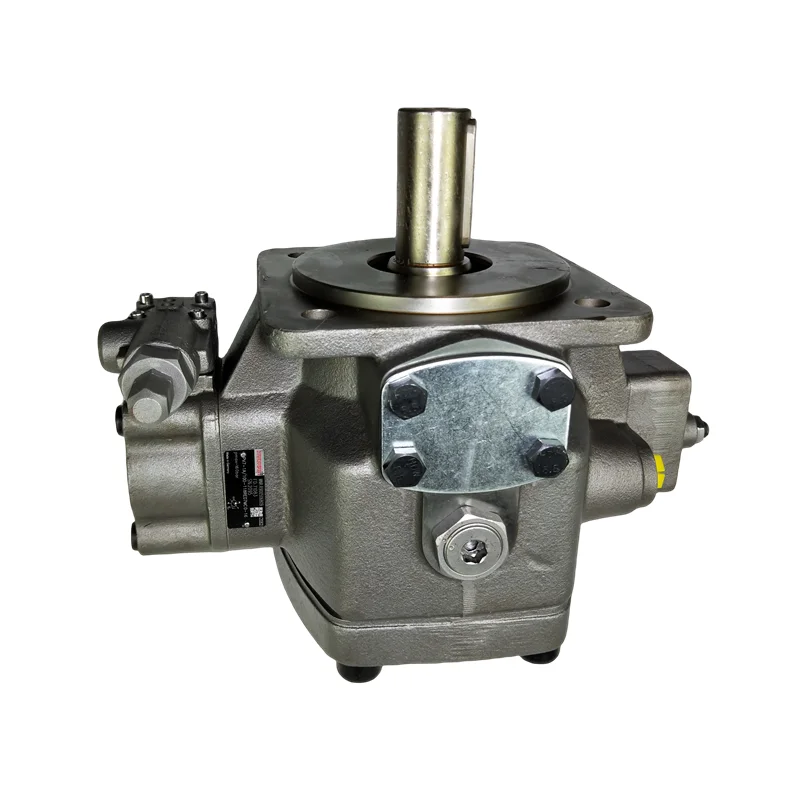

Rexroth Type PV7 Series High-Performance Variable Vane Pumps

Product Overview: The PV7 Series variable displacement vane pump is the definitive benchmark for efficiency and precision in modern industrial hydraulics. As a Pressure Compensated pump, it instantaneously adjusts flow output to match load requirements, drastically minimizing overflow losses and system heat generation. This featured range includes premium specifications such as PV7-2X/20-20RA01MA0-10 (R900950953) and the high-capacity PV7-1X/100-118RE07MC0-16 (R900506809). Utilizing a compact cartridge-based design, the PV7 series delivers stable pressures up to 16 MPa while maintaining exceptional silent operation and extended service life.

Key Technical Advantages:

• Ultra-Fast Pressure Response: The internal regulation mechanism provide millisecond-level transitions from maximum flow to zero-flow (deadhead) standby, making it ideal for short-cycle, high-precision manufacturing equipment.

• Significant Energy Savings: By eliminating unnecessary oil circulation through automatic compensation, these pumps lower energy costs and reduce the cooling requirements for the entire hydraulic system.

• Ultimate Silent Operation: Featuring an optimized vane-rotor system and precision-ground components, the PV7 maintains a very low decibel profile even under high-pressure standby, meeting strict modern factory environment standards.

• Highly Integrated Footprint: The PV7 integrates complex displacement and pressure compensation valves within the housing, saving critical space in hydraulic power units (HPU) and simplifying plumbing.

• Target Applications: CNC machine clamping and feed systems, plastic injection molding machinery, heavy-duty material handling, and energy-saving hydraulic power stations.

Detailed Models & Parameters:

• Core Series: Rexroth Type PV7-1X / PV7-2X Series (Variable Displacement).

• Model Keywords/Order Codes: R900950953, PV7-2X/20-20RA01MA0-10, R900506809, PV7-1X/100-118RE07MC0-16.

• Displacement Range (cm³/rev): Including key specifications such as 20, 100, and 118.

• Technical Specs: 1X / 2X (Design series); RA / RE (Rotation and regulator position identifiers); 01 / 07 (Shaft protocol codes); MA0 / MC0 (Pressure adjustment range codes).

• Pressure Ratings: Rated continuous working pressures up to 16 MPa (160 Bar).
