Rexroth Type PV7 Series Variable Vane Pump | PV7-06, PV7-16, PV7-20 | R900919237

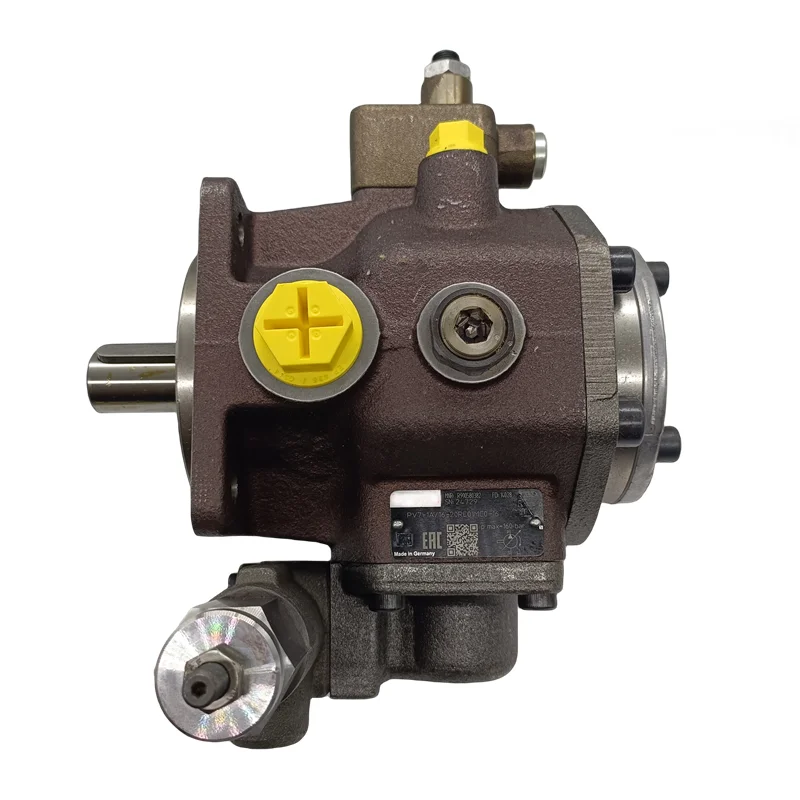

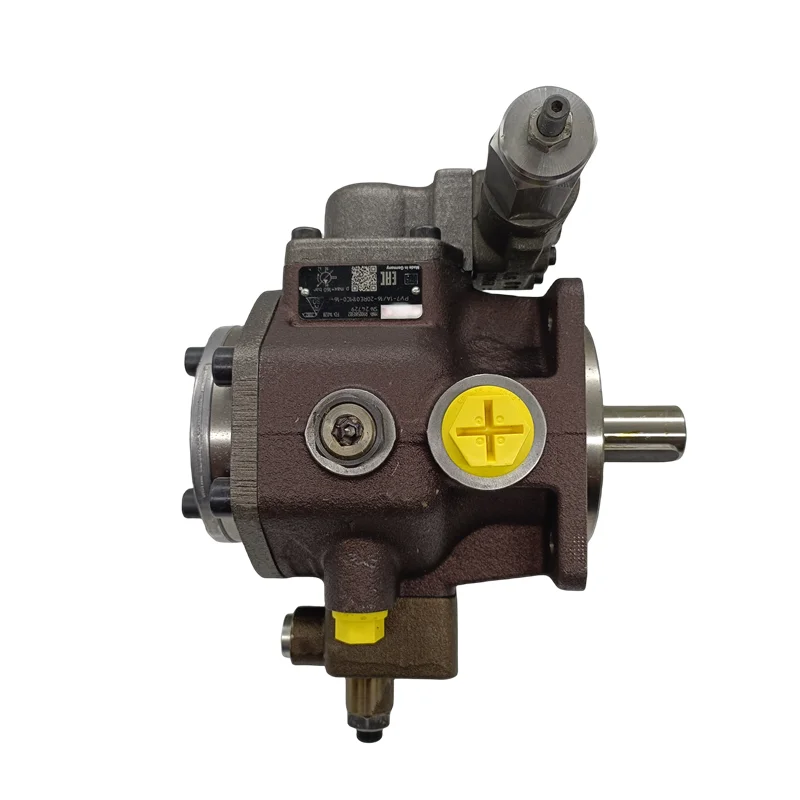

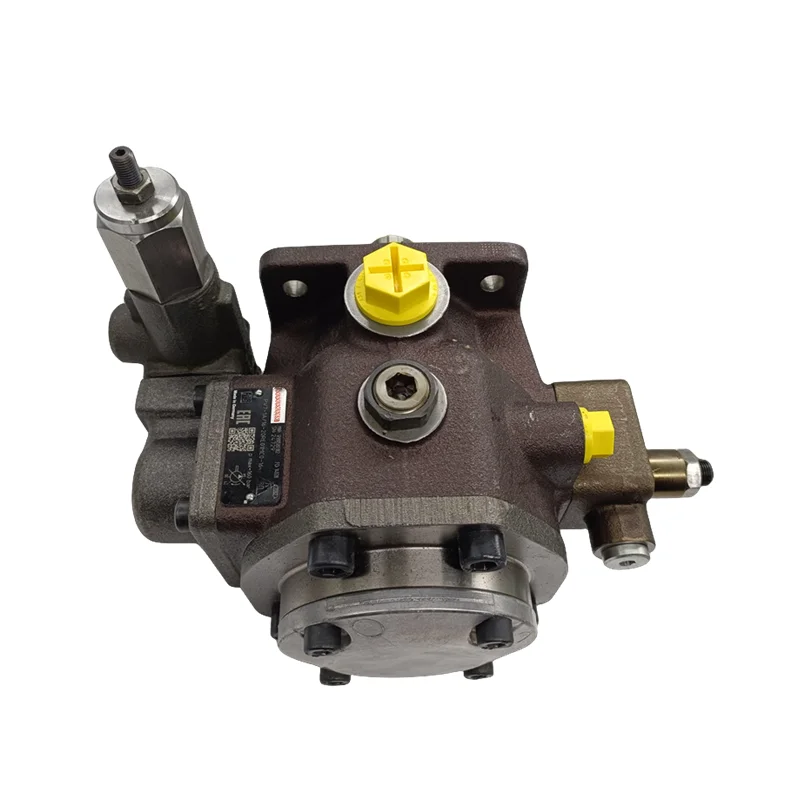

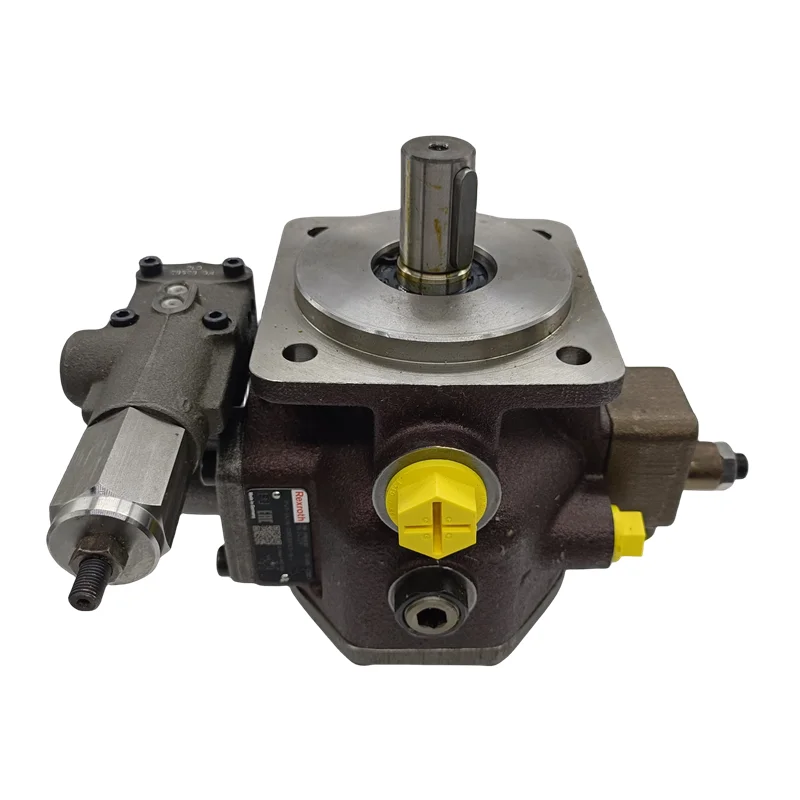

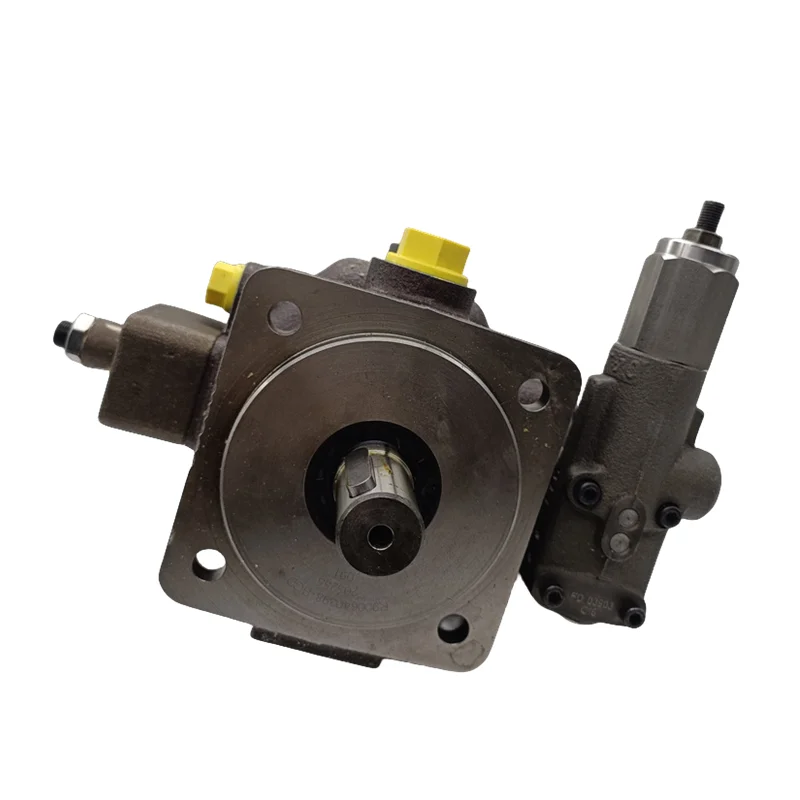

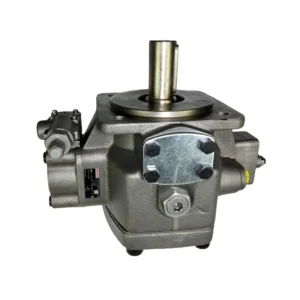

Rexroth Type PV7 Series High-Performance Variable Vane Pumps

Product Overview: The PV7 Series variable displacement vane pump is the definitive benchmark for efficiency and precision in modern industrial hydraulics. As a Pressure Compensated pump, it instantaneously adjusts flow output to match load requirements, drastically minimizing overflow losses. This range features premium specifications including PV7-1X/06-14RA01MA0-07 (R900919237) and PV7-1X/16-20RE01MD0-16 (R900509274). Utilizing a compact cartridge-based design, the PV7 series delivers stable pressures up to 16 MPa while maintaining exceptional silent operation and extended service life.

Key Technical Advantages:

• Ultra-Fast Pressure Response: The internal regulation mechanism provides millisecond-level transitions from maximum flow to zero-flow standby, making it ideal for short-cycle, high-precision manufacturing equipment.

• Significant Energy Savings: By eliminating unnecessary oil circulation and heat generation through automatic compensation, these pumps lower energy costs and reduce the cooling requirements for the entire system.

• Silent Operation: Featuring an optimized vane-rotor system, the PV7 maintains a very low decibel profile even under heavy pressure fluctuations, meeting strict modern factory standards.

• High Power Density & Compact Footprint: The PV7 integrates complex regulating valves within a small housing, saving critical space in hydraulic power units and simplifying integration.

• Target Applications: CNC machine clamping systems, plastic molding machinery, light presses, material handling units, and energy-saving hydraulic power stations.

Detailed Models & Parameters:

• Core Series: Rexroth Type PV7-1X Series (Variable Displacement).

• Model Keywords/Order Codes: R900919237, PV7-1X/06-14RA01MA0-07, R900509274, PV7-1X/16-20RE01MD0-16, PV7-20, PV7-16.

• Displacement Range (cm³/rev): Including key specifications such as 06, 16, and 20.

• Technical Specs: 1X (Design series); RA / RE (Rotation and regulator position identifiers); 01 (Shaft protocol); MA0 / MD0 (Pressure adjustment range codes).

• Pressure Ratings: Rated continuous working pressures up to 16 MPa (160 Bar).
