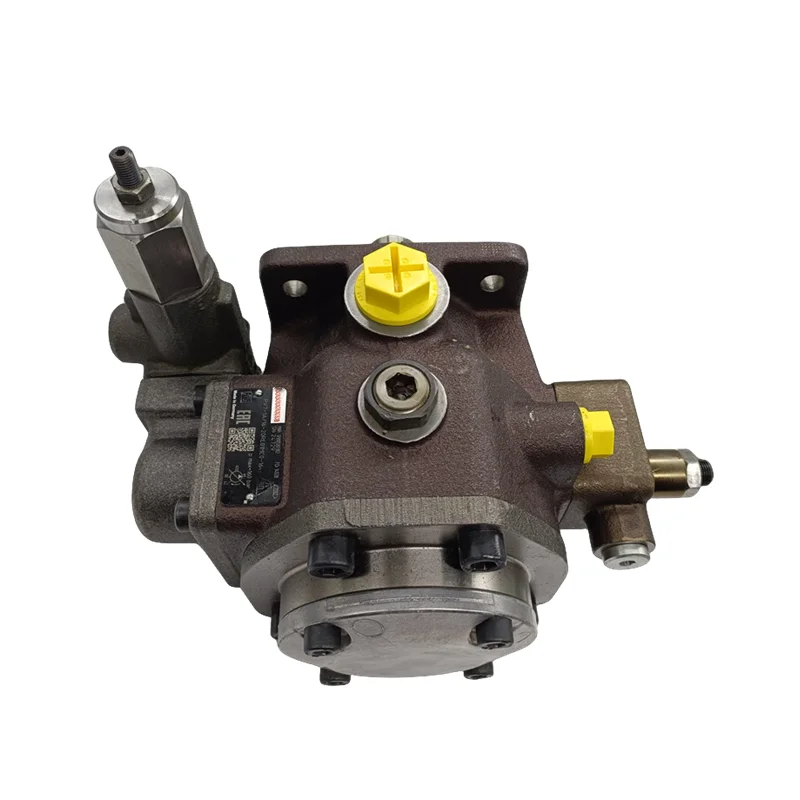

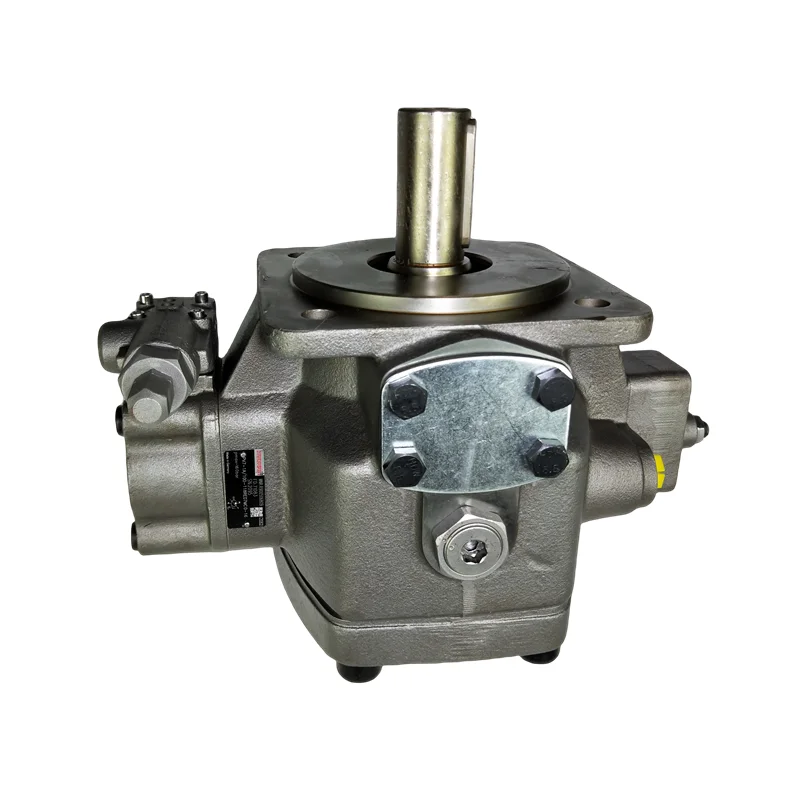

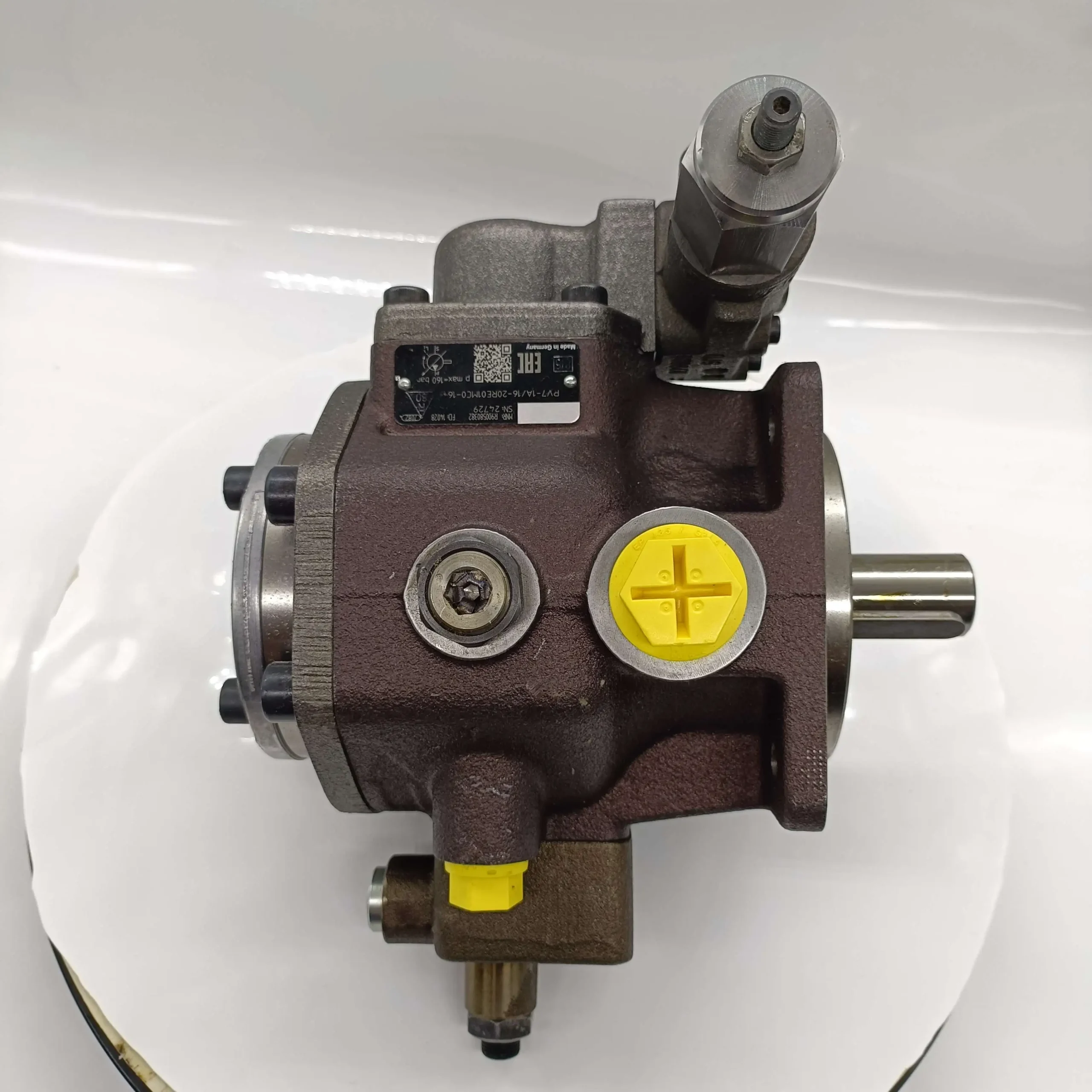

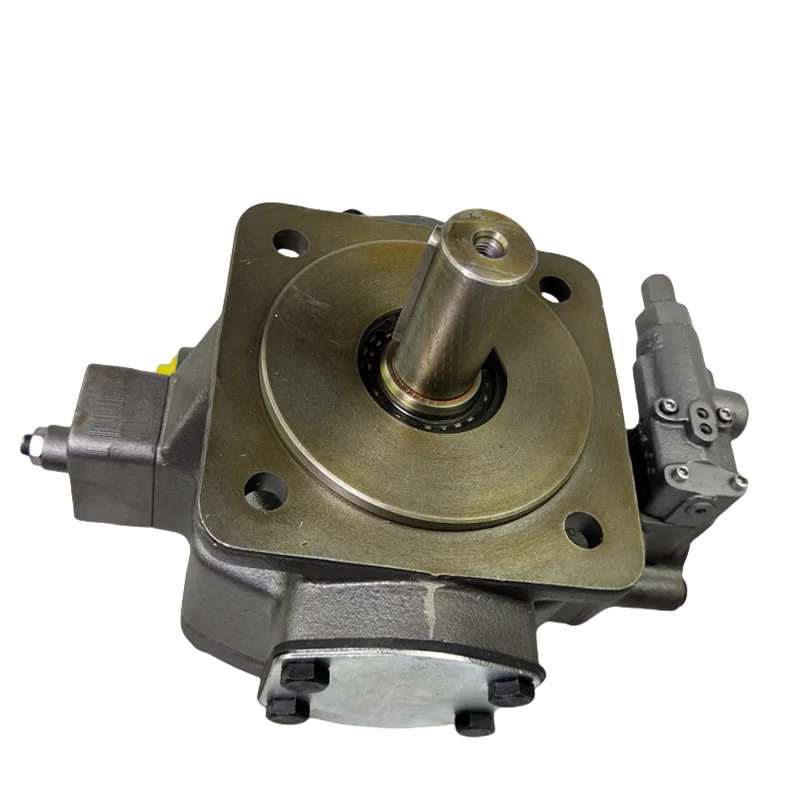

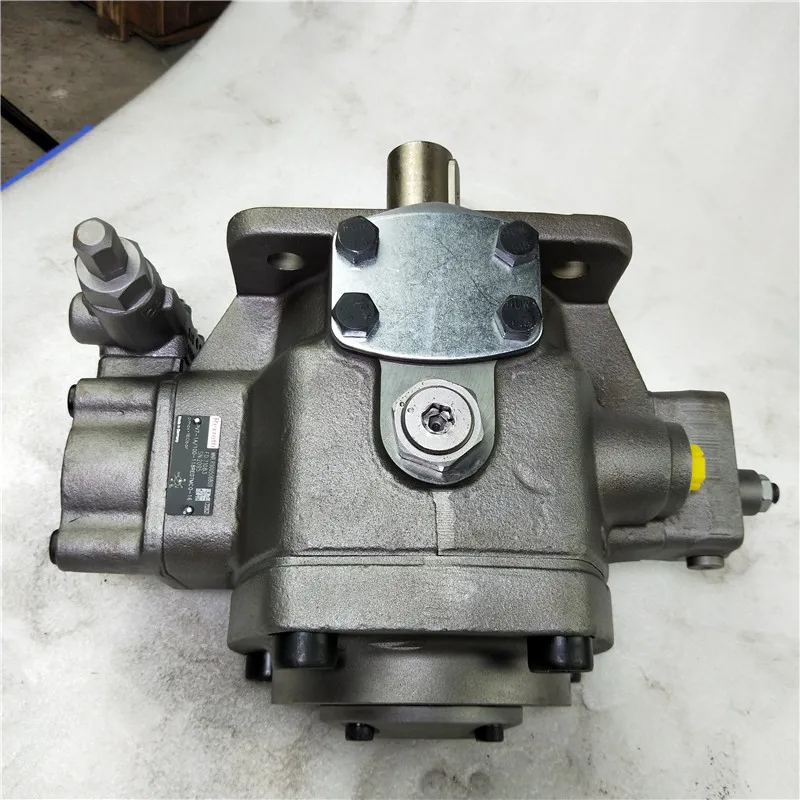

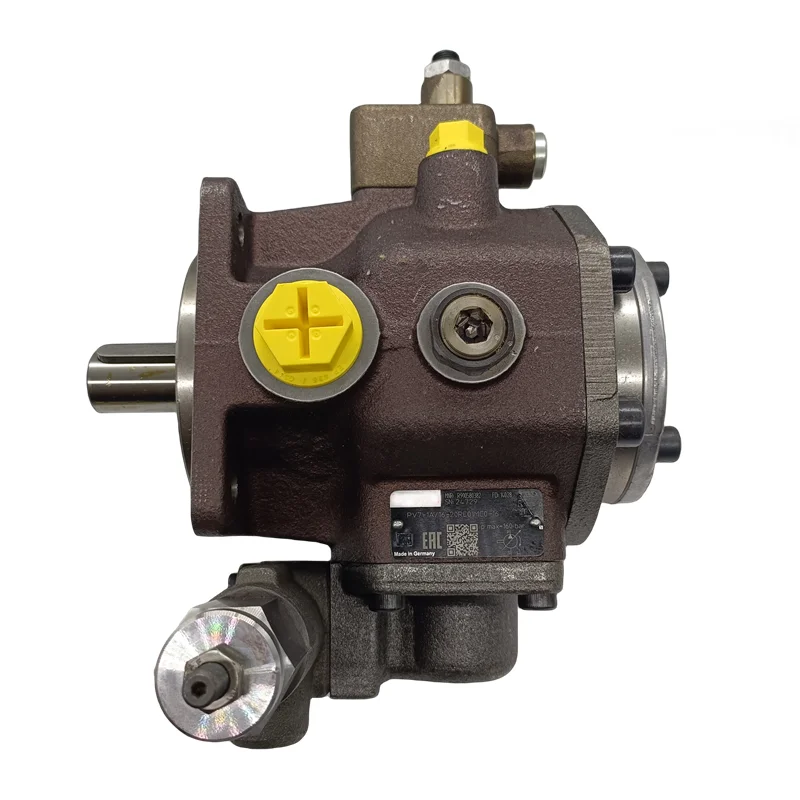

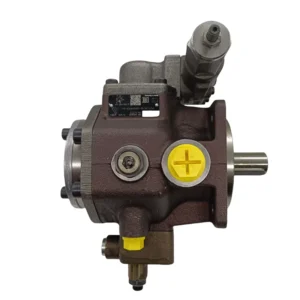

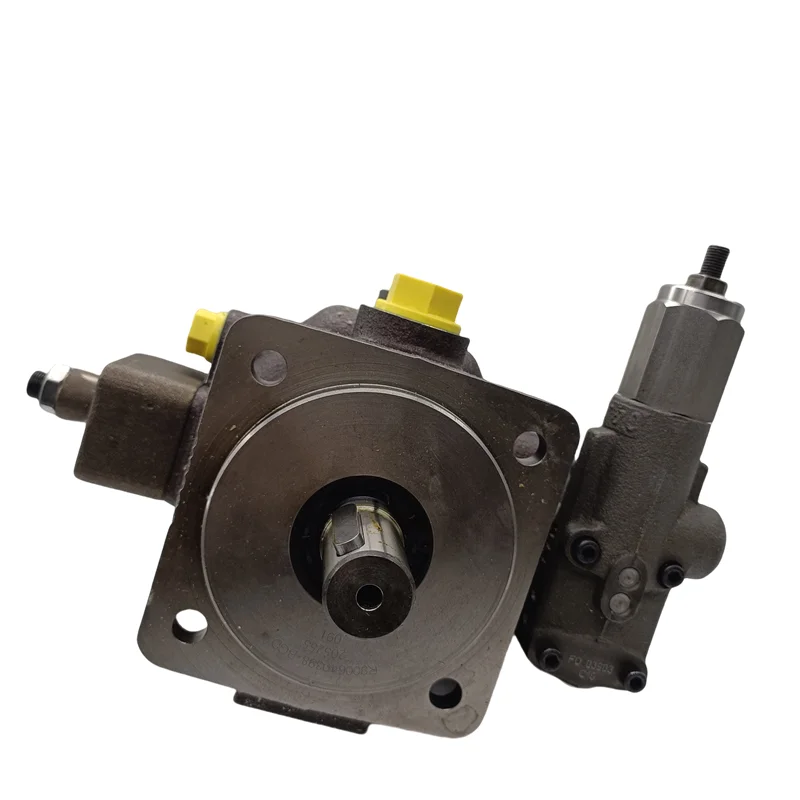

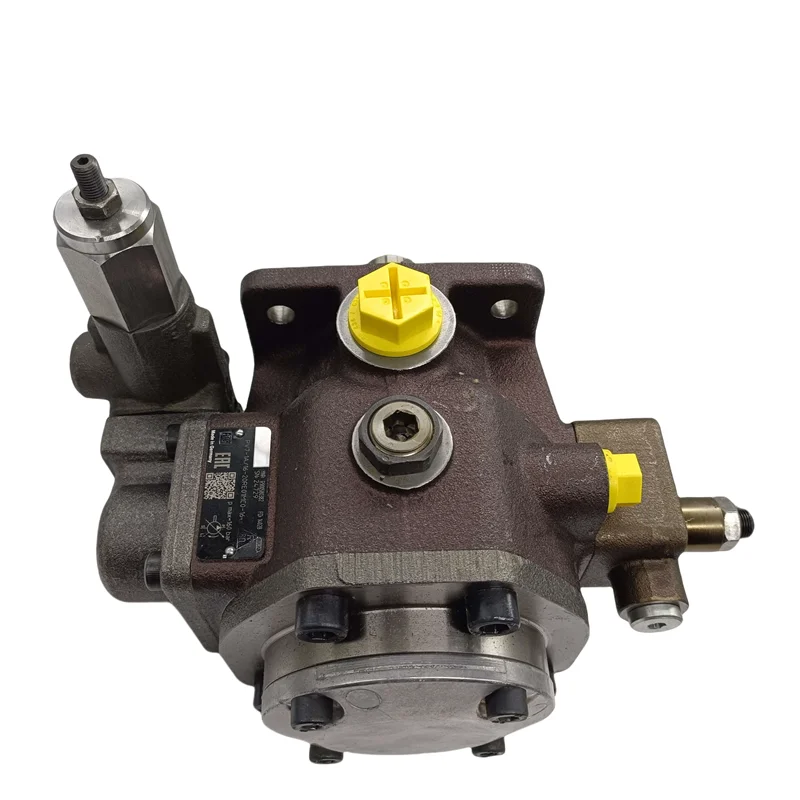

Rexroth Type PV7 Series High-Performance High-Pressure Variable Vane Pumps

Product Overview: The PV7 Series variable displacement vane pump is the definitive benchmark for efficiency and precision control in industrial hydraulic systems. As a Pressure Compensated pump, it instantaneously adjusts flow output to match real-time load requirements. This range features high-spec models such as the high-flow PV7-1X/63-94RE01MC0-08 and the mid-low flow specification PV7-1X/10-20RE01MC0-10. Utilizing a precision-engineered cartridge-based design, the PV7 series delivers stable pressures up to 16 MPa while maintaining exceptional silent operation and extended service life.

Key Technical Advantages:

• Superior Energy & Thermal Control: The built-in compensation mechanism minimizes flow during system idle (deadhead), eliminating unnecessary power loss and overflow heat, resulting in extremely low oil temperature rise.

• Ultra-Fast Pressure Response: The internal regulation mechanism provides millisecond-level transitions from maximum flow to zero-flow standby, making it ideal for short-cycle, high-precision manufacturing equipment.

• Ultimate Silent Operation: Featuring an optimized vane-rotor system and precision-ground components, the PV7 maintains a very low decibel profile even under high-pressure standby, meeting strict modern factory standards.

• Highly Integrated Footprint: The PV7 integrates complex displacement and pressure compensation valves within the housing, saving critical space in hydraulic power units (HPU) and simplifying system architecture.

• Target Applications: CNC machine clamping systems, plastic molding machinery, light presses, material handling units, and energy-saving hydraulic power stations.

Detailed Models & Parameters:

• Core Series: Rexroth Type PV7-1X Series (Variable Displacement).

• Model Keywords: PV7-1X/63-94RE01MC0-08, PV7-1X/10-20RE01MC0-10, PV7-63, PV7-94, PV7-10, PV7-20.

• Displacement Range (cm³/rev): Including key spectrums such as 10-20 cm³/rev and 63-94 cm³/rev.

• Technical Specs: 1X (Design series); RE (Rotation and regulator position identifiers); 01 (Shaft protocol); MC0 (Pressure adjustment range code); 08 / 10 (Specific pressure limit identifiers).

• Pressure Ratings: Rated continuous working pressures up to 16 MPa (160 Bar).
