Rexroth Type DBW Solenoid Relief Valve | DBW10 | DBW20 | DBW30 | 315 Bar | 24V DC EG24

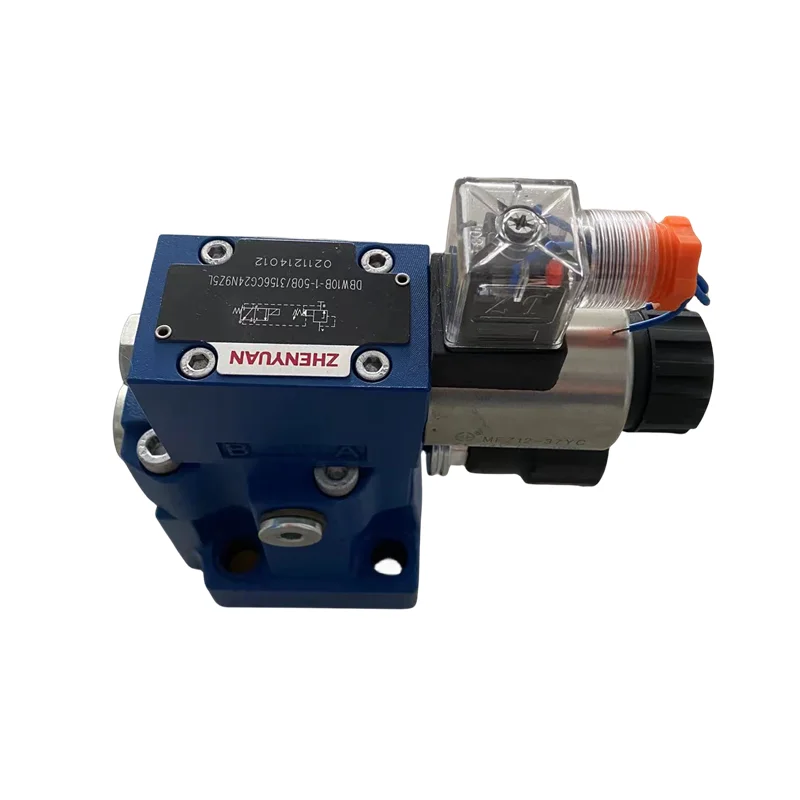

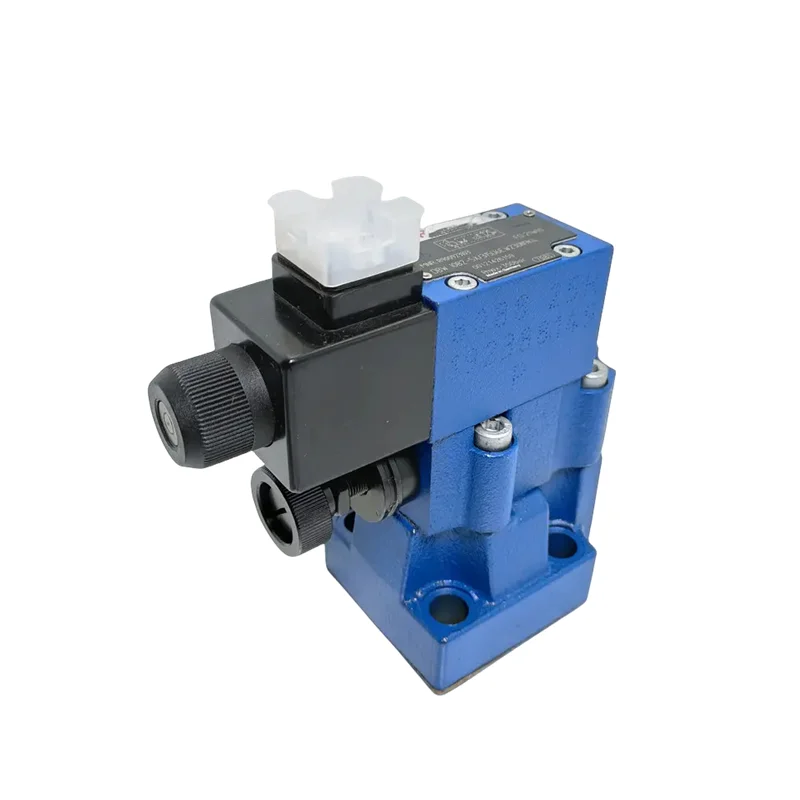

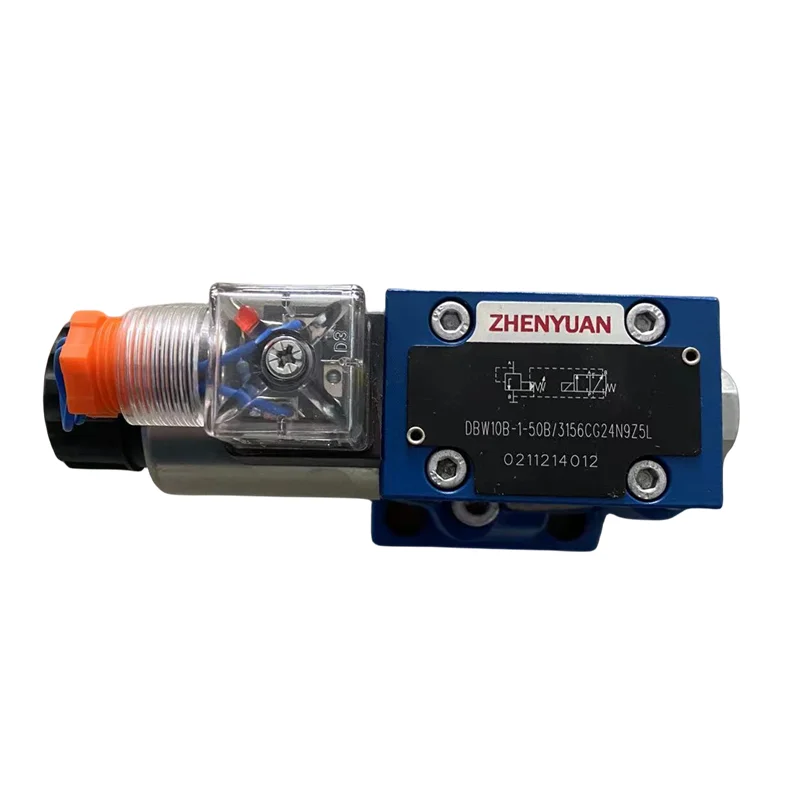

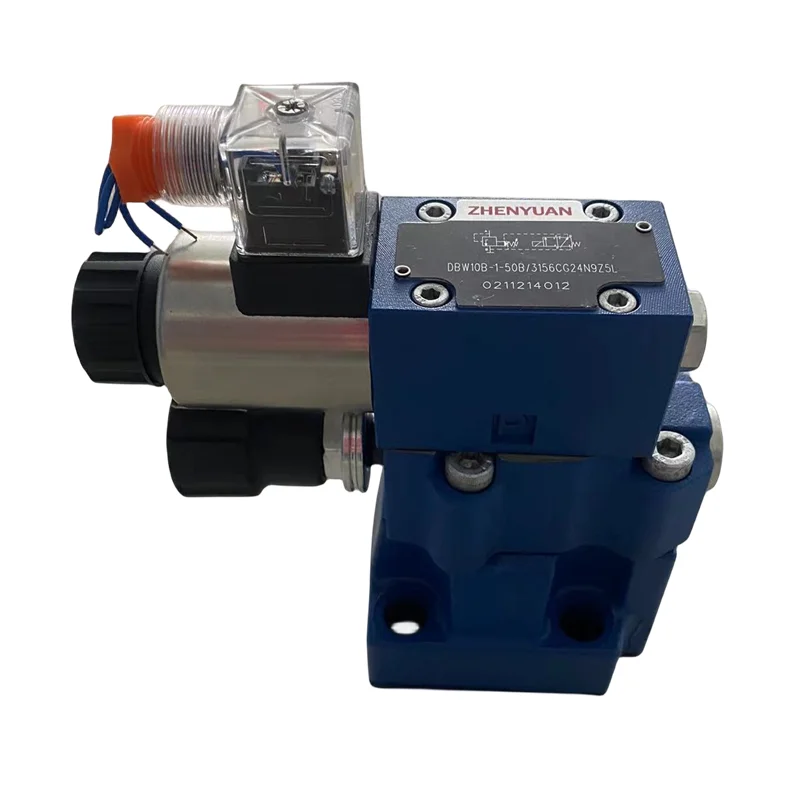

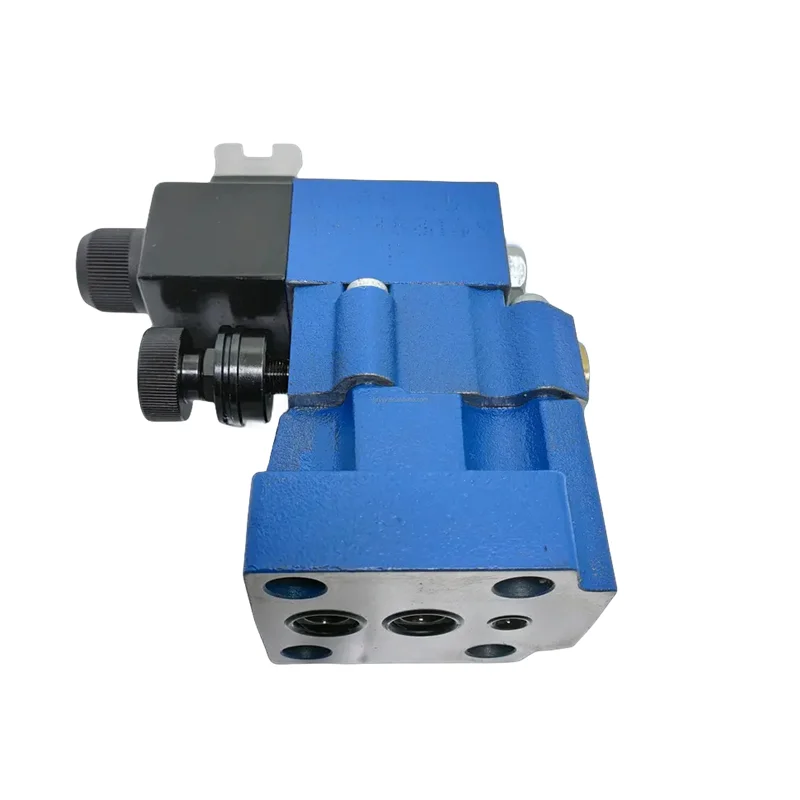

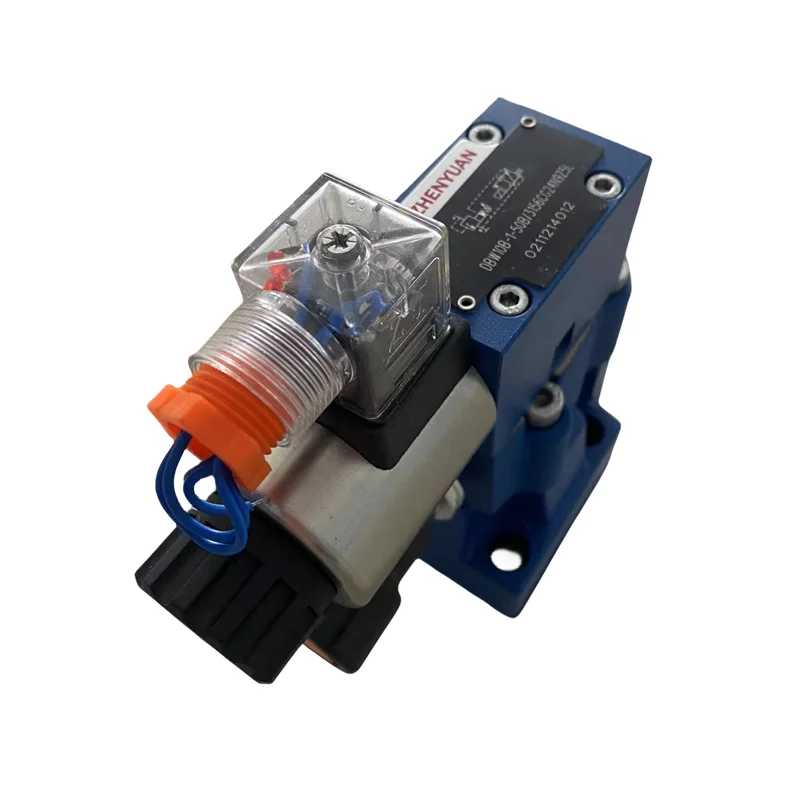

DBW Series Pilot-Operated Solenoid Relief Valves

Product Overview: The DBW series is a high-performance pilot-operated relief valve integrated with a solenoid directional valve. Beyond providing standard pressure limitation and safety protection, it enables remote unloading or multi-stage pressure switching via the top-mounted solenoid. Spanning from Size 10 to Size 30, this series is engineered to handle high-pressure and high-flow conditions with ease. Its modular design makes it a cornerstone for industrial presses, metallurgical machinery, and large-scale Hydraulic Power Units (HPUs).

Featured models include: DBW10B1-52/315-6WE24N9K4 and DBW30-B2-52/315XY 6EG24N9K4.

Key Technical Advantages:

• Solenoid-Controlled Unloading: The integrated directional valve allows for system no-load starting or emergency unloading without altering the primary pressure setting, significantly reducing energy waste.

• High-Pressure Stability: Rated for operating pressures up to 315 bar. The pilot-operated structure ensures smooth pressure regulation and minimal pressure override even at peak flow rates.

• Flexible Pilot Options (X/Y): Supports internal or external pilot supply and drain (X and Y ports), allowing for seamless integration into complex manifold designs.

• Durable EG24 Solenoids: Equipped with 24V DC wet-pin solenoids featuring superior thermal stability and IP65 protection for continuous duty in harsh environments.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • DBW10B1-52/315-6WE24N9K4: Size 10, B1 (Normally Closed) unloading logic, 52 design series, 315 bar max pressure, 24V DC control.

  • DBW30-B2-52/315XY 6EG24N9K4: Size 30, B2 (Normally Open) unloading logic, configured for external pilot (X) and external drain (Y), high-flow capacity.

• Core Technical Specs:

  • Mounting Interface: Compliant with ISO 6264 standards (Subplate mounting).

  • Max Operating Pressure: 31.5 MPa (315 bar).

  • Flow Capacity: DBW10 (up to 250 L/min); DBW20 (up to 500 L/min); DBW30 (up to 650 L/min).

  • Adjustment Type: Available with rotary knob or hexagon socket set screw.
