Rexroth Type 4WRZE16 Valve | 4WRZE16W8-150 4WRZE16W8-100 | NG16 Proportional Valve | R900721116
| Model Number | 4WRZE16, 4WRZ16 |
|---|
Product Description

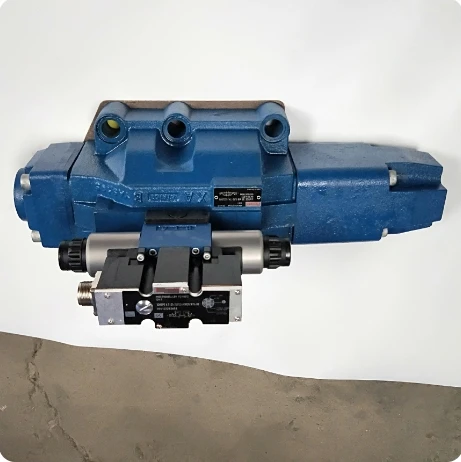

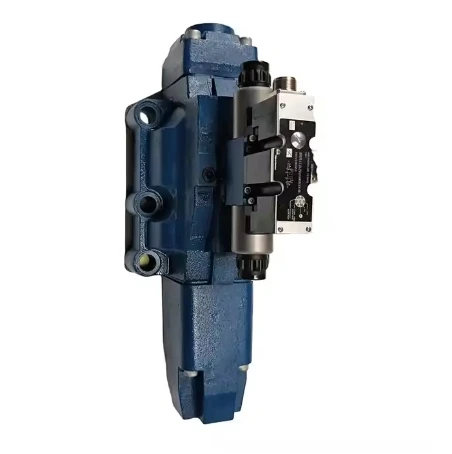

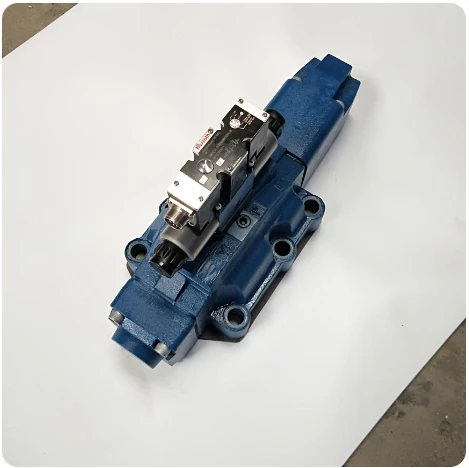

Rexroth Type 4WRZE16 Series Pilot-Operated Proportional Directional Valves
Product Overview:
The 4WRZE16 Series is an industry-leading, two-stage pilot-operated proportional directional valve featuring integrated On-Board Electronics (OBE). As the performance benchmark for Size 16 (NG16 / CETOP 07) footprints, this series is engineered for hydraulic systems requiring exceptional flow control, directional accuracy, and rapid dynamic response. With its integrated position feedback system, the valve ensures minimal hysteresis and superior repeatability for precise actuator synchronization.
This category highlights premium configurations: the 150 L/min rated 4WRZE16W8-150-7X/6EG24N9ETK31/F1D3M (Part No: R900721116) and the 100 L/min variant 4WRZE16W8-100-7X/6EG24N9ETK31/F1D3M. These valves are the premier choice for injection molding machines, die-casting equipment, steel mill automation, and heavy-duty industrial production lines.
Key Technical Advantages:
On-Board Electronics (OBE): Integrated control circuitry eliminates external amplifiers, featuring factory-calibrated settings and high EMC immunity for seamless “plug-and-play” installation.
Advanced 7X Design Sequence: Utilizing Rexroth’s latest 7X iteration, these valves feature optimized pilot-stage response and main-stage flow geometries for enhanced frequency response and stability.
D3M Signal Characteristics: Equipped with the ETK31 (7-pin+PE) interface, supporting sophisticated signal processing for high-precision position feedback and system diagnostics.
Rugged High-Pressure Durability: Constructed with high-strength materials, rated for pressures up to 315 Bar (4,500 PSI), and featuring F1 seals for compatibility with specialized hydraulic fluids.
Detailed Specifications & Parameters:
Core Series: Rexroth Type 4WRZE16 Proportional Valve.
Featured Model Matrix & Part Numbers: * 4WRZE16W8-150-7X/6EG24N9ETK31/F1D3M (R900721116)
4WRZE16W8-100-7X/6EG24N9ETK31/F1D3M
Core Performance Specs:
Nominal Size: Size 16 (NG16 / CETOP 07).
Rated Flow: 100 L/min and 150 L/min (at $\Delta p = 10$ bar).
Max Operating Pressure: Rated up to 315 Bar (4,500 PSI).
Voltage Specs: 6EG24 (24V DC) with integrated OBE.
Seal Type: F1 (High-grade seals for specialized fluid compatibility).
