Rexroth Type 4WRPEH Proportional Valve | 4WRPEH6 | 4WRPEH10 | 24V DC | Integrated OBE

4WRPEH Series High-Dynamic Direct-Operated Proportional Valves

Product Overview:

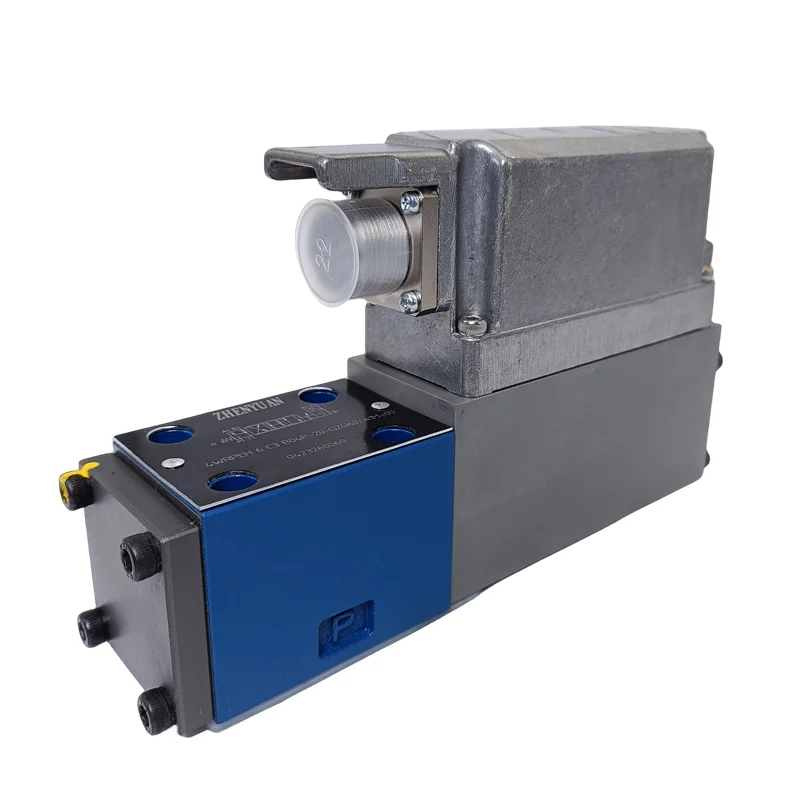

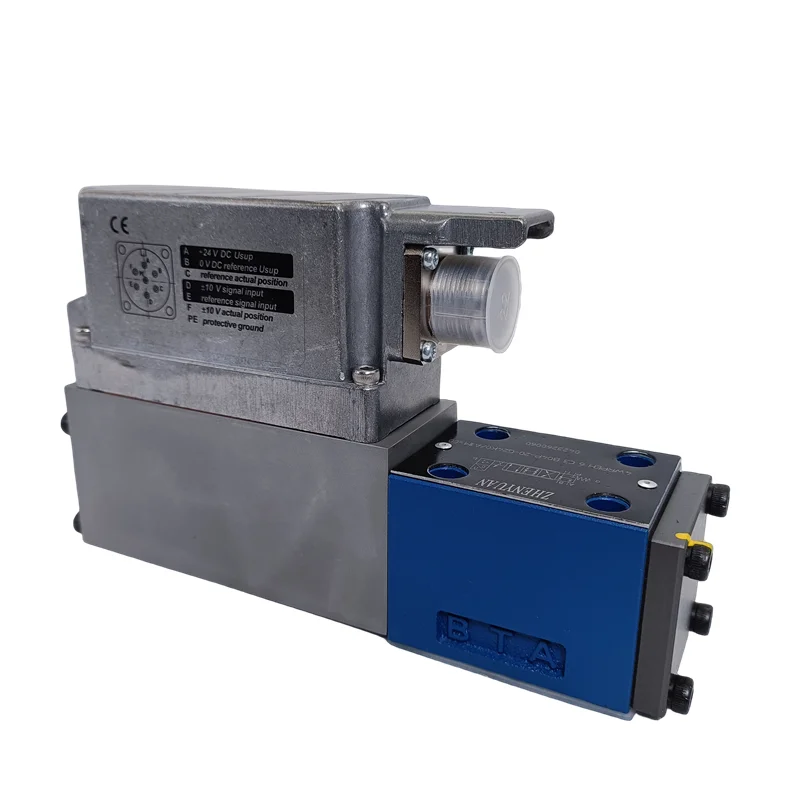

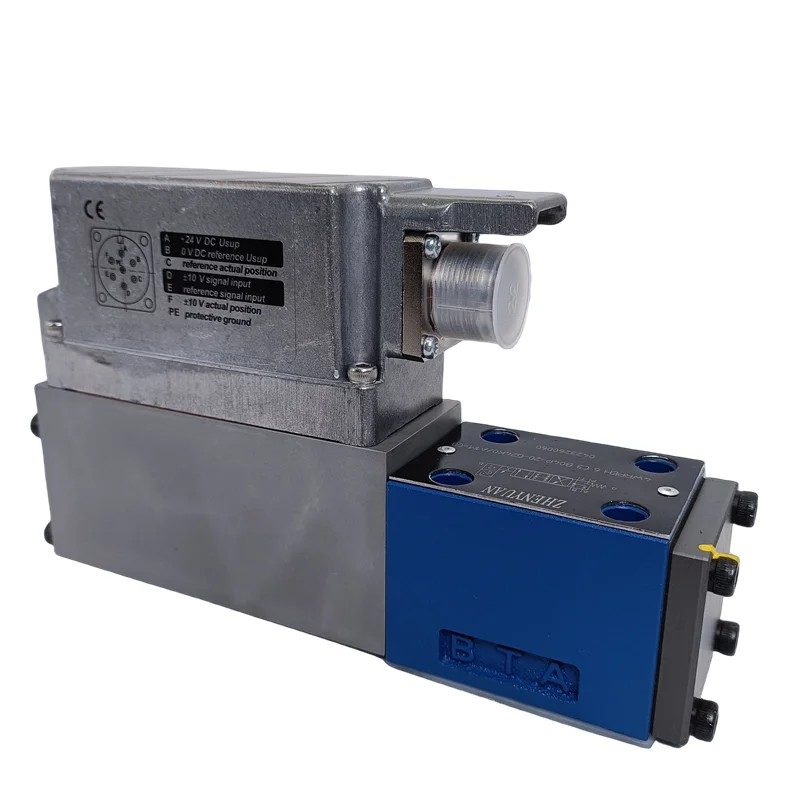

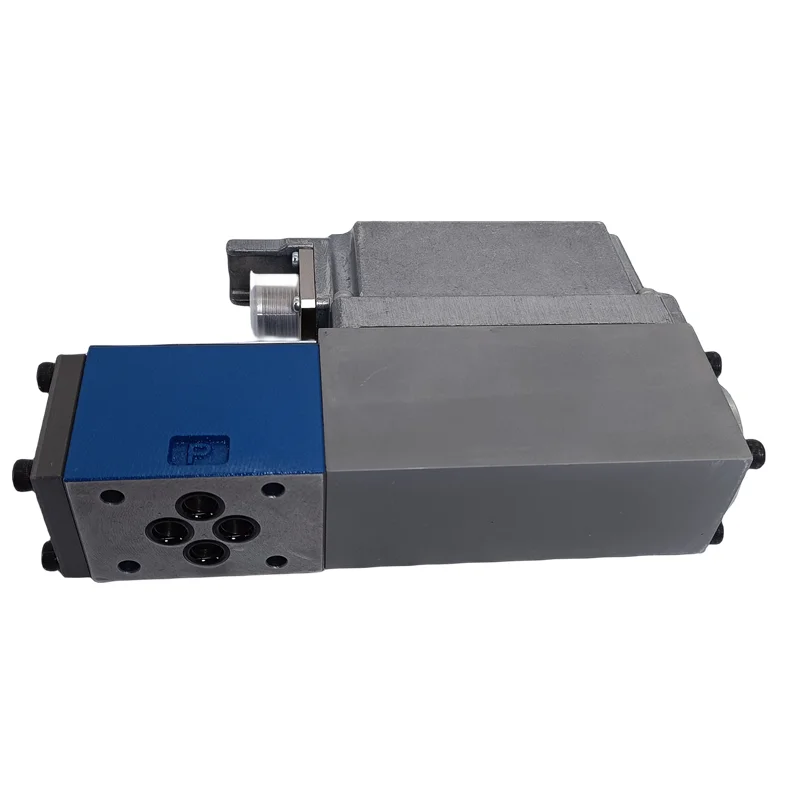

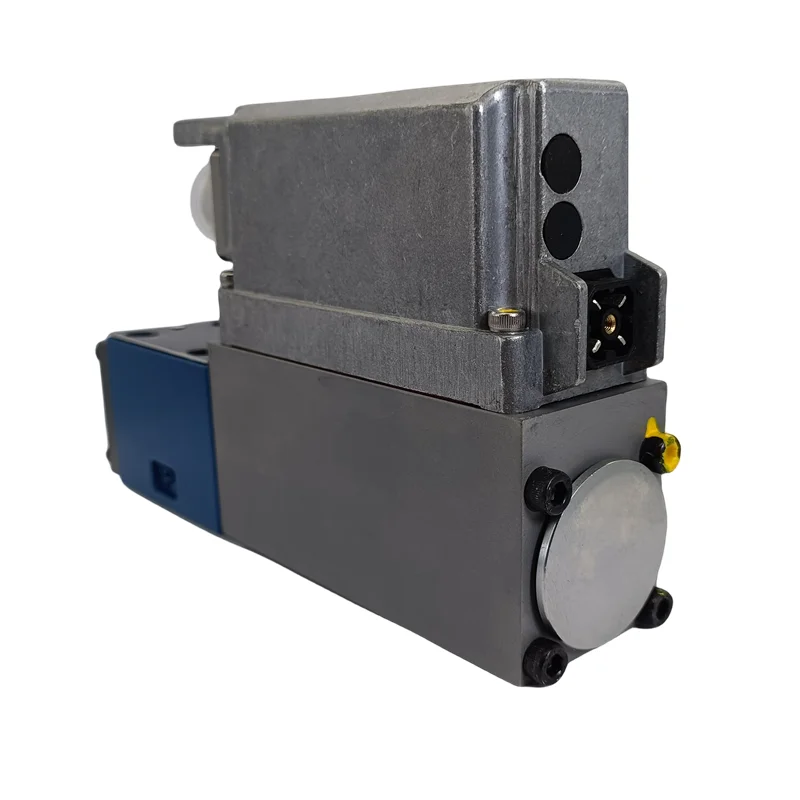

The 4WRPEH series is a high-performance range of direct-operated proportional directional valves designed for extreme dynamic response and control precision. Featuring Integrated Electronics (OBE) and Closed-Loop Spool Position Control, these valves provide exceptionally accurate flow regulation. The direct-acting design eliminates pilot-stage lag, making it the premier choice for high-speed, high-precision applications such as injection molding, testing equipment, and high-performance presses. Its robust construction ensures superior linearity and minimal hysteresis even in demanding environments.

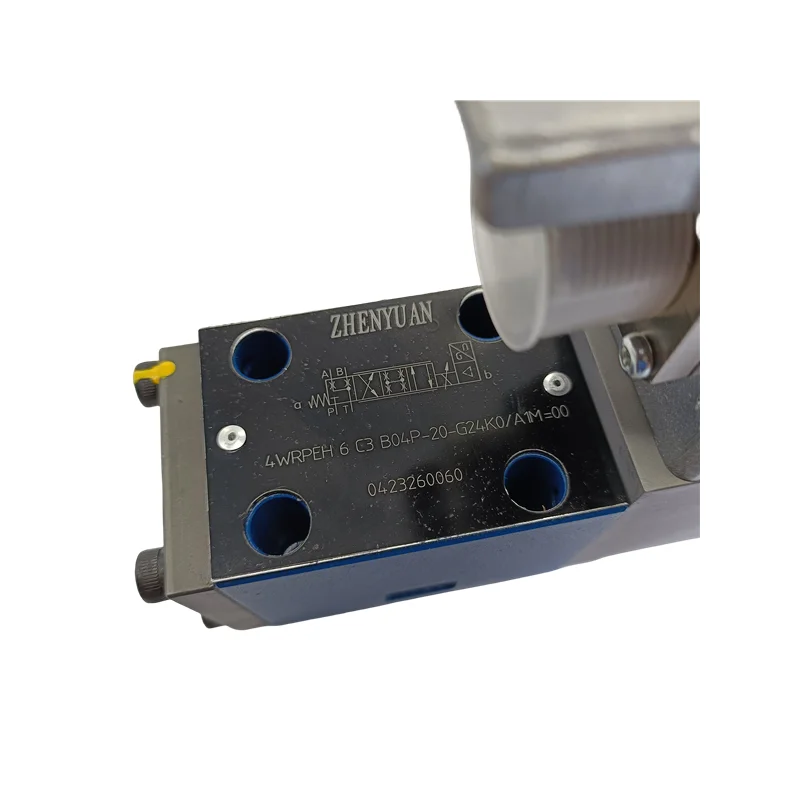

Featured models include: 4WRPEH6C3B40L-3X/M/24A1, 4WRPEH10C3B100L-3X/M/24A1, and 4WRPEH6C4B24L-3X/M/24A1.

Key Technical Advantages:

• On-Board Electronics (OBE): Built-in 24V controller accepts direct analog commands, simplifying electrical integration and enhancing EMI resistance.

• Closed-Loop Position Control: An inductive position transducer monitors spool displacement, ensuring the flow output strictly follows the input signal.

• Rapid Response Dynamics: Specifically engineered for high-frequency cycles with short step response times, ideal for servo-hydraulic control.

• Optimized Flow Options: Precise coverage from 24 L/min up to 100 L/min to suit various actuator speed requirements.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • 4WRPEH6C3B40L-3X/M/24A1: Size 6, rated flow 40 L/min, 3X design series.

  • 4WRPEH6C4B24L-3X/M/24A1: Size 6, rated flow 24 L/min, optimized for precision.

  • 4WRPEH10C3B100L-3X/M/24A1: Large Size 10 specification with flow rates up to 100 L/min.

• Core Technical Specs:

  • Nominal Size: NG6 / NG10.

  • Max Operating Pressure: Rated up to 31.5 MPa (315 bar).

  • Supply Voltage: 24V DC (24A1).

  • Command Signal: Supports standard $\pm 10V$ or $4-20mA$ analog inputs.

  • Seals: Standard NBR, with FKM (Viton) options available.
