Rexroth Type 4WRLE Valve | 4WRLE10W 4WRLE16E | Pilot Proportional Valve
| Model Number | 4WRLE, 4WRLE16E180SJ-3X/G24K0/A1M, 4WRLE10W Z80SJ-3X/G24K0/A1M |
|---|
Product Description

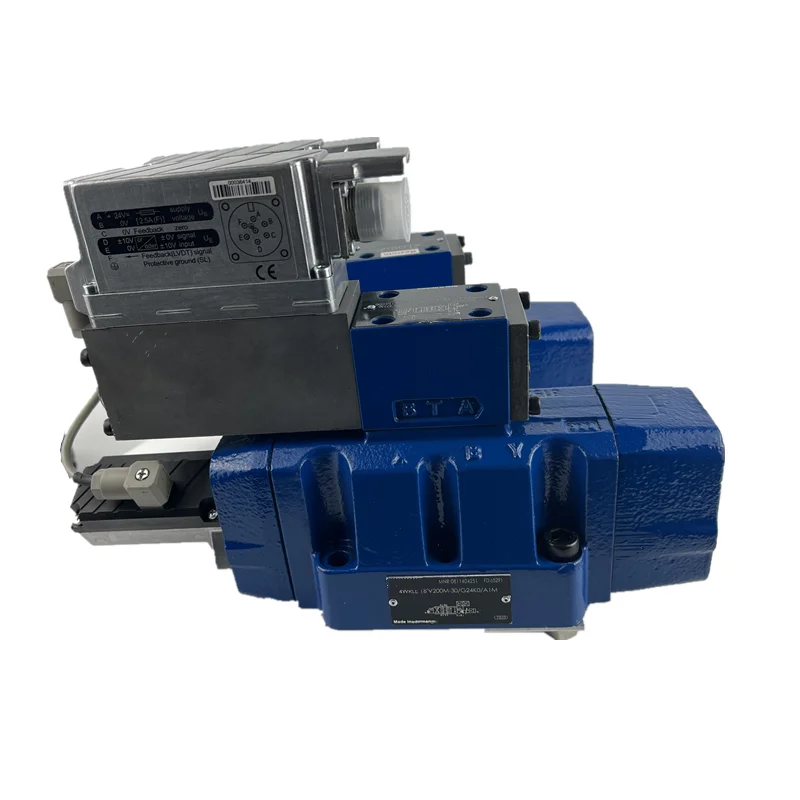

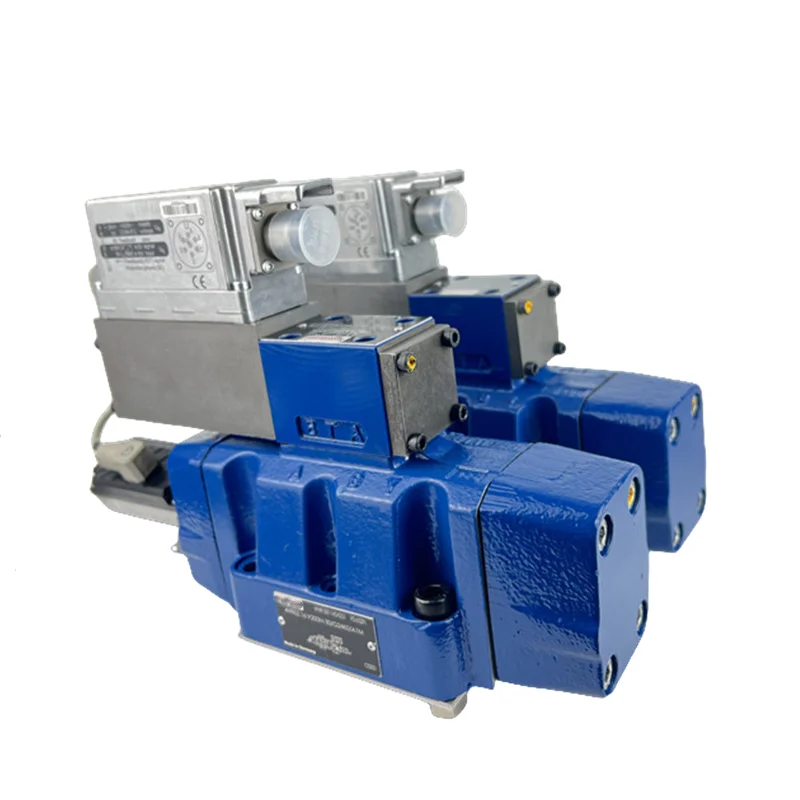

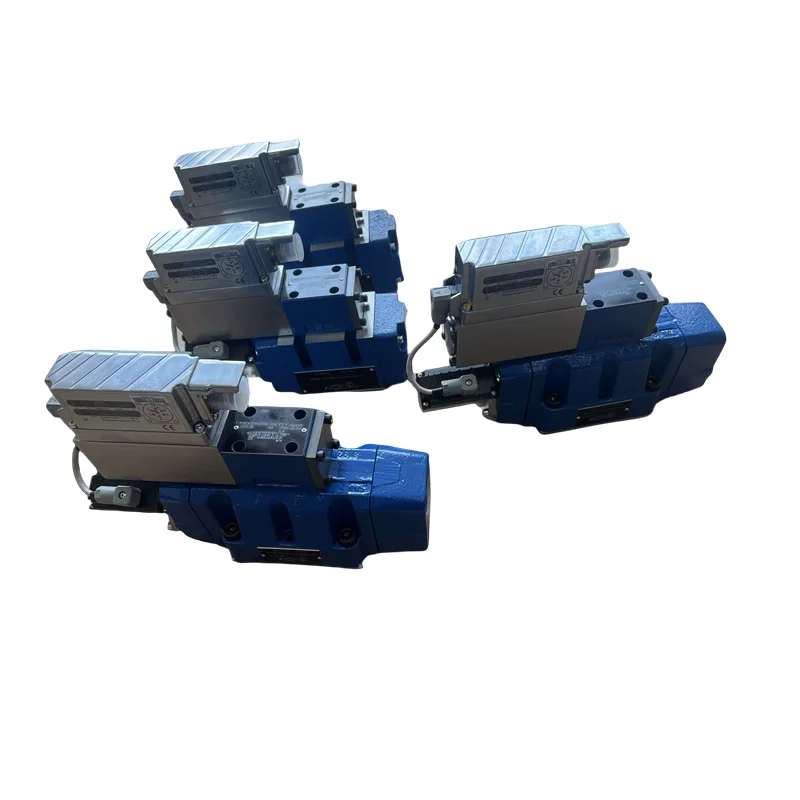

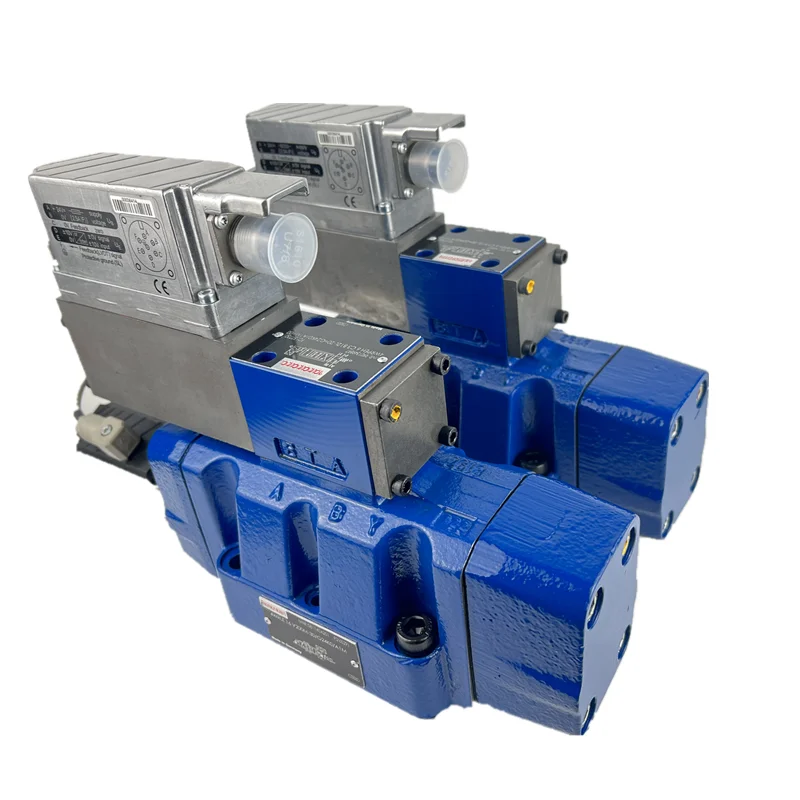

Rexroth Type 4WRLE10 & 4WRLE16 Series Pilot-Operated Proportional Servo Valves
Product Overview: The 4WRLE Series is a high-performance pilot-operated proportional directional valve featuring integrated On-Board Electronics (OBE). Available in Size 10 (NG10 / CETOP 05) and Size 16 (NG16 / CETOP 07) footprints, these valves are engineered for complex hydraulic systems requiring high-flow capacities combined with extreme dynamic response. By utilizing an integrated electronic position feedback system, the 4WRLE series delivers high-power switching without compromising on minimal hysteresis and superior repeatability.
This category highlights premium configurations: the linear-characteristic 4WRLE16E180SJ and the specialized spool logic 4WRLE10W Z80SJ.
Key Technical Advantages:
Two-Stage Pilot Operation: High-frequency response pilot valves drive the main spool, ensuring smooth and precise switching even under fluctuating high system pressures and flow rates.
Integrated OBE (On-Board Electronics): The built-in amplifier is pre-calibrated to match specific valve characteristics, simplifying external wiring and enhancing signal integrity against interference.
Closed-Loop Feedback: Real-time monitoring of the main spool position via an inductive transducer ensures the flow output remains highly linear relative to the input command signal.
Exceptional Dynamic Frequency: The 3X design sequence is fluid-dynamically optimized to maintain superior response speeds during high-speed cycle operations, ideal for precision molding and high-speed hydraulic control.
Detailed Specifications & Parameters:
Core Series: Rexroth Type 4WRLE Series (Size 10 & 16).
Featured Model Matrix:
4WRLE16E180SJ-3X/G24K0/A1M (Size 16, 180 L/min rating)

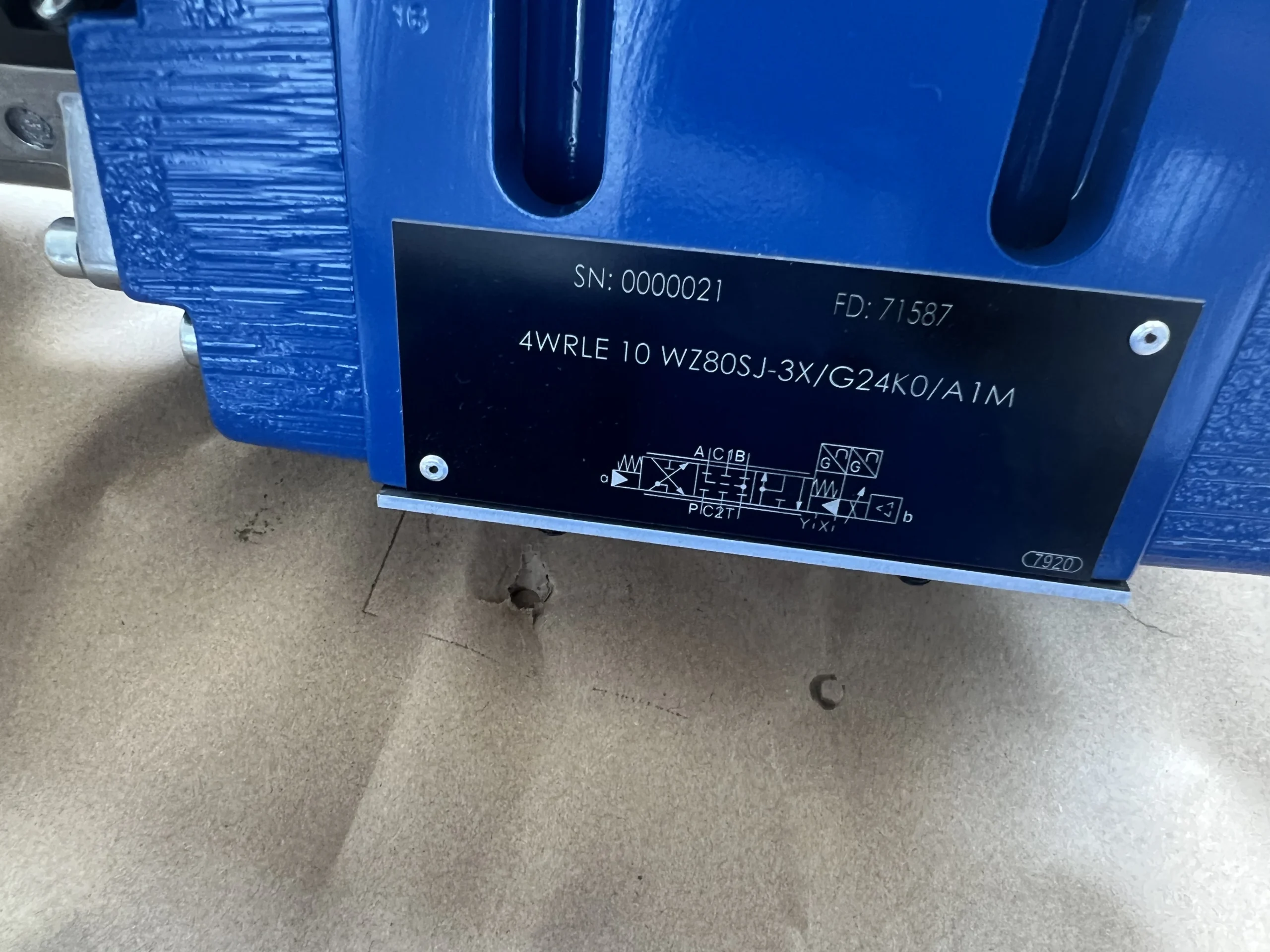

4WRLE10W Z80SJ-3X/G24K0/A1M (Size 10, 80 L/min rating)
Core Performance Specs:
Nominal Sizes: Size 10 (NG10) and Size 16 (NG16).
Max Operating Pressure: Rated up to 315 Bar (4,500 PSI).
Flow Capacity: 80 L/min (Size 10) up to 180 L/min (Size 16).
Command Signal: A1 (±10V analog voltage).
Supply Voltage: G24 (24V DC).
Design Sequence: 3X Series.
Ingress Protection: IP65 rated integrated connections.
