Rexroth Type 4WE6 Valve | 4WE6E 4WE6G 4WE6J 4WE6D | DC24V AC230V | NG6 Directional Valve

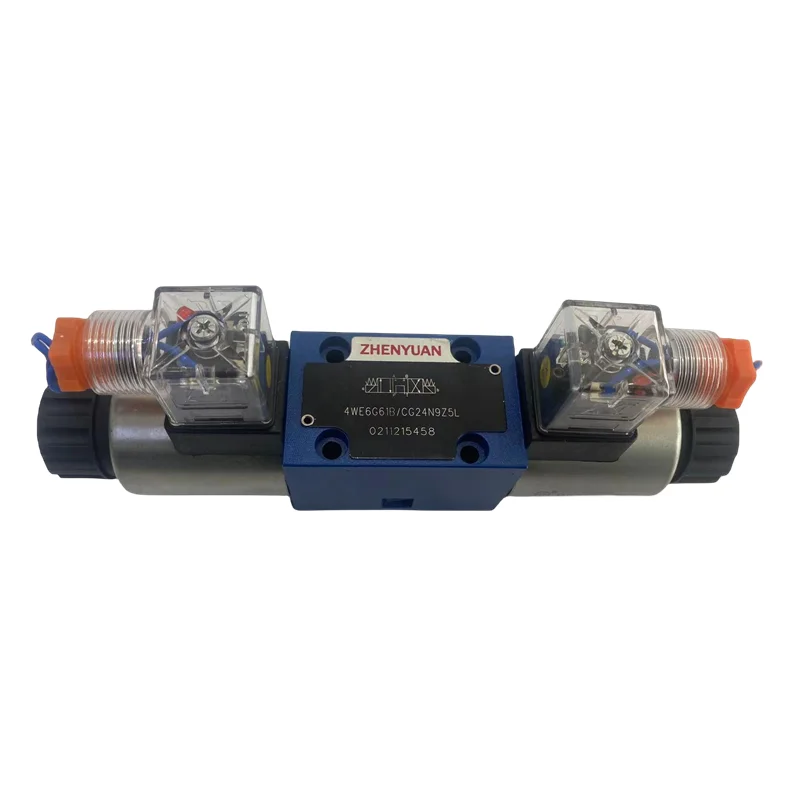

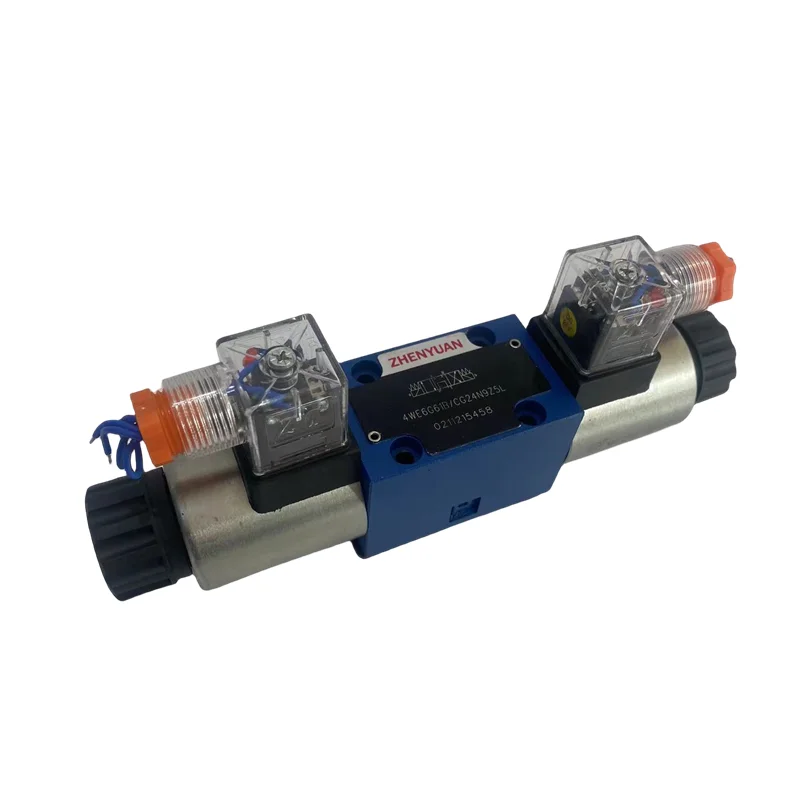

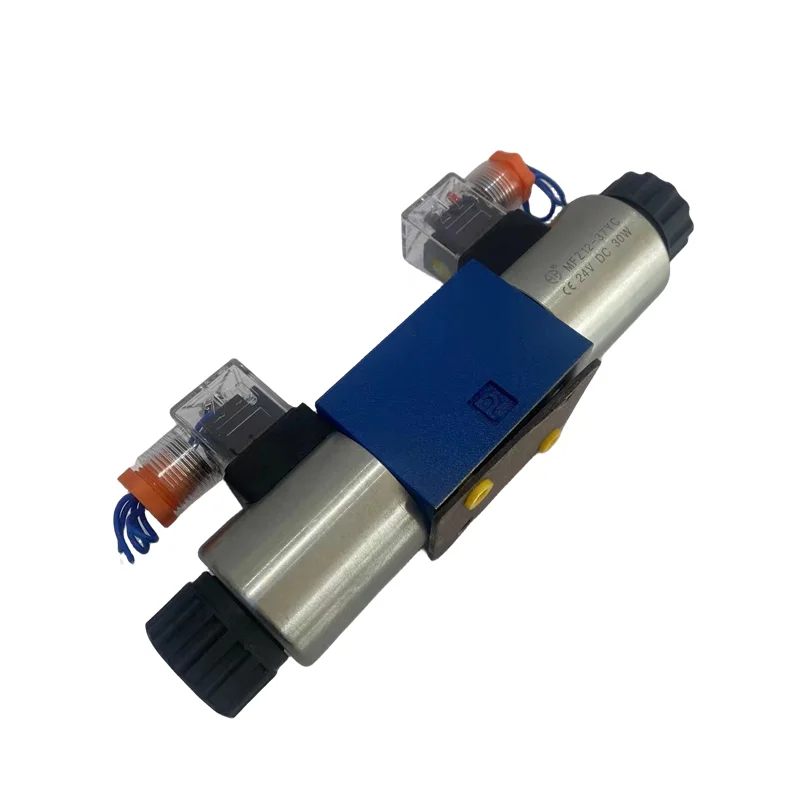

Rexroth Type 4WE6 Series Solenoid Directional Control Valves

Product Overview: The 4WE6 Series is a solenoid-operated, direct-acting directional spool valve, recognized as the industry benchmark for hydraulic control worldwide. Fully compliant with ISO 4401-03 (NG6) mounting standards, this series is engineered to provide high-frequency, reliable directional switching for a vast range of industrial applications.

This category features a comprehensive portfolio of spool functions: including 4WE6E (closed center), 4WE6G (P-blocked), 4WE6J (Y-type), 4WE6D (2-position), as well as 4WE6C and 4WE6M. Depending on your electrical requirements, we offer high-performance wet-pin coils in EG24 (DC24V), CG24 (Special DC24V), and EW230 (AC230V). These valves are the premier choice for injection molding machines, metal shearing equipment, hydraulic power units (HPUs), and automated production lines.

Key Technical Advantages:

• Wet-Pin Solenoid Design: The armature operates fully immersed in oil, ensuring superior heat dissipation, minimal switching shock, and an extended mechanical service life with low noise.

• Versatile Spool Functions: Covers E, G, J, D, C, M, and other logical symbols to meet complex hydraulic requirements from pressure holding to system unloading.

• High Protection Class (N9K4): Equipped with high-performance junction boxes or plug-in connectors, providing excellent resistance to water and dust in harsh industrial environments.

• Manual Override Capability: Includes a standard manual override button, allowing for spool actuation during power outages or during the system commissioning phase.

Detailed Specifications & Parameters:

• Core Series: Rexroth Type 4WE6 Solenoid Operated Valve.

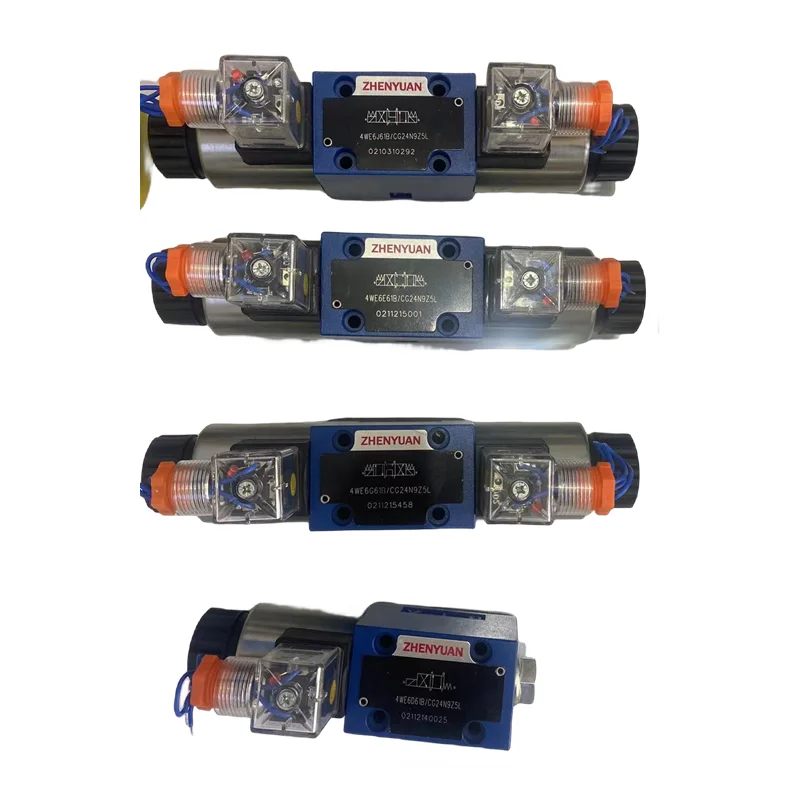

• Featured Model Matrix: 4WE6G6X/CG24N9K4, 4WE6D6X/EG249K4, 4WE6C6X/EW230N9K4, 4WE6M63/EG24N9K4, 4WE6J6X/EG24N9K4, 4WE6E6X/EG24N9K4.

• Core Performance Specs:

  • Nominal Size: Size 6 (NG6).

  • Max Operating Pressure: Ports A, B, and P rated up to 315 Bar (4,500 PSI); Port T up to 160 Bar (AC) / 210 Bar (DC).

  • Max Flow Capacity: Up to 80 L/min (depending on spool type).

  • Operating Voltage: DC 24V (EG24/CG24) / AC 230V (EW230 50/60Hz).

  • Mounting Standards: Complies with ISO 4401-03-02-0-05.

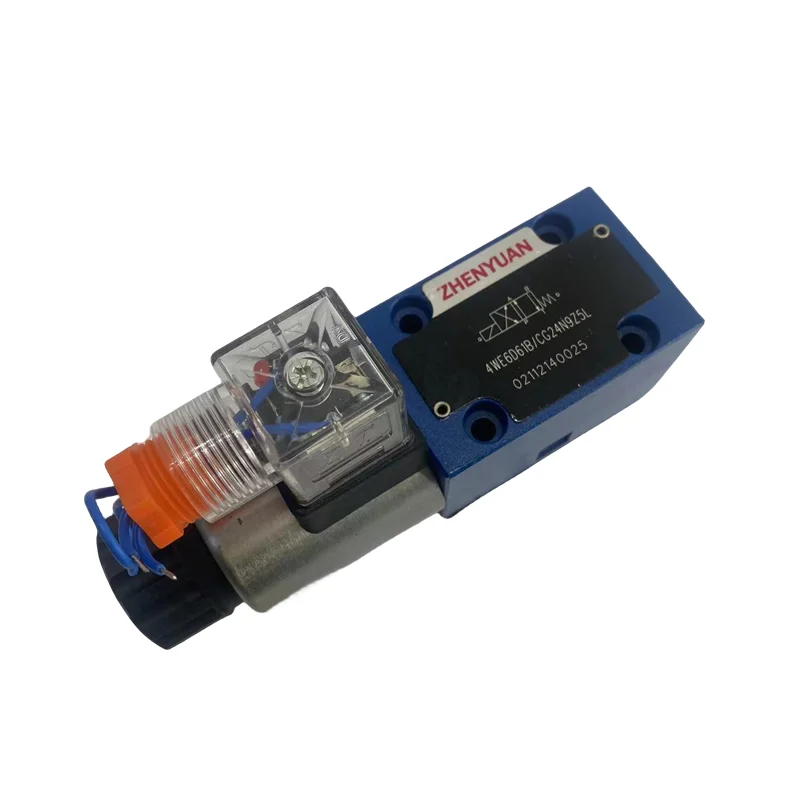

4WE6D6X/EG249K4
4WE6C6X/EW230N9K4
4WE6M63/EG24N9K4
4WE6J6X/EG24N9K4
4WE6E6X/EG24N9K4
