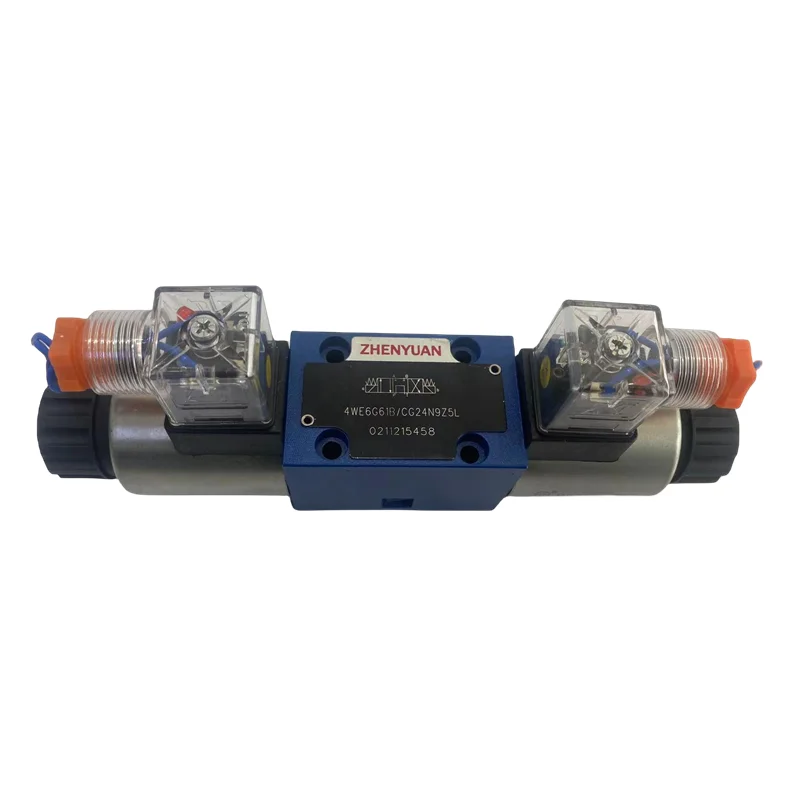

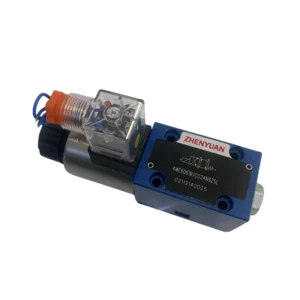

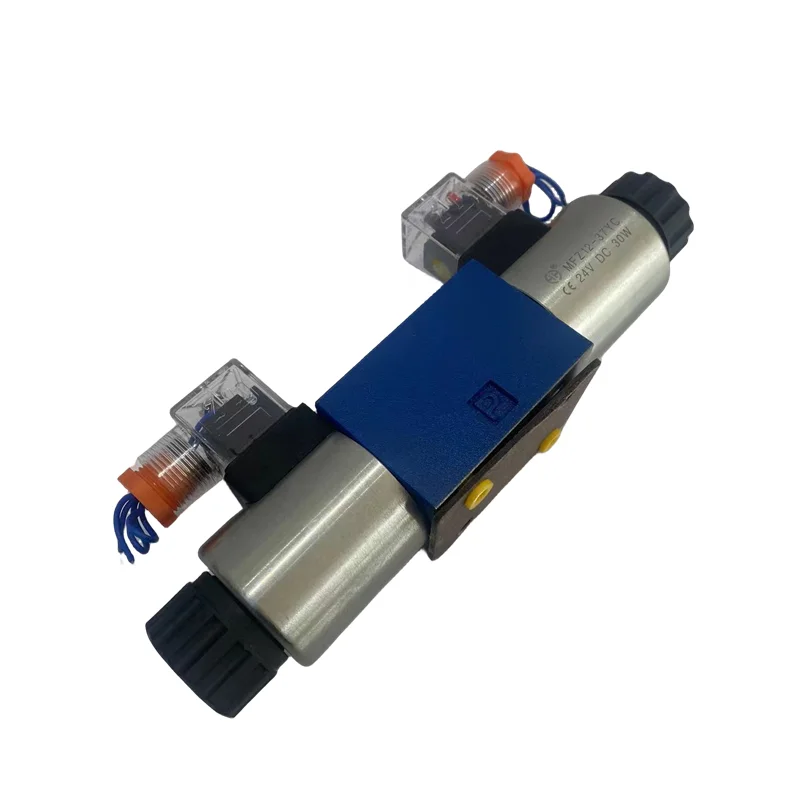

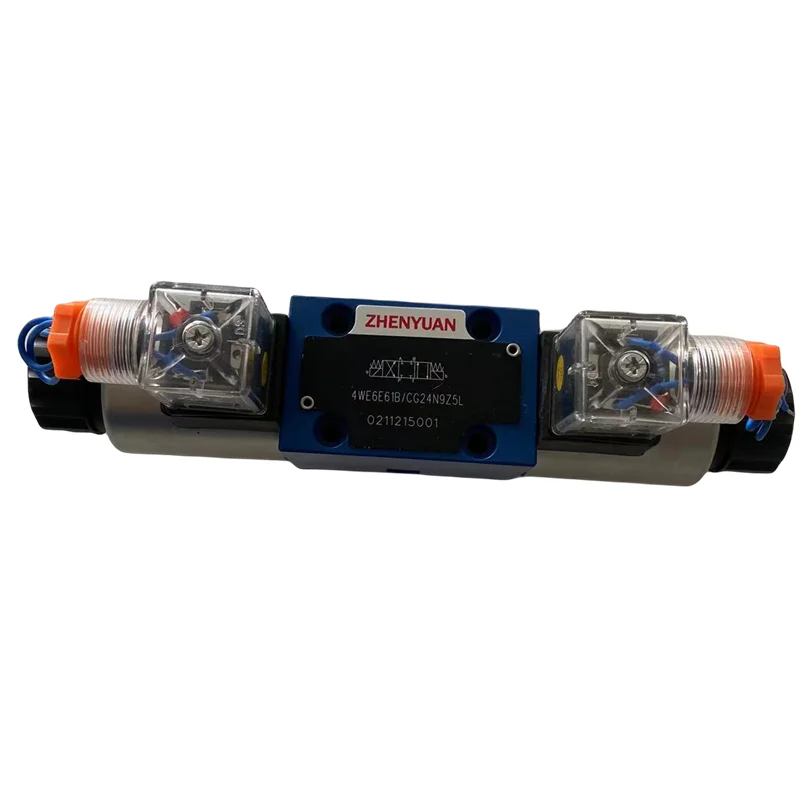

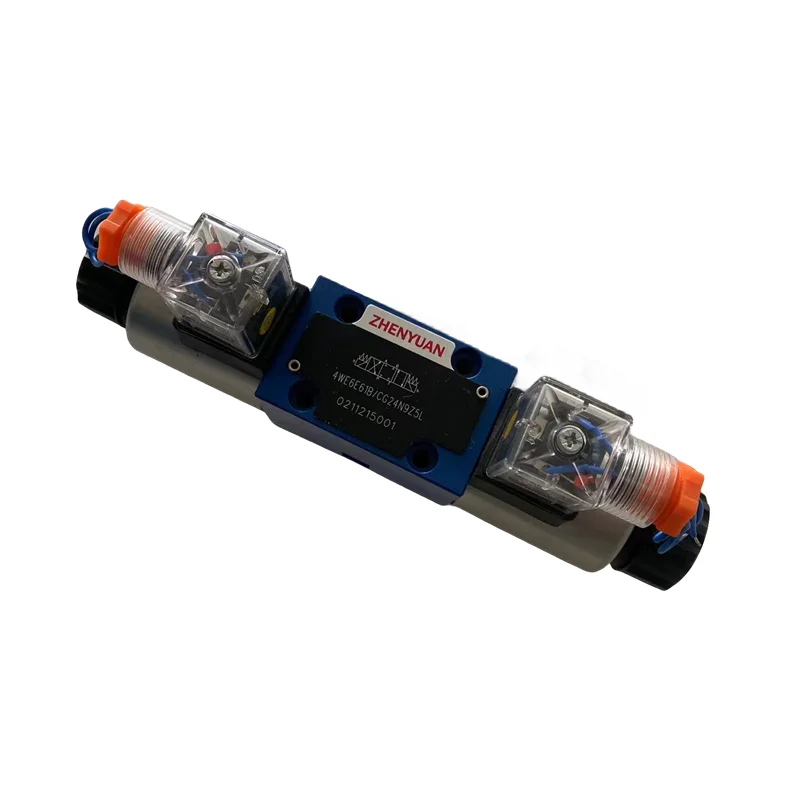

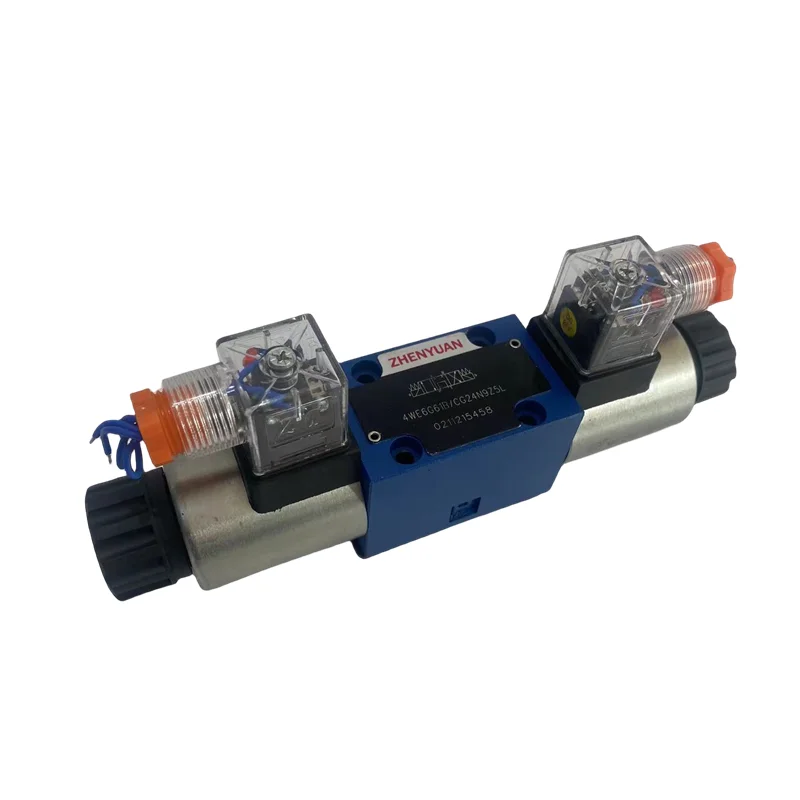

4WE6 & 4WE10 Series Industrial Direct-Operated Solenoid Valves

Product Overview: The 4WE series represents the most versatile direct-operated solenoid spool valves in the global hydraulic industry. This range covers two primary sizes: Size 6 (NG6) and Size 10 (NG10). Utilizing high-strength solenoids to actuate the spool directly, these valves control the start, stop, and direction of fluid flow. The wet-pin solenoid technology ensures smooth operation and extended service life even under high-frequency duty cycles. Compact and compliant with ISO 4401 standards, they are the preferred choice for machine tools, injection molding, and various industrial presses.

Featured models include: 4WE6MA6X/EG24N9K4, 4WE6GA6X/EG24N9K4, 4WE10MA3X/EG24N9K4, and 4WE10GA3X/EG24N9K.

Key Technical Advantages:

• High-Performance EG24 Coils: Optimized for 24V DC industrial power, featuring strong initial suction and exceptional thermal stability for 100% ED (Continuous Duty).

• Manual Override (MA): Equipped with a manual emergency button, allowing spool actuation during power outages or commissioning for enhanced maintenance flexibility.

• Versatile Spool Functions (G/M): Provides various center logics (e.g., G-function: open center; M-function: closed center) to precisely match circuit requirements.

• Leak-Proof Wet-Pin Design: The armature operates within the oil, eliminating dynamic seals and preventing external leaks at the pushrods.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • 4WE6MA6X/EG24N9K4: Size 6, M-spool, 6X design series, manual override, 24V DC.

  • 4WE6GA6X/EG24N9K4: Size 6, G-spool, 6X series, high-performance DC drive.

  • 4WE10MA3X/EG24N9K4: Size 10, M-spool, 3X design series, suited for higher flow rates.

  • 4WE10GA3X/EG24N9K: Size 10, G-spool, 24V DC with standard connector interface.

• Core Technical Specs:

  • Nominal Size: NG6 (Size 6) / NG10 (Size 10).

  • Max Operating Pressure: Rated up to 31.5 MPa (315 bar).

  • Flow Capacity: Size 6 up to 80 L/min; Size 10 up to 120-150 L/min.

  • Electrical Connection: N9K4 indicates a standard K4 (DIN) connector with manual override compatibility.
