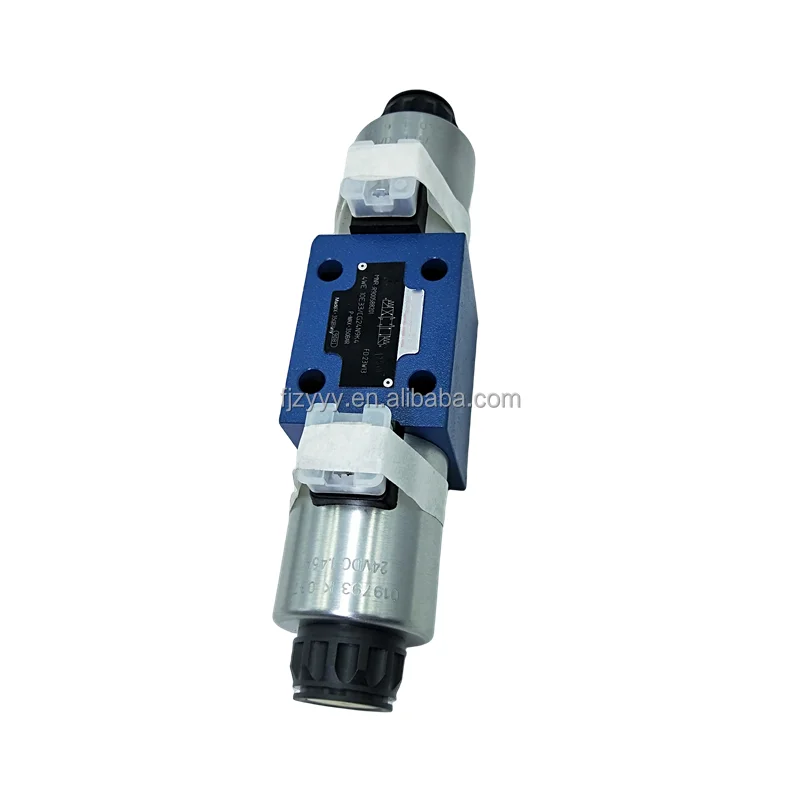

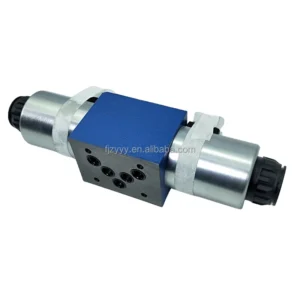

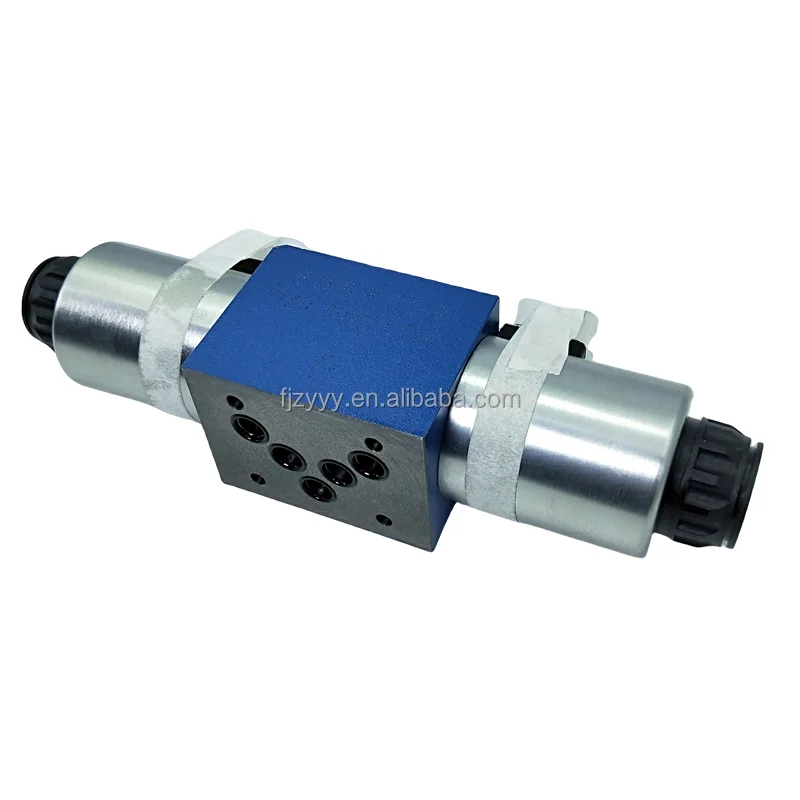

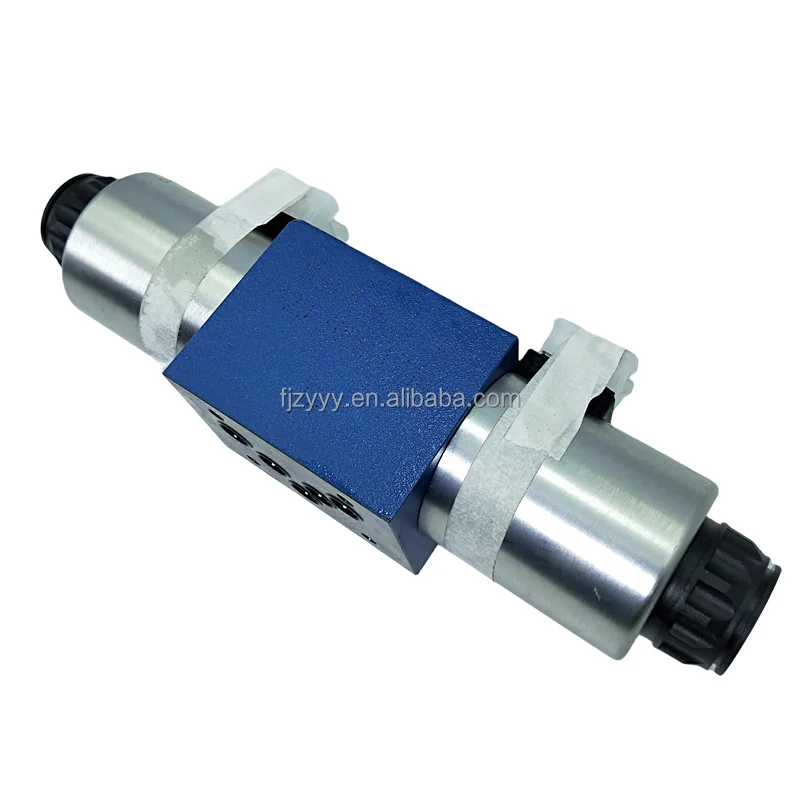

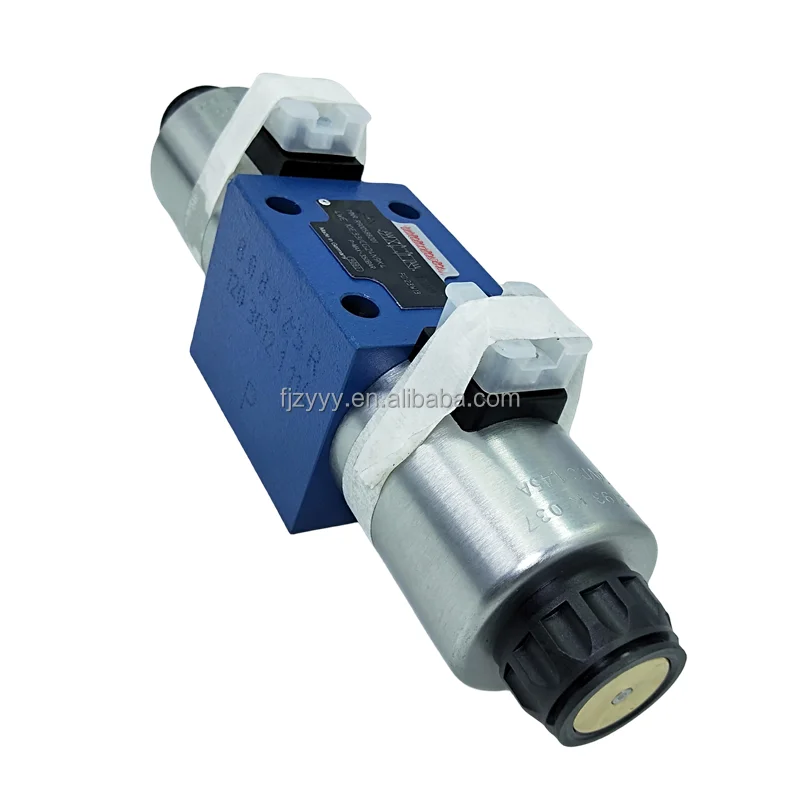

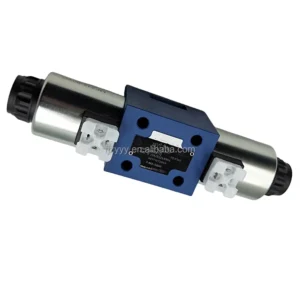

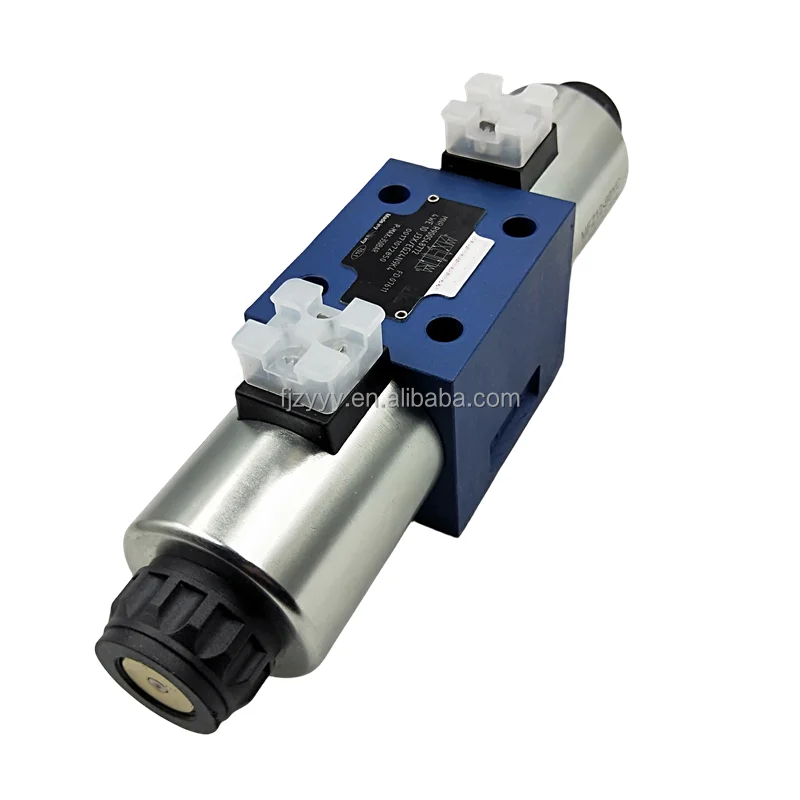

Rexroth Type 4WE10 Solenoid Valve | 4WE10G33 | 4WE10E33 | 4WE10H33 | 24V DC NG10 CETOP 5 | Hydraulic Valve
| Model Number | 4WE10 G33/CG24N9K4, 4WE10 H33/CG24N9K4, 4WE10 E33/CG24N9K4 |
|---|
Product Description
4WE10 Series High-Flow Direct-Operated Solenoid Valves
Product Overview: The 4WE10 series is a premium range of direct-operated solenoid spool valves designed for the Size 10 (NG10 / CETOP 5) mounting interface. As the high-flow counterpart to the 4WE6 series, the 4WE10 provides significantly enhanced flow capacity (rated up to 120-160 L/min), effectively minimizing energy loss in large-scale hydraulic systems and improving actuator response. Utilizing wet-pin solenoid technology, these valves ensure smooth switching, superior heat dissipation, and zero dynamic seal leakage.
Featured models include: 4WE10G33/CG24N9K4, 4WE10E33/CG24N9K4, 4WE10H33/CG24N9K4, and the complete functional range of E, J, G, H, F, M, D, Y spools.
Key Technical Advantages:
Advanced 33 Design Series: Optimized internal gallery geometry ensures minimal pressure drop even under peak flow conditions.
Comprehensive Spool Functions: Available in E (Closed center), J (Unloading), G (H-spool), H (Y-spool), and other logics to meet complex circuit requirements.
Premium CG24 Actuation: Powered by 24V DC industrial-grade solenoids, supporting 100% ED (Continuous Duty) with excellent vibration and thermal resilience.
Standardized Interface: Fully compliant with ISO 4401-05 standards, allowing for seamless direct replacement of mainstream global brands.
Detailed Specifications & Parameters:
Featured Model Matrix:
4WE10G33/CG24N9K4: Size 10, G-spool (All ports open in center), 33 series, 24V DC control.
4WE10E33/CG24N9K4: Size 10, E-spool (Closed center), 33 design series, industrial standard spec.
4WE10H33/CG24N9K4: Size 10, H-spool (P blocked, A/B/T connected), 33 series.
Functional Range: Available in E, J, G, H, F, M, D, Y, G spool logics.
Core Technical Specs:
Mounting Standard: ISO 4401-05 / CETOP 5 / NG10.
Max Operating Pressure: Rated up to 31.5 MPa (315 bar).
Rated Flow: Up to 120 – 160 L/min.
Electrical Connection: Standard K4 (DIN 43650) interface with N9 manual override button.
