Rexroth PVV Series Vane Pump | R900936293, R900941698 | PVV2, PVV4
| Model Number | PVV2-1X/055RA15RMB, PVV4-1X/069RA15DMC |
|---|
Product Description

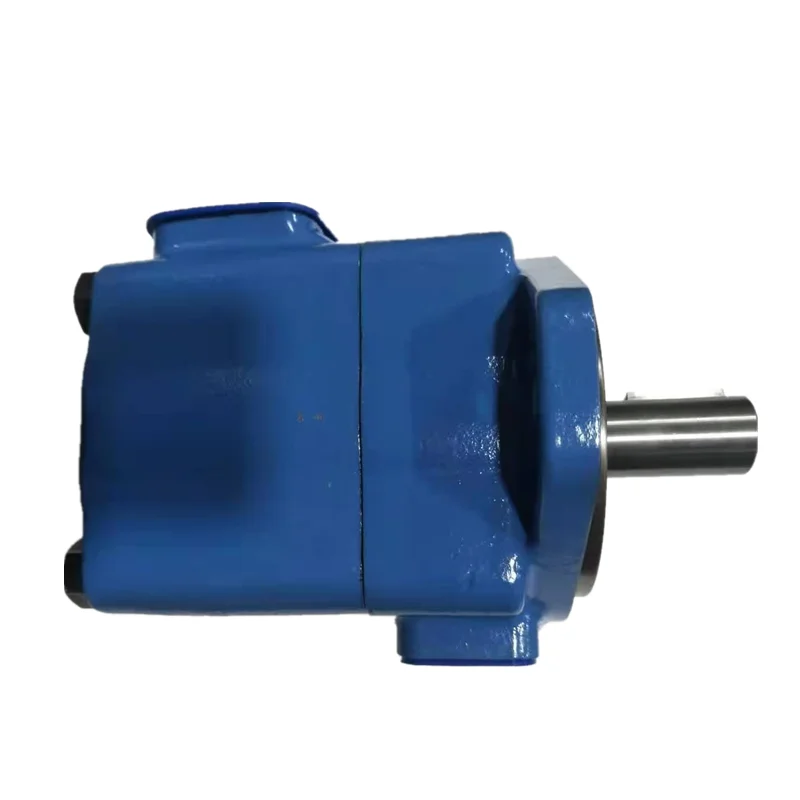

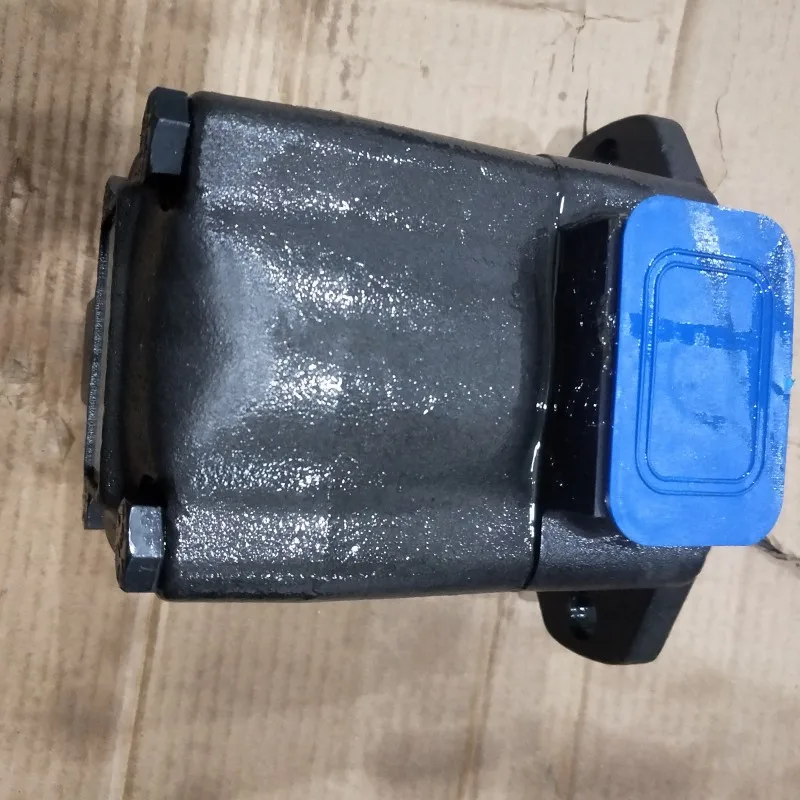

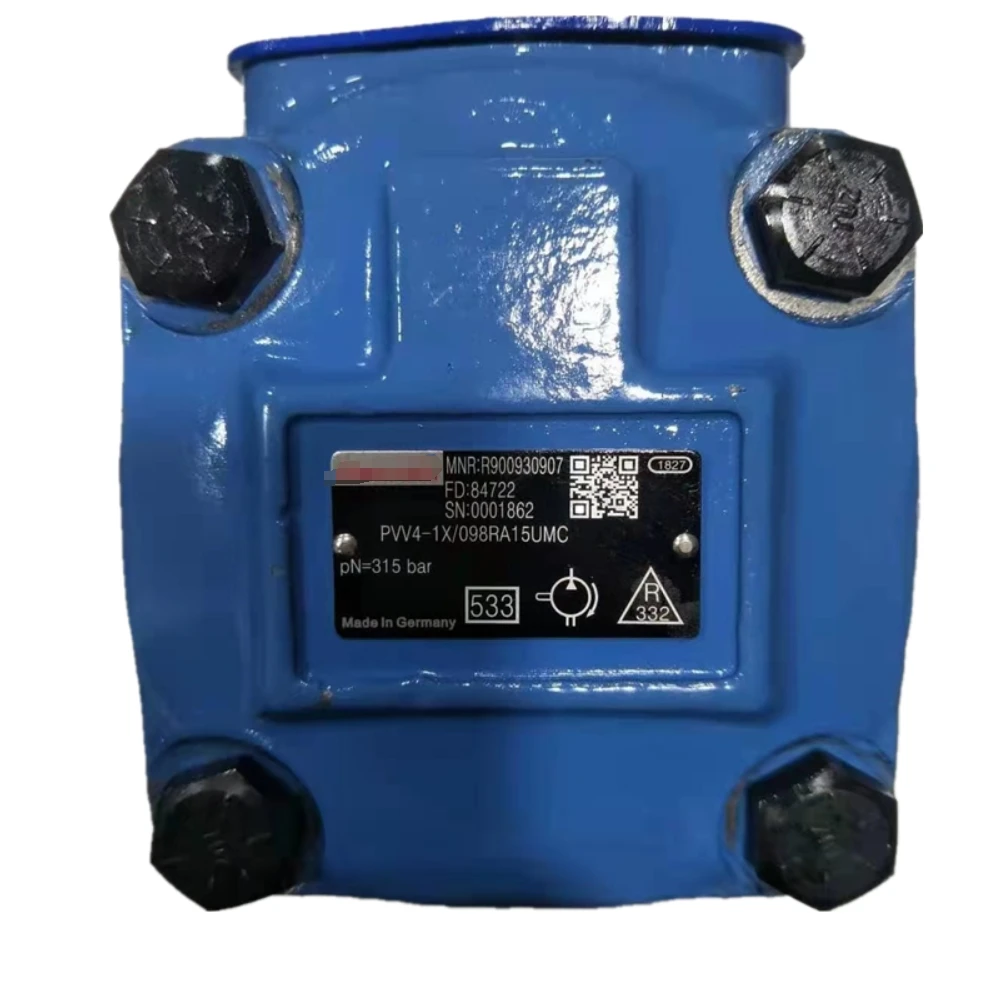

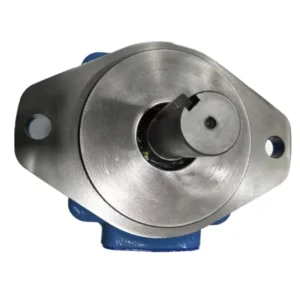

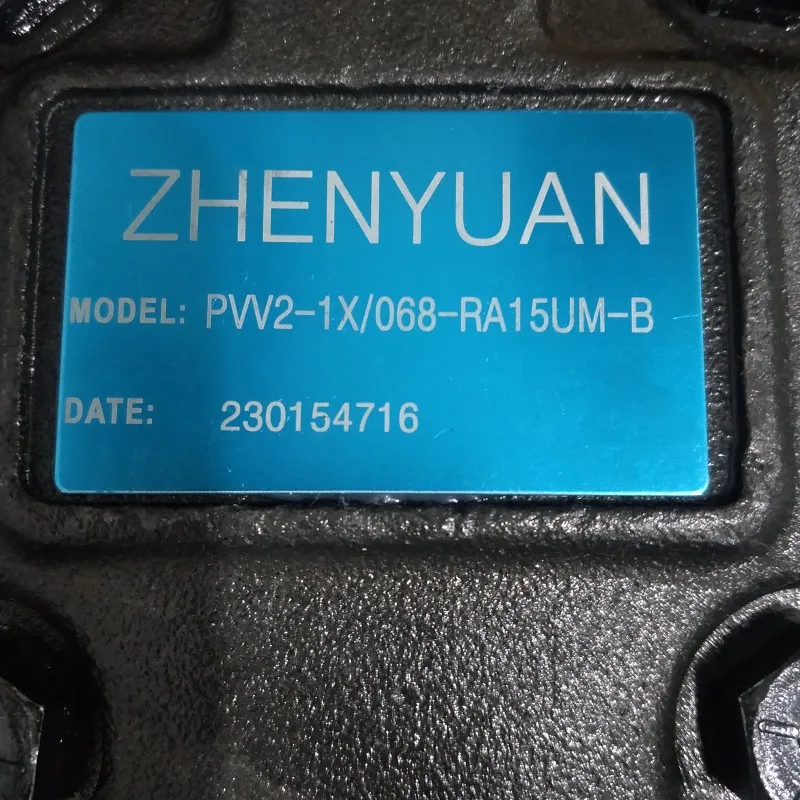

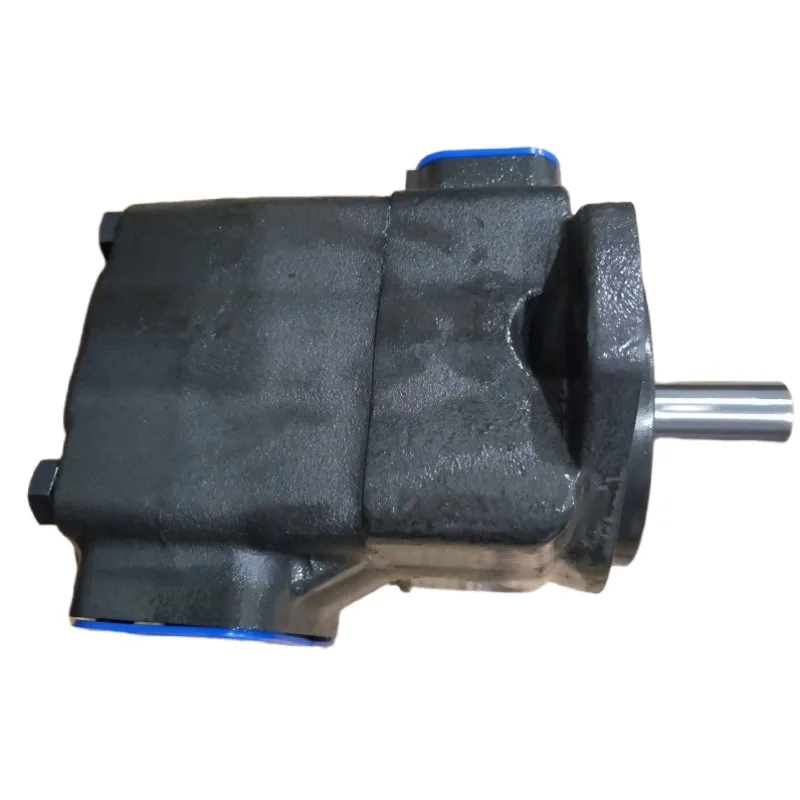

Rexroth PVV Series Industrial Fixed Displacement Vane Pumps
Product Overview: The Rexroth PVV Series fixed displacement vane pump is the premium benchmark for industrial hydraulic power worldwide. Engineered for medium-to-high pressure continuous operation, the PVV series is renowned for its exceptional volumetric efficiency and ultra-low noise levels. This selection highlights original Rexroth part numbers: R900936293 (PVV4-1X/069RA15DMC) and R900941698 (PVV2-1X/055RA15RMB). Utilizing precision-ground port plates and high-strength cast iron housings, the PVV series delivers exceptionally smooth flow at loads up to 21.0 MPa (210 Bar), making it the definitive choice for machine tools, injection molding, and press systems.
Key Technical Advantages:
Extreme Low Noise Performance: Optimized internal flow channels effectively minimize pressure pulsations and hydraulic shock noise, greatly improving the factory workshop environment.
Modular “Drop-in” Cartridge Design: The internal pump core is a modular unit, allowing for rapid replacement. Maintenance can be performed on the cartridge without disconnecting heavy plumbing, drastically cutting downtime.
High-Pressure Durability: Rated for operating pressures up to 210 Bar. The hydraulically balanced core reduces bearing loads, significantly extending the service life of the drive components.
High Configuration Flexibility: Supports multi-pump combinations (Double, Triple), allowing for flexible displacement configurations to meet complex circuit power distribution needs.
Target Applications: Woodworking machinery, plastic injection machines, scrap metal balers, machine tool drives, and large industrial Hydraulic Power Units (HPU).
Detailed Models & Parameters:
Core Series: Rexroth PVV Series (PVV2, PVV4, PVV5).
Rexroth Part Numbers: R900936293, R900941698.
Model Keywords: PVV4-1X/069RA15DMC, PVV2-1X/055RA15RMB.
Technical Specs Decoding:
069 / 055: Displacement sizes (69 cm³/rev and 55 cm³/rev).
1X: Current component series identifier.
R: Right-hand (Clockwise) rotation direction.
A15 / R15: Drive shaft and mounting flange specifications.
DMC / RMB: Porting connection styles and seal configurations (e.g., NBR).
Max Operating Pressure: Rated for continuous operation up to 21.0 MPa (210 Bar / 3050 PSI).
Speed Range: Supports stable operation between 600 RPM and 1800 RPM.
