Rexroth Oil Control Solenoid Valve | OD1505363AS000 | OD1502211AS000 | OD1505183CS200

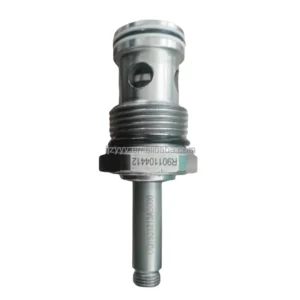

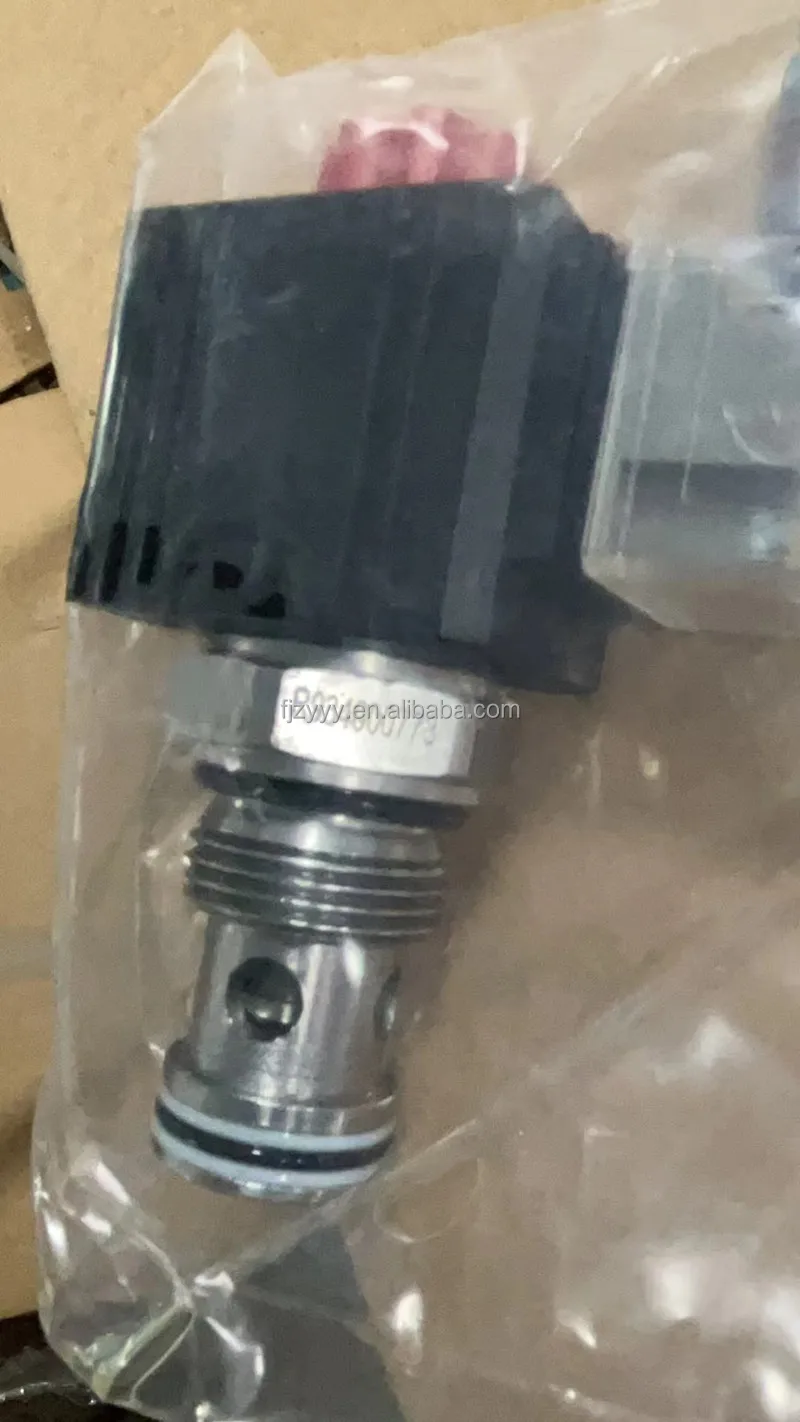

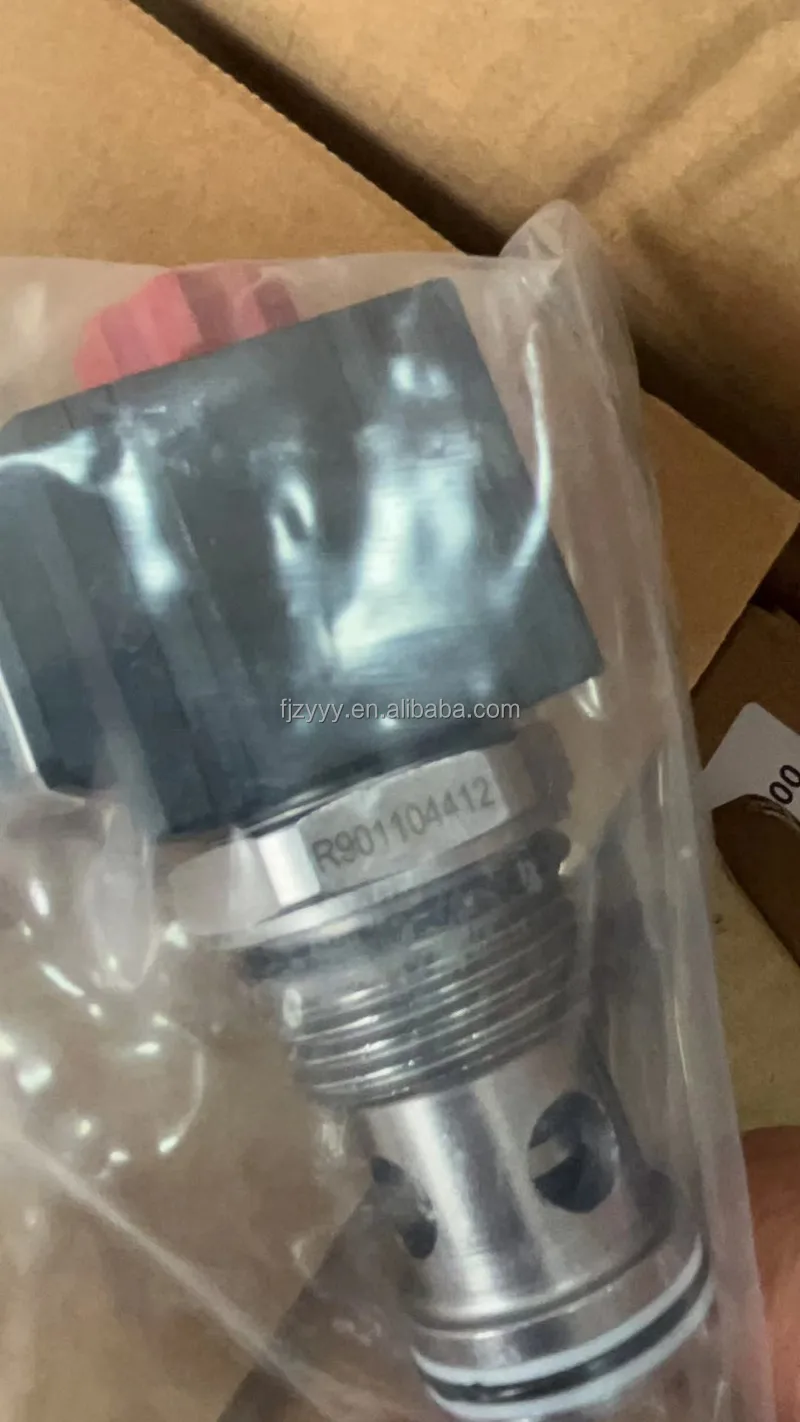

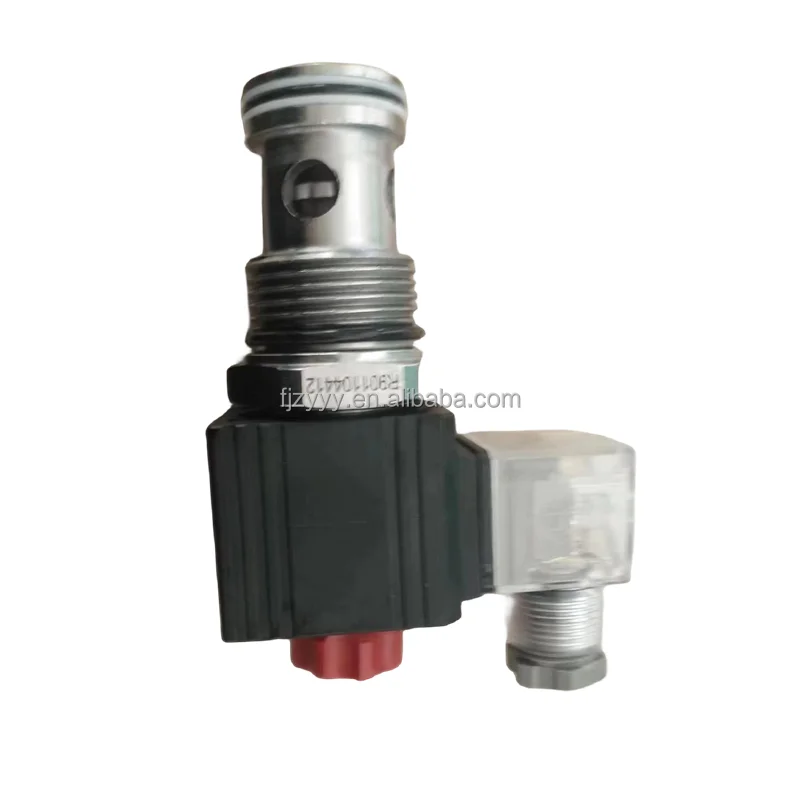

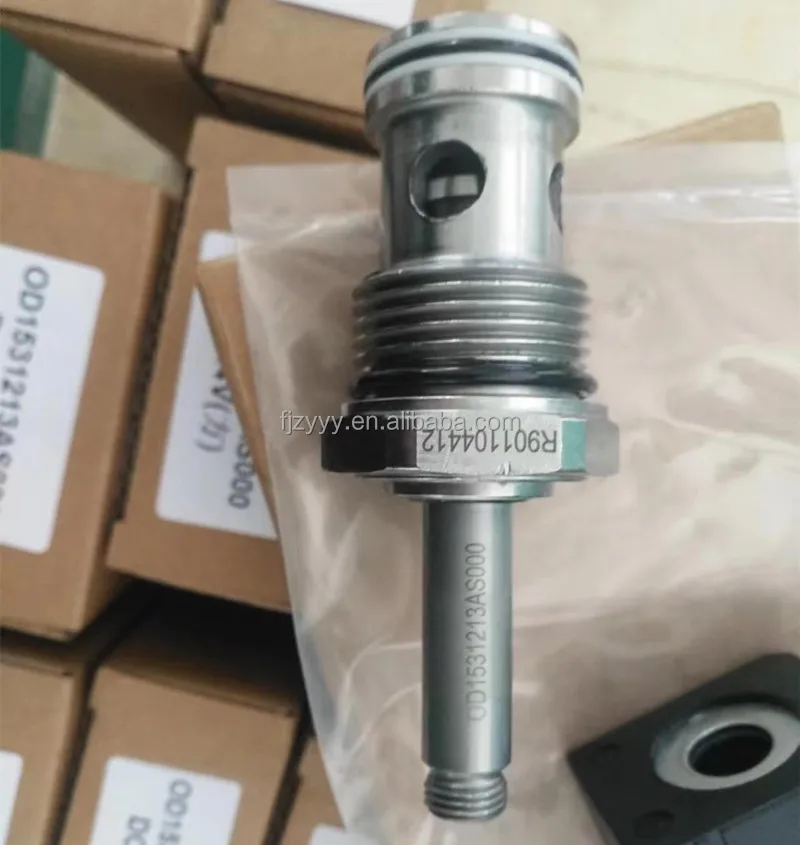

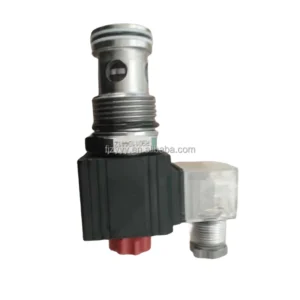

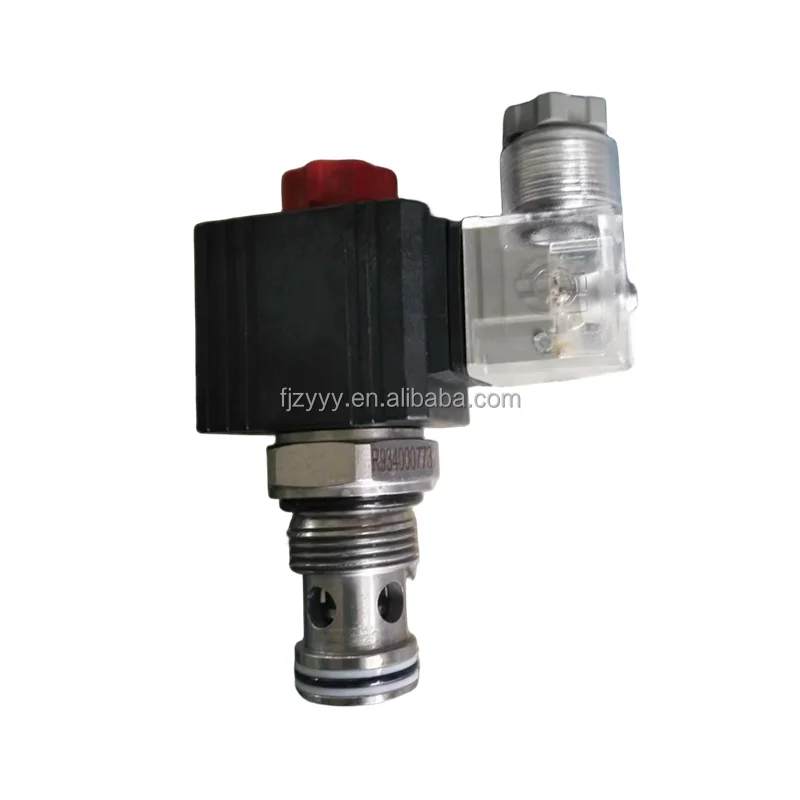

Rexroth Oil Control OD Series Solenoid Poppet Cartridge Valves

Product Overview: The Rexroth Oil Control OD Series represents the industry standard in solenoid-operated threaded cartridge valves, utilizing a high-performance poppet-style architecture. The primary advantage of this design is its superior sealing integrity, providing “zero-leakage” performance in the closed position—an essential requirement for material handling equipment, lift platforms, and crane outrigger locking systems. From the high-flow OD1505 to the ultra-compact OD1502, these valves deliver rapid switching response and exceptional repeatability.

Featured models include: OD1505363AS000, OD1505183CS200, OD1503183AS0000, and OD1502211AS000.

Key Technical Advantages:

• Zero-Leakage Static Locking: The poppet-style design uses a metal-to-metal hard seal to ensure complete circuit isolation, effectively preventing actuator drift.

• High-Response Solenoid Technology: Available in multiple voltage options (12V/24V DC) with powerful solenoid strokes, ensuring reliable actuation even with high-viscosity oil during cold starts.

• High Pressure & Corrosion Resistance: Valve bodies are zinc-plated or phosphated for corrosion protection, while internal components are hardened for durability up to 350 Bar.

• Compact SAE Cavities: Designed for standard SAE08 or SAE10 cavities, significantly optimizing space within compact hydraulic power packs.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • OD1505363AS000: 2-way, 2-position solenoid poppet valve, Normally Closed (NC), high-flow design.

  • OD1505183CS200: Solenoid directional valve featuring specific adjustment options or emergency manual override.

  • OD1503183AS0000: Mid-sized solenoid poppet valve balancing flow capacity and installation footprint.

  • OD1502211AS000: Compact solenoid directional valve for pilot control or low-flow execution circuits.

• Core Technical Specs:

  • Max Operating Pressure: Rated from 250 Bar (3600 PSI) to 350 Bar (5000 PSI).

  • Flow Capacity: Ranges from 15 L/min up to 60 L/min (depending on Size 02/03/05).

  • Electrical Compatibility: Fits DIN 43650, Deutsch, or lead-wire solenoids.

  • Fluid Compatibility: Mineral-based hydraulic oils, temperature range -30°C to +100°C.
