Rexroth Type DBW Solenoid Relief Valve | DBW10 | DBW20 | DBW30 | 100 Bar 24V DC | NG10 NG20 NG30 Pilot Operated Valve
| Model Number | DBE, DBEM, DBET, DBW, DBW10, DBW20, DBW10 BG2-5X/100 6AG24N9Z5L |
|---|
Product Description

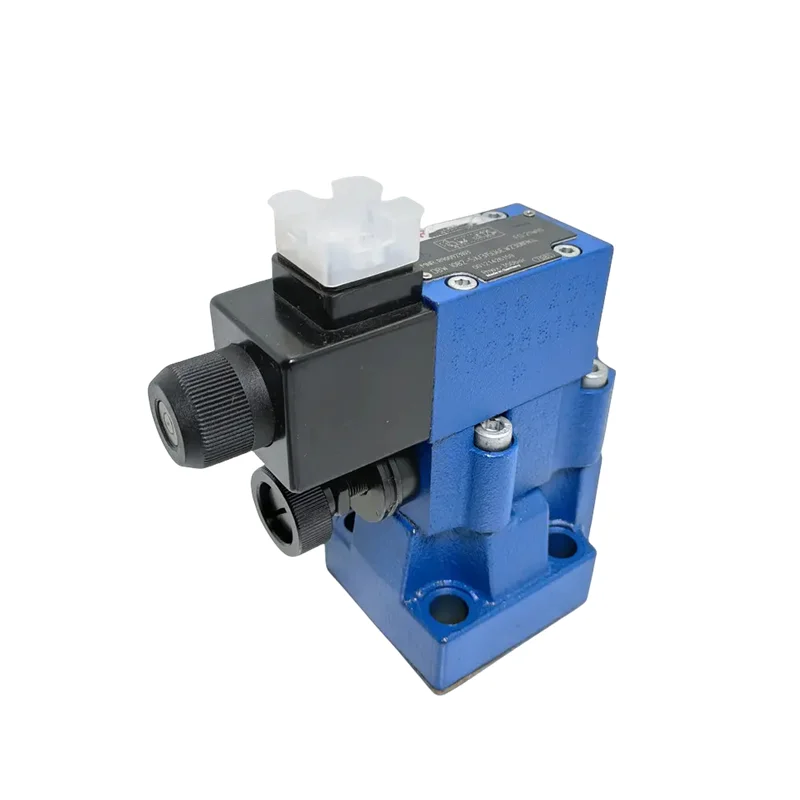

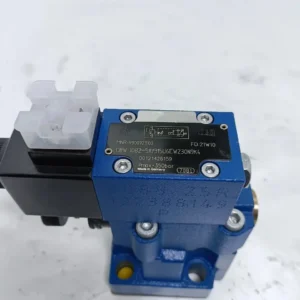

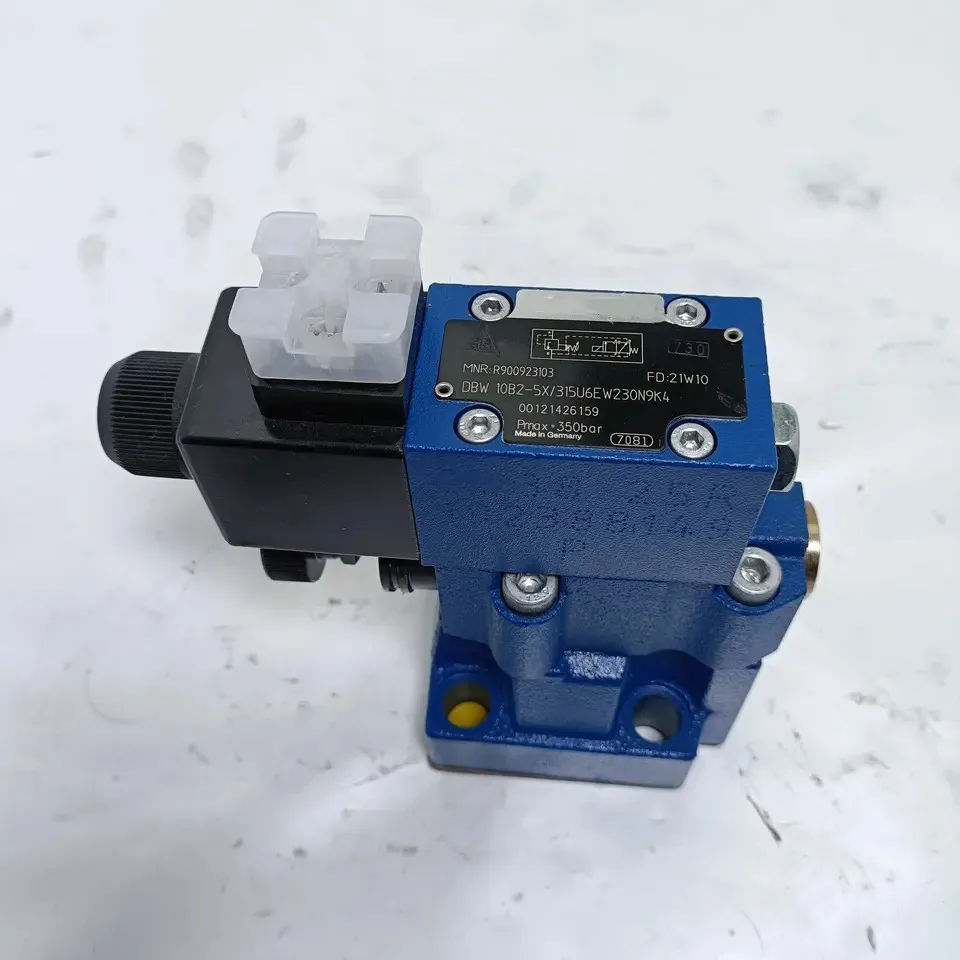

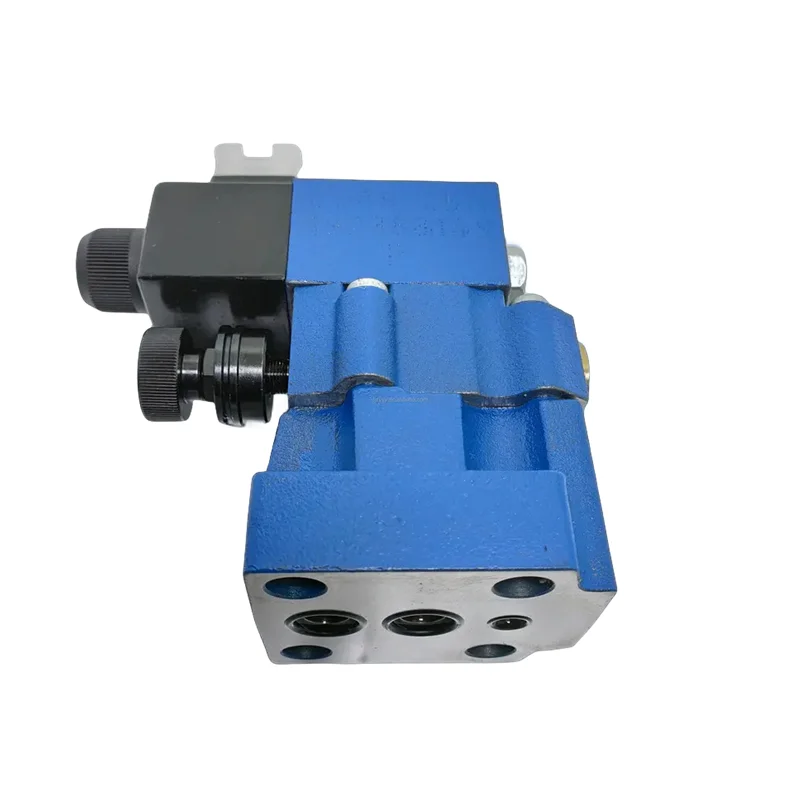

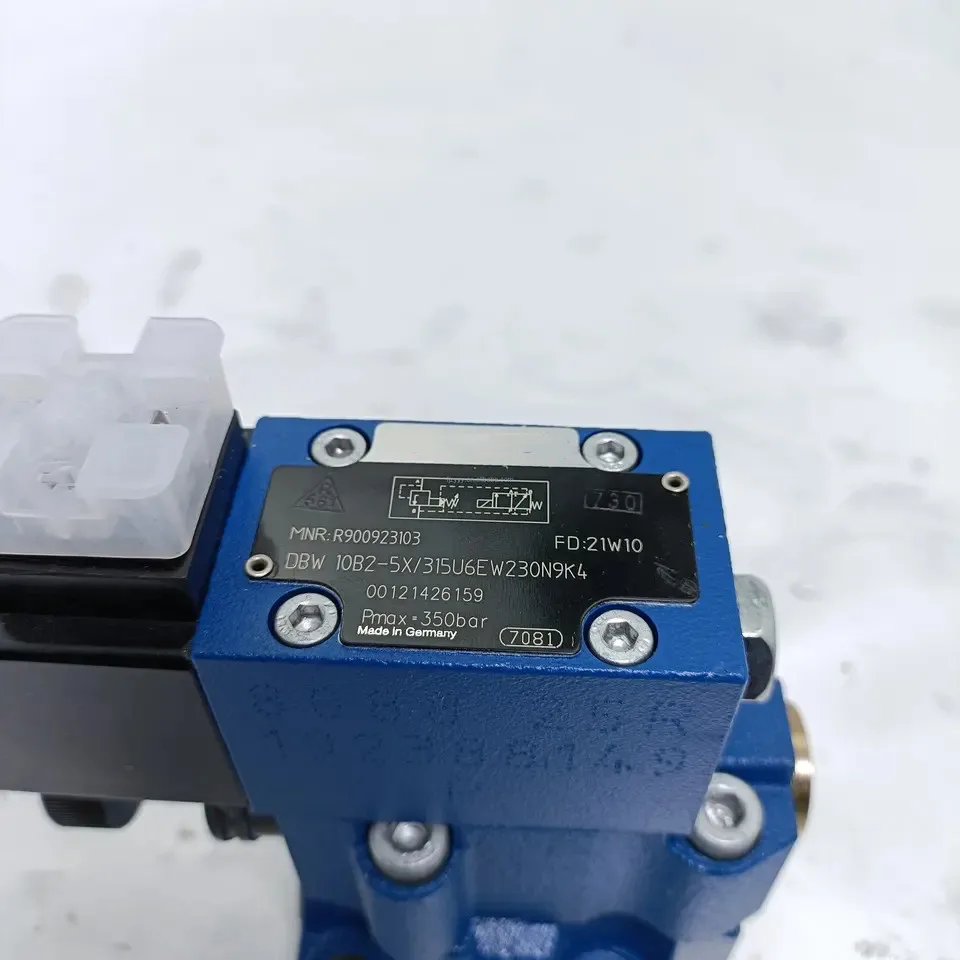

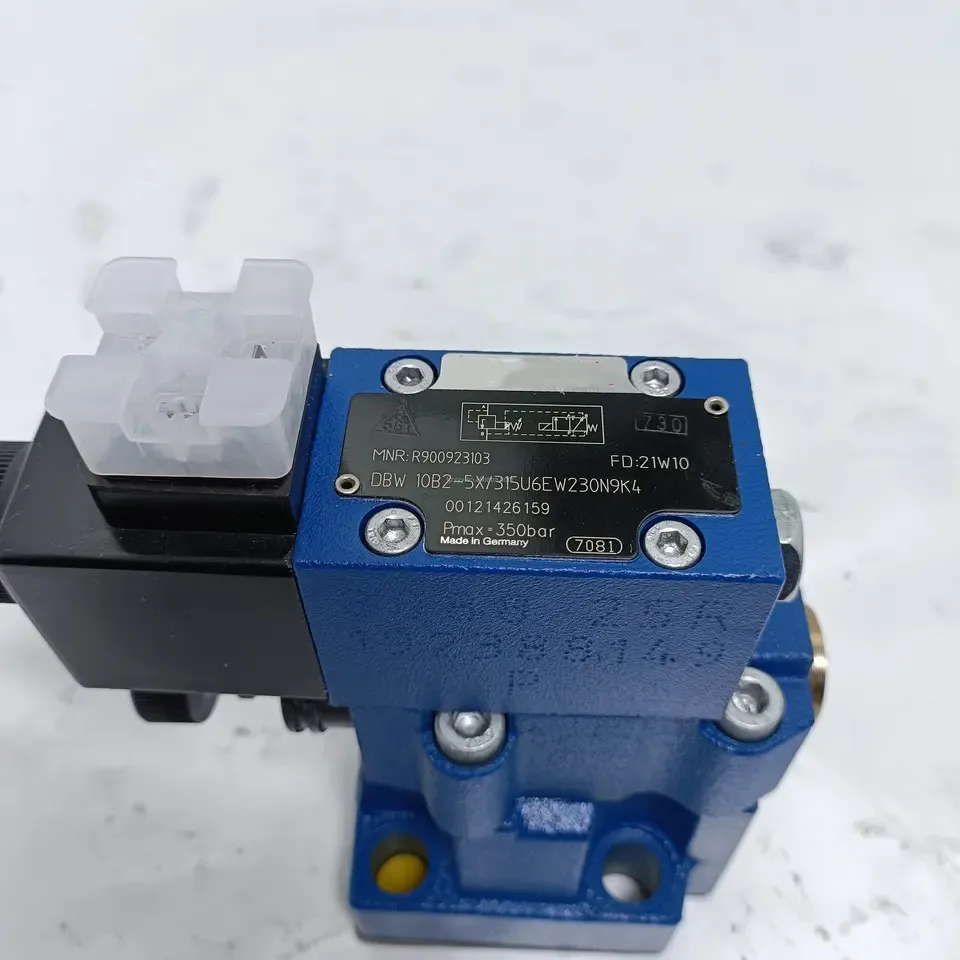

DB / DBW Series Pilot-Operated Solenoid Relief Valves
Product Overview: The DB and DBW series are high-performance pilot-operated pressure relief valves essential for pressure control and safety protection in industrial hydraulic systems. The DBW series features an integrated solenoid directional valve, enabling solenoid-controlled unloading functionality. By energizing or de-energizing the solenoid, the system can seamlessly switch between the pre-set pressure and a low-pressure unloading state. Covering Size 10 (NG10), Size 20 (NG20), and Size 30 (NG30), these valves are critical components for no-load starting, multi-stage pressure regulation, and safety relief in hydraulic power units.
Featured models include: DBW10-BG2-5X/100 6AG24N9Z5L, DB10, DB20, and DB30.
Key Technical Advantages:
Multifunctional Unloading Logic: The DBW model allows remote unloading control via electrical signals, effectively reducing system energy consumption and fluid heating.
High-Response Pilot Design: Utilizes a proven pilot stage to actuate the main spool, ensuring excellent opening characteristics and minimal pressure overshoot under high-flow and high-pressure conditions.
Extensive 5X Design Series: The 5X series represents a benchmark in industrial reliability and interchangeability, fitting global standard manifold mounting interfaces.
Industrial-Grade Electrical Protection: Equipped with 6AG24 (24V DC) coils and Z5L (Lighted plug) indicators for real-time visual feedback on solenoid status.
Detailed Specifications & Parameters:
Featured Model Matrix:
DBW10-BG2-5X/100 6AG24N9Z5L: Size 10, subplate mounting, solenoid unloading type, 100 bar pressure setting, 24V DC control.
DB20 / DB30: Size 20/30 basic pilot relief valves, suitable for ultra-high flow rate pump stations.
Core Technical Specs:
Mounting Standard: ISO 6264 (NG10, NG20, NG30).
Max Operating Pressure: Rated up to 31.5 MPa (315 bar).
Flow Range: Supports 250 L/min to 600 L/min depending on the nominal size.
Control Voltage: Options for 24V DC, 110V AC, and 230V AC.
