Rexroth DBDS Relief Valve | DBDS6 DBDS10 DBDS20 | R900424150 R901017079 | Direct Operated Pressure Valve

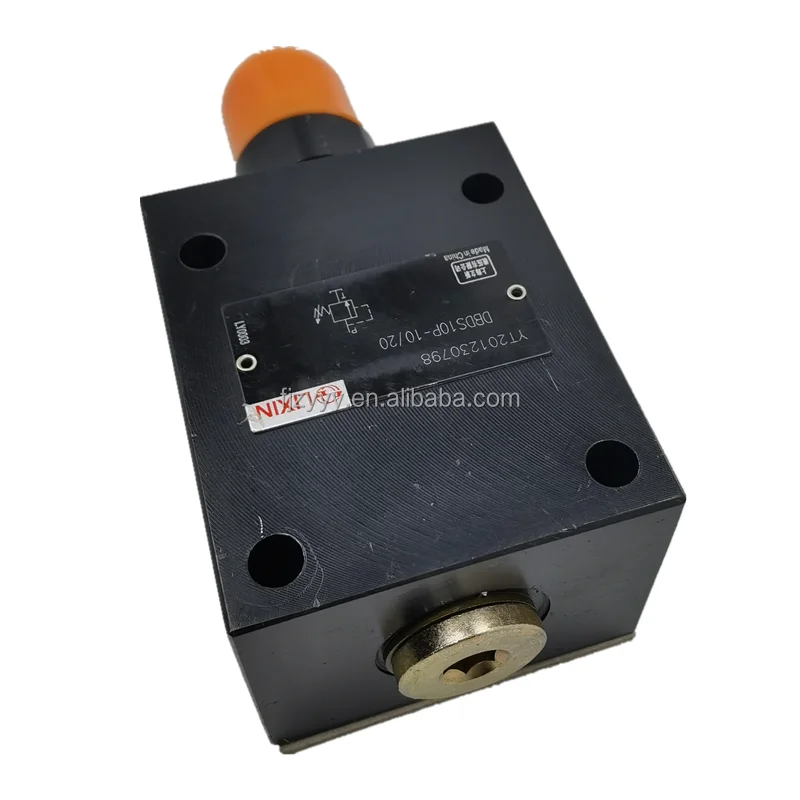

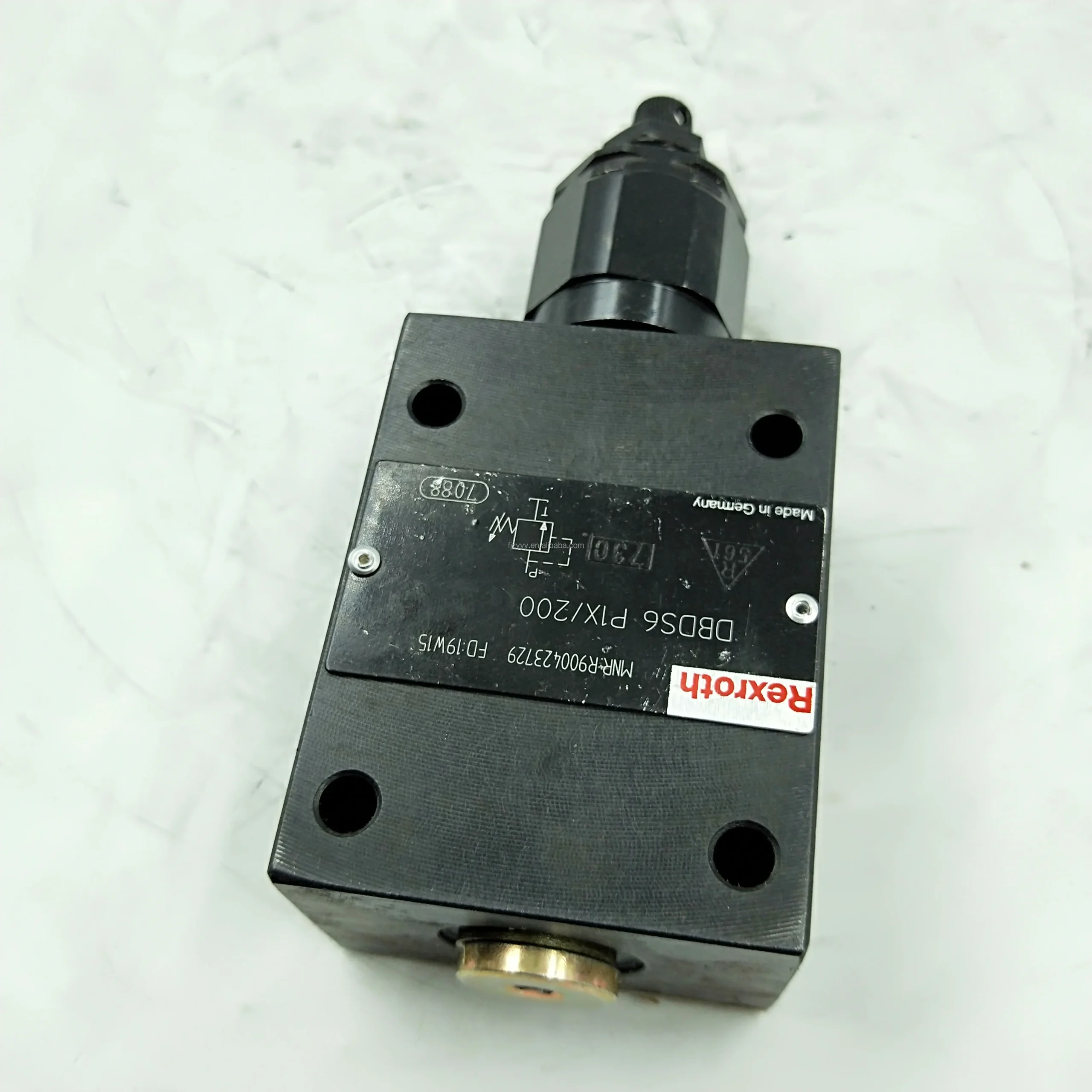

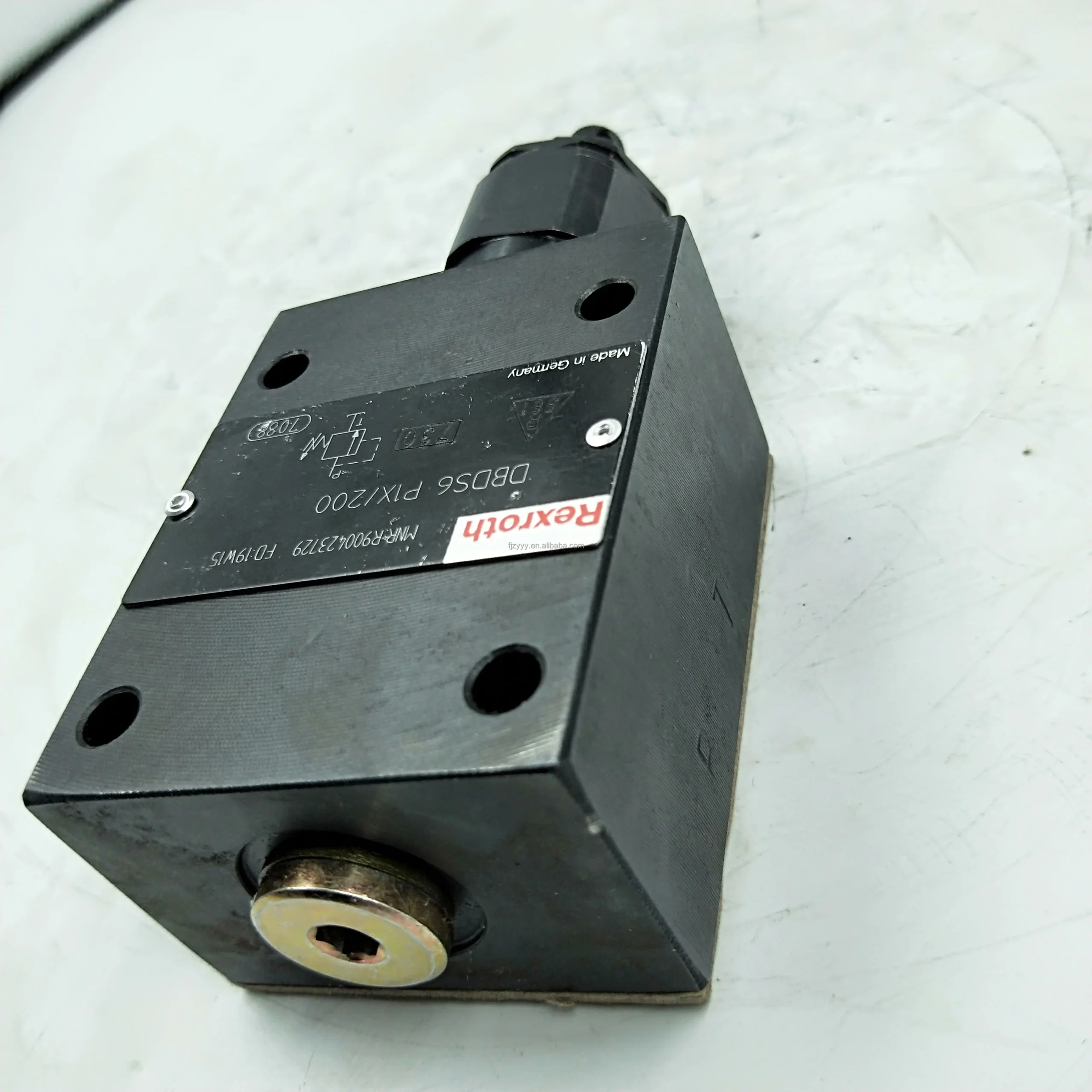

DBDS Series Direct-Operated Pressure Relief Valves

Product Overview: The DBDS Series is an industrial-grade, direct-operated relief valve designed for pressure limitation and overload protection in hydraulic systems. Thanks to its direct-acting structure, the valve offers exceptionally fast response times and a compact footprint, effectively neutralizing instantaneous pressure spikes. The DBDS series provides a wealth of mounting options, including Type K (Screw-in/Cartridge), Type P (Subplate), and Type G (Threaded/Inline), catering to everything from compact power units to heavy-duty industrial hydraulic stations.

Featured models: DBDS6K1X/200 (R900424150), DBDS10K1X/315 (R901017079), and DBDS20G1X/150.

Key Technical Advantages:

• Ultra-Fast Dynamic Response: The direct-operated design eliminates pilot-stage lag, opening in milliseconds to provide immediate safety for pumps and actuators.

• Versatile Mounting Configurations:

  • Type K (Cartridge): Screw-in design, ideal for manifold block integration.

  • Type G (Threaded): For direct installation within hydraulic pipelines.

  • Type P (Subplate): Standardized interface for modular plate mounting.

• Broad Pressure Gradients: Supports multiple pressure adjustment ranges from 25 bar to 630 bar, ensuring high precision across various operating windows.

• Rugged Industrial Quality: Features a hardened valve body and spool, maintaining superior sealing and an extended service life even under high-frequency relief conditions.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • DBDS6K1X/200 (R900424150): Size 6, Screw-in (K), Max pressure 200 bar, Series 1X.

  • DBDS10K1X/315 (R901017079): Size 10, Screw-in (K), Max pressure 315 bar.

  • DBDS20G1X/150: Size 20, Threaded connection (G), Max pressure 150 bar.

• Core Technical Specs:

  • Nominal Sizes: 6, 10, 20, 30.

  • Max Operating Pressure: Up to 630 bar (depending on the specific version).

  • Max Flow Capacity: Ranges from 50 L/min (Size 6) up to 330 L/min (Size 30).

  • Adjustment Type: Standard adjustment bolt with hexagonal nut and protective cap; optional lockable handwheel available.
