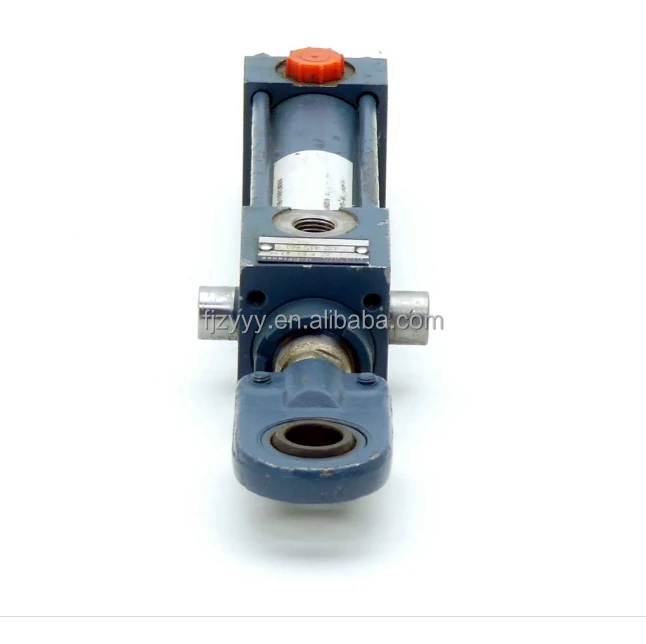

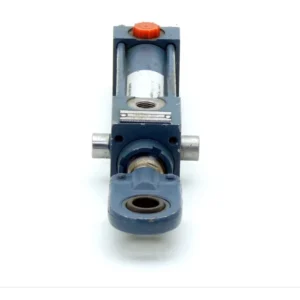

Rexroth CDT3 Hydraulic Cylinder | CDT3MP5/25/12 | 160 Bar ISO 6020-2 Tie Rod Cylinder

Model Number

CDT3

Inquiry

Product Description

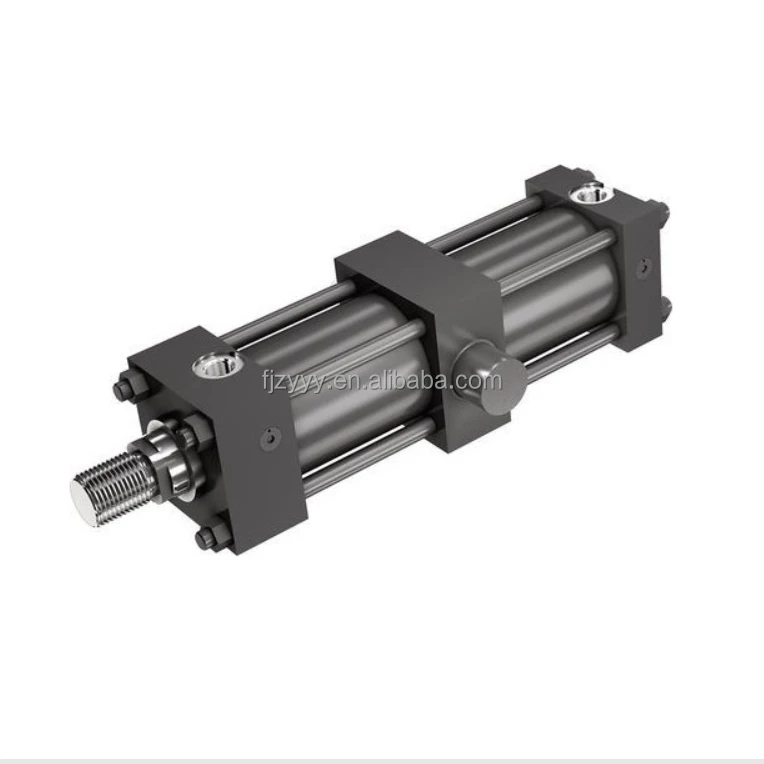

Rexroth CDT3 Series Compact Tie-Rod Hydraulic Cylinder

Product Overview: The Rexroth CDT3 series is a high-reliability tie-rod hydraulic cylinder compliant with ISO 6020-2 standards. Designed for industrial automation, this series provides precise linear motion under a rated pressure of 160 Bar. Featured models like the CDT3MP5/25/12/25Z3X offer compact installation dimensions and superior sealing performance. The MP5 mounting style (Rear Plain Swivel Clevis) ensures excellent pivoting flexibility in restricted spaces. Whether used for mold ejection, clamping mechanisms, or precision pressing, the CDT3 ensures an extended service life and minimal maintenance frequency.

Key Technical Advantages:

  • International Standardization: Fully compliant with ISO 6020-2 and DIN 24554, allowing for direct global interchangeability and simplified system integration.

  • Compact Tie-Rod Construction: High-strength tie rods connect the front and rear heads, creating a lightweight yet shock-resistant structure ideal for automation equipment with limited space.

  • Optimized Sealing System (HHDM): * Utilizes advanced composite sealing configurations to guarantee zero leakage during high-frequency reciprocating movements.

    • The B11HHDMBWWWW code ensures excellent compatibility and temperature resistance across various hydraulic media.

  • High Response & Low Friction: The combination of precision-ground piston rods and low-friction guide bushings ensures smooth operation even at ultra-low speeds without “stick-slip” effects.

  • Flexible Stroke Configurations: Supports custom strokes from 25mm to 250mm (e.g., 250Z2X) and beyond to meet diverse industrial process requirements.

Detailed Models & Parameters:

  • Core Series: Rexroth CDT3 Series 3X/2X.

  • Representative Models: CDT3MP5/25/12/25Z3X/B11HHDMBWWWW, CDT3MP5/25/12/250Z2X.

  • Piston Diameter: 25 mm.

  • Piston Rod Diameter: 12 mm.

  • Rated Pressure: 160 Bar (16 MPa / 2320 PSI).

  • Mounting Type: MP5 (Rear Plain Swivel Clevis).

  • Strokes: 25 mm / 250 mm.
