Rexroth AZP Series Gear Pump | AZPF-016, AZPF-004, AZPFFF Triple Pump | High Pressure Hydraulic Pump

Model Number

AZPF, AZPFF, AZPF-11, AZPF-12, AZPF-1X-016RCB20MB, AZPF-12-004RCB20KB, AZPFFF-12-014/011/005L RR202020KB-S0502

Inquiry

Product Description

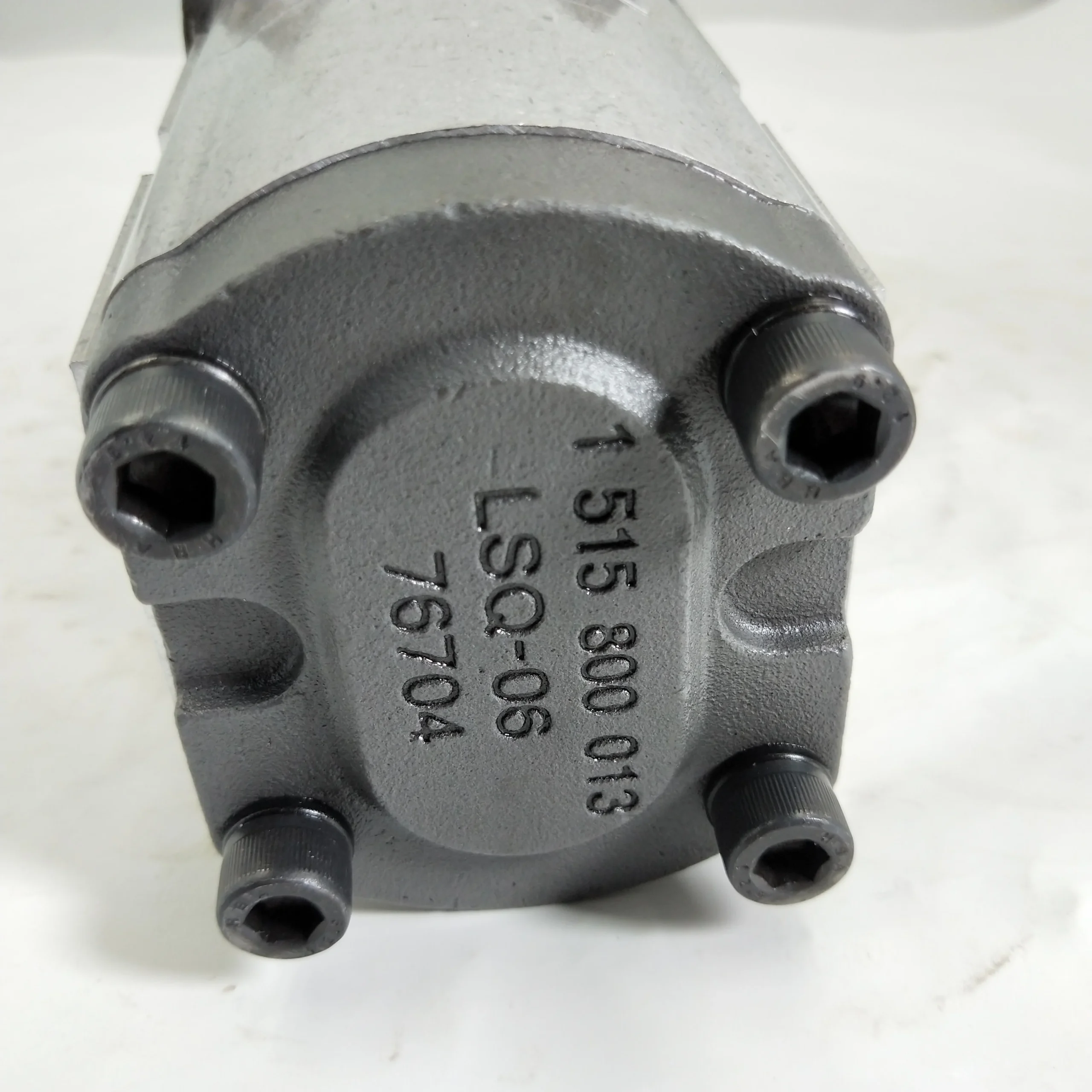

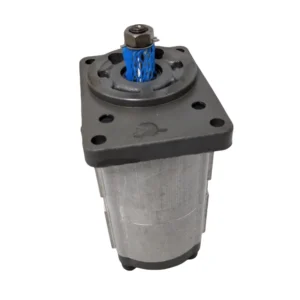

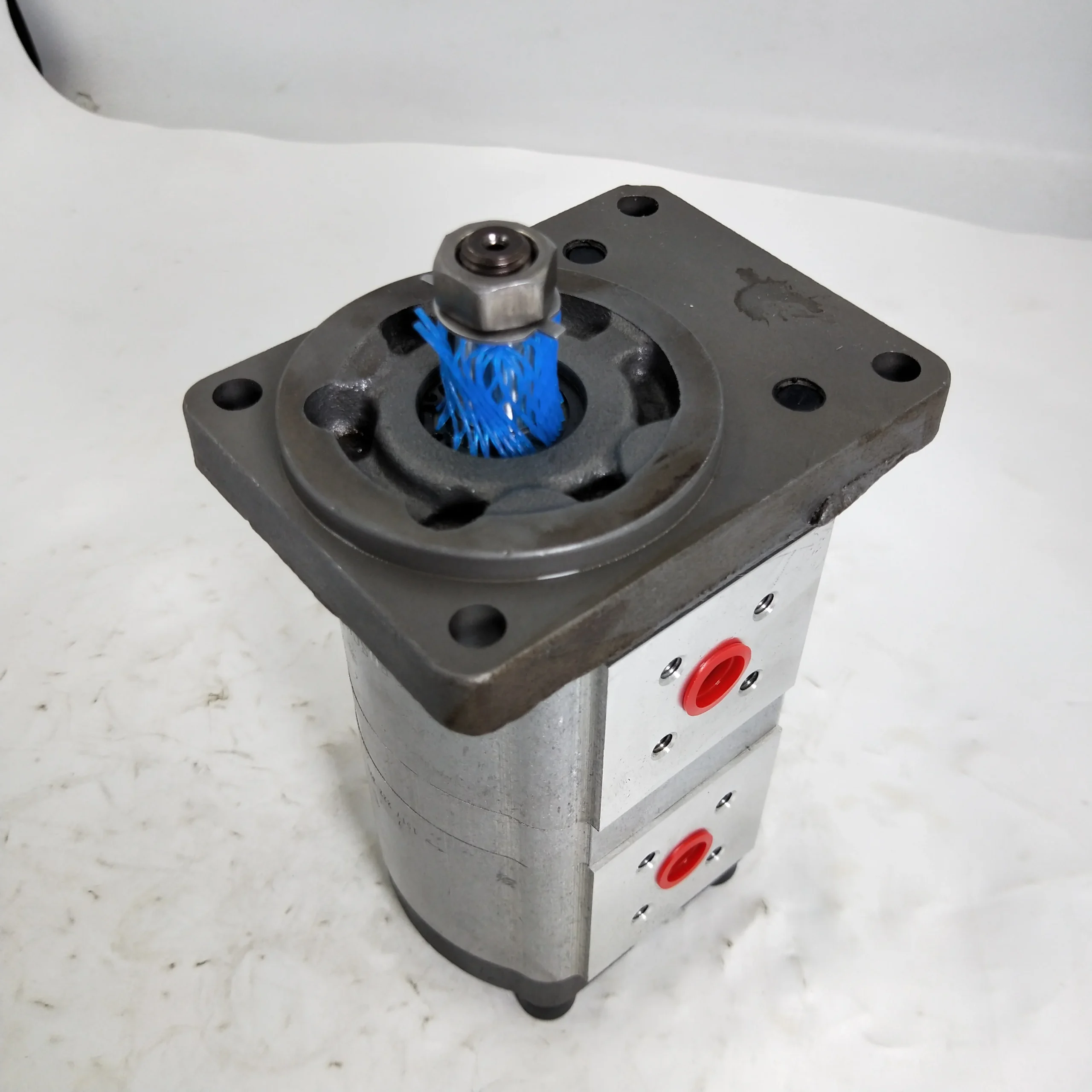

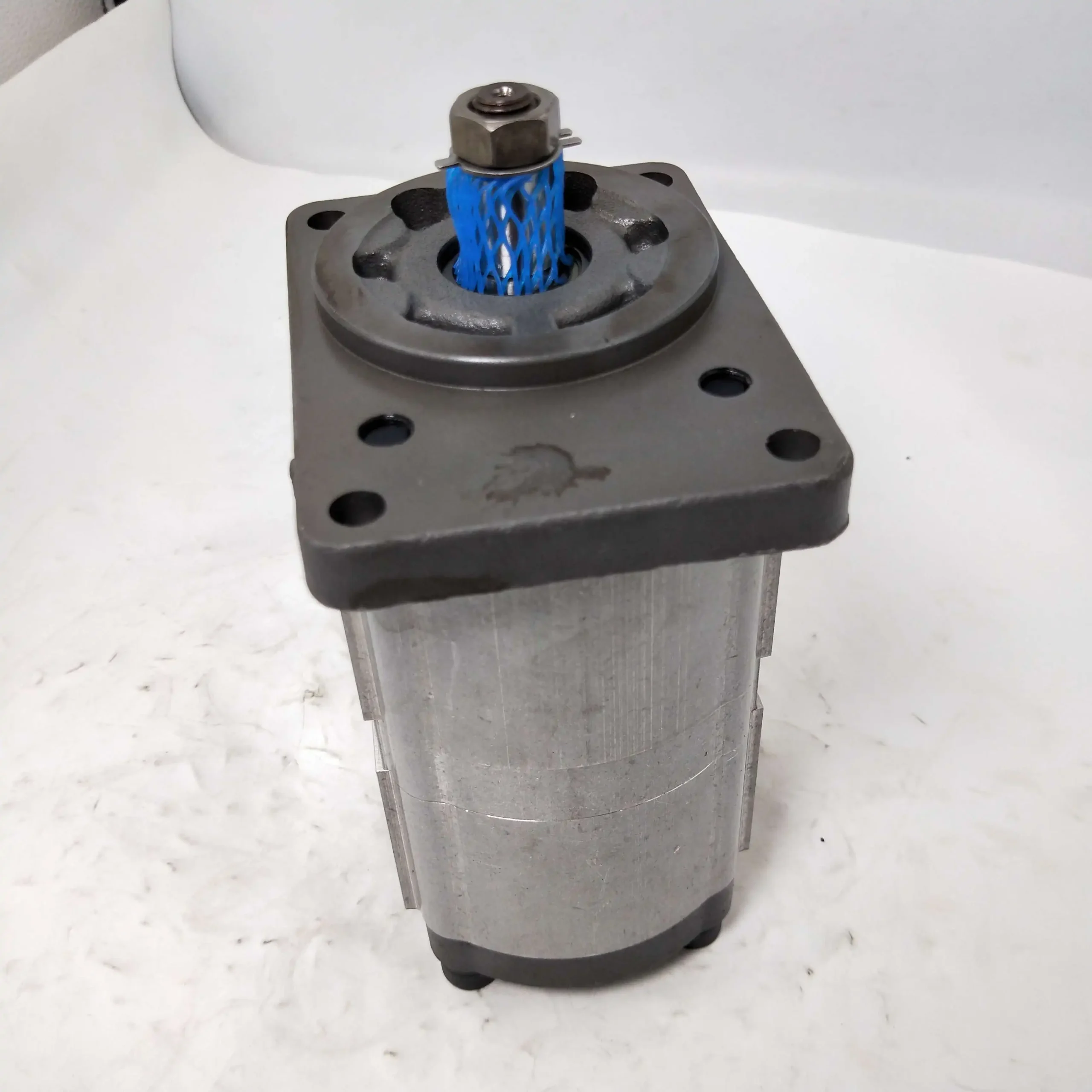

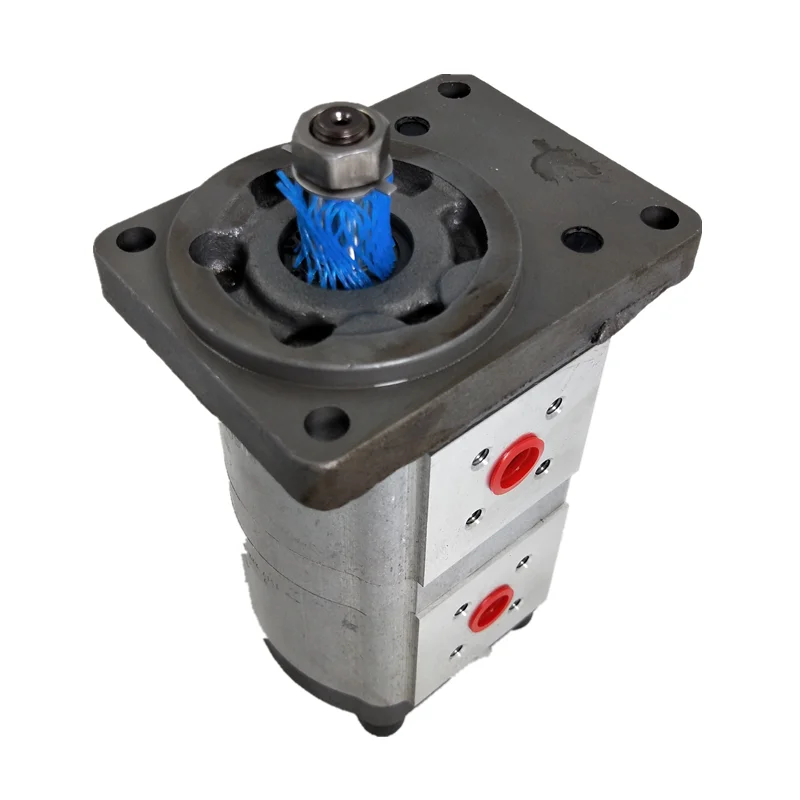

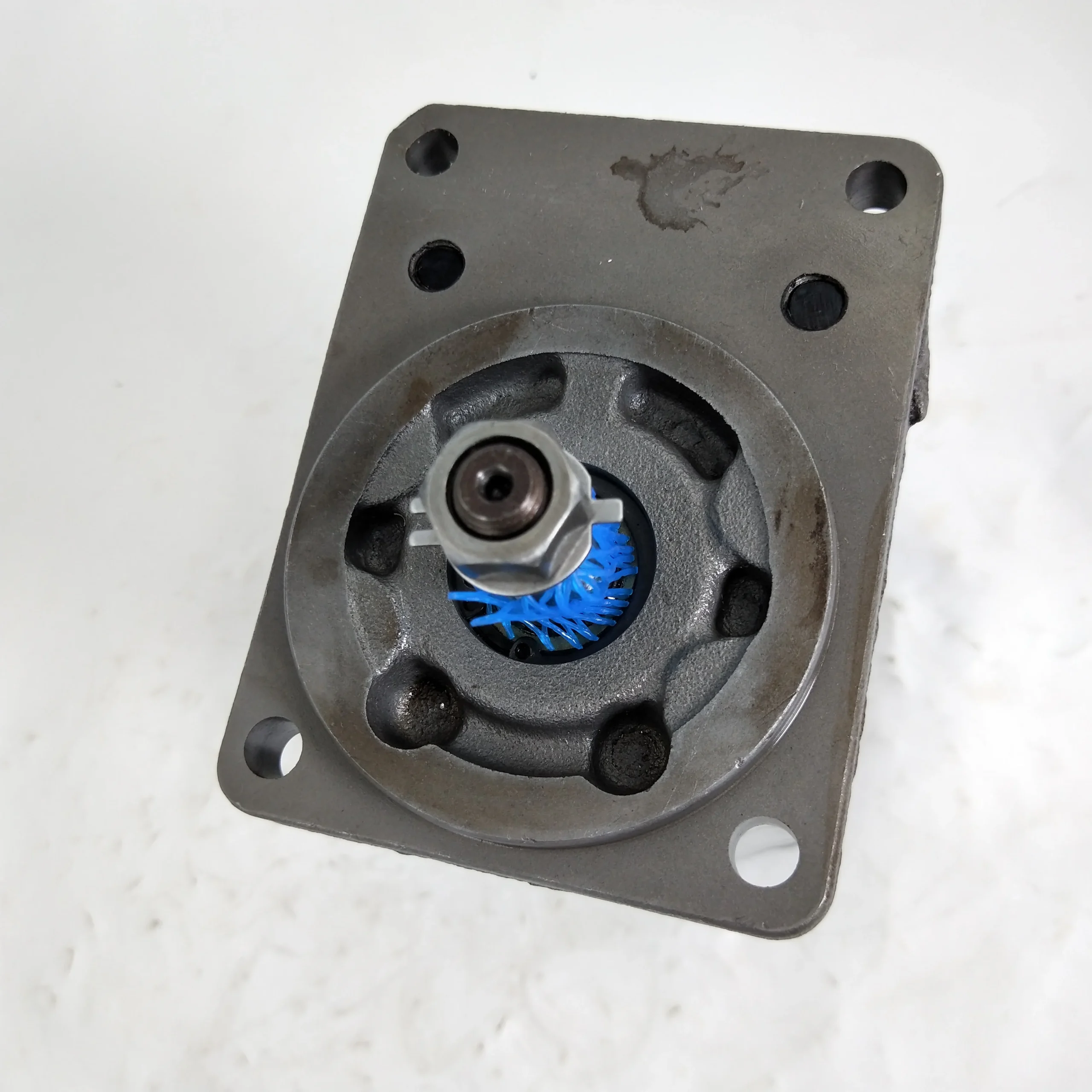

Rexroth AZP Series High-Performance Hydraulic Gear Pumps

Product Overview: The Rexroth AZP Series (including AZPF, AZPN, AZPG, and AZPB) is the global benchmark for power in industrial and mobile hydraulics. This selection features core specifications ranging from basic single pumps to complex multi-stage units, such as the AZPF-1X-016RCB20MB, AZPF-12-004RCB20KB, and the highly integrated triple pump AZPFFF-12-014/011/005L RR202020KB-S0502. Utilizing high-strength extruded aluminum bodies and axial pressure compensation technology, these pumps maintain elite volumetric efficiency at peak pressures up to 28 MPa. Whether serving as the power core for agricultural machinery, construction equipment, or complex industrial HPUs, the AZP series delivers exceptional power density and operational reliability.

Key Technical Advantages:

  • Full Platform Coverage: From micro-sized AZPB to standard AZPF and heavy-duty AZPG, offering a comprehensive displacement matrix from 1cc to 56cc.

  • Advanced Triple Pump Integration: The AZPFFF model supports triple tandem configurations, allowing a single drive source to power three independent circuits (e.g., lift, steer, and auxiliary), significantly optimizing installation space.

  • High-Pressure Stability: Rated for continuous operation at 250 Bar with peaks up to 280 Bar (4060 PSI), featuring excellent fatigue resistance for high-frequency duty cycles.

  • Silent Performance: Optimized gear meshing profiles and vibration-dampening structures drastically reduce pressure ripples and operational noise.

  • S0502 Custom Specs: Supports specialized custom codes (e.g., S0502), ensuring mounting flanges, shaft ends, and port positions are perfectly aligned with specific OEM requirements.

Detailed Models & Parameters:

  • Core Series: Rexroth AZPF, AZPN, AZPG, AZPB Platform.

  • Model Keywords: AZPF-1X-016RCB20MB, AZPF-12-004RCB20KB, AZPFFF-12-014/011/005L RR202020KB-S0502.

  • Combined Displacements: 16cc, 4cc, and 14cc+11cc+5cc (Triple configuration).

  • Pressure Ratings: Rated at 25 MPa continuous; Peak up to 28 MPa.

  • Rotation: Available in R (Clockwise) or L (Counter-clockwise).

  • Target Applications: Tractor hydraulics, multi-functional harvesters, injection molding pilot systems, and mobile cranes.


Company Profile

We adhere to international quality management standards and provide a 1-year warranty including maintenance and replacement. We have established long-term strategic cooperation with many well-known brands and continuously launch new products to meet market development. Flexible payment terms are supported, including USD settlement, Alipay, Western Union and T/T.

Relying on our standardized production base and professional foreign trade team, we provide competitive factory direct prices, efficient logistics channels and punctual delivery. FJZY Hydraulic is devoted to being your trustworthy long-term partner in hydraulic and agricultural machinery fields.
