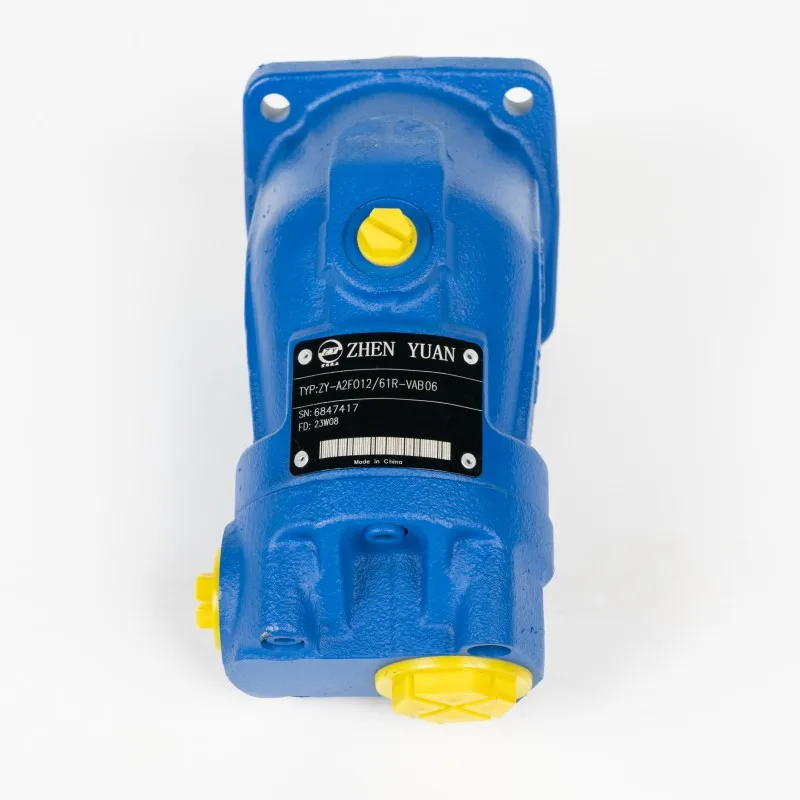

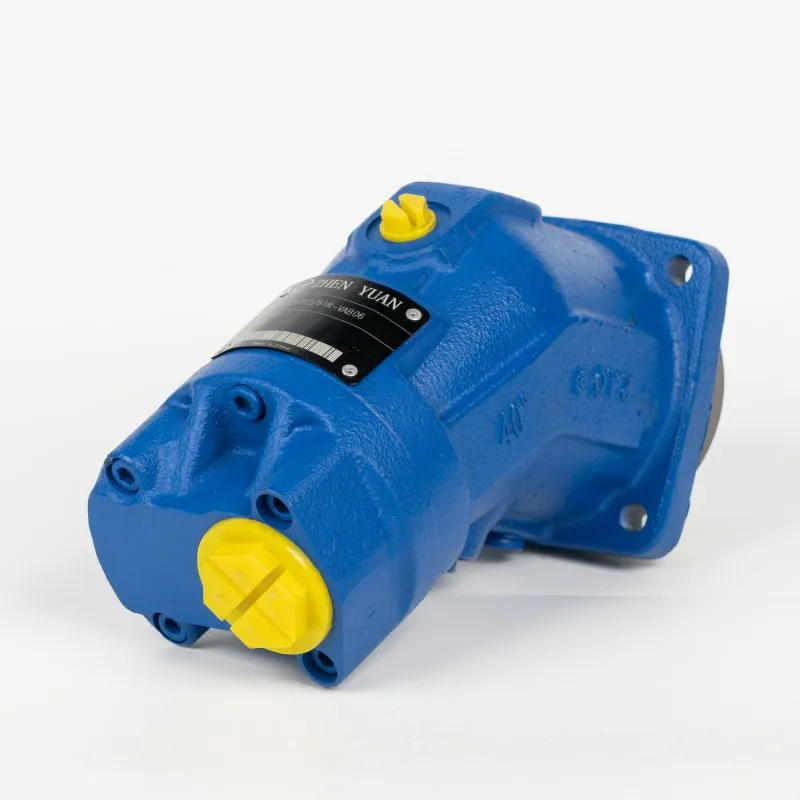

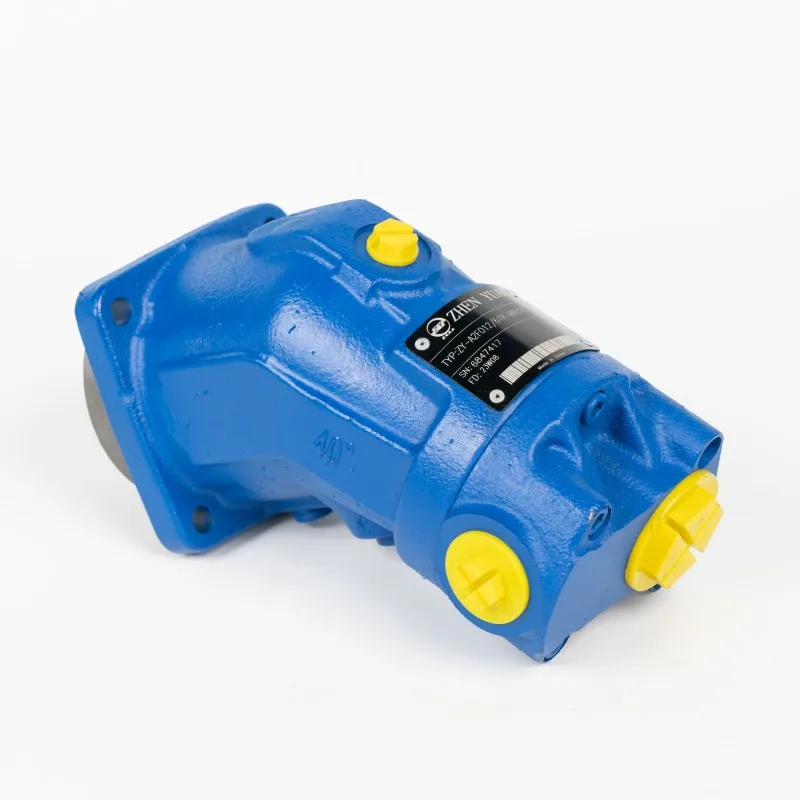

Rexroth A2FO Series High-Pressure Axial Piston Fixed Pumps

Product Overview: The Rexroth A2FO Series is a fixed displacement axial piston pump utilizing the proven Bent-Axis design, specifically engineered for open-circuit hydraulic systems. Renowned for its superior power density, compact architecture, and excellent self-priming capabilities, the A2FO is a global benchmark. This selection features core compact displacements: A2FO10/61R-PPB06, A2FO12/61L-PAB06, and A2FO16/61R-VBB06. Utilizing its 40° bent-axis technology, these pumps deliver stable flow even at peak pressures up to 400 Bar, making them ideal for truck hydraulic systems, mobile power units, and industrial pump stations.

Key Technical Advantages:

• Superior Self-Priming Capabilities: The bent-axis design ensures high suction efficiency even at elevated rotational speeds, eliminating the need for charge pump systems.

• High-Pressure Robustness: Rated for 315 Bar (4500 PSI) continuous and 400 Bar (5800 PSI) peak pressure. The reinforced bearing system is built for an extended service life.

• Excellent Power-to-Weight Ratio: Ultra-compact dimensions make it a perfect fit for space-constrained mobile applications, particularly for PTO (Power Take-Off) drives.

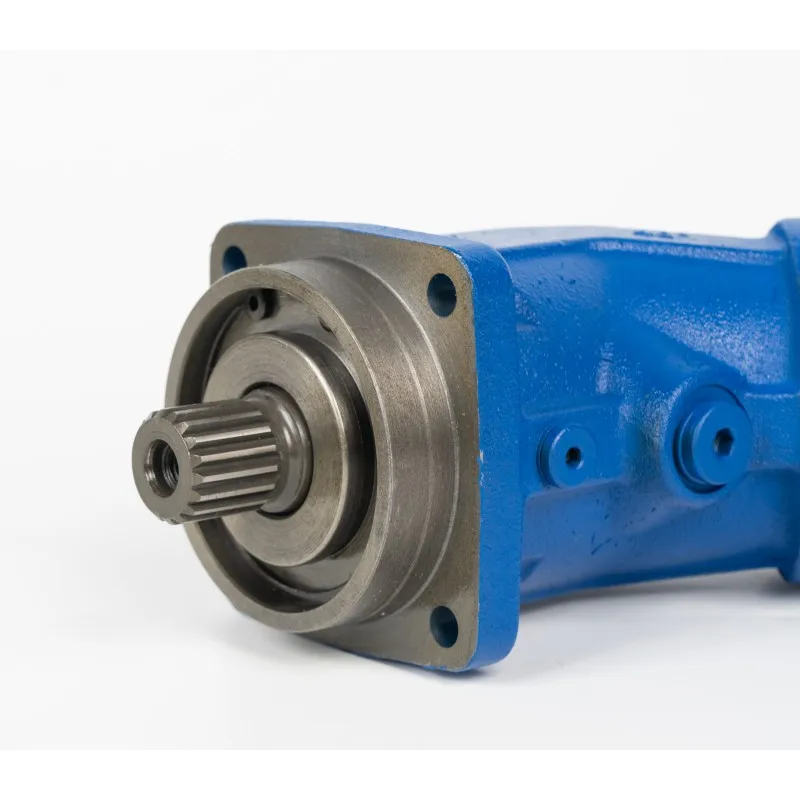

• Versatile Configuration Options: Available with multiple shaft ends (keyed or splined) and rotation directions (Clockwise R or Counter-clockwise L) to meet global installation standards.

• Target Applications: Dump truck hydraulic lifts, concrete pump mixers, street sweepers, refuse trucks, and various open-loop industrial power units.

Detailed Models & Parameters:

• Core Series: Rexroth A2FO Series 61 (Axial Piston Fixed Pump).

• Model Keywords: A2FO10, A2FO12, A2FO16, 61R, 61L, PPB06, PAB06, VBB06.

• Technical Specs Decoding:

  • A2FO10/61R-PPB06: 10cc displacement, Right-hand rotation, Series 61, PPB standard interface.

  • A2FO12/61L-PAB06: 12cc displacement, Left-hand rotation for specific layout requirements.

  • A2FO16/61R-VBB06: 16cc displacement, Right-hand rotation with reinforced shaft sealing.

• Pressure Specs: Nominal pressure 315 Bar, Peak pressure 400 Bar.

• Maximum Speed: Supports continuous high-speed operation depending on the displacement size.
