Rexroth A2FM Motor | A2FM32 A2FM63 A2FM107 A2FM160 A2FM355 | Fixed Displacement Bent Axis Motor

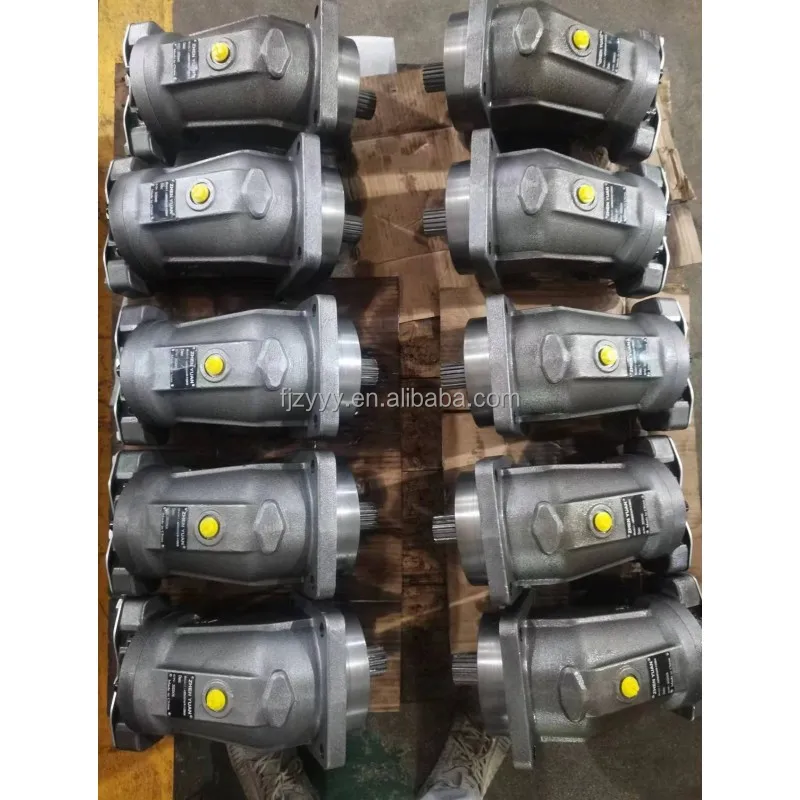

Rexroth A2FM Series Fixed Displacement Bent Axis Hydraulic Motors

Product Overview: The Rexroth A2FM Series is the definitive standard in hydraulic power transmission. As a fixed displacement axial piston motor featuring a bent-axis design, the A2FM efficiently converts hydraulic energy into mechanical rotational power. Known for its robust construction and exceptional pressure resistance, this series is suitable for both open and closed-circuit systems. This category covers a broad spectrum from the compact A2FM32 to the ultra-heavy-duty A2FM355. These motors serve as the vital power heart for crane winch mechanisms, mixer drum drives, excavator slewing, TBM propulsion, and heavy industrial presses.

Key Technical Advantages:

• Elite Power Density: The classic bent-axis architecture allows the pistons to operate stably at extremely high speeds, delivering massive power output within a minimal installation footprint.

• Extreme Pressure Resilience: Rated for a continuous operating pressure of 400 Bar (5800 PSI) with peak capabilities reaching 450 Bar, built to withstand heavy shock loads.

• Superior Startup Efficiency: High mechanical and volumetric efficiency throughout the entire speed range ensures smooth and powerful performance during heavy-load starts.

• Universal Compatibility: A wide variety of shaft options (keyed, splined) and mounting flanges (ISO, SAE, DIN) ensure a perfect match with various gearboxes and pump stations.

• Low Maintenance Design: Optimized spherical valve plates and reinforced bearings significantly extend the motor’s service life in harsh environments.

Detailed Models & Parameters:

• Core Series: Rexroth A2FM Series 6 (60/61/63 Series).

• Technical Specs Decoding:

  • A2FM32/61W-PABXXX-S (PBB030): Size 32, featuring the specialized PBB sequence for compact industrial drives.

  • A2FM63/61W-VAB100: Size 63, VAB reinforced shaft design, the versatile industry-standard model.

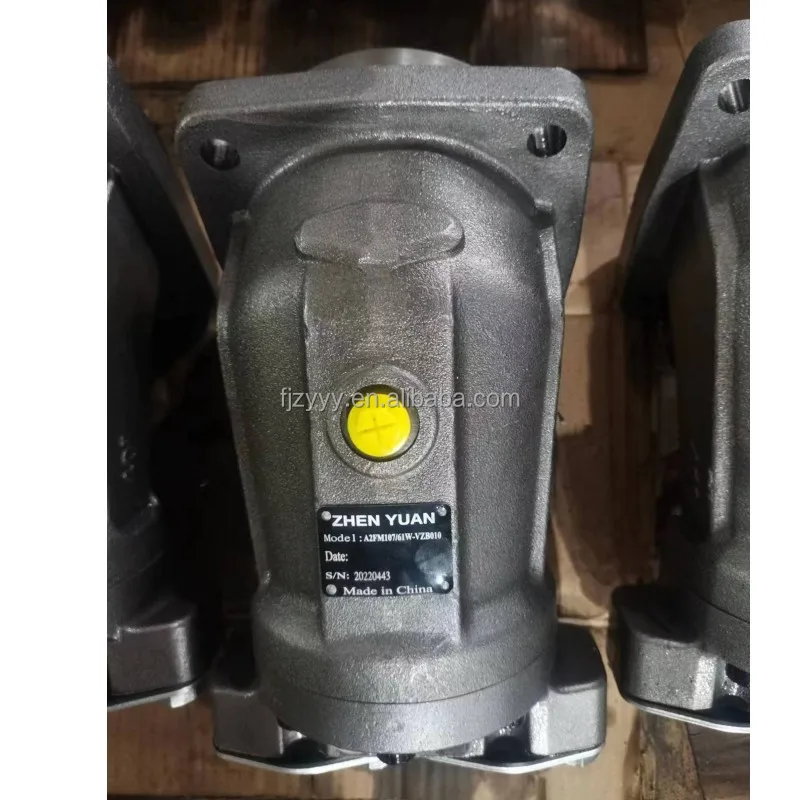

  • A2FM107/61W-VZB010: Size 107, VZB interface standard, ideal for medium-to-large winch drives.

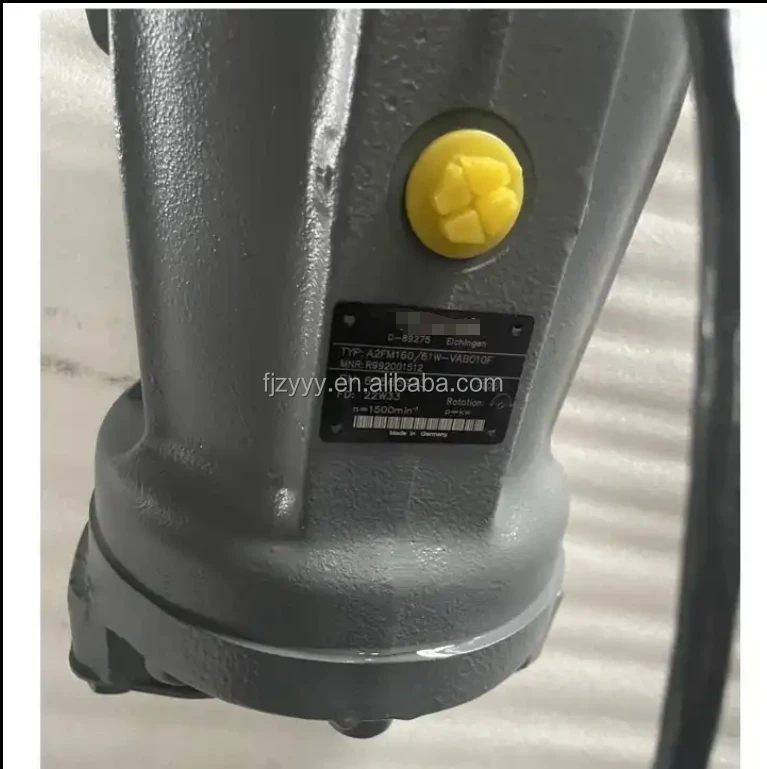

  • A2FM160/61W-VAB010F: Size 160, specialized flange configuration optimized for radial load resistance.

  • A2FM355/60W-VPH017: Size 355, ultra-heavy-duty series with VPH reinforced configuration for extreme torque requirements.

• Core Specs:

  • Displacement Range: 32 cm³ to 355 cm³/rev.

  • Max Pressure: 450 Bar (6500 PSI).
