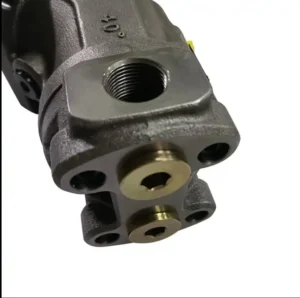

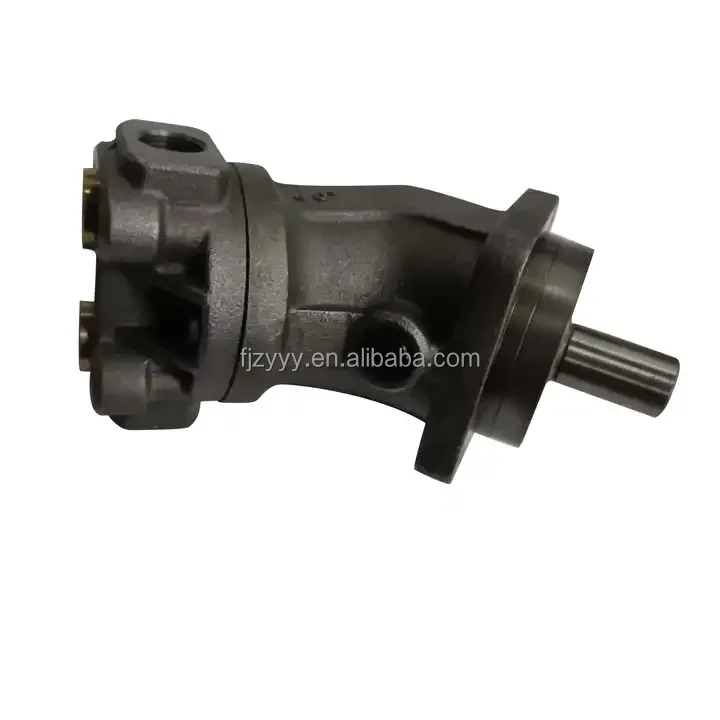

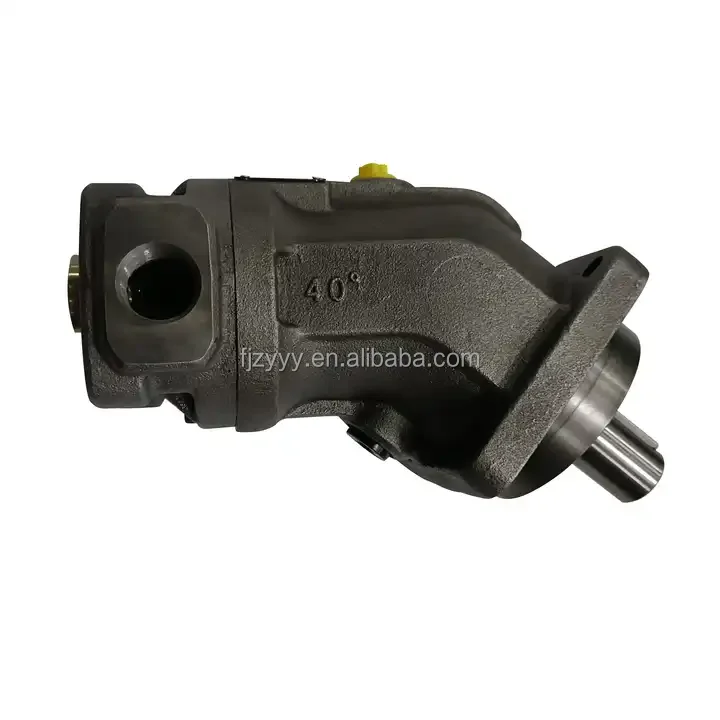

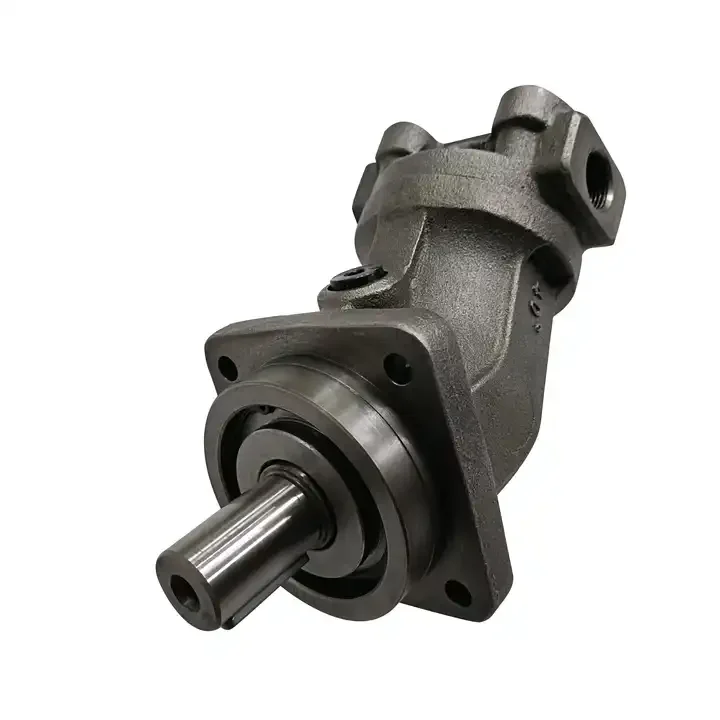

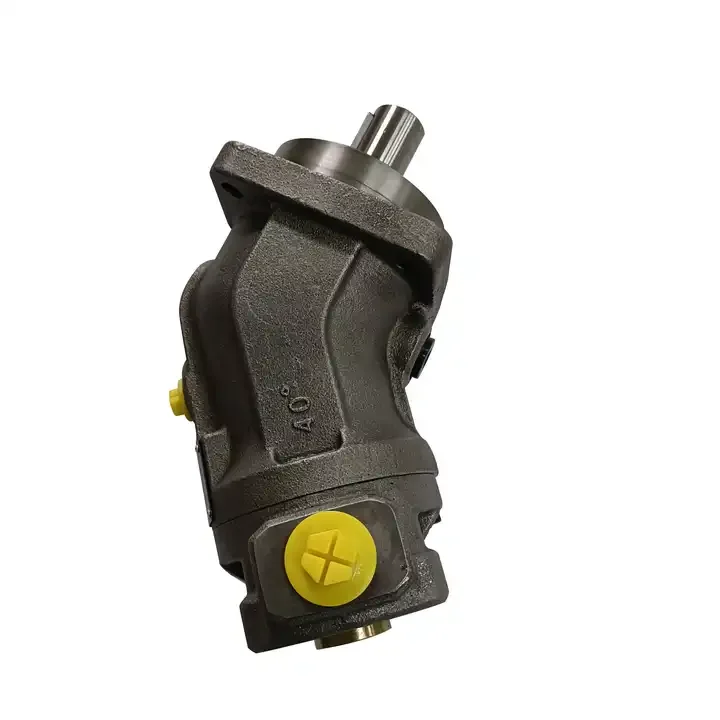

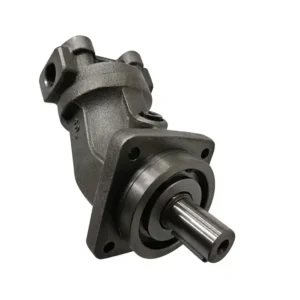

Rexroth A2FM Series Motor | A2FM180, A2FM160, A2FM90 | 400 Bar Fixed Displacement Piston Motor
| Model Number | A2FM90, A2FM160, A2FM180 |
|---|
Product Description
Rexroth A2FM Series (Series 61) Fixed Displacement Axial Piston Motor
Product Overview: The Rexroth A2FM series is the global benchmark for high-performance fixed displacement piston motors. Part of the proven Series 61 design, it utilizes a Bent Axis architecture covering core displacements from 90cc (A2FM90) to 180cc (A2FM180). Engineered for both open and closed circuits, the A2FM operates at a rated pressure of 400 Bar. Flagship models such as the A2FM180/61W-VBB010D deliver exceptional starting torque and mechanical efficiency, making them the premier choice for rotary drilling rig power heads, crane winches, TBMs, and travel drives.
Key Technical Advantages:
Superior Power Density: Delivers high torque output within a compact envelope. Rated for continuous operation at 400 Bar (40 MPa) with peak cycles reaching 450 Bar.
High-Efficiency Bent Axis Design: The bent axis structure offers lower friction loss and better self-priming characteristics than swashplate motors, ensuring smoother operation especially at low-speed start-ups.
Rugged Series 61 Standards: Features reinforced bearings and specialized sealing to withstand high radial and axial loads, significantly extending service life in harsh conditions characterized by vibration or frequent shock loads.
Advanced Sealing Systems (VBB/VAB):
Equipped with premium FKM (Viton) seals for exceptional resistance to high temperatures and diverse hydraulic fluids, ensuring long-term leakage prevention.
High-Speed Capability & Durability: Precisely balanced rotating groups support higher maximum speed limits while maintaining industry-leading low noise levels.
Detailed Models & Parameters:
Core Series: Rexroth A2FM Series 61.
Representative Models: A2FM180/61W-VBB010D, A2FM90/61W-VAB191J, A2FM160/61W-VAB010.
Displacements: 90, 160, 180 cm³/rev.
Pressure Ratings: Rated at 400 Bar (5800 PSI); Peak cycles up to 450 Bar (6525 PSI).
Configuration Codes: W (Optimized for all-weather conditions); V (FKM/Viton seals).
