Product Description

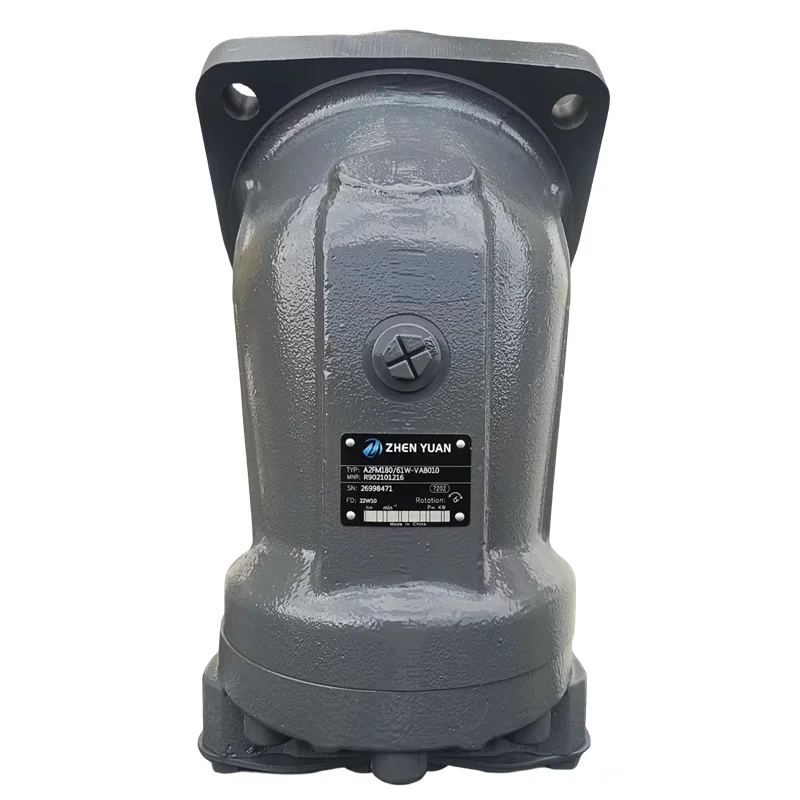

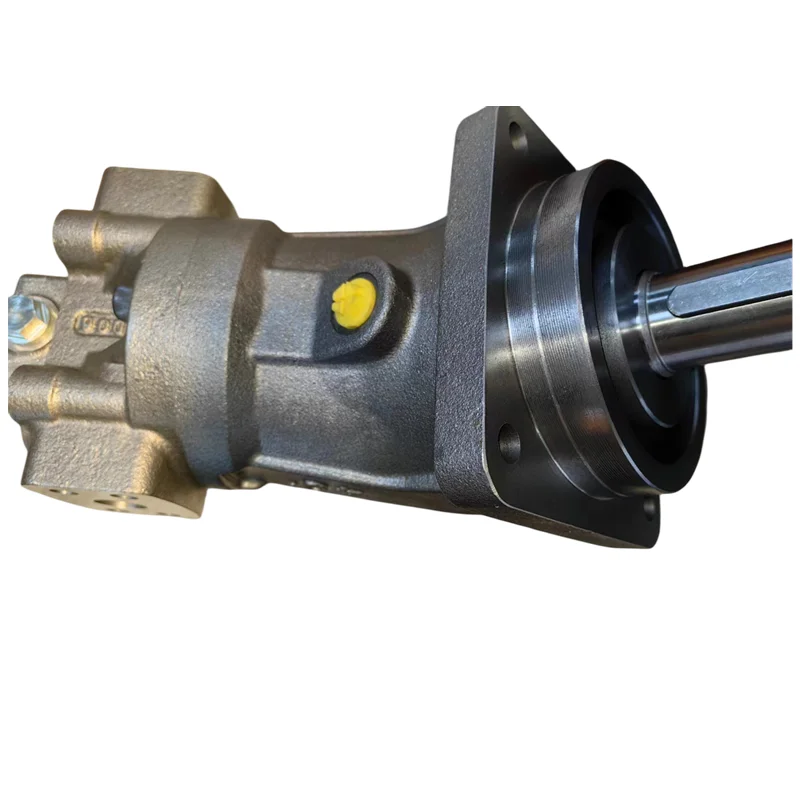

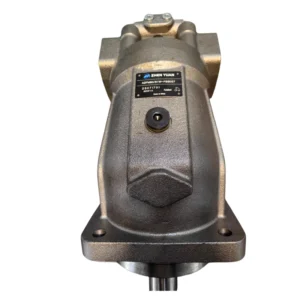

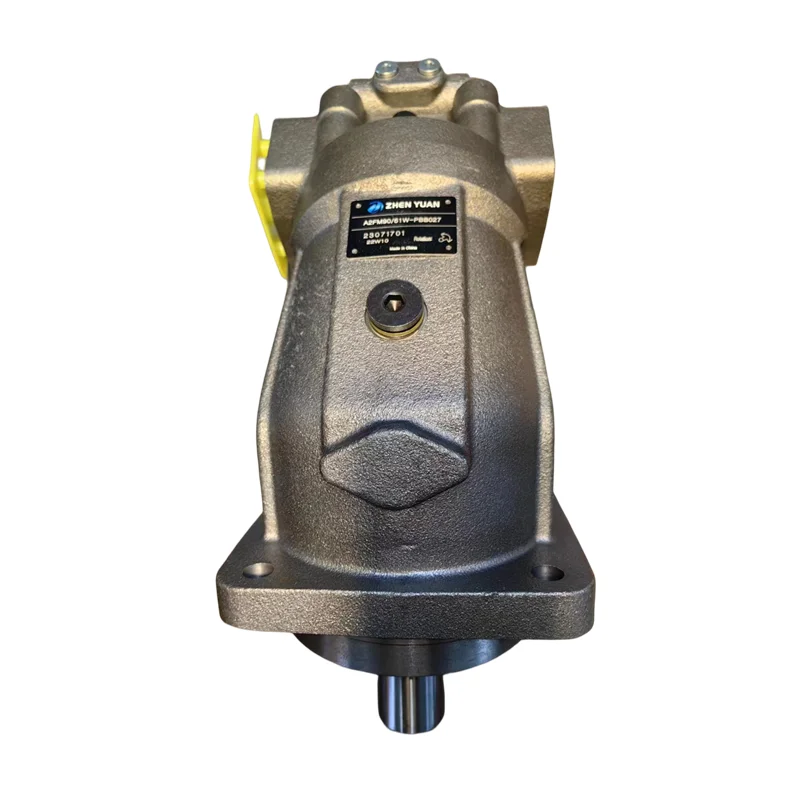

Rexroth A2FM Series High-Pressure Bent-Axis Axial Piston Motors

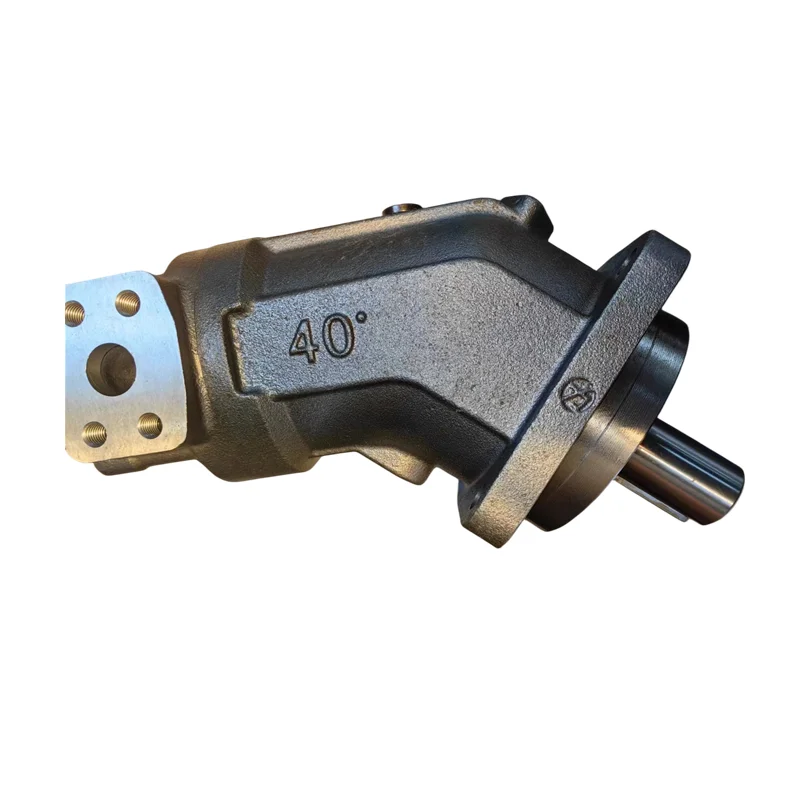

Product Overview: The Rexroth A2FM Series is a fixed displacement motor featuring proven Bent-Axis technology, serving as the global benchmark for hydrostatic transmissions. Renowned for its exceptional power-to-weight ratio and compact dimensions, the A2FM series is extensively utilized in mobile machinery travel drives, crane winch systems, and industrial hydraulic equipment. This selection features core high-performance specifications: A2FM32/61W-VAB020, A2FM32/61W-VBB040, A2FM80/61W-VBB010, and the high-torque A2FM125/61W-VBB010. Utilizing 40° bent-axis technology, these motors deliver superior volumetric efficiency and reliability even at peak pressures up to 450 Bar.
Key Technical Advantages:
Outstanding Startup Performance: The spherical valve plate design significantly reduces mechanical friction during startup, ensuring smooth, “creep-free” operation even under heavy initial loads.
High Speed & High Pressure Resilience: Rated for 400 Bar (5800 PSI) continuous and 450 Bar (6500 PSI) peak pressure. Its robust rotating group supports stable operation under extreme rotational speeds.
Superior Power Density: Compared to swashplate motors, the bent-axis design offers a smaller footprint for the same power output—ideal for space-constrained wheel drives or winch drums.
Comprehensive Displacement Range: Precise grading from 32cc to 125cc allows engineers to select the exact match for specific torque and speed requirements.
Target Applications: Rotary drilling heads, concrete mixer drives, crane winches, excavator travel drives, and industrial press systems.
Detailed Models & Parameters:
Core Series: Rexroth A2FM Series 61 (Fixed Displacement).
Model Keywords: A2FM32, A2FM80, A2FM125, 61W-VAB020, 61W-VBB040, 61W-VBB010.

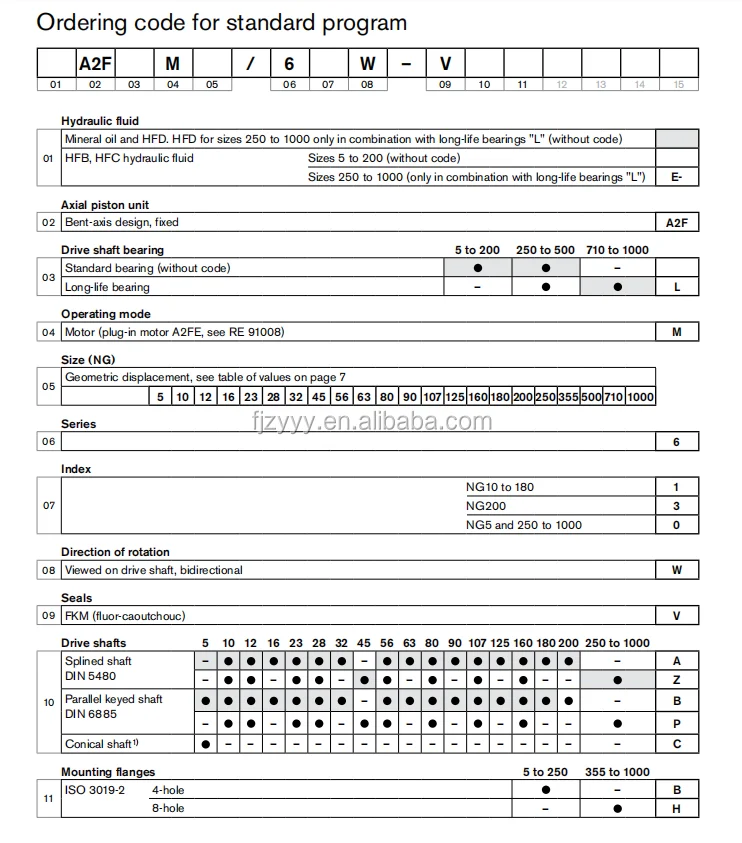

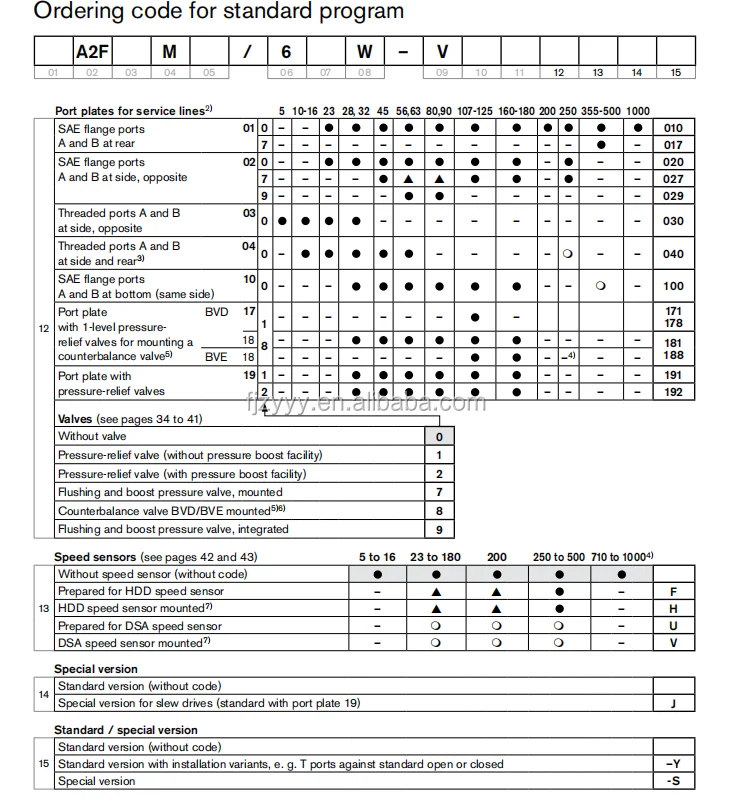

Technical Specs Decoding:
VAB / VBB: Identifiers for shaft types (e.g., Keyed/Splined) and valve plate configurations.
010 / 020 / 040: Codes representing specific sealing materials and case drain port orientations.
Pressure Metrics: Nominal pressure 400 Bar, Peak pressure 450 Bar.
Speed Range: Supports stable operation up to 3000-5000 RPM (depending on size).
