Rexroth A2FLM Motor | A2FLM500, A2FLM710, A2FLM107 | High-Pressure Piston Motor
| Model Number | A2FLM500/60W-VZH010, A2FLM710 / 60W-VZH01 |
|---|
Product Description

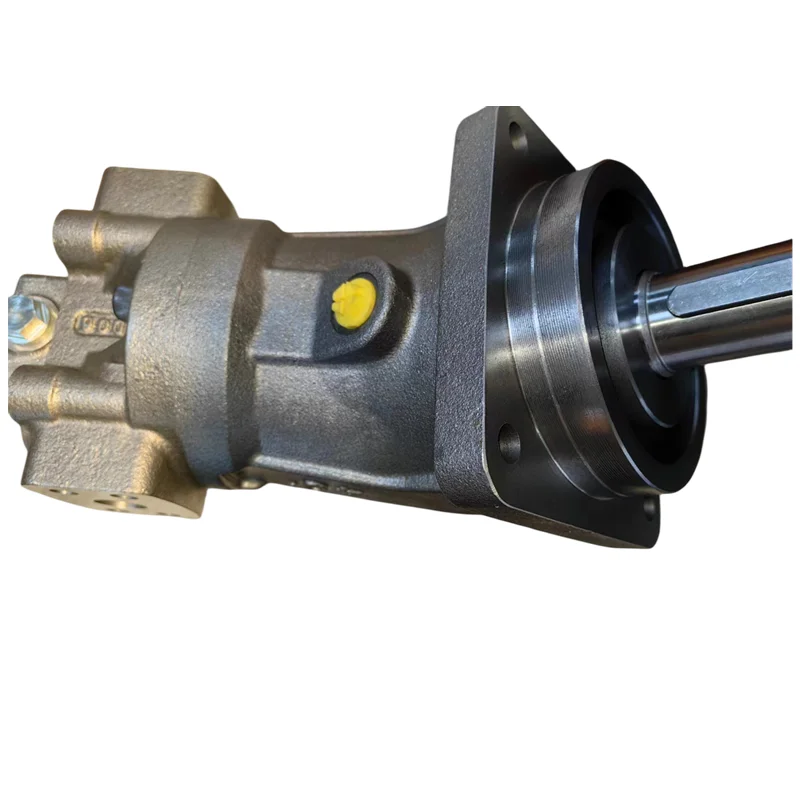

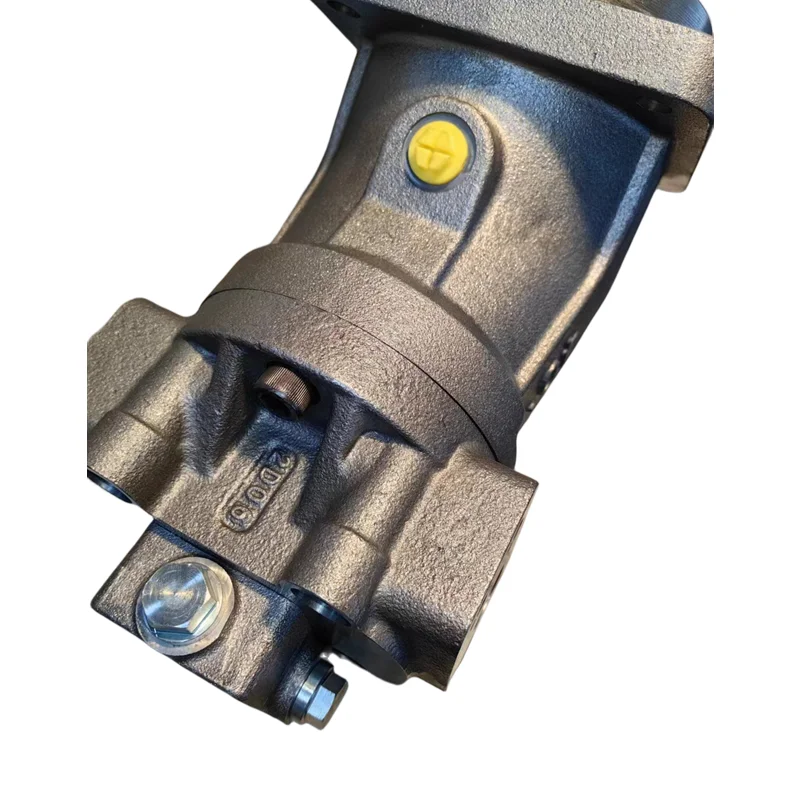

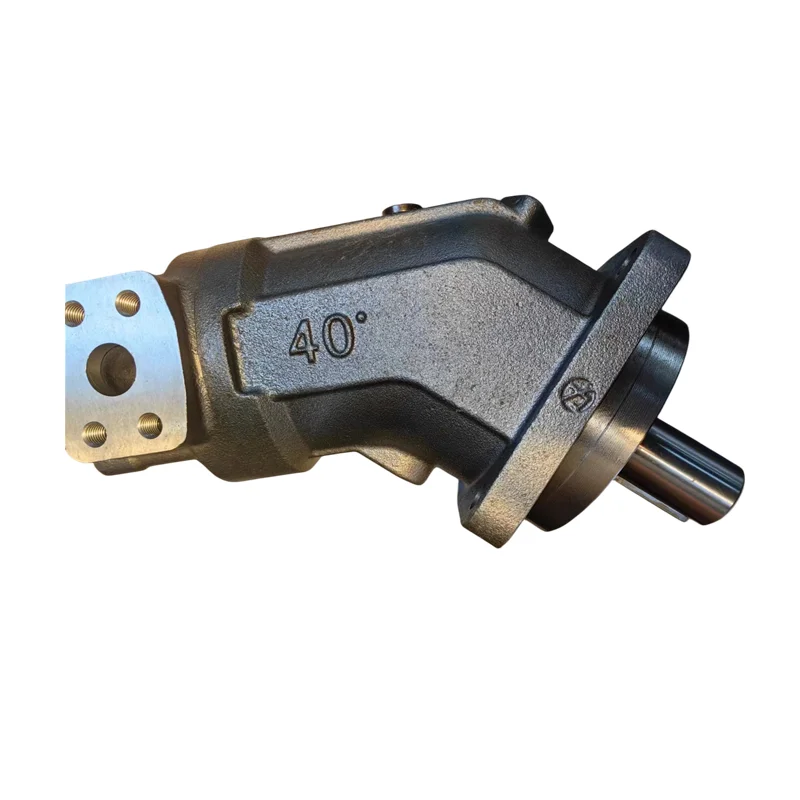

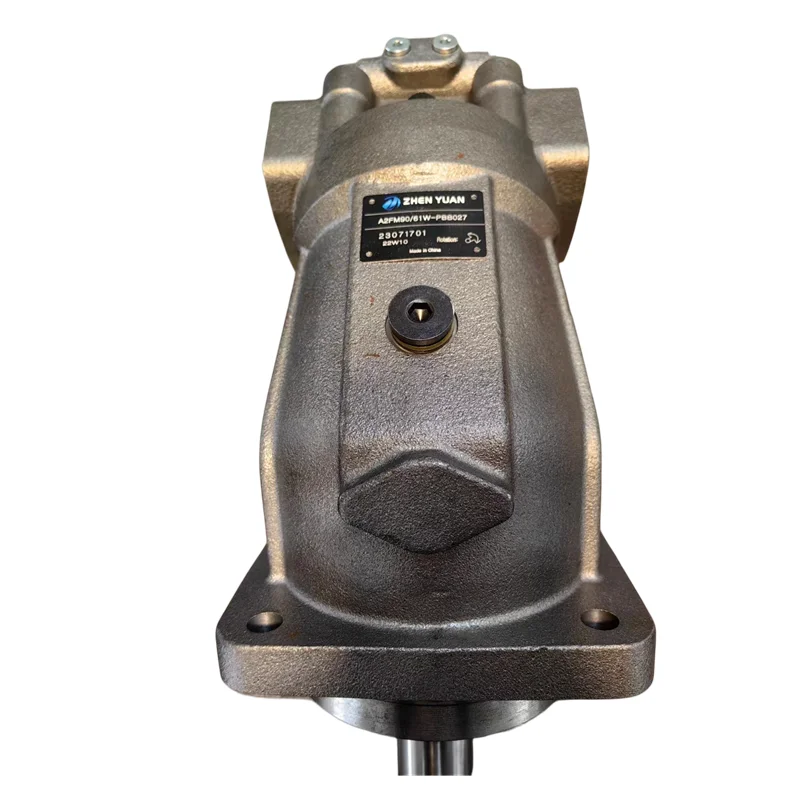

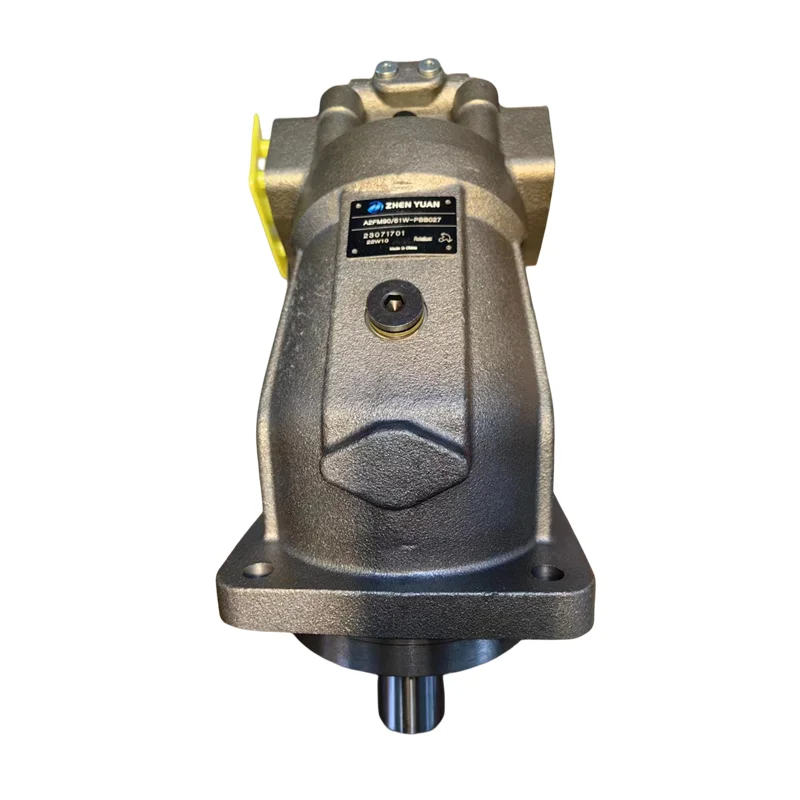

Rexroth A2FLM Series High-Pressure Bent-Axis Piston Motors
Product Overview: The Rexroth A2FLM Series is a premier component in global heavy-duty hydraulic drive technology. As high-performance Bent-Axis fixed displacement motors, the A2FLM is optimized for high-pressure operation under extreme conditions. This featured selection covers essential high-displacement specifications: A2FLM500, A2FLM710, and the versatile A2FLM107. Renowned for its compact footprint and elite power density, the A2FLM series is the leading choice for crawler travel drives, heavy-duty winch gearbox integration, rotary drilling rig power heads, and industrial press systems.
Key Technical Advantages:
Elite Power Density: The 45° bent-axis technology allows the A2FLM to deliver massive torque within a compact envelope, significantly saving installation space in heavy machinery.
Peak Pressure Performance: Rated for continuous operation at 350 Bar with peak capabilities reaching 400 Bar (5800 PSI), effortlessly handling severe load fluctuations.
High Mechanical & Volumetric Efficiency: Precision-matched pistons and cylinder blocks combined with optimized valve plate timing ensure minimal energy loss across the entire speed range.
Integrated Architecture: A2FLM models are designed for direct recessed mounting into planetary gearboxes, eliminating extra couplings and increasing overall drivetrain rigidity.
Rugged Durability: Equipped with reinforced bearings and specialized sealing systems optimized for the vibration, shocks, and temperature extremes of harsh construction sites.
Target Applications: Crawler chassis propulsion, heavy crane hoisting, TBM (Tunnel Boring Machine) drives, and mining crushers.
Detailed Models & Parameters:
Core Series: Rexroth A2FLM Series 60/61 (Fixed Displacement).
Model Keywords: A2FLM500/60W-VZH010, A2FLM710/60W-VZH010, A2FLM107/61W-VBB010.
Technical Specs Decoding:
60W / 61W: Denotes the latest design series iterations, further optimized for efficiency and noise reduction.
VZH / VBB: Refers to specific shaft options (e.g., Splined) and mounting flange standards (Plug-in or Standard).
010: Denotes standard sealing configurations and port connection codes.
Pressure Specs: Nominal Pressure 350 Bar, Peak Pressure reaching 400 Bar (5800 PSI).
