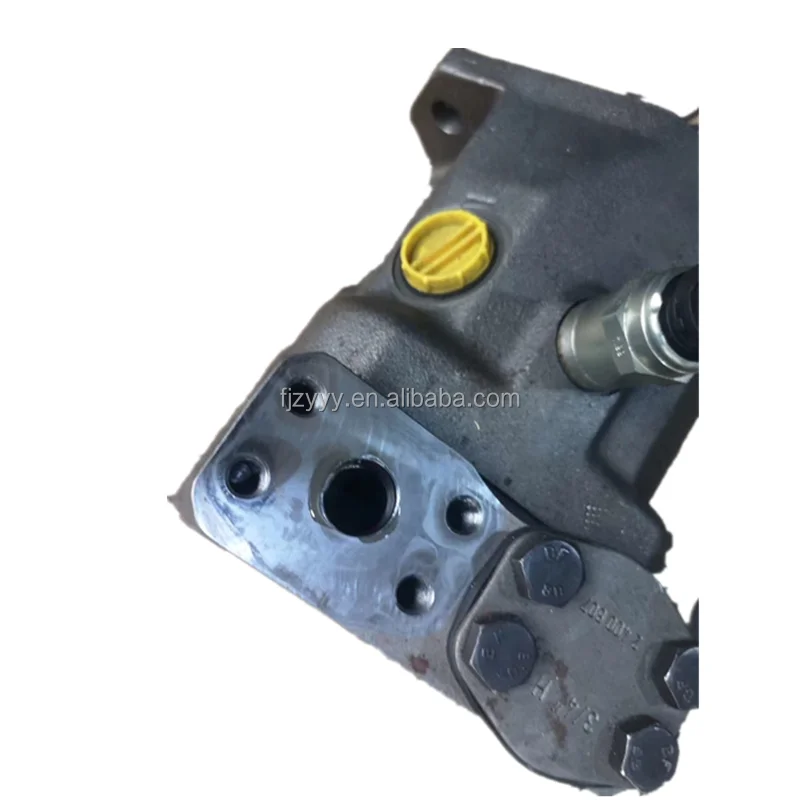

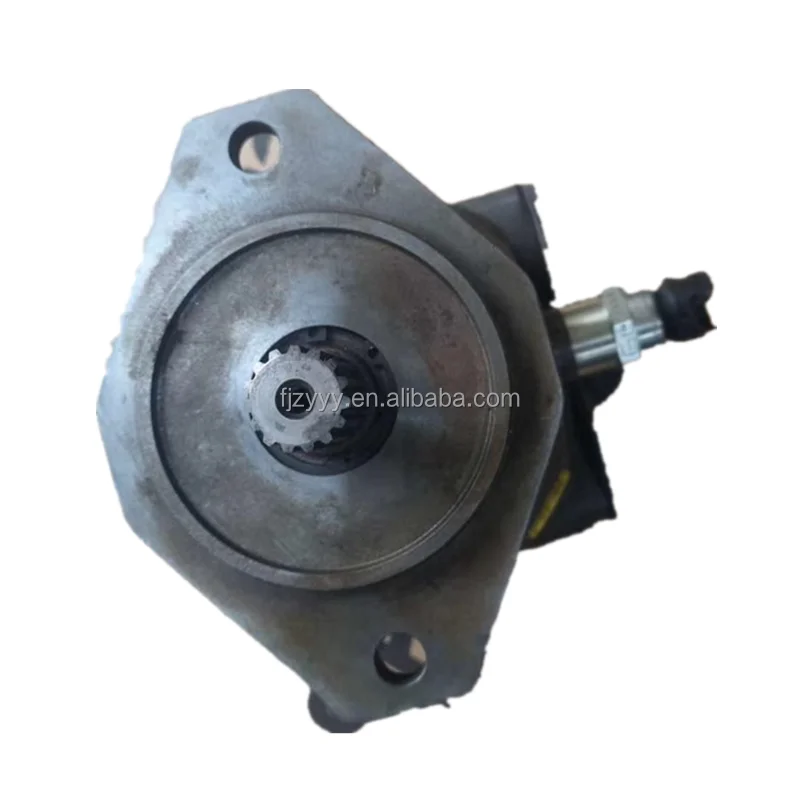

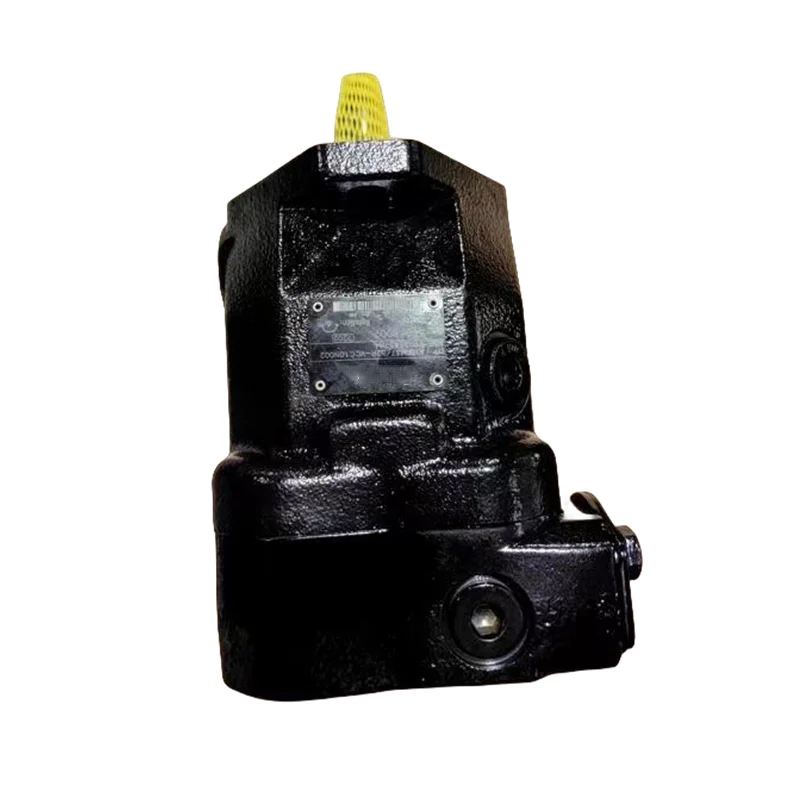

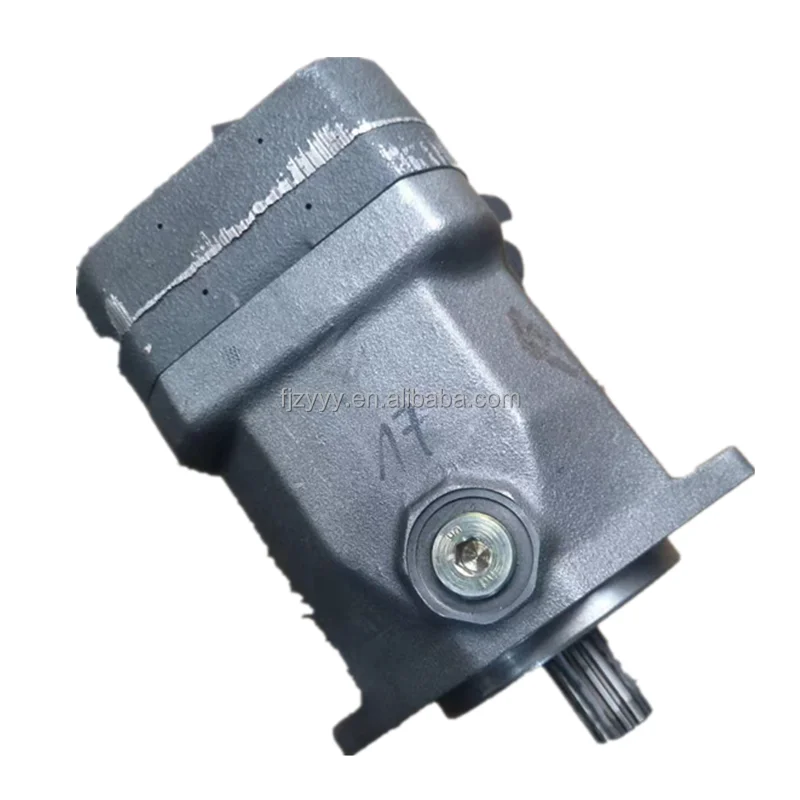

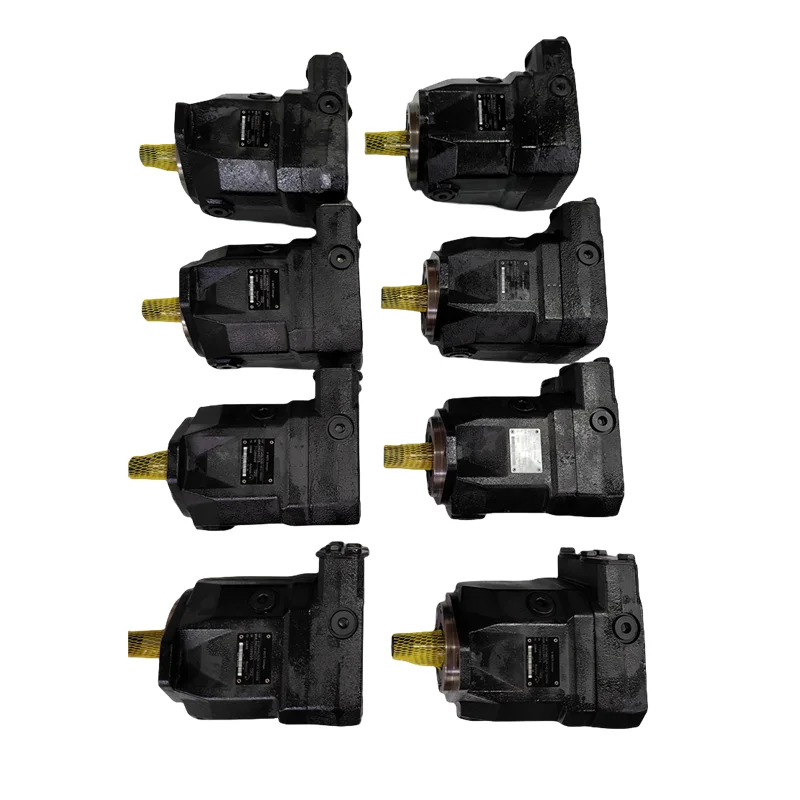

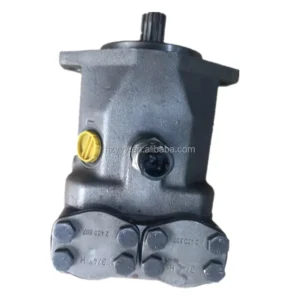

Rexroth A10FM37 & A10FM45 Motor | A10FM45/52W | Fixed Axial Piston Motor | VRC60N00

Rexroth A10FM Series 52 High-Pressure Fixed Axial Piston Motors

Product Overview: The Rexroth A10FM series is a highly reliable fixed displacement axial piston motor designed for demanding hydraulic drive applications. As a cornerstone of the Series 52 platform, these motors are engineered for high speed and high torque output within a compact footprint. The range features core displacements of 37cc (A10FM37) and the high-performance 45cc (A10FM45). Featured models such as the A10FM45/52W-VC66N00 and A10FM45/52W-VRC60N007U deliver unparalleled performance. With its superior volumetric efficiency and exceptional power density, the A10FM is the premier choice for mobile machinery auxiliary drives, radiator fan drives, mower blade propulsion, and medium-to-high pressure industrial hydraulic circuits.

Key Technical Advantages:

• Efficient Series 52 Engineering: Optimized valve plate and rotating group design ensure peak mechanical and volumetric efficiency across a broad speed range.

• Compact Power Density: The streamlined structure and small installation footprint make it ideal for space-constrained mobile chassis or industrial power units.

• High-Speed Capability: Specifically optimized for continuous high-speed operation, capable of speeds exceeding 4000 rpm, ensuring stable and efficient power delivery.

• Premium Industrial Durability: Equipped with reinforced bearing groups and hardened piston groups, providing long service life and extended overhaul intervals at a rated pressure of 280 Bar.

• Versatile Mounting Interfaces: Offers various SAE/ISO compliant shaft ends (e.g., C66, C60) and flange specifications for seamless integration with diverse gearboxes or mechanical transmissions.

Detailed Models & Parameters:

• Core Series: Rexroth A10FM Series 52 (Fixed Displacement).

• Model Keywords: A10FM, A10FM37, A10FM45, A10FM/52W.

• Full Config Codes: A10FM45/52W-VC66N00, A10FM45/52W-VRC60N007U.

• Displacements: 37 cm³/rev (37cc), 45 cm³/rev (45cc).

• Pressure Ratings: Rated at 280 Bar (4000 PSI) continuous; Peak capability up to 350 Bar (5100 PSI).

• Maximum Speed: Rated up to 4000+ rpm.

• Target Applications: Construction auxiliary drives, fan cooling systems, professional mower drives, and agricultural machinery travel circuits.
