Rexroth A10FM & A10FE Motor | A10FM45 A10FM37 | Fixed Piston Motor | A10FM45/52W A10FM37/52R
| Model Number | A10FM A10FM45/52W-VRC60N000 |
|---|
Product Description

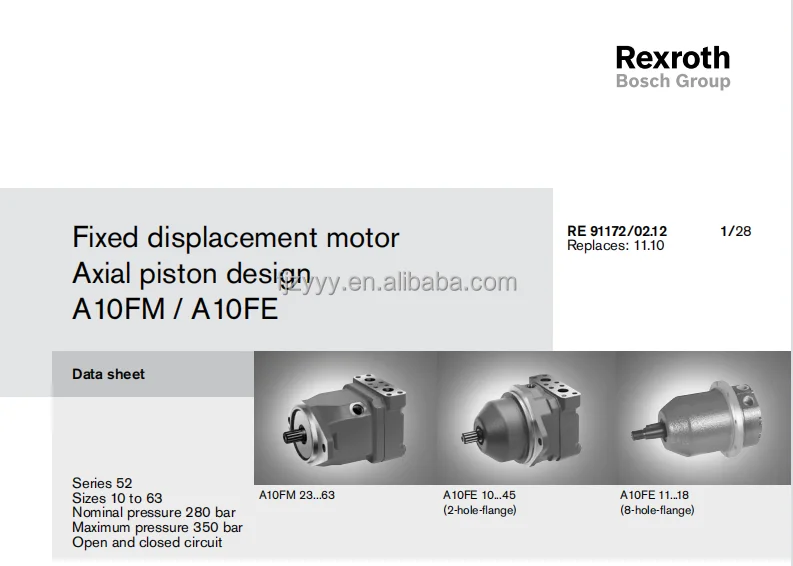

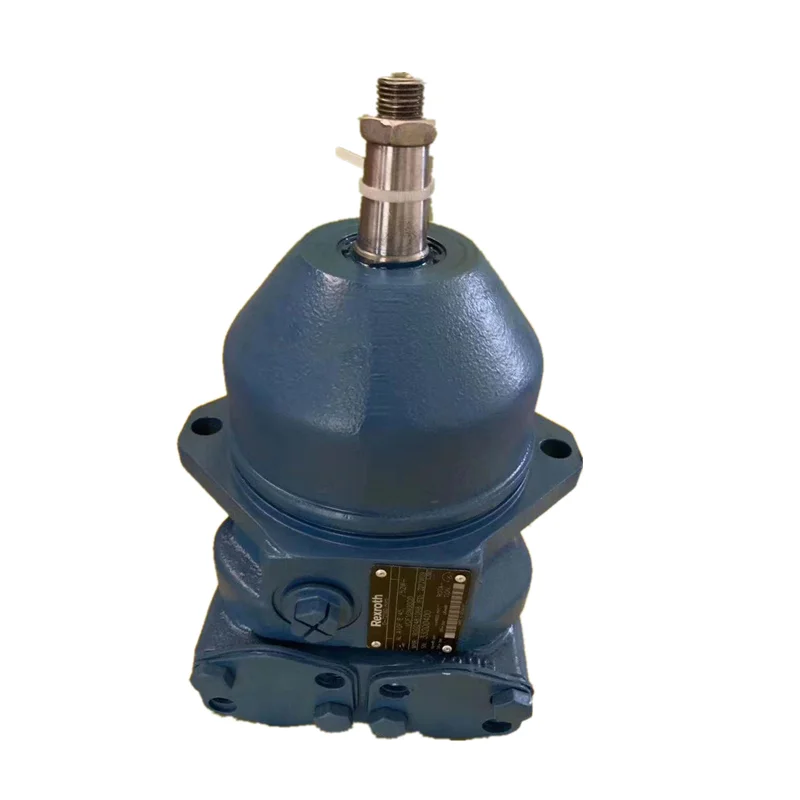

Rexroth A10FM & A10FE Series High-Speed Fixed Piston Motors
Product Overview: The Rexroth A10FM and A10FE Series are high-performance swashplate-design fixed displacement axial piston motors engineered for medium-pressure applications. These motors are renowned for their exceptional speed capabilities and compact dimensions, making them suitable for both open and closed-circuit hydraulic systems. This category features the core models: A10FM45 and A10FM37, including precise configurations like A10FM45/52W and A10FM37/52R. They are the definitive choice for excavator fan drives, agricultural machinery auxiliary power, industrial HPUs, and various high-speed transmission systems.
Key Technical Advantages:
Elite High-Speed Performance: Optimized valve plate design and lightweight piston groups allow for ultra-high RPM limits, ideal for fan cooling systems requiring rapid response.
Superior Power Density: Delivers consistent torque output within a minimal installation footprint, facilitating integration into tight engine compartments.
Low Noise Operation: Incorporates Rexroth’s leading noise-reduction technology, maintaining low decibel levels even at maximum operational speeds.
Rugged Durability: Based on the proven A10 technical platform, offering excellent resistance to shock loads and long-term sealing reliability.
Target Applications: Construction equipment fan drive motors, sweeper brush drives, compact roller auxiliary travel, and agricultural harvester systems.
Detailed Models & Parameters:
Core Series: Rexroth A10FM & A10FE Series (Fixed Displacement).

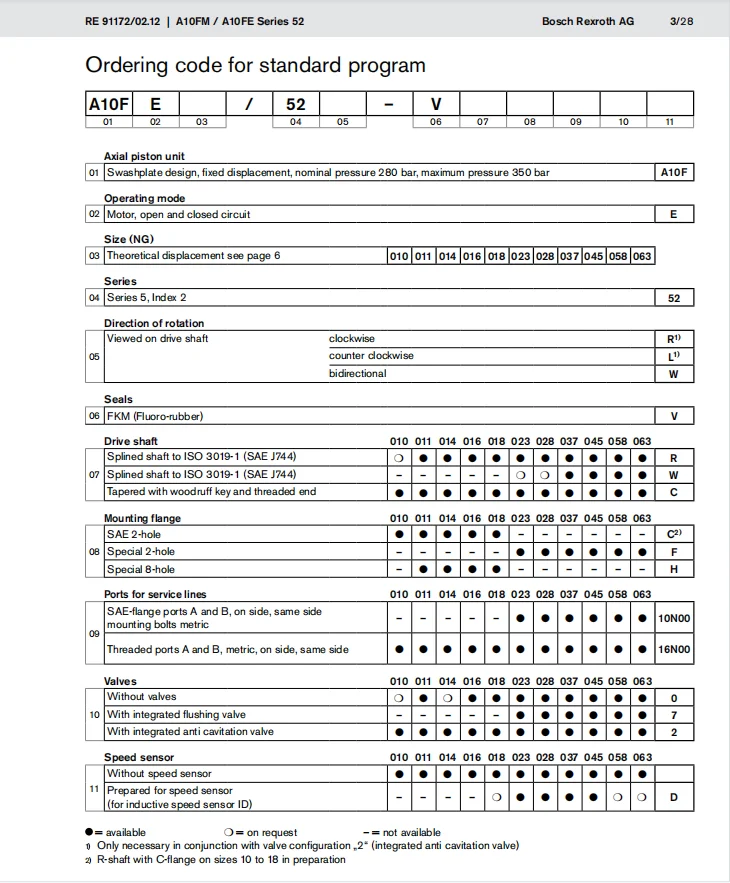

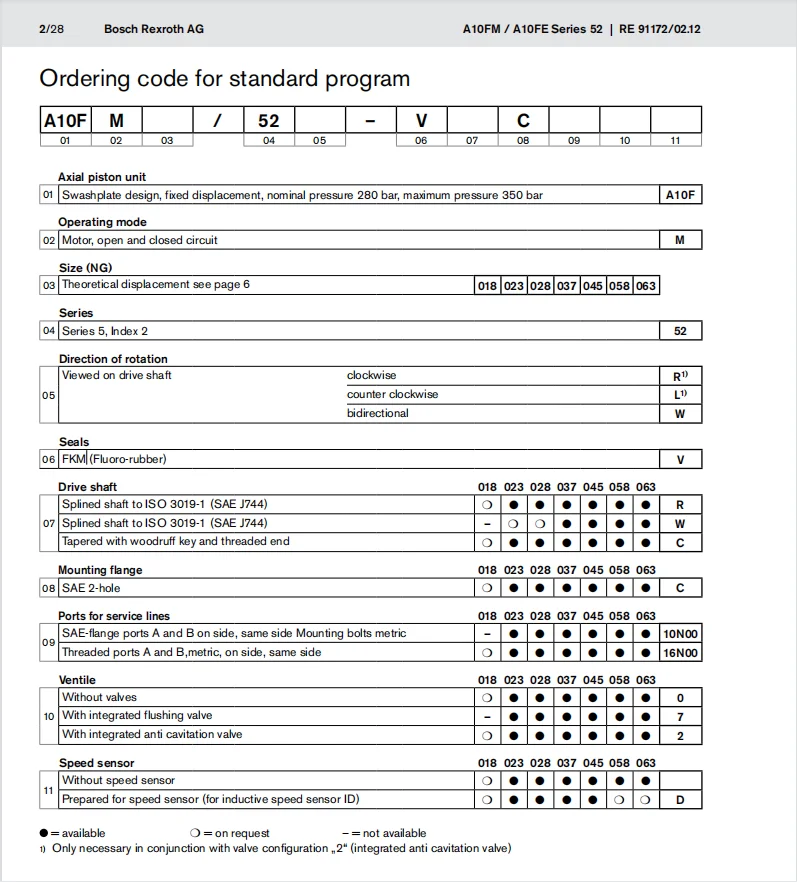

Technical Spec Decoding:
A10FM45/52W-VRC60N000: Size 45cc, Series 52 design, W-type rotation, VRC60 standard port interface.
A10FM37/52R-VRC10N002: Size 37cc, Series 52, R-type rotation, equipped with VRC10 specialized valve plate.
Core Performance Specs:
Displacement Range: 23, 28, 37, 45, 58, 63 cc/rev.
Rated Pressure: 280 Bar (4000 PSI).
Peak Pressure: 350 Bar (5100 PSI).
Max Speed: Supports up to 4000-5000 RPM (depending on frame size).
