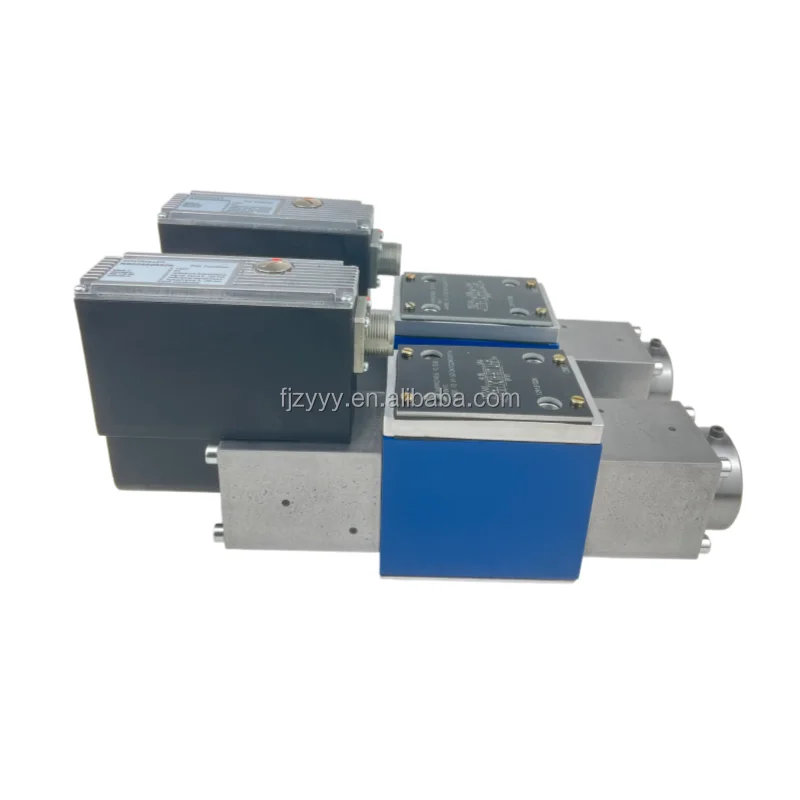

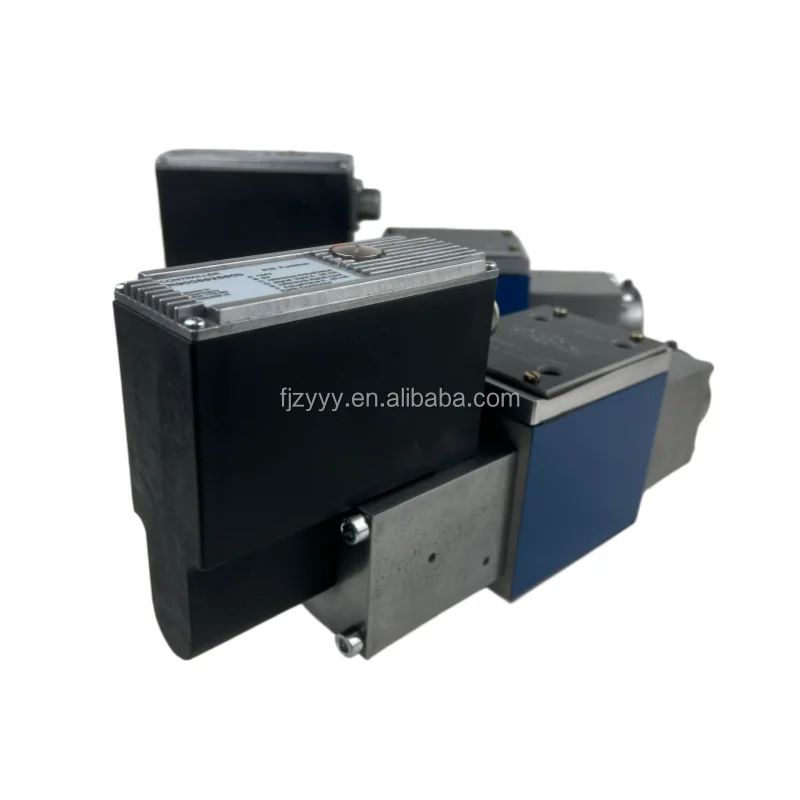

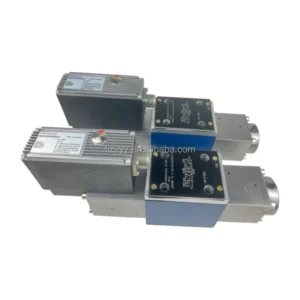

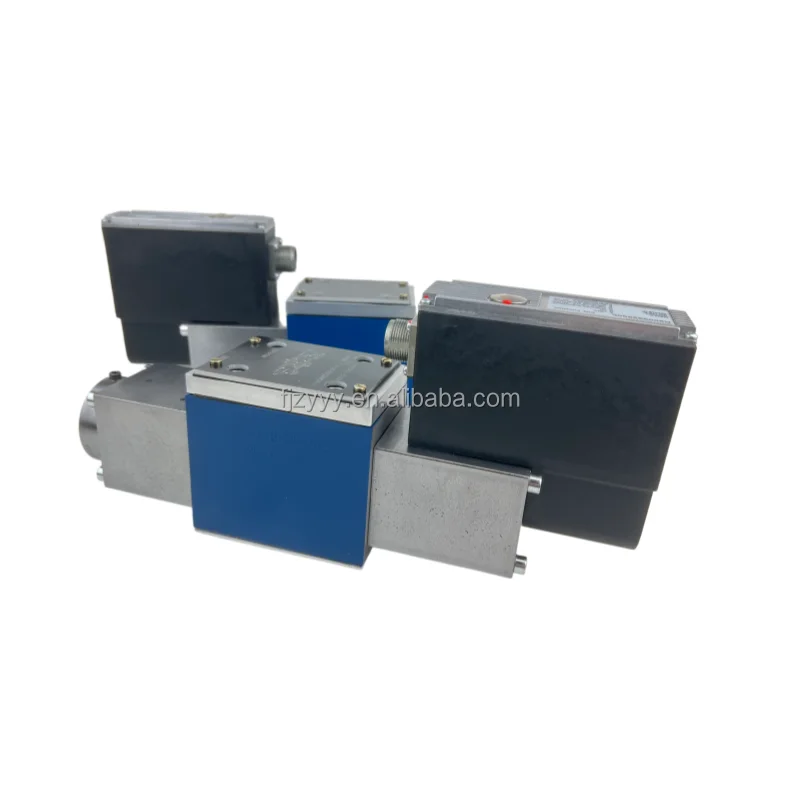

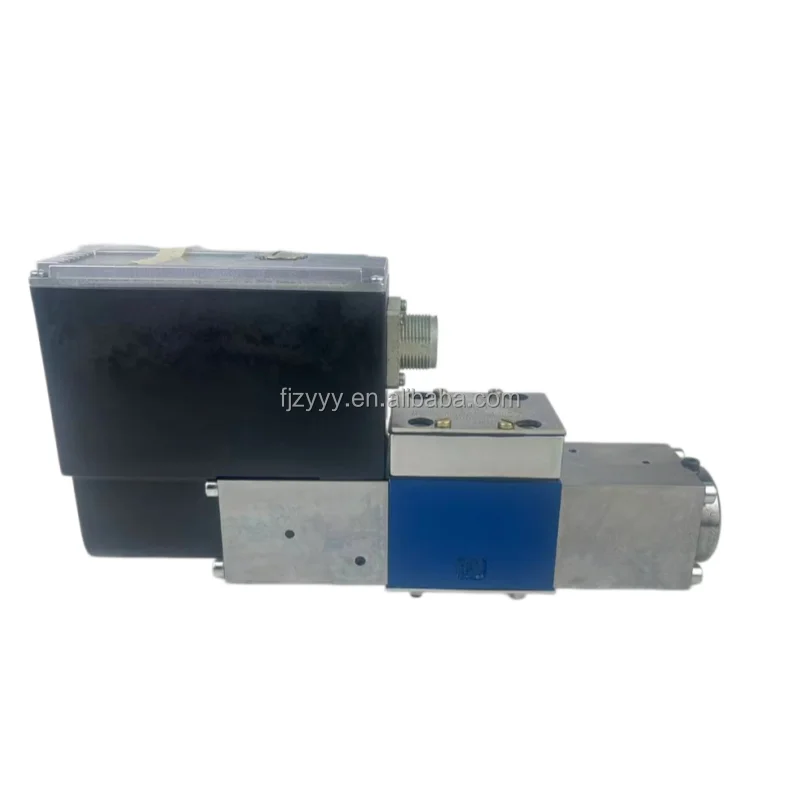

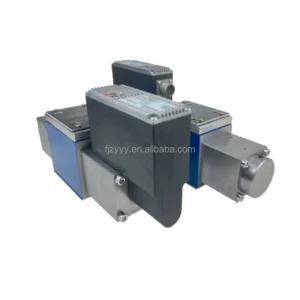

Rexroth 4WRSE Proportional Servo Valve | 4WRSE6V1 4WRSE10V80 4WRSE10V50 | High-Response Valve with OBE | NG6 NG10
| Model Number | 4WRSE 6 V1-35-3X/G24K0/A1V |
|---|
Product Description
Rexroth 4WRSE Series High-Response Servo-Proportional Valves
Product Overview:
The Rexroth 4WRSE series is a premier line of direct-operated servo-proportional directional valves, engineered specifically for closed-loop systems requiring extreme dynamic response and position accuracy. Featuring integrated Electrical Position Feedback (LVDT) and On-Board Electronics (OBE), this series ensures real-time, precision monitoring of spool displacement. With performance characteristics rivaling traditional servo valves, the 4WRSE series offers minimal hysteresis and superior repeatability, making it the industry standard for injection molding, high-precision presses, aerospace test rigs, and advanced metal forming.
Featured models: 4WRSE6V1-35-3X/G24K0/A1V, 4WRSE10V80-32/G24K0/A1V, and 4WRSE10V50-3X/G24K0/F1V.
Key Technical Advantages:
Servo-Class Dynamics: Exceptionally high frequency response bandwidth allows for flawless tracking of complex step and sine-wave signals for instantaneous control.
On-Board Electronics (OBE): Integrated digital amplifier simplifies installation, minimizes external wiring, and provides superior electromagnetic interference (EMI) resistance.
Full Closed-Loop LVDT Feedback: The built-in high-precision displacement sensor reduces hysteresis to below $0.1\%$, ensuring accurate spool positioning regardless of pressure fluctuations.
Flexible Control Interfaces: * A1V: Standard $\pm10\text{V}$ analog voltage signal.
F1V: $4-20\text{mA}$ current signal, ideal for long-distance transmission without signal loss.
Design Series 3X/32: Represents Rexroth’s latest engineering generation with optimized internal flow paths for reduced pressure drop and increased power density.
Detailed Specifications & Parameters:
Core Model Matrix:
4WRSE6V1-35: Size 6 (NG6), featuring a 35 L/min nominal flow rate for high-dynamic metering.
4WRSE10V50: Size 10 (NG10), featuring a 50 L/min nominal flow rate.
4WRSE10V80: Size 10 (NG10) High-flow version, delivering up to 80 L/min.
Core Technical Specs:
Max Operating Pressure: Up to $315\text{ bar (31.5 MPa)}$ on P, A, and B ports.
Supply Voltage: 24V DC (G24).
Control Accuracy: Linearity deviation $< 1\%$; Hysteresis $< 0.1\%$.
Seal Material: FKM (Viton) for thermal and chemical durability.
