Rexroth 4WRPEH Servo Proportional Valve | R901382347 | 4WRPEH6 | 4WRPEH10

Rexroth 4WRPEH Series High-Dynamic Direct-Operated Servo Proportional Valves

Product Overview: The Rexroth 4WRPEH Series is a direct-operated proportional directional valve with servo-grade performance. Its primary advantage lies in the integration of Closed-Loop Position Control (LVDT Feedback) and Integrated Digital On-Board Electronics (OBE). Compared to standard proportional valves, the 4WRPEH series offers significantly higher frequency response and minimal hysteresis, enabling ultra-fast and precise regulation of flow and direction. It is the premier choice for high-performance closed-loop systems such as blow molding machines, sheet metal processing, and precision hydraulic actuators.

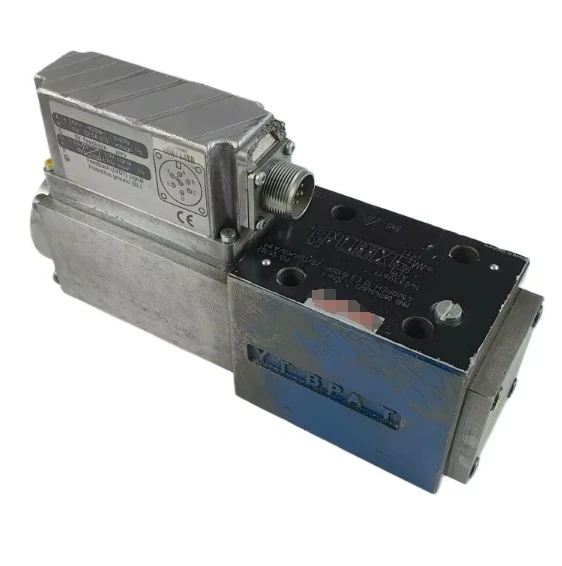

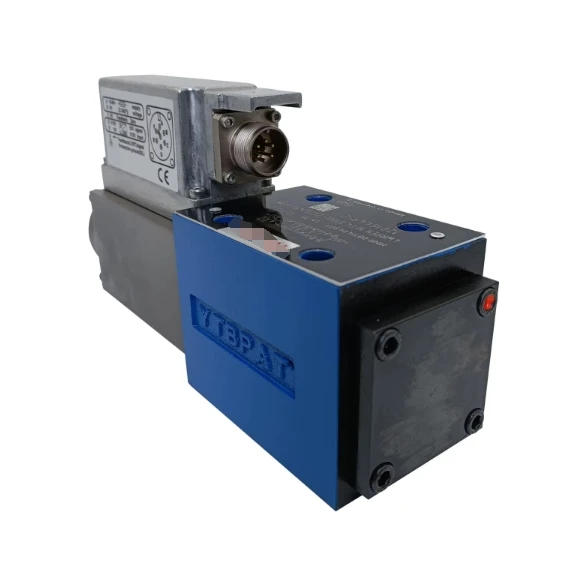

Featured models on this page include the 4WRPEH6 (R901382347) and the high-flow 4WRPEH10 series.

Key Technical Advantages:

• Servo-Grade Dynamic Response: Driven by powerful solenoids with integrated OBE, the valve delivers ultra-short step response times, allowing for real-time tracking of high-frequency signals.

• High-Precision Position Feedback: The built-in LVDT sensor monitors spool position in real-time, ensuring the spool stays exactly where the command dictates, regardless of operating conditions.

• Integrated OBE Design: On-board electronics are pre-calibrated at the factory. Users provide standard analog signals, eliminating the need for external controllers and reducing system complexity.

• Zero-Lap Spool Design: Optimized for response speed and control linearity near the neutral position, ensuring precise transitions and high resolution.

Detailed Specifications & Parameters:

• Core Series: Rexroth 4WRPEH Series (Size 6, Size 10).

• Featured Model Matrix:

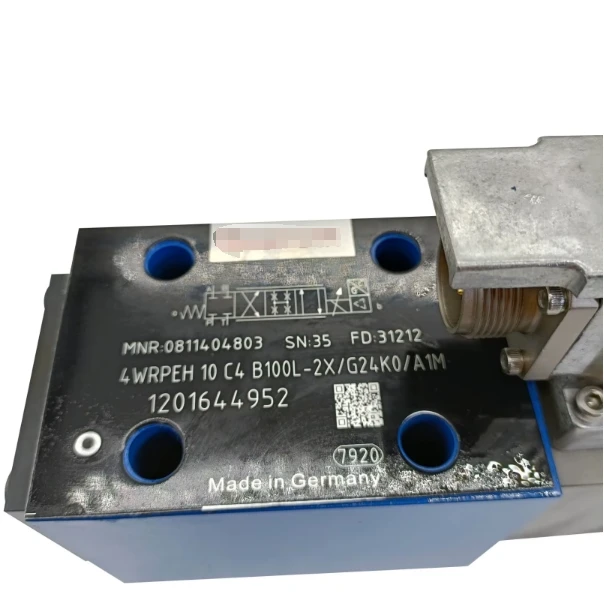

  • R901382347 (Model: 4WRPEH6C3B04L-3X/M/24A1)

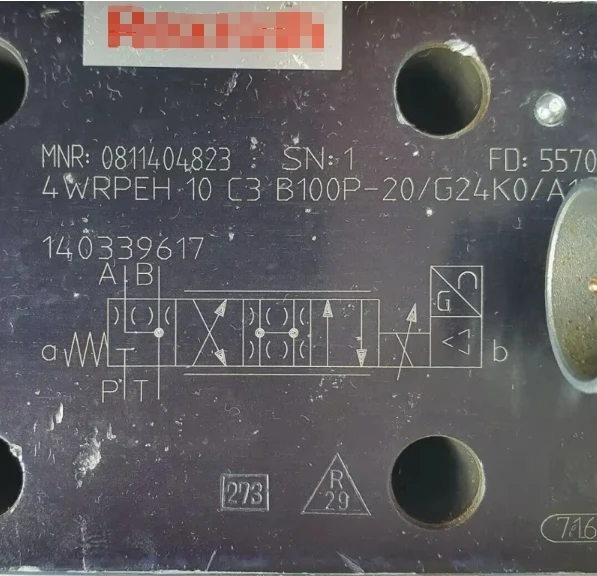

  • 4WRPEH10C3B100P-20 (2.0 Design Sequence)

  • 4WRPEH10C3B100P-2X/G24K0/A1M (Size 10, A1 Interface)

• Core Performance Specs:

  • Nominal Sizes: NG6 (Size 6) and NG10 (Size 10).

  • Max Operating Pressure: Up to 315 Bar (4,500 PSI) at ports P, A, and B.

  • Rated Flow: Ranges from 4 L/min (Size 6) to 100 L/min (Size 10).

  • Spool Function: C3B (4/4-way, closed center).

  • Supply Voltage: 24V DC.

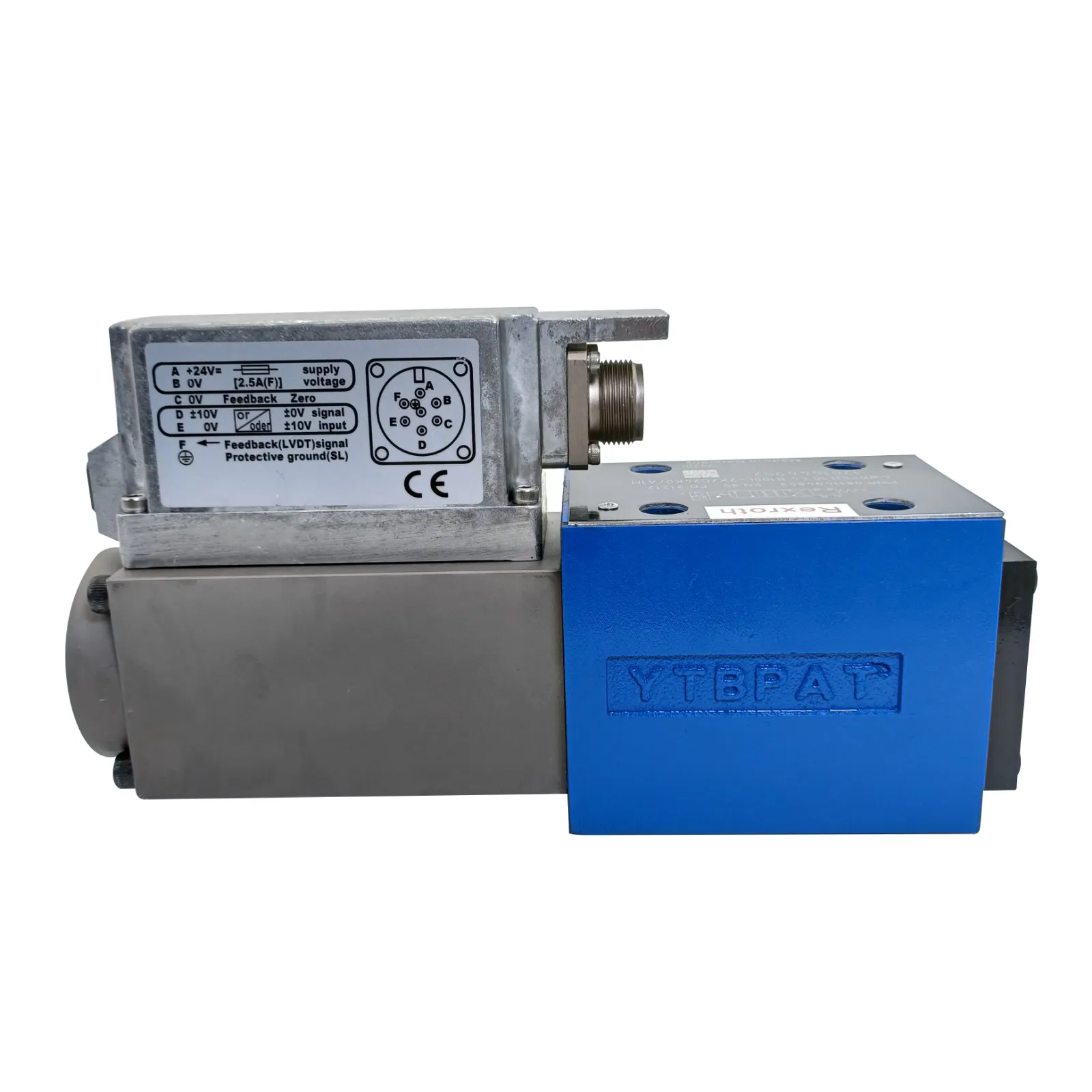

  • Electrical Interface: K0 (6P+PE connector) or A1 (M12 connector).
