Rexroth 4WMM Series Manual Valve | 4WMM6 4WMM10 | 4WMM6-J6X 4WMM10-E3X | Manual Operated Directional Valve
| Model Number | 4WMM6, 4WMM10 |
|---|
Product Description

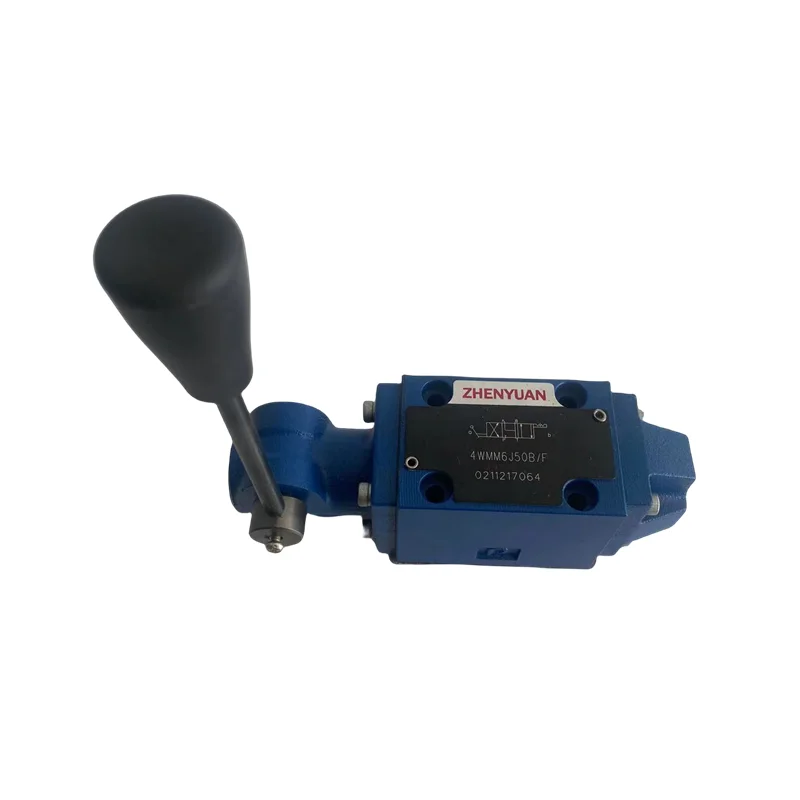

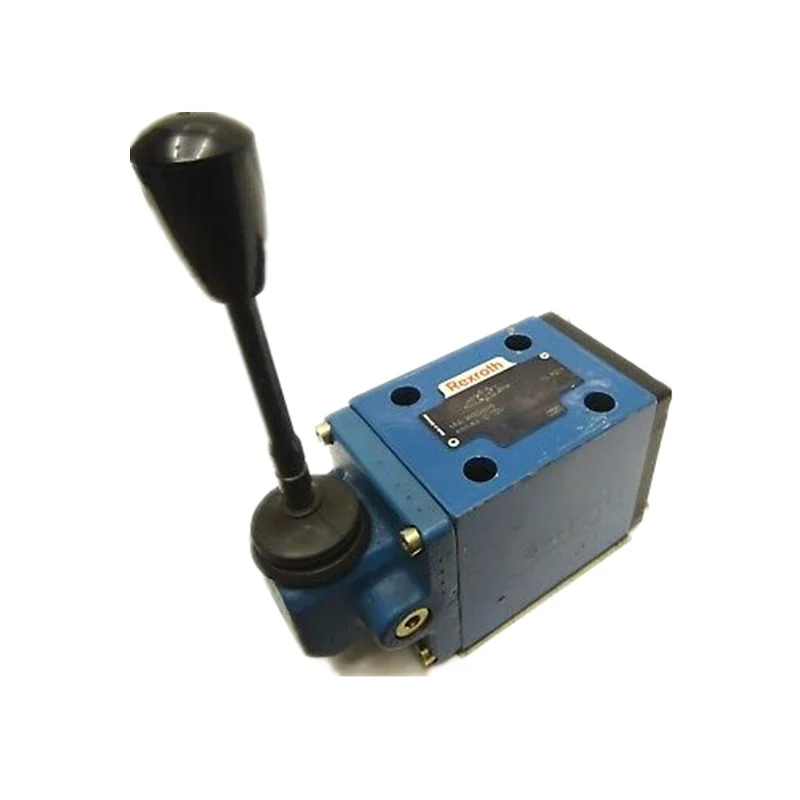

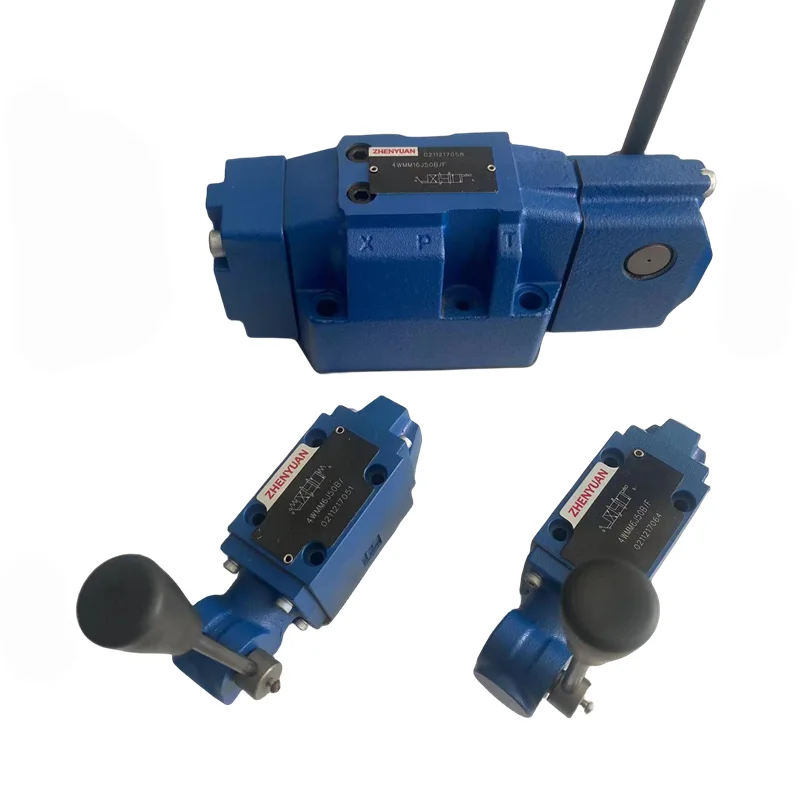

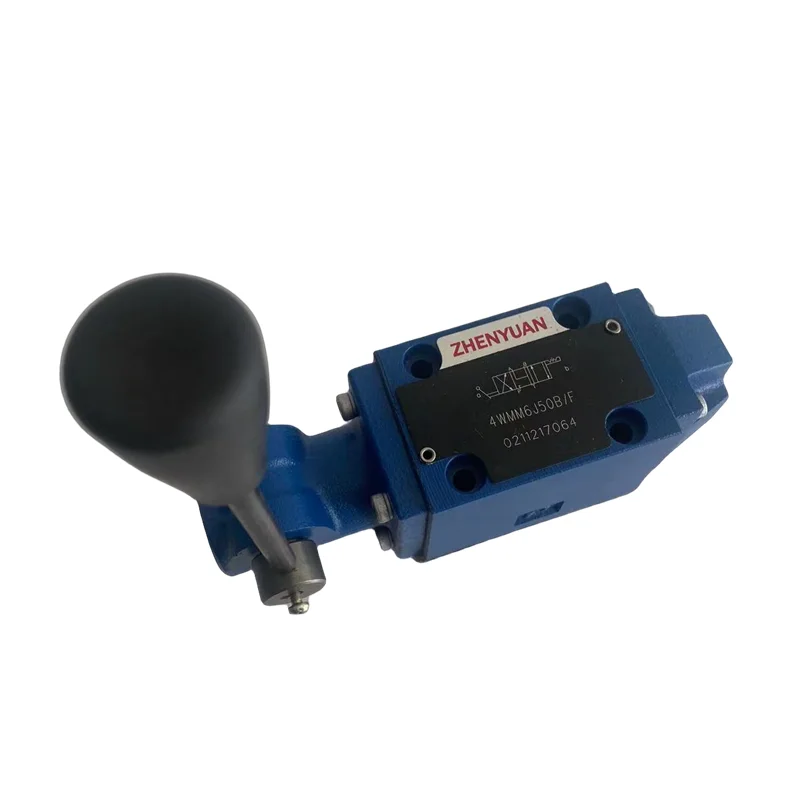

4WMM Series Manual Operated Directional Valves
Product Overview: The 4WMM series is a hand-lever operated spool valve designed to control the start, stop, and direction of fluid flow within hydraulic systems. Since this series relies entirely on manual mechanical actuation, it requires no solenoids or electrical wiring, making it ideal for explosion-proof environments, mobile machinery, and emergency control systems where power is limited. Available in both compact Size 6 (NG6) and high-flow Size 10 (NG10), the 4WMM series is an industry benchmark for tactile precision and exceptional durability.
Featured models: 4WMM6-J6X-IN002, 4WMM6-H6X, 4WMM6-D53, 4WMM10-E3X/F, and 4WMM10-J31.
Key Technical Advantages:
Independent Mechanical Control: Operates without electrical systems, simplifying machine structure and reducing overall maintenance costs.
Precise Tactile Feedback: Optimized lever torque design ensures smooth and fine-tuned shifting even under significant load pressures.
Versatile Spool Functions: Offers a wide range of center positions (e.g., J, H, E, D types) to facilitate floating, locking, or differential control for actuators.
High Environmental Resilience: Rugged cast-iron construction and robust sealing allow stable operation in extreme heat, high humidity, or hazardous/explosive conditions.
Detailed Specifications & Parameters:
Featured Model Matrix:

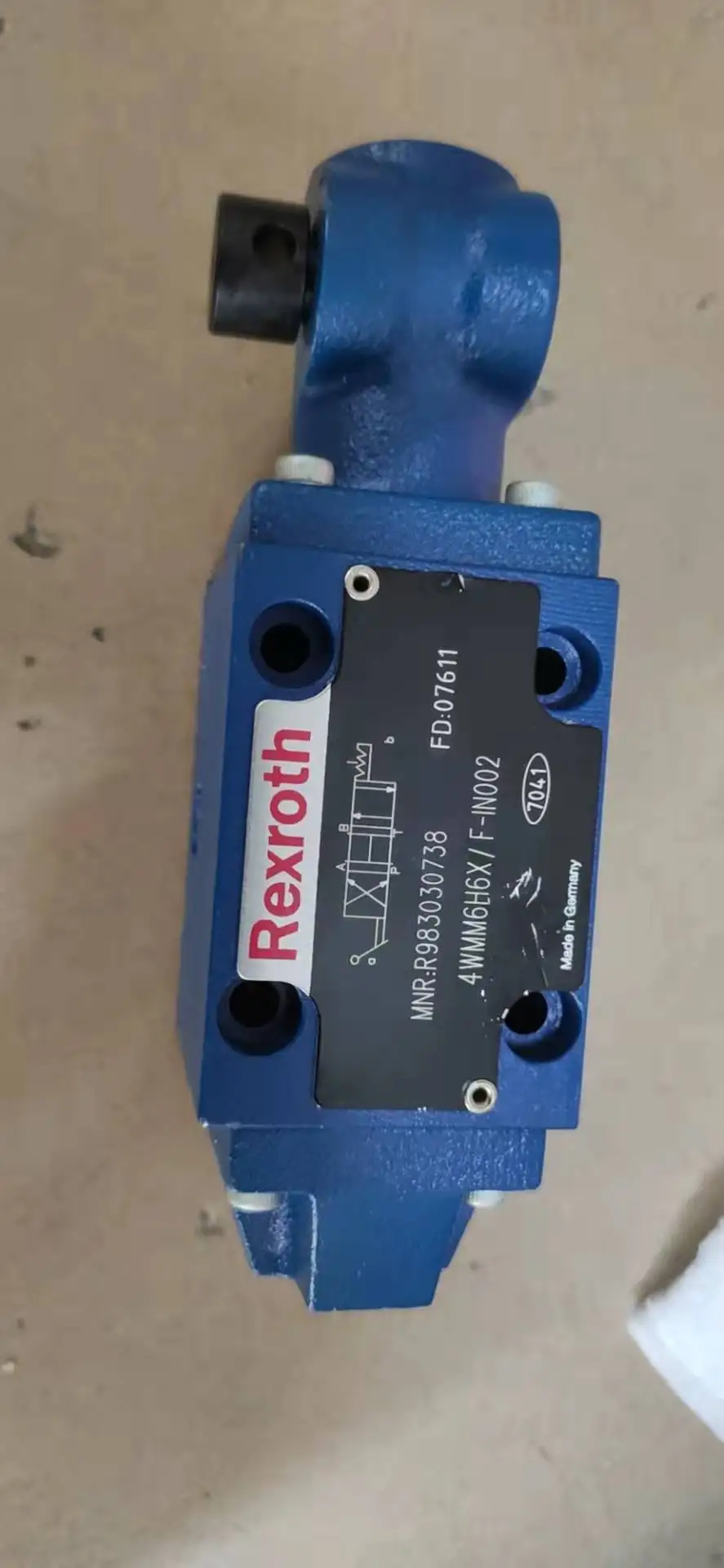

4WMM6-J6X-IN002: Size 6, Spool function J (P blocked, A/B to T in center), Series 6X, with specialized IN002 coating.
4WMM6-H6X / D53: Size 6, standard manual mechanism for 31.5 MPa applications.

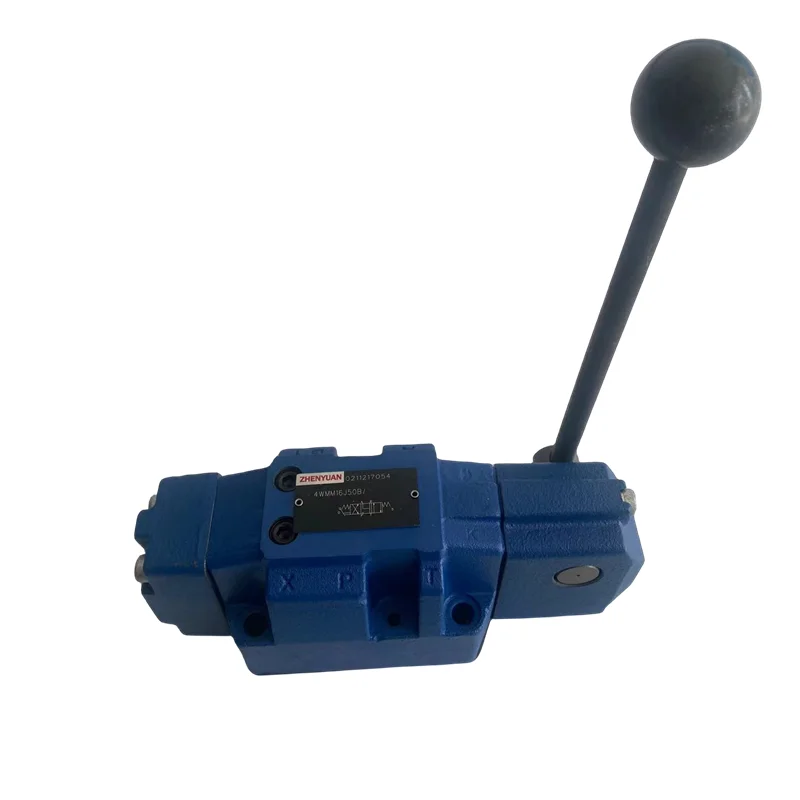

4WMM10-E3X/F: Size 10, Spool function E (P/T/A/B all blocked), with return spring or detent.
Core Technical Specs:
Max Operating Pressure: Up to 31.5 MPa (315 bar) on ports P, A, and B.
Max Flow Capacity: Up to 60 L/min for NG6 and 120 L/min for NG10.
Mounting Standard: Complies with ISO 4401-03 (Size 6) and ISO 4401-05 (Size 10).
Lever Operation: Ergonomic lever with adjustable mounting angles to suit various installation spaces.
